LC6520HDIP42S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LC6520HDIP42S

LC6520HDIP42S: DescriptionMicrocontroller, 4-Bit, MROM, 4.2MHz, CMOS, PDIP42, SDIP-42; CategoryThe embedded processor and controller Microcontrollers and processors; File Size779KB，29 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC6520HDIP42S Overview

Microcontroller, 4-Bit, MROM, 4.2MHz, CMOS, PDIP42, SDIP-42

LC6520HDIP42S Parametric

Parameter Name	Attribute value
Maker	SANYO
Objectid	1482886972
Parts packaging code	DIP
package instruction	SDIP,
Contacts	42
Reach Compliance Code	unknown
compound_id	11149872
Has ADC	NO
Other features	PRESCALER
Address bus width
bit size	4
boundary scan	NO
maximum clock frequency	4.33 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T42
length	37.9 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	36
Number of serial I/Os	1
Number of terminals	42
Number of timers	1
On-chip data RAM width	4
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	4000
ROM programmability	MROM
Maximum seat height	5.1 mm
speed	4.2 MHz
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

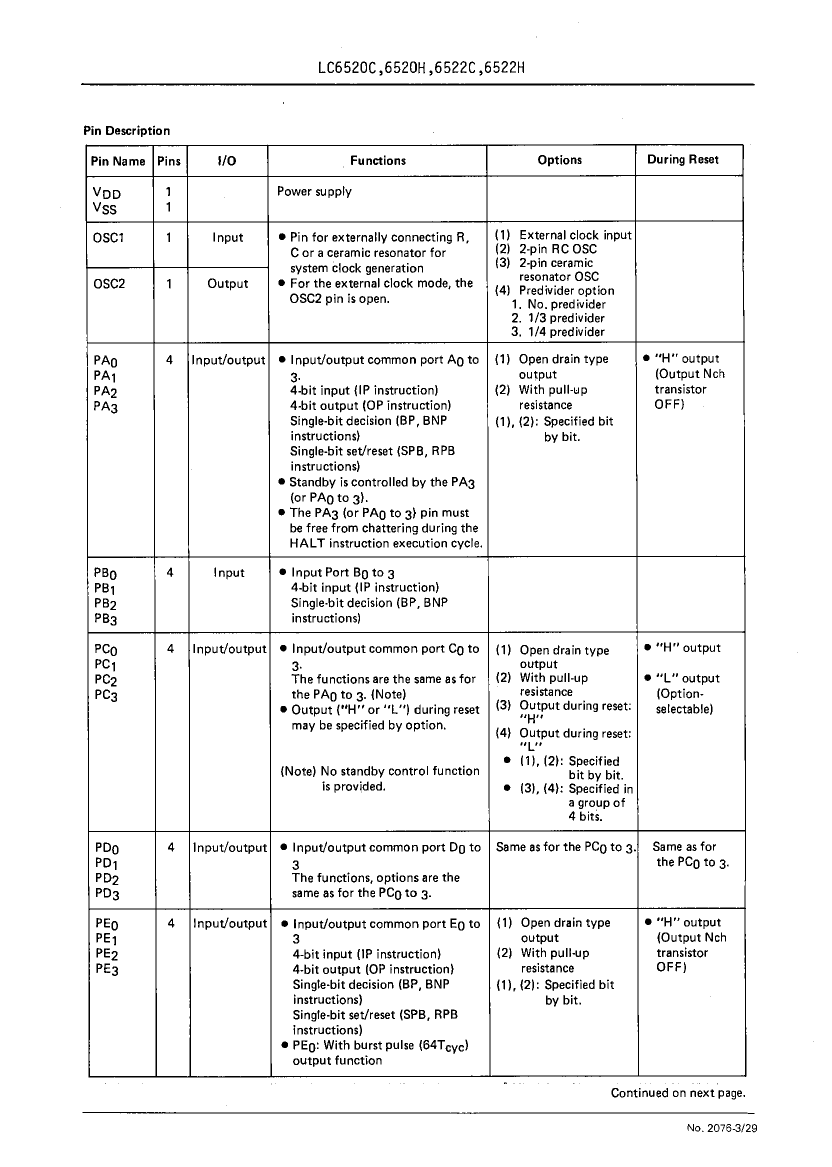

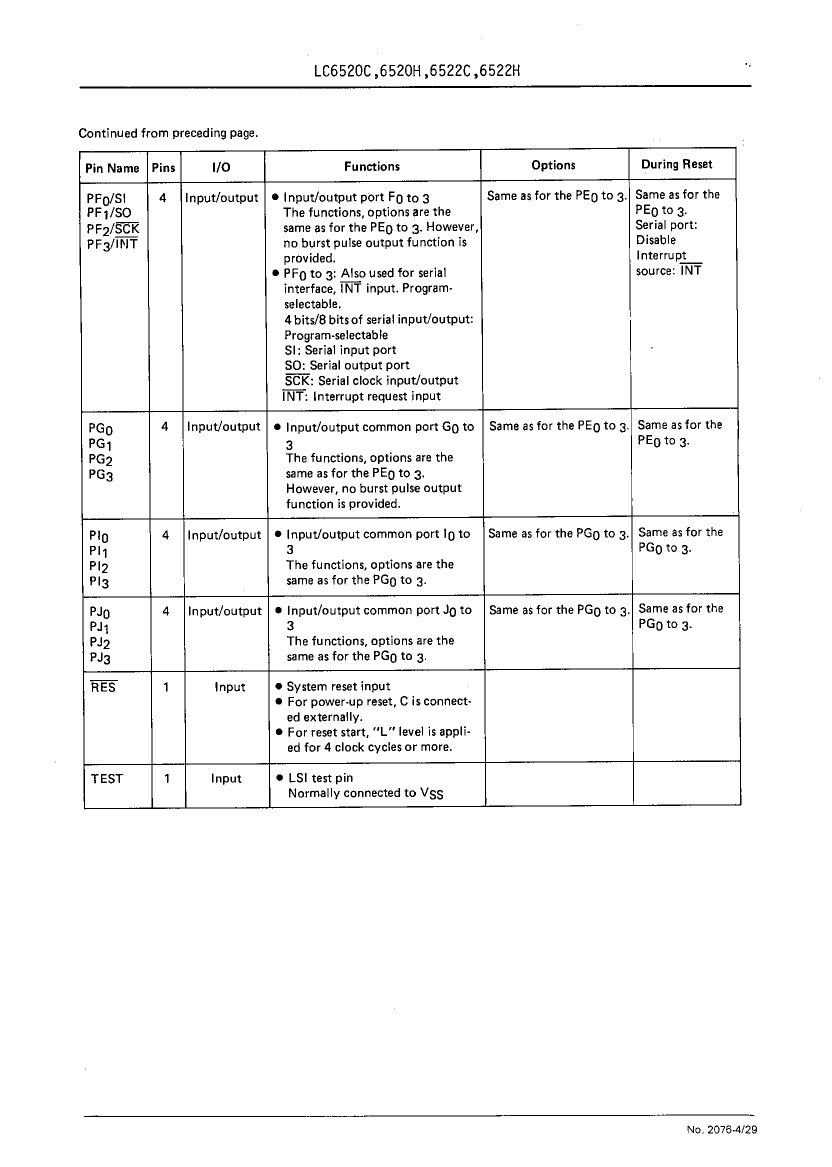

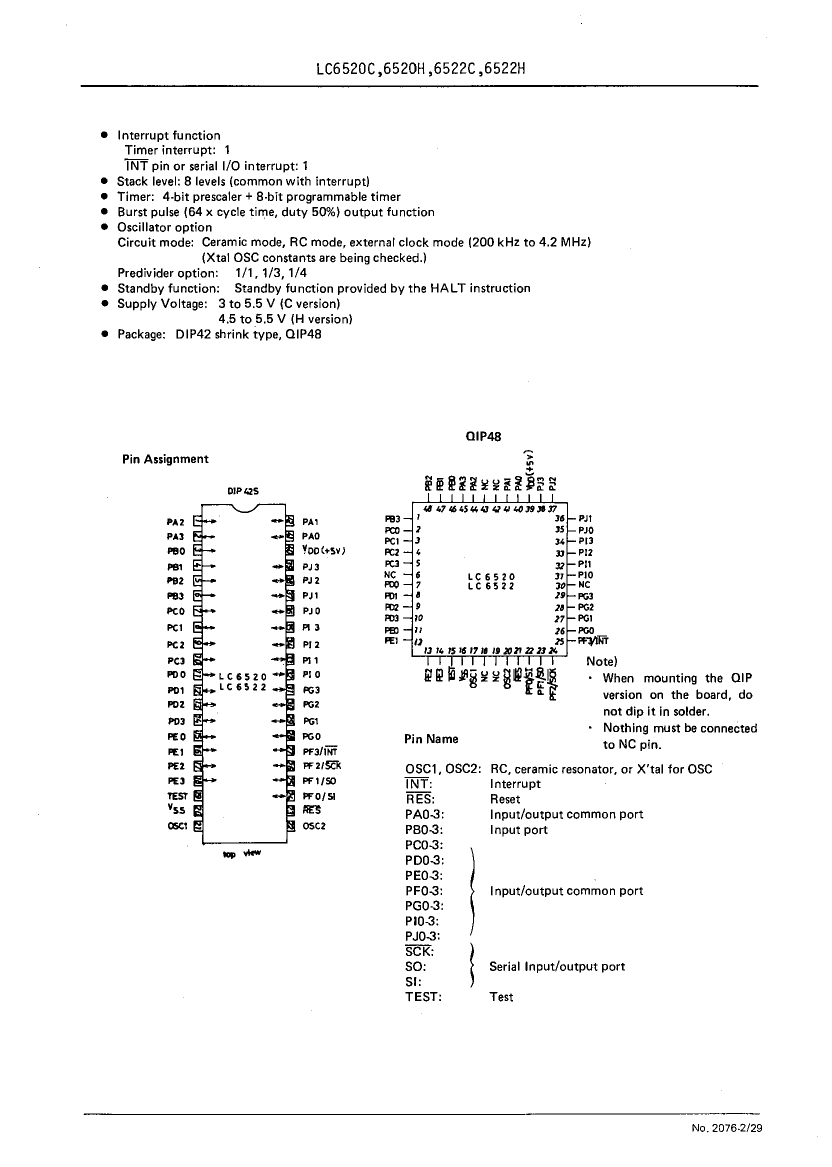

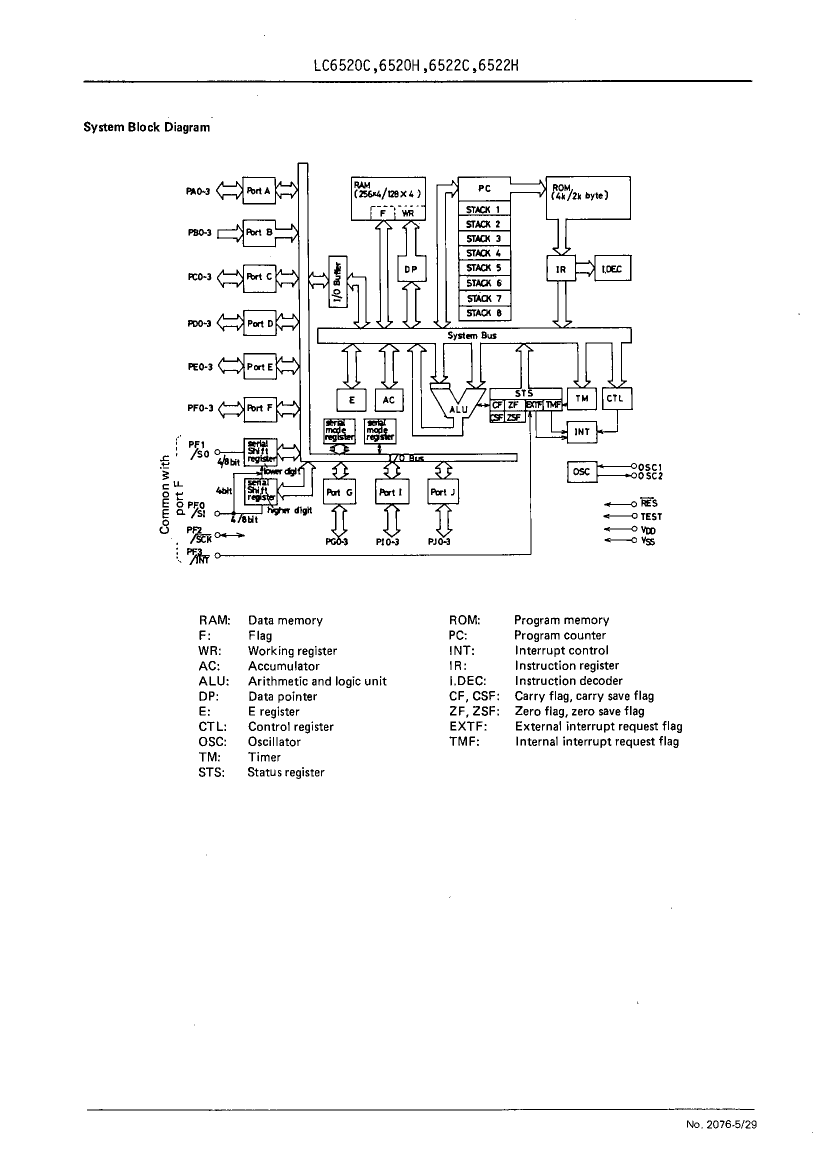

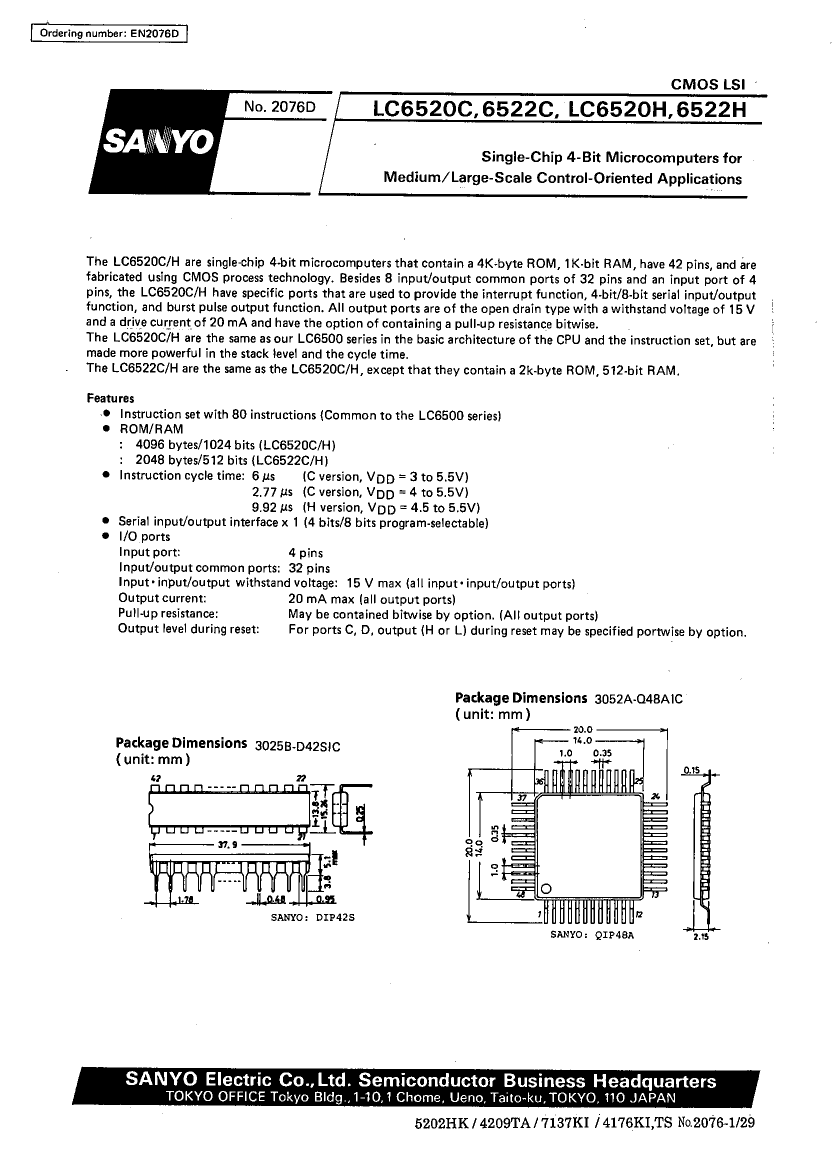

Preview

Download Datasheet

View All

LC6520HDIP42S Related Products

	LC6520HDIP42S	LC6520CQIP48A	LC6522HDIP42S	LC6522CDIP42S	LC6522CQIP48A	LC6520CDIP42S	LC6520HQIP48A
Description	Microcontroller, 4-Bit, MROM, 4.2MHz, CMOS, PDIP42, SDIP-42	Microcontroller, 4-Bit, MROM, 4.2MHz, CMOS, PQFP48, QIP-48	Microcontroller, 4-Bit, MROM, 4.2MHz, CMOS, PDIP42, SDIP-42	Microcontroller, 4-Bit, MROM, 4.2MHz, CMOS, PDIP42, SDIP-42	Microcontroller, 4-Bit, MROM, 4.2MHz, CMOS, PQFP48, QIP-48	Microcontroller, 4-Bit, MROM, 4.2MHz, CMOS, PDIP42, SDIP-42	Microcontroller, 4-Bit, MROM, 4.2MHz, CMOS, PQFP48, QIP-48
Parts packaging code	DIP	QFP	DIP	DIP	QFP	DIP	QFP
package instruction	SDIP,	QFP,	SDIP,	SDIP,	QFP,	SDIP,	QFP,
Contacts	42	48	42	42	48	42	48
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO
Other features	PRESCALER	PRESCALER	PRESCALER	PRESCALER	PRESCALER	PRESCALER	PRESCALER
bit size	4	4	4	4	4	4	4
boundary scan	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T42	S-PQFP-G48	R-PDIP-T42	R-PDIP-T42	S-PQFP-G48	R-PDIP-T42	S-PQFP-G48
length	37.9 mm	14 mm	37.9 mm	37.9 mm	14 mm	37.9 mm	14 mm
low power mode	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	1	1	1	1	1	1	1
Number of I/O lines	36	36	36	36	36	36	36
Number of serial I/Os	1	1	1	1	1	1	1
Number of terminals	42	48	42	42	48	42	48
Number of timers	1	1	1	1	1	1	1
On-chip data RAM width	4	4	4	4	4	4	4
On-chip program ROM width	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	QFP	SDIP	SDIP	QFP	SDIP	QFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE, SHRINK PITCH	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	256	256	128	128	128	256	256
rom(word)	4000	4000	2000	2000	2000	4000	4000
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM	MROM
speed	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz
Maximum slew rate	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	3 V	4.5 V	3 V	3 V	3 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.778 mm	1 mm	1.778 mm	1.778 mm	1 mm	1.778 mm	1 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD
width	15.24 mm	14 mm	15.24 mm	15.24 mm	14 mm	15.24 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	SANYO	-	SANYO	SANYO	SANYO	SANYO	SANYO
Maximum seat height	5.1 mm	-	5.1 mm	5.1 mm	-	5.1 mm	-
