Ceramic transient voltage suppressors
SMD multilayer varistor for high temperature application
Series/Type:
Ordering code:
Date:
Version:
CN0805S14BAUTOHTG2
B72510H1140S272
2009-07-16
6
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
(header 1 + top left header bar):
Identification/Classification 2
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
Series/Type: (top right header bar)
Preliminary data (optional):
(if necessary)
Department:
Date:
Version:
Prepared by:
Release signed by:
Release signed QS:
Modifications/Remarks:
KB VS PE
2009-07-16
6
Dr. Kofler
Dr. Engel/Hr. Feichtinger
Hr. Schlauer
Correction Designation system and DC voltage
xxxx
xxxx
Ceramic transient voltage suppressors
SMD multilayer varistor for high temperature application
B72510H1140S272
CN0805S14BAUTOHTG2
EPCOS AG 2009. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited
Ceramic transient voltage suppressors
SMD multilayer varistor for high temperature application
B72510H1140S272
CN0805S14BAUTOHTG2
Designation system
CN
0805
S...B
14
AUTO
HT
G2
=
chip not
molded
= dimensions of the device
08
x
05
(length x width in 1/100 inch)
=
special
tolerance
B
of the varistor voltage
= max. RMS operating voltage
= suited for
AUTOmotive
application
=
high
maximum operating
temperature
(150 °C)
= taped version, blister tape, 13" reel (12000 pcs./ reel)
Electrical data
Max. operating voltage
RMS voltage
DC voltage
Varistor voltage (@ 1 mA, 25 °C)
Max. clamping voltage (@ 1 A)
Max. average power dissipation
Max. surge current (8/20 µs)
Max. energy absorption (2 ms)
Load dump
Jump start
Capacitance (@ 1 MHz, 1 V, 25 °C; typical)
Response time
Operating temperature
Storage temperature (mounted parts)
V
RMS
= 14 V
V
DC
= 18 V
V
V
= 22.0…27.0 V
V
clamp
= 42 V
P
diss,max
= 5 mW
I
surge,max
= 1 x 120 A
W
max
= 1 x 0.3 J
W
LD
= 10 x 1 J
V
jump
= 27 V, 5 min.
C
typ
½
400 pF
< 0.5 ns
–55 ... +150 °C
–55 ... +150 °C
KB VS PE
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 12
2009-07-16
Ceramic transient voltage suppressors
SMD multilayer varistor for high temperature application
B72510H1140S272
CN0805S14BAUTOHTG2

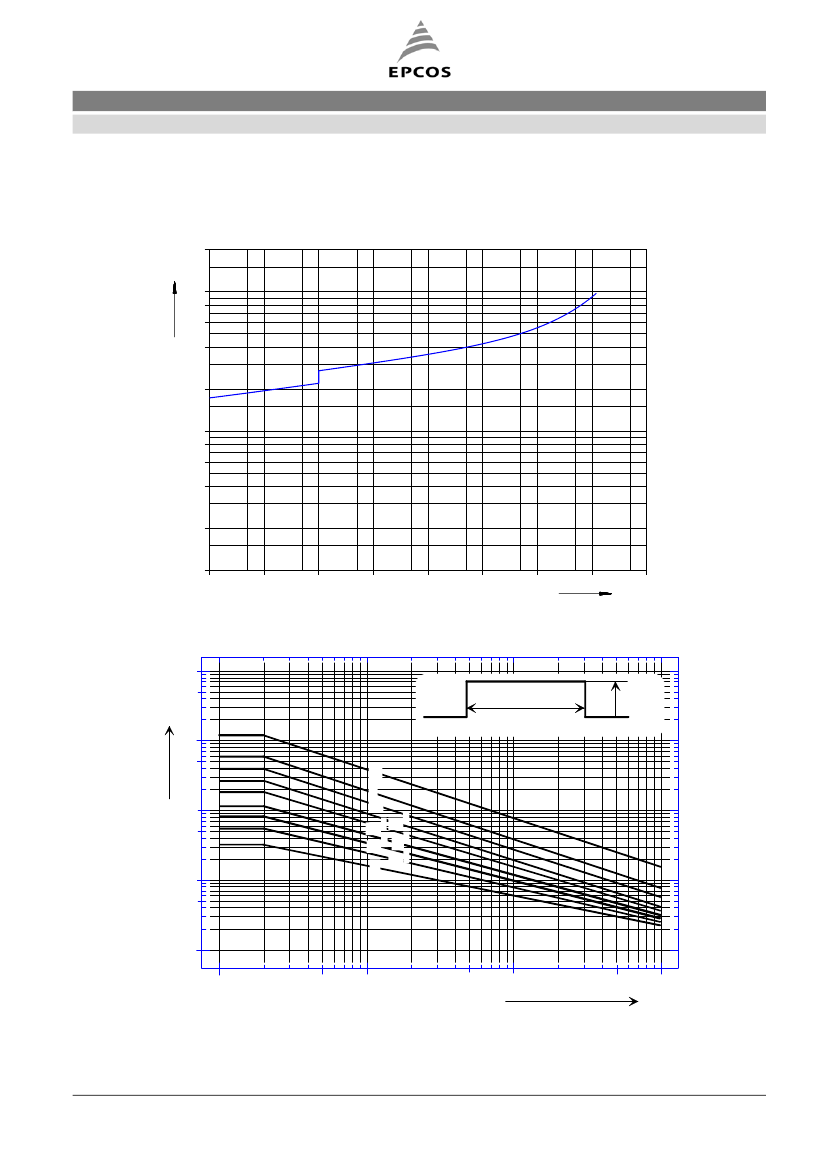

v/i-characteristic
200
V
v
100
80
60
40
VAR9054B
20
10
8
6
4
2
1
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
i
A 10
3
Derating field
10
i
max
2
10
5
1x
2
10
2
10 3 10
5 4
10 10
6
10
3
i
t
r
max
A
1
10
5
10
0
5
10
-1
10
5
100
5
1000
5 µs
10000
t
r
KB VS PE
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 12
2009-07-16
Ceramic transient voltage suppressors
SMD multilayer varistor for high temperature application
B72510H1140S272
CN0805S14BAUTOHTG2
Temperature derating
Max. current, energy, operating voltage and average power
dissipation depending on ambient temperature
%
100
90
80
70
60
50
40
30
20
10
0
-55
100
110
120
130
140
150
160
170
180 °C
Ambient temperature
The above diagram is only valid for MLV with conductive adhesive technology.
Dimensional drawing in mm
b
k
k
KKE0329-N
l=
b=
s=
k=
2.0 ±0.20
1.25 ±0.15
1.4 max.
0.13…0.75
Termination material
AgPd
Suitable for conductive adhesive technology only.
KB VS PE
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 12
s
2009-07-16
Ceramic transient voltage suppressors
SMD multilayer varistor for high temperature application
B72510H1140S272
CN0805S14BAUTOHTG2
Storage condition
As far as possible, the components should be employed within 6 months after delivery from
EPCOS.
They should be left in their original packing to avoid soldering problems due to oxidized
contacts.
Storage temperature:
−
25 up to + 45°C.
Relative humidity: < 75 % annual average, < 95 % on max. 30 days in a year.
