LE79231DJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> LE79231DJC

LE79231DJC: DescriptionSLIC, Bipolar, PQCC32, GREEN, PLASTIC, MS-016, LCC-32; CategoryWireless rf/communication Telecom circuit; File Size524KB，2 Pages; ManufacturerZarlink Semiconductor (Microsemi); Websitehttp://www.zarlink.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LE79231DJC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LE79231DJC	-	-	View	Buy Now

LE79231DJC Overview

SLIC, Bipolar, PQCC32, GREEN, PLASTIC, MS-016, LCC-32

LE79231DJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zarlink Semiconductor (Microsemi)
Objectid	1736566458
package instruction	QCCJ, LDCC32,.5X.6
Reach Compliance Code	unknown
compound_id	216775070
battery fed	CONSTANT CURRENT
Battery powered	-15 TO -99 V
JESD-30 code	R-PQCC-J32
length	13.97 mm
maximum noise	11 dBrnC
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
PSRR-Min	25 dB
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC32,.5X.6
Package shape	RECTANGULAR
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.556 mm
Maximum slew rate	0.01 mA
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Telecom integrated circuit types	SLIC
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm

Preview

Download Datasheet

View All

PRODUCT

PREVIEW

THE VE790 SERIES PROVIDES A TOTAL LINE CARD SOLUTION THAT

GIVES CUSTOMERS TOTAL FLEXIBILITY IN DESIGNS RANGING FROM

INTERNAL OR EXTERNAL RINGING TO CALL CONTROL AGGREGA-

TION AND INTEGRATED LINE TESTING.

The VE790 VoiceEdge™ VE790 Series is a high-performance, highly programma-

ble integrated voice chip set that performs all the functions necessary to create a

2-wire, twisted-pair telephone interface from any broadband digital source. The

VE790 Series includes 2-, 4-, and 8-channel programmable codecs along with

short, medium and long loop length SLIC devices that together operate with

minimal external components and include software to provide a complete sys-

tem solution.

Programmability and integrated line testing when used with the optional Le79112

VCP I or Le79114 VCP II device, make the Ve790 Series the most flexible chip set

available.

Features

Complete system solution: SLAC

device, SLIC device, LCAS device,

VCP, integrated test firmware, and

regional coefficient generation

Supports comprehensive "Carrier

Class" self and loop testability

Control aggregation with the VCP

Enables high system Integration and

implementation density

Available support tools

Standards: compliant with all

relevant ANSI and ETSI standards,

including GR- 822, GR-909, and

GR-844 line measurement

requirements

Benefits

Complete BORSCHT functionality in

one chip set

Provide early detection of existing or

future telephone line or equipment

failures and line performance

characteristics

Eliminates unnecessary truck rolls

Carrier class line testing for remote

applications

Off-loads real time control

and management from the

microprocessor for up to 32 channels

allowing the use of a lower cost/

power host processor

Integrated ringing and test

eliminates need for external relays

Self diagnostics & system testing

lower cost

Applications

Central Office (CO)

Digital Loop Carrier (DLC)

Integrated Voice and Data (IVD )

Voice Enabled DSLAM

PBX / KTS

Pair Gain

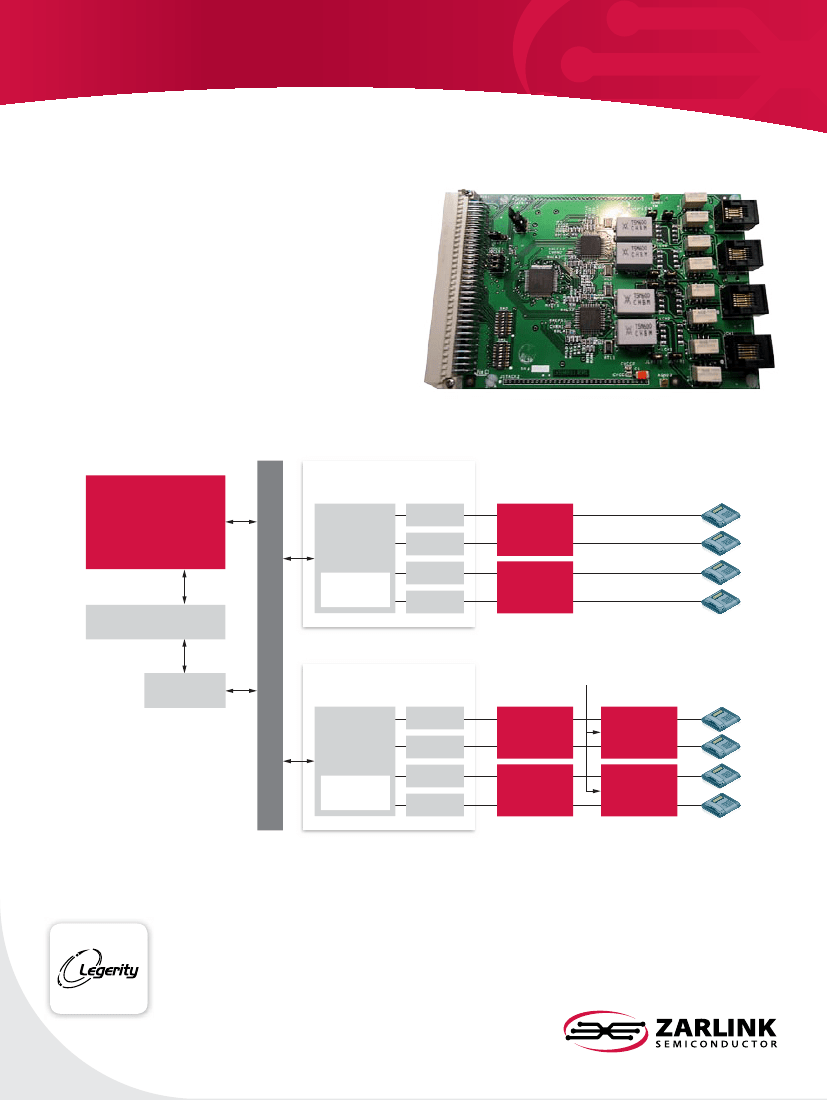

VE790

SERIES

Not actual size

Line

Testing

Le79231

Le79232

SLICs

Le79242

Le79252

Le79R241

Le792231

Codecs

Le792288

Le79Q2281

Le79Q2284

VCPs

Le79112

Le79114

Yes

Possible

Yes

# of

Channels

Programmable

Application

Supply

Voltage

-99V

-72V

-115V

Positive

and

Negative

Battery

-99V

Ringing

External

Internal

Via SLAC

Yes

DLC, CO,

IVD, FTTX,

DSLAM,PBX

CPE, ONT,

FTTx

DLC, CO,

IVD, FTTx,

DSLAM,PBX

DLC,

CO, IVD,

DSLAM,PBX

3.3V

3.3 V

LE79231DJC Related Products

	LE79231DJC	LE79231DJCT
Description	SLIC, Bipolar, PQCC32, GREEN, PLASTIC, MS-016, LCC-32	SLIC, PQCC32,
Is it Rohs certified?	conform to	conform to
Maker	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)
package instruction	QCCJ, LDCC32,.5X.6	QCCJ, LDCC32,.5X.6
Reach Compliance Code	unknown	unknown
battery fed	CONSTANT CURRENT	CONSTANT CURRENT
Battery powered	-15 TO -99 V	-15 TO -70 V
JESD-30 code	R-PQCC-J32	R-PQCC-J32
maximum noise	11 dBrnC	11 dBrnC
Number of terminals	32	32
Maximum operating temperature	70 °C	85 °C
PSRR-Min	25 dB	25 dB
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC32,.5X.6	LDCC32,.5X.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	0.01 mA	10 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
Telecom integrated circuit types	SLIC	SLIC
Temperature level	COMMERCIAL	INDUSTRIAL
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
