UM61166L-35 datasheet, PDF - EEWORLD Datasheet

UM61166L-35: Description4K x 16 CMOS CACHE RAM; Categorystorage storage; File Size491KB，8 Pages; ManufacturerUnited Microelectronics Corporation; Websitehttp://www.umc.com/

Download Datasheet Parametric Compare View All

UM61166L-35 Overview

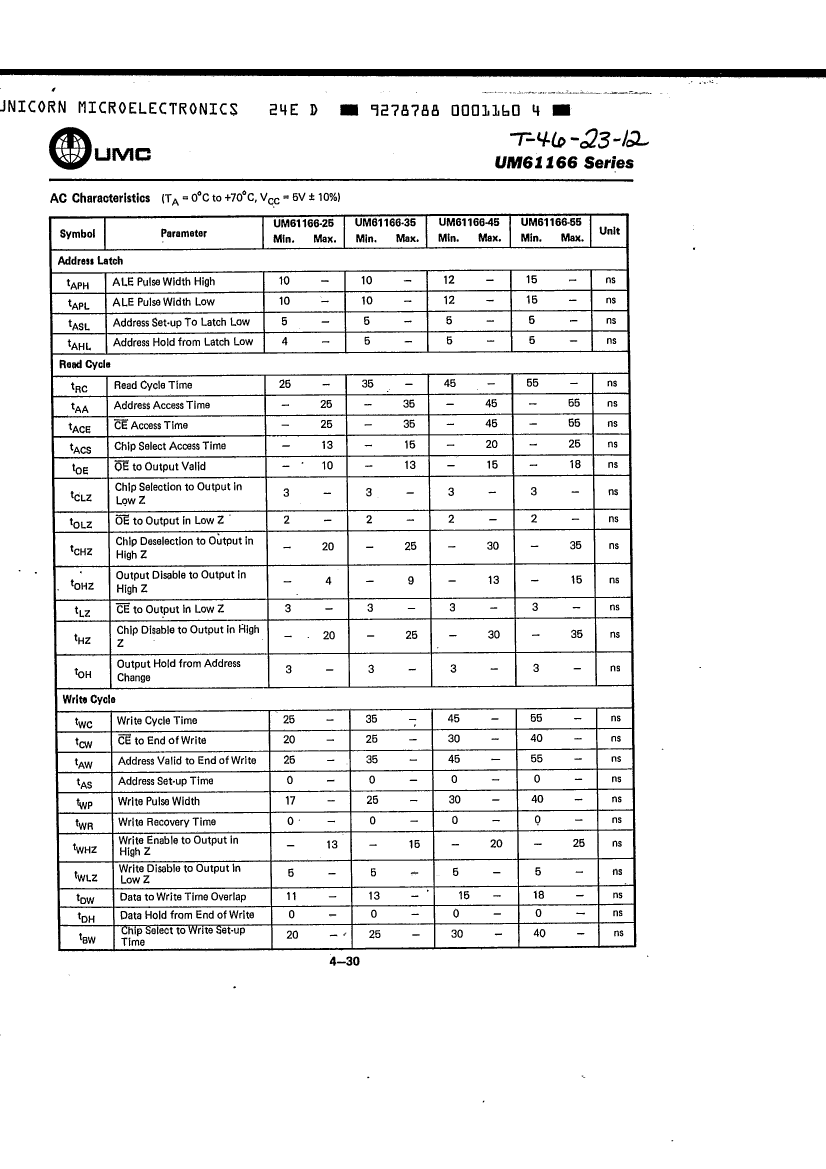

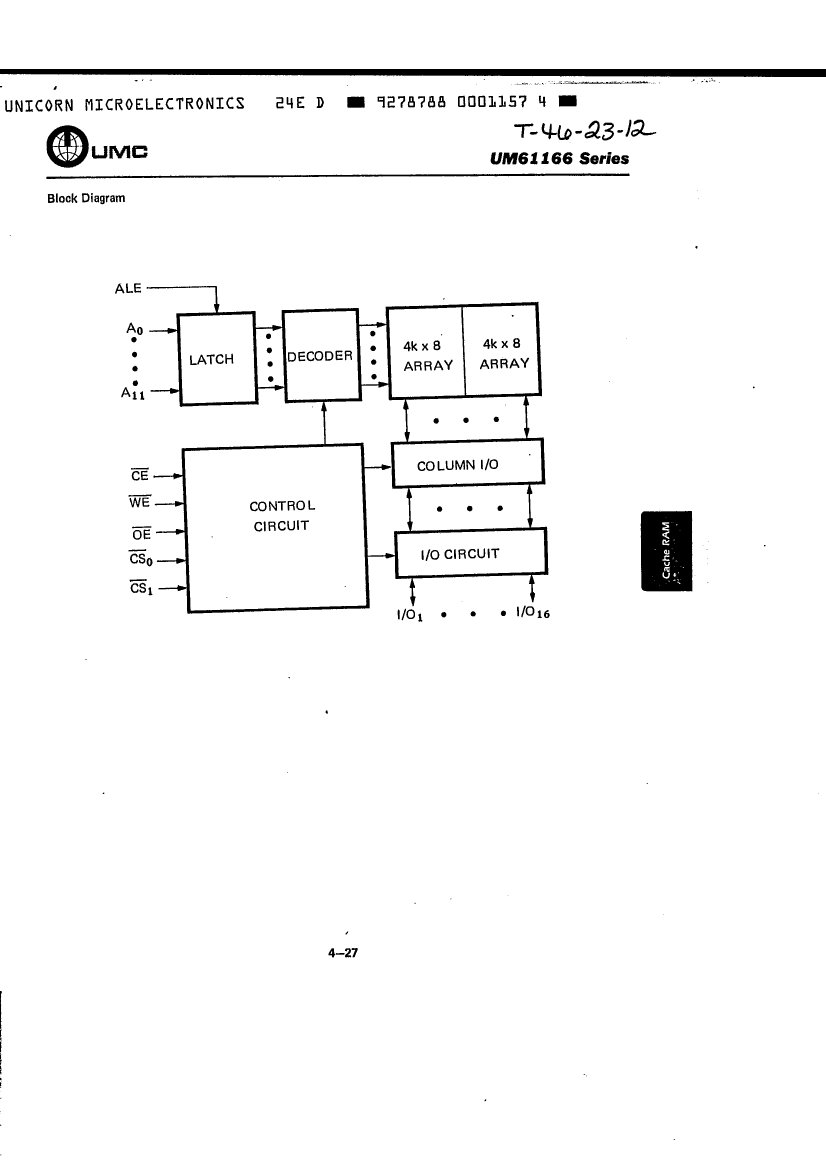

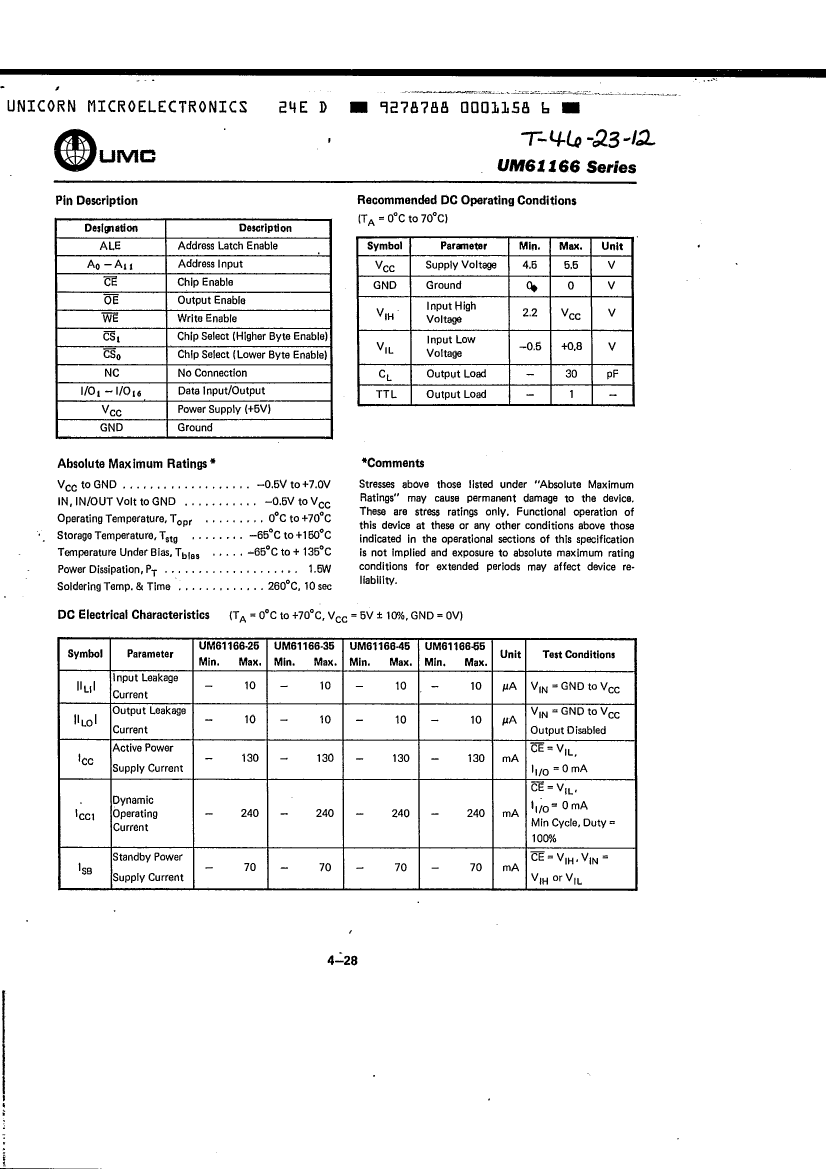

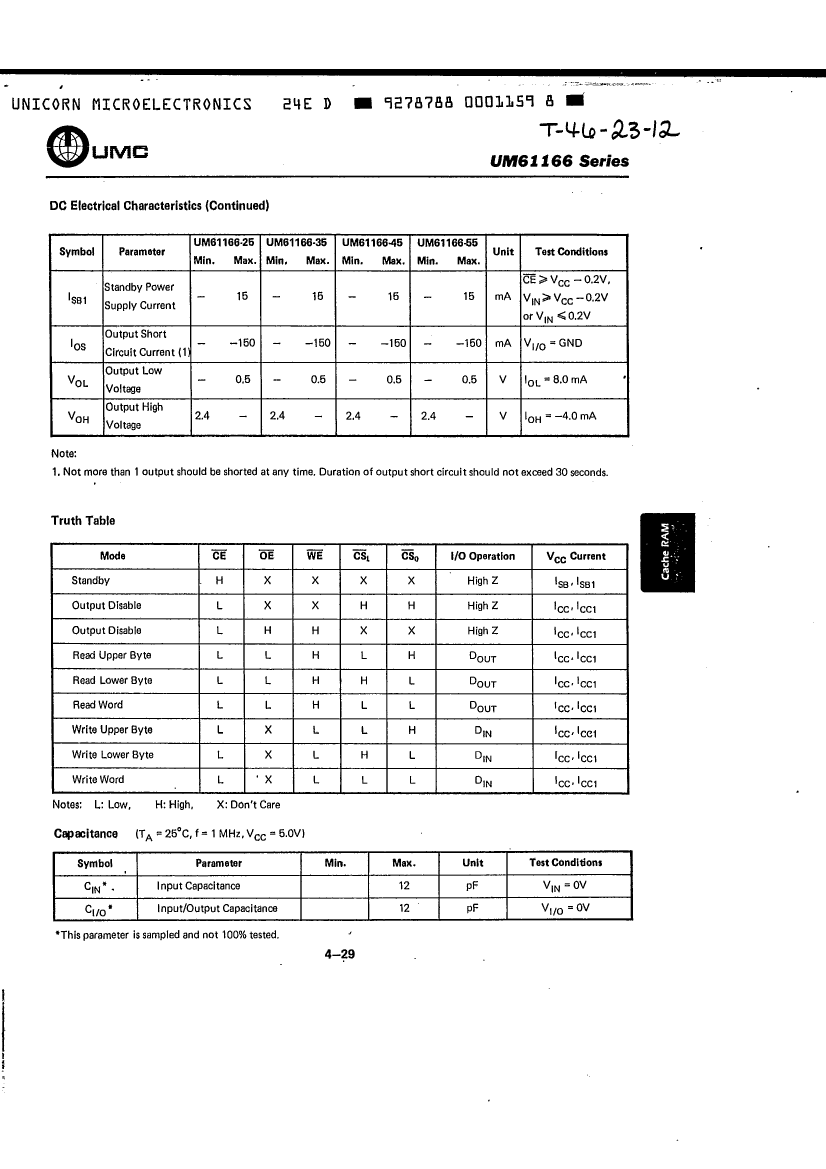

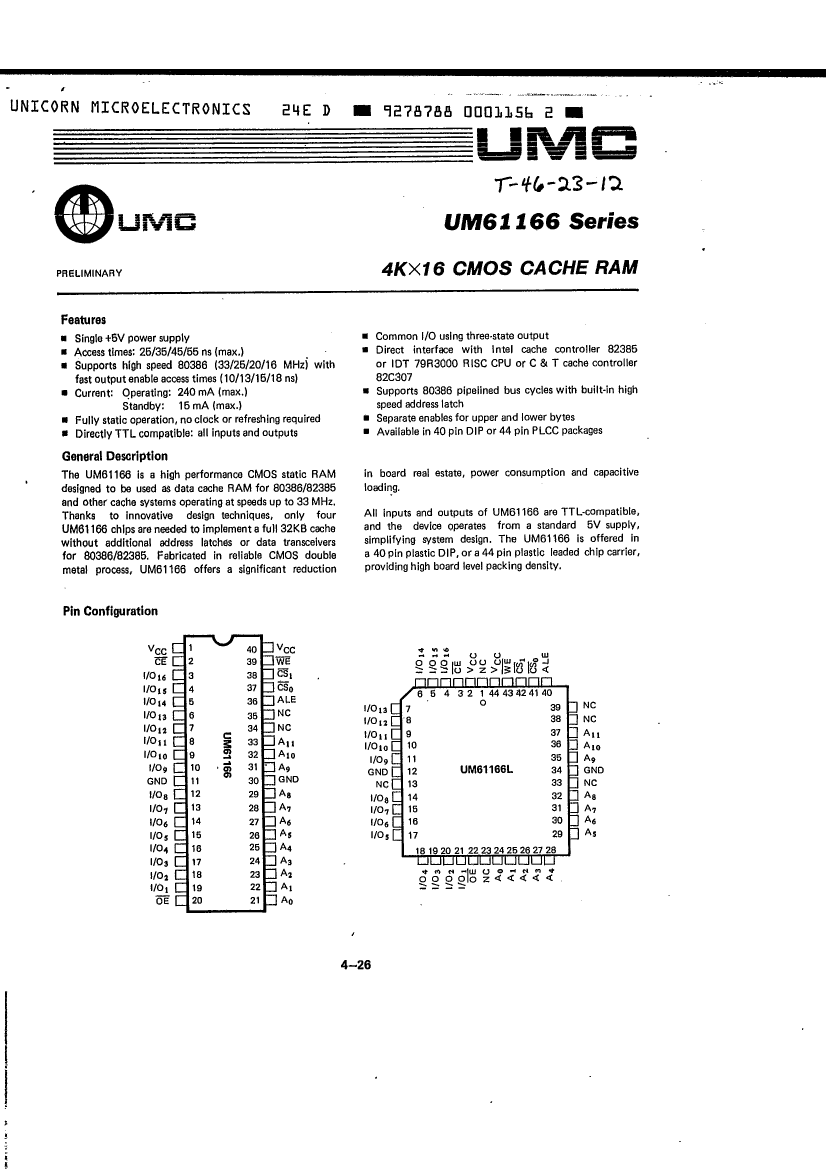

4K x 16 CMOS CACHE RAM

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	United Microelectronics Corporation
package instruction	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknow
Maximum access time	35 ns
I/O type	COMMON
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
memory density	65536 bi
Memory IC Type	CACHE SRAM
memory width	16
Number of terminals	44
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.015 A
Minimum standby current	4.5 V
Maximum slew rate	0.24 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

	UM61166L-35	UM61166L-45
Description	4K x 16 CMOS CACHE RAM	4K x 16 CMOS CACHE RAM
Is it Rohs certified?	incompatible	incompatible
Maker	United Microelectronics Corporation	United Microelectronics Corporation
package instruction	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknow	unknow
Maximum access time	35 ns	45 ns
I/O type	COMMON	COMMON
JESD-30 code	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0
memory density	65536 bi	65536 bi
Memory IC Type	CACHE SRAM	CACHE SRAM
memory width	16	16
Number of terminals	44	44
word count	4096 words	4096 words
character code	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	4KX16	4KX16
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.015 A	0.015 A
Minimum standby current	4.5 V	4.5 V
Maximum slew rate	0.24 mA	0.24 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
