FN2320Y-3/06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FN2320Y-3/06

FN2320Y-3/06: Description250 V, 50/60 HZ, SINGLE PHASE EMI FILTER; CategoryAnalog mixed-signal IC filter; File Size480KB，4 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric Compare View All

FN2320Y-3/06 Overview

250 V, 50/60 HZ, SINGLE PHASE EMI FILTER

FN2320Y-3/06 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Schaffner
Reach Compliance Code	compliant
Other features	INDUCTANCE L 1.1 MILLI HENRY, L1 30 MICRO HENRY; SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS
Certification	CSA; SEMKO
filter type	SINGLE PHASE EMI FILTER
high	29.3 mm
high potential	1100 V
Maximum leakage current	0.94 mA
length	71 mm
Manufacturer's serial number	FN2320
Installation type	PANEL MOUNT
working frequency	50/60 Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L71XB46.6XH29.3 (mm)
Rated current	3.35 A
Rated voltage	250 V
Terminal surface	NOT SPECIFIED
width	46.6 mm

Preview

Download Datasheet

View All

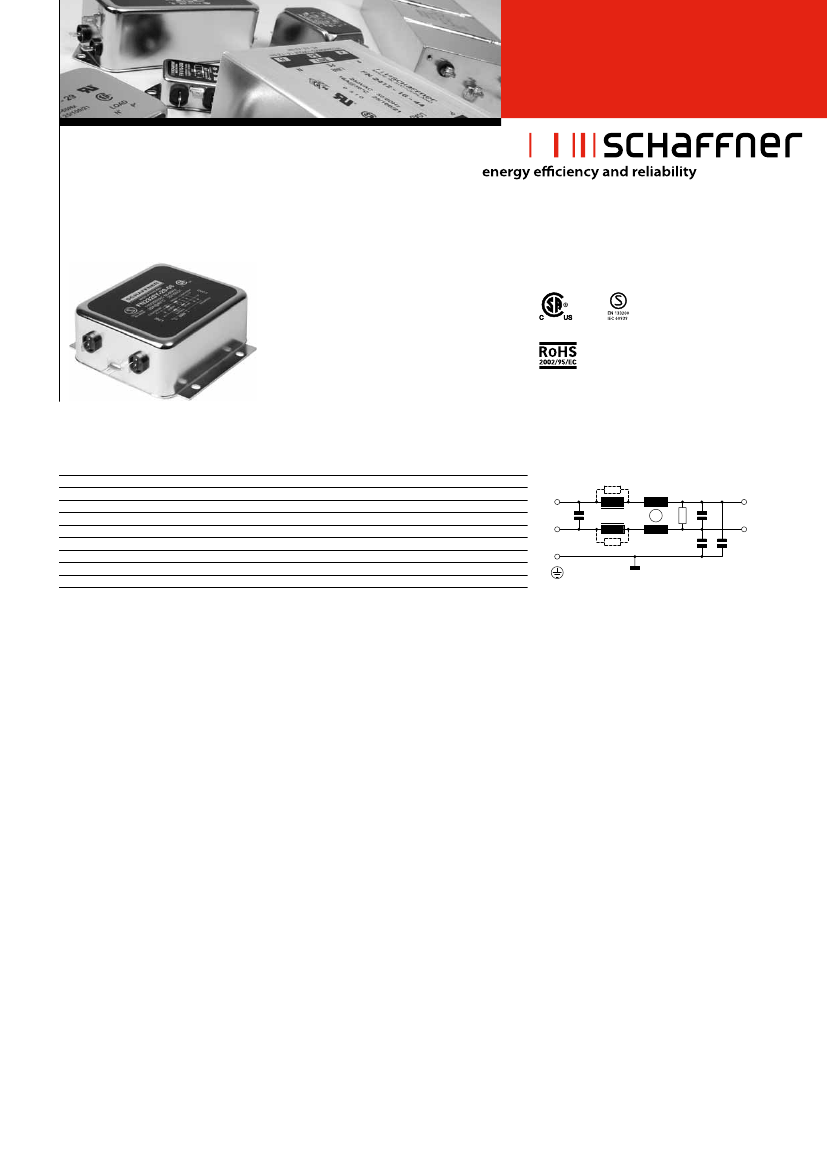

1-phase Filters

FN 2320

Performance EMI Filter

Rated currents from 3 to 20A

Broadband attenuation characteristics

UL-rated materials

Approvals

Technical specifications

Maximum continuous operating voltage:

Operating frequency:

Rated currents:

High potential test voltage:

Temperature range (operation and storage):

Flammability corresponding to:

Design corresponding to:

MTBF @ 40°C/230V (Mil-HB-217F):

250VAC, 50/60Hz

dc to 400Hz

3 to 20A @ 40°C max.

P –> PE 2000VAC for 2 sec

P –> N 1100VDC for 2 sec

-25°C to +100°C (25/100/21)

UL 94V-2 or better

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

1,300,000 hours

Typical electrical schematic

2x1kΩ

Line

Load

P‘

N‘

Features and benefits

Typical applications

FN 2320 filters are designed for easy and

fast chassis mounting.

Faston terminal connection with additional

spade solder possibility.

Electrical and electronic equipment

Consumer goods

Power supplies

Office automation equipment

Datacom equipment

Building automation

FN 2320 filters offer a broadband attenuation

characteristic up to the higher frequencies.

Custom-specific versions on request.

All filters provide a high symmetrical

attenuation performance, based on chokes

with high saturation resistance and

excellent thermal behavior.

FN2320Y-3/06 Related Products

	FN2320Y-3/06	FN2320Y-3-06	FN2320Y-6-06	FN2320Y-10-06	FN2320Y-20-06	FN2320Y-20/06	FN2320Y-6/06	FN2320Y-10/06
Description	250 V, 50/60 HZ, SINGLE PHASE EMI FILTER	filter 1-phase perform emi 3A	filter 1-phase perform emi 6A	filter 1-phase perform emi 10a	filter 1-phase perform emi 20a	250 V, 50/60 HZ, SINGLE PHASE EMI FILTER	250 V, 50/60 HZ, SINGLE PHASE EMI FILTER	250 V, 50/60 HZ, SINGLE PHASE EMI FILTER
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Schaffner	Schaffner	Schaffner	Schaffner	Schaffner	Schaffner	Schaffner	Schaffner
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Other features	INDUCTANCE L 1.1 MILLI HENRY, L1 30 MICRO HENRY; SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS	SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS	SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS	SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS	SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS	INDUCTANCE L 1 MILLI HENRY, L1 30 MICRO HENRY; SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS	INDUCTANCE L 1.9 MILLI HENRY, L1 70 MICRO HENRY; SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS	INDUCTANCE L 1.3 MILLI HENRY, L1 40 MICRO HENRY; SOLDER-LUG/FAST-ON COMBINATION CONNECTIONS
Certification	CSA; SEMKO	CSA; SEMKO	CSA; SEMKO	CSA; SEMKO	CSA; SEMKO	CSA; SEMKO	CSA; SEMKO	CSA; SEMKO
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	29.3 mm	29.3 mm	40.3 mm	40.3 mm	38.6 mm	38.6 mm	40.3 mm	40.3 mm
high potential	1100 V	2000 V	2000 V	2000 V	2000 V	1100 V	1100 V	1100 V
Maximum leakage current	0.94 mA	0.94 mA	0.94 mA	0.94 mA	0.94 mA	0.94 mA	0.94 mA	0.94 mA
length	71 mm	50.5 mm	64 mm	64 mm	98.5 mm	105 mm	85 mm	85 mm
Manufacturer's serial number	FN2320	FN2320	FN2320	FN2320	FN2320	FN2320	FN2320	FN2320
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60 Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60 Hz	50/60 Hz	50/60 Hz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L71XB46.6XH29.3 (mm)	L50.5XB44.5XH29.3 (mm)/L1.988XB1.752XH1.154 (inch)	L64.0XB49.8XH40.3 (mm)/L2.52XB1.961XH1.587 (inch)	L64.0XB49.8XH40.3 (mm)/L2.52XB1.961XH1.587 (inch)	L98.5XB84.5XH38.6 (mm)/L3.878XB3.327XH1.52 (inch)	L105XB98.5XH38.6 (mm)	L85XB54XH40.3 (mm)	L85XB54XH40.3 (mm)
Rated current	3.35 A	3 A	6 A	10 A	20 A	22.4 A	6.7 A	11.2 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
