Industry compatible
Competitively priced
Various Plating contacts available
2.00mm pitch
Long or Short Latch
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Contact Resistance:
Insulator Resistance:
Dielectric Withstanding
Voltage:
Operating Temperature:
500V AC for One Minute
-40°C to + 105°C
Brass
Nylon 6T, glass reinforced, rated UL 94V-0
1 Amp
30M Ω Max.
3000M Ω Min.
Position
10
12
14
16
20
22
24
26
30
34
40
44
50
68
A
25.7
27.7
29.7
31.7
35.7
37.7
39.7
41.7
45.7
49.7
55.7
59.7
65.7
83.7
B
8.0
10.0
12.0
14.0
18.0
20.0
22.0
24.0
28.0
32.0
38.0
42.0
48.0
66.0
C
15.8
17.8
19.8
21.8
25.8
27.8
29.8
31.8
35.8
39.8
45.8
49.8
55.8
73.8

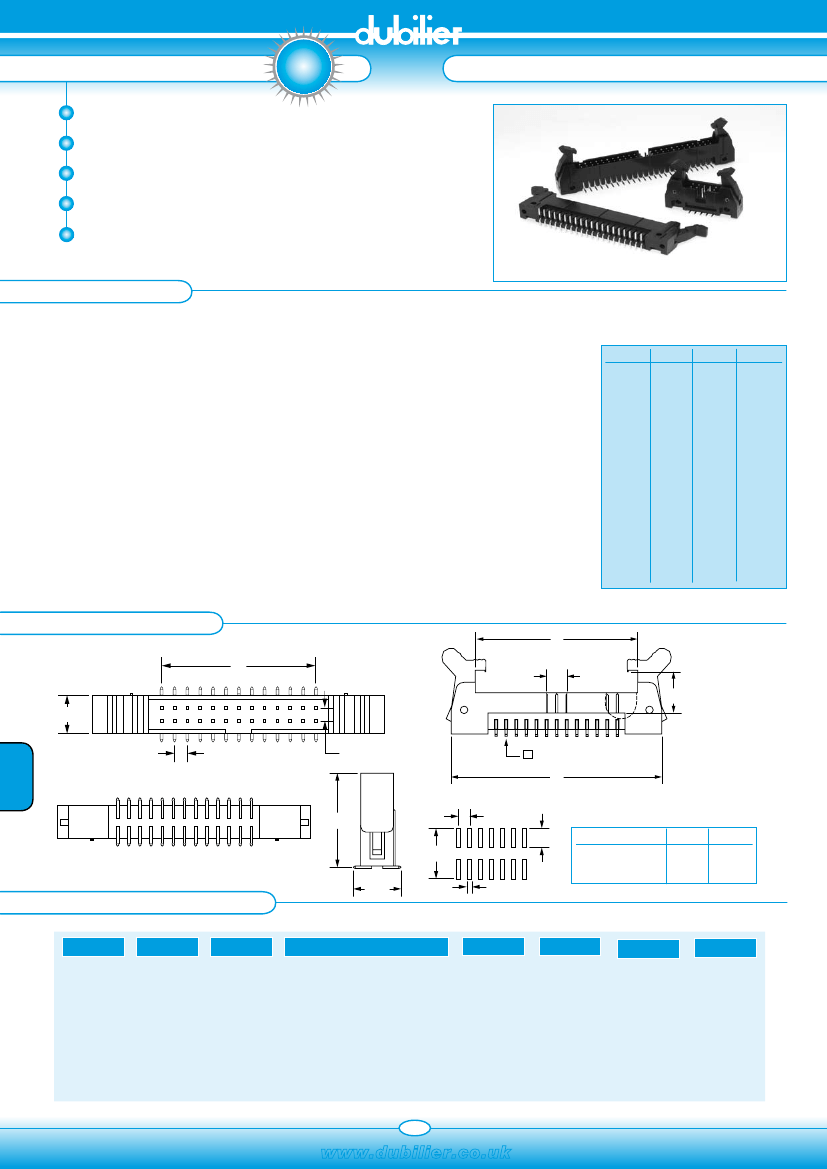

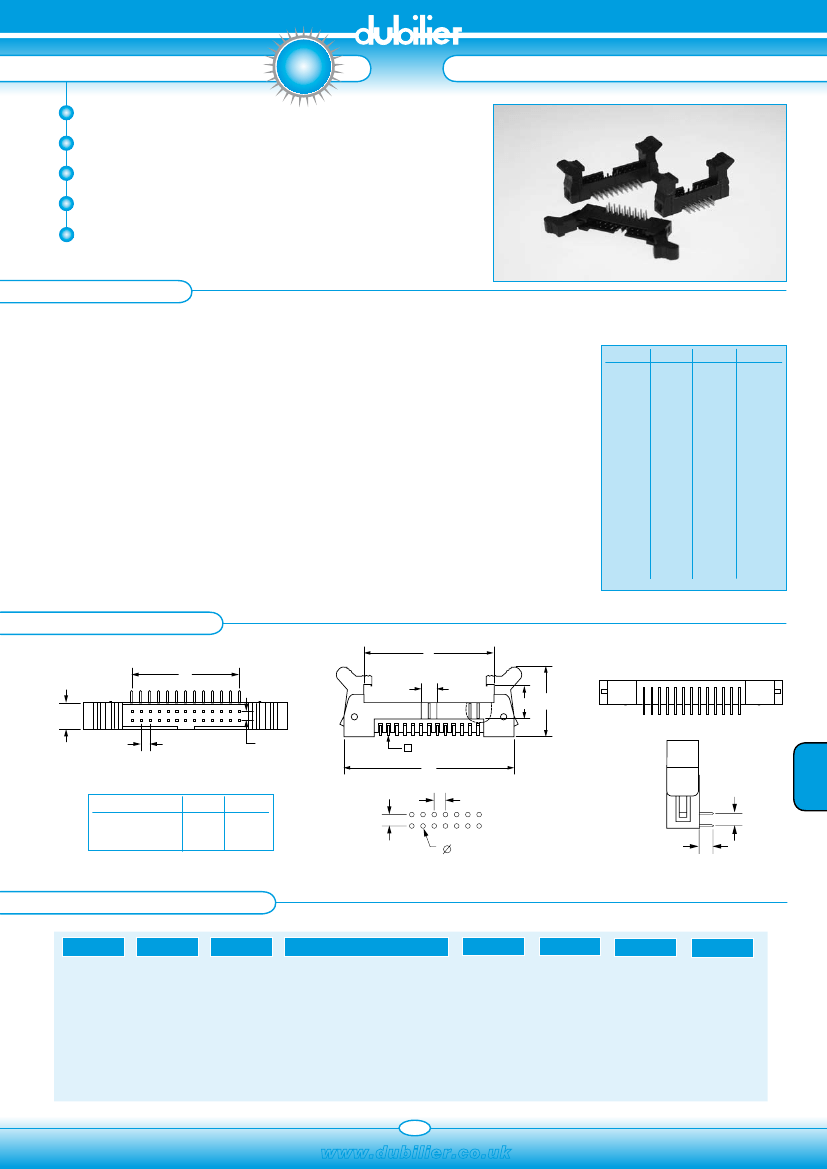

OUTLINE DRAWING
C
6.0
2.0
2.0
ORDERING INFORMATION
DBC
Dubilier
Connectors
IDC
IDC
Connector
C5A
Series
10=10way
12=12way
14=14way
16=16way
20=20way
22=22way
DU
RO
C
IDC
NEW
DU
RO
C
T
•
P
C
4.0
SHROUDED LATCHED HEADER 2.00mm
Y
X
3.0
SECTION 15
0.5*0.5
A
2.0
2.0
2.0
ACCESSORIES
Long Latch
Shor t Latch
X
19.7
16.9
Y
11.5
8.7
Ø0.81±0.05
RECOMMENDED P.C.B LAYOUT
26
Nº of Ways
26=26way
30=30way
34=34way
40=40way
44=44way
50=50way
68=68way
A
Contact Material
A=Brass
G
Contact Plating
G= Gold Flash
S=Selective
*=Other Plating
available
A
A = Lomg Latch
B = Short Latch
1
Colour
1=Black
330
www.dubilier.co.uk
T
•
P
Industry compatible
Competitively priced
Various Plating contacts available
2.00 mm pitch
Long or Short Latch
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Contact Resistance:
Insulator Resistance:
Dielectric Withstanding
Voltage:
Operating Temperature:
500V AC for One Minute
-40°C to + 105°C
Brass
PBT, Glass Reinforced, rated UL-94V-0
1 Amp
30M Ω Max.
3000M Ω Min.
Position
10
12
14
16
20
22
24
26
30
34
40
44
50
68
A
25.7
27.7
29.7
31.7
35.7
37.7
39.7
41.7
45.7
49.7
55.7
59.7
65.7
83.7
B
8.0
10.0
12.0
14.0
18.0
20.0
22.0
24.0
28.0
32.0
38.0
42.0
48.0
66.0
C
15.8
17.8
19.8
21.8
25.8
27.8
29.8
31.8
35.8
39.8
45.8
49.8
55.8
73.8
OUTLINE DRAWING
C
B
4.0
Y
X
6.0
2.0
2.0
0.5*0.5
A
ACCESSORIES
Long Latch
Shor t Latch
X
19.7
16.9
Y
11.5
8.7
ORDERING INFORMATION
DBC
Dubilier
Connectors
IDC
IDC
Connector
C6A
Series
10=10way
12=12way
14=14way
16=16way
20=20way
22=22way
24=24way
DU
RO
C
IDC
NEW
DU
RO
C
T
•
P
SHROUDED LATCHED HEADER RIGHT ANGLED 2.0mm
SECTION 15
2.0
2.0
_
0.81
+
0.05
2.0
3.0
Reccomended PCB Layout
34
Nº of Ways
26=26way
30=30way
34=34way
40=40way
44=44way
50=50way
60=60way
A
Contact Material
A=Brass
G
Contact Plating
G= Gold Flash
S=Selective
*=Other Plating
available
A
Features
A=Long Latch
B=Short Latch
1
Colour
1=Black
331
www.dubilier.co.uk
T
•
P
Industry compatible
Competitively priced
Various Plating contacts available
2.0mm pitch
Long or Short Latch
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Contact Resistance:
Insulator Resistance:
Dielectric Withstanding
Voltage:
Operating Temperature:
500V AC for One Minute
-40°C to + 105°C
Brass
Nylon 6T, glass reinforced, rated UL 94V-0
1 Amp
30M Ω Max.
3000M Ω Min.
Position
10
12
14
16
20
22
24
26
30
34
40
44
50
68
A
25.7
27.7
29.7
31.7
35.7
37.7
39.7
41.7
45.7
49.7
55.7
59.7
65.7
83.7
B
8.0
10.0
12.0
14.0
18.0
20.0
22.0
24.0
28.0
32.0
38.0
42.0
48.0
66.0
C
15.8
17.8
19.8
21.8
25.8
27.8
29.8
31.8
35.8
39.8
45.8
49.8
55.8
73.8

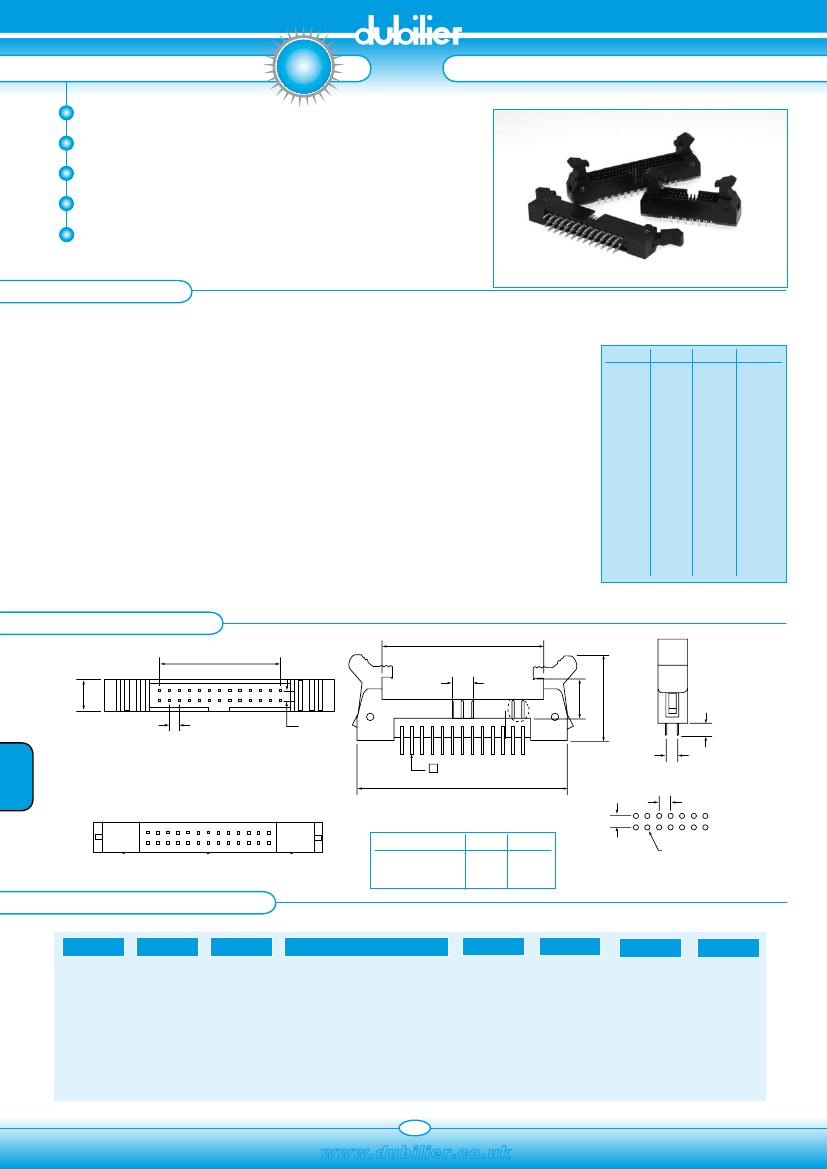

OUTLINE DRAWING
B
6.0
2.0
2.0
ORDERING INFORMATION
DBC
Dubilier
Connectors
IDC
IDC
Connector
C6S
Series
10=10way
12=12way
14=14way
16=16way
20=20way
22=22way
24=24way
DU
RO
C
IDC
NEW
DU
RO
C
T
•
P
SHROUDED LATCHED HEADER SMT 2.0mm
C
4.0
Y
SECTION 15
0.5*0.5
A
X
2.0
3.5
9.2
8.2
ACCESSORIES
Long Latch
Shor t Latch
X
20.0
17.2
Y
11.5
8.7
0.9
10
Nº of Ways
26=26way
30=30way
34=34way
40=40way
44=44way
50=50way
68=68way
A
Contact Material
A=Brass
G
Contact Plating
G= Gold Flash
S=Selective
*=Other Plating
available
A
Features
A=Long Latch
B=Short Latch
1
Colour
1=Black
332
www.dubilier.co.uk
