ECWU1H183JB5: DescriptionCAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.018 uF, SURFACE MOUNT, 1210, CHIP; CategoryPassive components capacitor; File Size56KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ECWU1H183JB5 Overview

CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.018 uF, SURFACE MOUNT, 1210, CHIP

ECWU1H183JB5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	, 1210
Reach Compliance Code	unknown
capacitance	0.018 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYETHYLENE NAPHTHALATE
JESD-609 code	e1
Manufacturer's serial number	ECWU(B)
Installation features	SURFACE MOUNT
negative tolerance	5%
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
series	ECW-U
size code	1210
surface mount	YES
Terminal surface	TIN SILVER COPPER
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

Panasonic

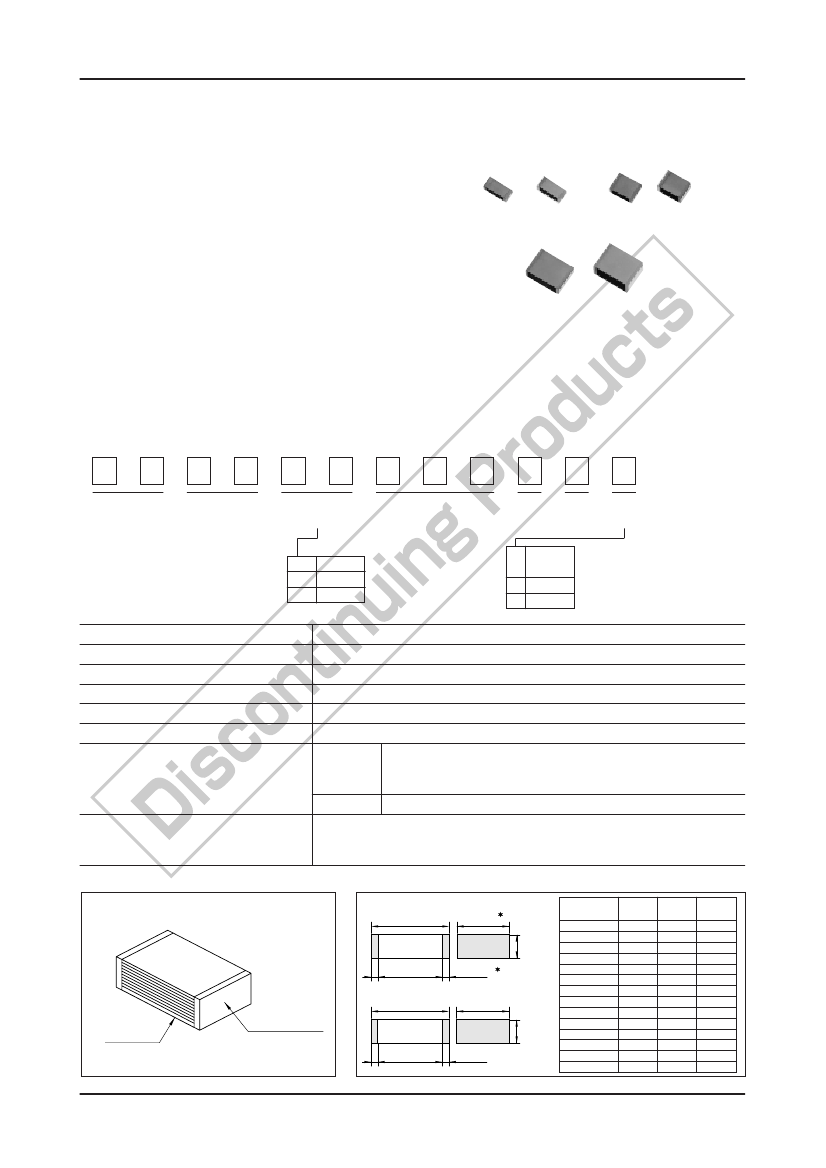

Film Chip Capacitor

Type:

Plastic Film Capacitors

ECWU(B)

Stacked metallized PEN film as dielectric with simple

mold-less construction

sFeatures

•

Small in size (minimum size 3.2

1.6 mm)

•

85˚C, 85%RH, W.V.

1.0 for 500 hours

•

Applicable for reflow soldering

sRecommended

Applications

•

Coupling

•

By-pass

•

General purpose

sExplanation

of Part Numbers

Rated voltage

Capacitance

Suffix

Product code

Dielectric &

construction

Cap. Tol. Suffix

16VDC

50VDC

100VDC

Tape width

8mm

12mm

sSpecifications

Category temp. range

Rated voltage

Capacitance range

Capacitance tolerance

Withstand voltage

Dissipation factor

–55 to +105˚C

16VDC, 50VDC, 100VDC

0.001 to 0.47µF

±5% (J)

Between terminals : Rated volt. (VDC)

175% 1 to 5s

1.0%

(20˚C 1kHz)

16VDC :

3000MΩ(20˚C, 10VDC 60s)

50VDC :

3000MΩ(20˚C, 50VDC 60s)

100VDC :

3000MΩ(20˚C, 100VDC 60s)

Insulation resistance

0.33µF

16VDC : 1000MΩ

µF min. (20˚C, 10VDC 60s)

Soldering conditions

Reflow soldering : 240˚C max. and 30sec max. at more than 210˚C

(Temp. at cap. surface)

sConstruction

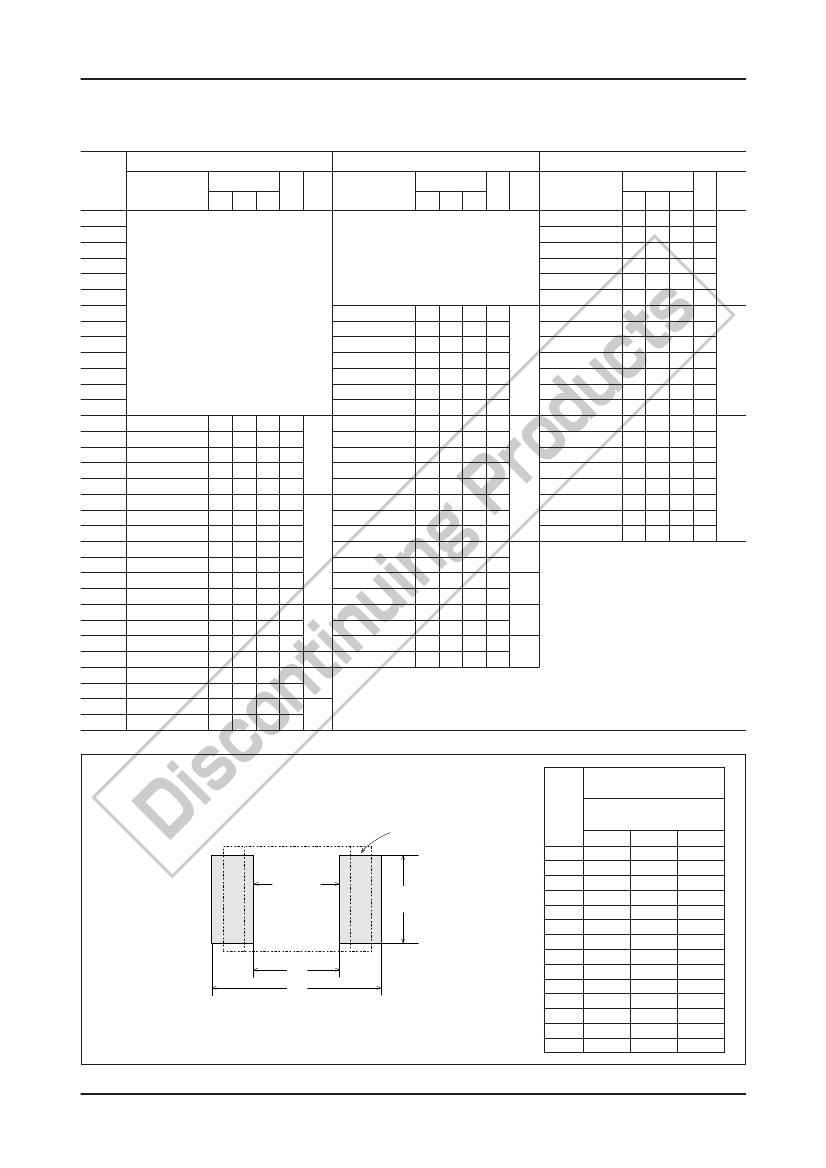

sDimensions

in mm (not to scale)

•Size code H1,H2,H3,G1,G2,G3,

E1,E2,E3a and E3.

(± 0.3)

L± 0.2

W± 0.2

H± 0.2

Size code

3.2

4.8

6.0

1.6

2.5

3.3

4.1

0.8

1.0

1.4

1.0

1.4

2.0

1.4

2.0

2.4

2.8

1.8

2.0

2.4

2.8

0.35± 0.20

•Size code D1,D2,D3 and D4.

L± 0.2

W± 0.3

To be applied

only for size

code E1 , E2

E3a and E3.

Element

(stacked)

0.45± 0.20

Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.

H± 0.2

Outer electrode

E3a

Mar. 2005

ECWU1H183JB5 Related Products

	ECWU1H183JB5	ECWU1H153JB5	ECWU1H332JB5	ECWU1H333JB5	ECWU1H393JB5	ECWU1H473JB5	ECWU1H562JB5	ECWU1H682JB5	ECWU1H103JB5	ECWU1H472JB5
Description	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.018 uF, SURFACE MOUNT, 1210, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.015 uF, SURFACE MOUNT, 1210, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.0033 uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.033 uF, SURFACE MOUNT, 1210, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.039 uF, SURFACE MOUNT, 1210, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.047 uF, SURFACE MOUNT, 1210, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.0056 uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.0068 uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.01 uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 50 V, 0.0047 uF, SURFACE MOUNT, 1206, CHIP
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
package instruction	, 1210	, 1210	, 1206	, 1210	, 1210	, 1210	, 1206	, 1206	, 1206	, 1206
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
capacitance	0.018 µF	0.015 µF	0.0033 µF	0.033 µF	0.039 µF	0.047 µF	0.0056 µF	0.0068 µF	0.01 µF	0.0047 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE
JESD-609 code	e1	e1	e1	e1	e1	e1	e1	e1	e1	e1
Manufacturer's serial number	ECWU(B)	ECWU(B)	ECWU(B)	ECWU(B)	ECWU(B)	ECWU(B)	ECWU(B)	ECWU(B)	ECWU(B)	ECWU(B)
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	5%	5%	5%	5%	5%	5%	5%	5%	5%	5%
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	TR	TR	TR	TR	TR	TR	TR	TR	TR	TR
positive tolerance	5%	5%	5%	5%	5%	5%	5%	5%	5%	5%
Rated (DC) voltage (URdc)	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
series	ECW-U	ECW-U	ECW-U	ECW-U	ECW-U	ECW-U	ECW-U	ECW-U	ECW-U	ECW-U
size code	1210	1210	1206	1210	1210	1210	1206	1206	1206	1206
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	-	Lead free	Lead free	Lead free	Lead free
