LS212-250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LS212-250

LS212-250: DescriptionPower Supply Module, Hybrid,; CategoryPower/power management The power supply circuit; File Size100KB，3 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LS212-250 Overview

Power Supply Module, Hybrid,

LS212-250 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wall Industries,Inc.
package instruction	DIP, DIP18,.8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SEATED HGT-NOM
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	S-MDMA-P5
length	50.8 mm
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	55 °C
Maximum output current	0.25 A
Maximum output voltage	12.6 V
Minimum output voltage	11.4 V
Nominal output voltage	12 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.8
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	10.16 mm
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
width	50.8 mm

Preview

Download Datasheet

View All

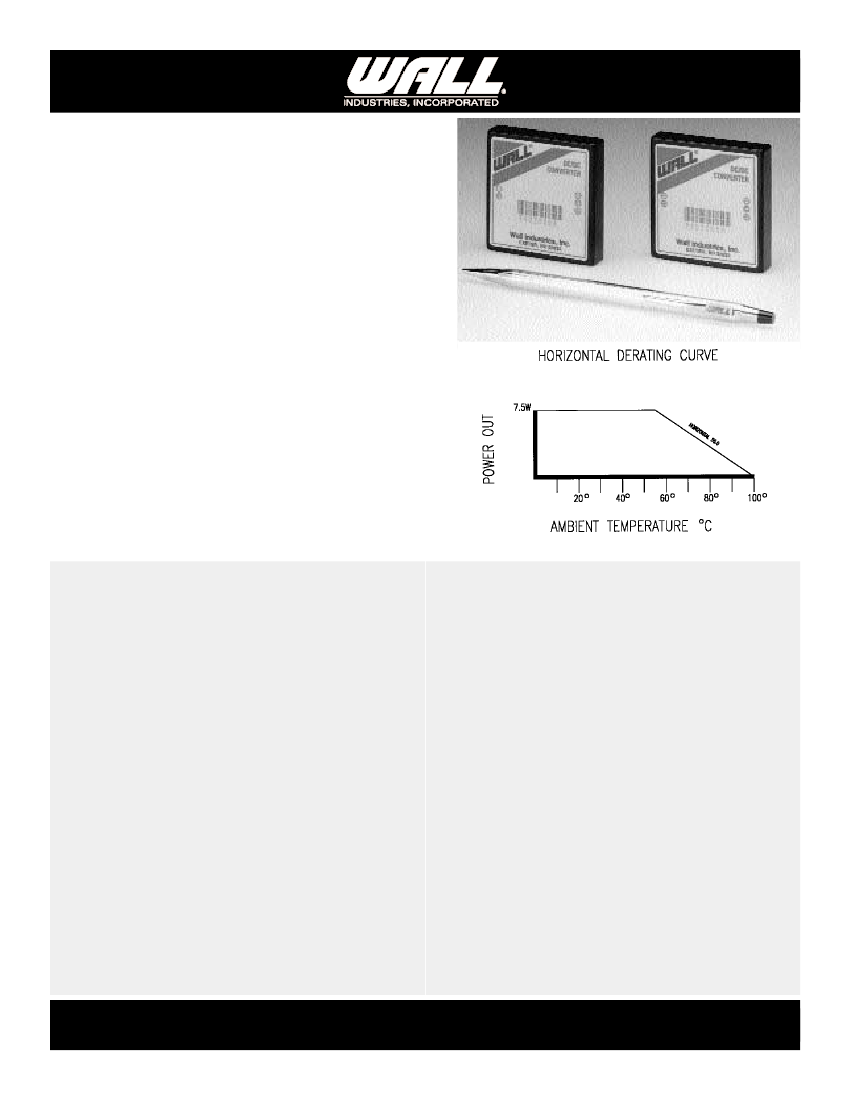

L SERIES

PRODUCT FEATURES

Low Ripple, Regulated, Single and Dual Output

•

Up to 7.5Watts Output Power

High Input/Output Isolation

Low Output Ripple

Continuous Short Circuit Protection

Pi-Input Filter

Low Profile Package

T O 7.5 WATTS

THE L SERIES FROM WALL INDUSTRIES

The L Series features a low profile package of 2.0 x 2.0 x

0.40” with output power to 7.5watts. This series has excellent

line and load regulation, input filtering, and low output ripple,

as well as low input reflected ripple. Specifications include

high I/O isolation (500VDC), low output ripple (<50mV P-P)

and current limiting/thermal shutdown.

SPECIFICATIONS: L SERIES

All specifications apply @ +25 C ambient unless otherwise

noted.

INPUT SPECIFICATIONS

Input Voltage Range...............5, 12, 24, 28, 28VDC ±10%

Nominal Input........................................5, 12, 24, 28 VDC

Input Filter......................................................Pi-Input Filter

GENERAL SPECIFICATIONS

Efficiency...........................................................65% typical

Isolation Voltage (input to output)......................500VDC min.

Isolation Resistance (input to output).................100 MOhms

Switching Frequency.......................................50kHz typical

OUTPUT SPECIFICATIONS

Output Current....................................................see table

Voltage Tolerance....(7.5W).........................................±1%

..................................................................3 & 5W ±5.0%

Thermal Shutdownapprox. +100°C case (7.5W units only)

Line Regulation .....................................................±0.05%

....................................................................3 & 5W 0.3%

Load Regulation .....................................................±0.5%

Short Circuit Protection.......................linear current limiting

Ripple/Noise (20MHz BW).................................50mV p-p

Over Voltage Protection.......................................see table

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature..........................-25 to +85°C (case)

Storage Temperature.....................................-55 to +100°C

Humidity (non-condensing).............................20 - 95% R.H.

PHYSICAL SPECIFICATIONS

Weight......................................................................2.3 oz.

Case Material........................................Black coated metal,

...................................................non-conductive baseplate

Shielding connections....................Six-Sided Shielded case

Due to advances in technology, specifications subject to

change without notice.

603 778 2300

W W W

WALLINDUSTRIES

C O M

LS212-250 Related Products

	LS212-250	LCS25-1500	LCD85-500	LD812-250	LD415-200	LCS412-250	LD515-200	LCS212-250	LD212-250
Description	Power Supply Module, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 7.5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	Power Supply Module, Hybrid	Power Supply Module, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	Power Supply Module, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	Power Supply Module, Hybrid
Maker	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.
package instruction	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum input voltage	13.2 V	30.8 V	30.8 V	30.8 V	26.4 V	30.8 V	5.5 V	30.8 V	13.2 V
Minimum input voltage	10.8 V	4.5 V	4.5 V	25.2 V	21.6 V	4.5 V	4.5 V	4.5 V	10.8 V
Nominal input voltage	12 V	12 V	28 V	28 V	24 V	28 V	5 V	12 V	12 V
JESD-30 code	S-MDMA-P5	R-MDIP-T18	R-MDIP-T18	S-MDMA-P5	S-MDMA-P5	R-MDIP-T18	S-MDMA-P5	R-MDIP-T18	S-MDMA-P5
length	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm
Number of functions	1	1	1	1	1	1	1	1	1
Output times	1	1	2	2	2	1	2	1	2
Number of terminals	5	18	18	5	5	18	5	18	5
Maximum operating temperature	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C
Maximum output current	0.25 A	1.5 A	0.5 A	0.25 A	0.2 A	0.25 A	0.2 A	0.25 A	0.25 A
Maximum output voltage	12.6 V	5.25 V	5.25 V	12.6 V	15.75 V	12.6 V	15.75 V	12.6 V	12.6 V
Minimum output voltage	11.4 V	4.75 V	4.75 V	11.4 V	14.25 V	11.4 V	14.25 V	11.4 V	11.4 V
Nominal output voltage	12 V	5 V	5 V	12 V	15 V	12 V	15 V	12 V	12 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	MICROELECTRONIC ASSEMBLY	IN-LINE	IN-LINE	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	IN-LINE	MICROELECTRONIC ASSEMBLY	IN-LINE	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	10.16 mm	11.43 mm	11.43 mm	10.16 mm	10.16 mm	11.43 mm	10.16 mm	11.43 mm	10.16 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal form	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE	PIN/PEG	PIN/PEG	THROUGH-HOLE	PIN/PEG	THROUGH-HOLE	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	3 W	7.5 W	5 W	6 W	6 W	3 W	6 W	3 W	6 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO
width	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm
Other features	SEATED HGT-NOM	-	ADDITIONAL -5 VOLT OUTPUT AVAILABLE	SEATED HGT-NOM	SEATED HGT-NOM	-	SEATED HGT-NOM	-	SEATED HGT-NOM
