AEV01AA48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AEV01AA48

AEV01AA48: Description2-OUTPUT DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size431KB，2 Pages; ManufacturerEmerson Embedded Power

Download Datasheet Parametric Compare View All

AEV01AA48 Overview

2-OUTPUT DC-DC REG PWR SUPPLY MODULE

AEV01AA48 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Emerson Embedded Power
package instruction	, MODULE,7LEAD,2.5
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -5V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P7
JESD-609 code	e0
Number of functions	1
Output times	2
Number of terminals	7
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.5 V
Minimum output voltage	4.5 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,7LEAD,2.5
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

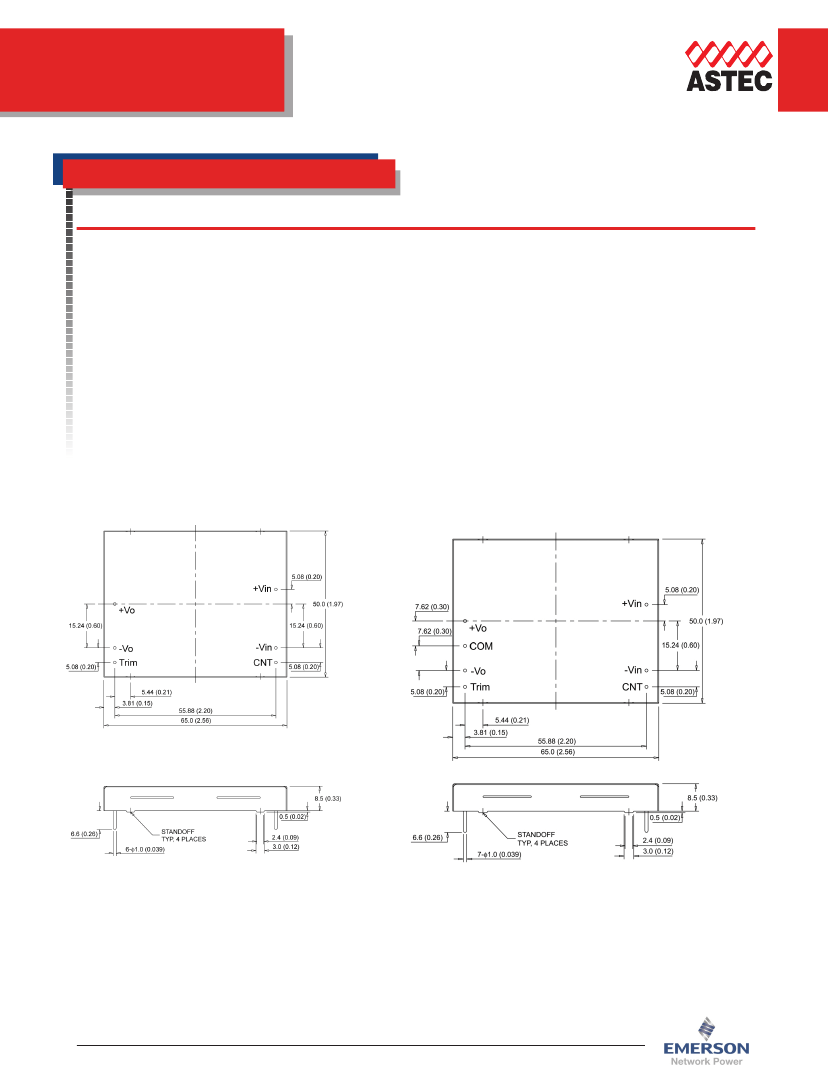

Astec Conventional Power

25 Watts

AEV

Total Power:

Input Voltages:

No. of Outputs:

25 Watts

24V or 48V

Single, Dual

Electrical Specs

Input

Input range

18-36 Vdc (24 Vdc nominal)

36 - 72Vdc (48Vdc nominal)

Input reverse voltage

protection

Input surge voltage

Fuse recommended

100V for 100mS (48V)

50V for 100mS (24V)

Vin<30-36V (48V)

Vin<14-18V (24V)

83% typical (5Vout)

Undervoltage lockout

Efficiency

Special Features

• Ideal for telecom/networking

applications

• Standard Pinout - Low Profile

• Unencapsulated 2.0” x 2.5” x 0.33” package.

• 90°C Baseplate temperature

• Enable (on/off)

• 330kHz Switching frequency

• Under voltage lockout, OVP, OCP

Output

Voltage tolerance

Line regulation

Load regulation

Noise/ripple

Short circuit protection

Overvoltage protection

Transient response

Temperature coefficient

Switching frequency

±1.0%

±0.1%

±0.5%

75mV P-P

Continuous power cycle

36V to 42V (24Vin)

72V to 82V (48Vin)

4% Vo typ; recovery <200msec typ

(25% step load change)

±0.02%Vo/°C

330kHz

Environmental

Operation case temperature range: -25°C to +90°C

Storage temperature: -40°C to +105°C

MTBF > 2 Million Hours (Bellcore TR332)

Control

Enable

on = >7.0Vdc

off = >3.5Vdc

See TRN

0.6ma max.

90% to 110% Vo

Enable current

Output trim

Isolation

I/O isolation

500Vdc

Safety

CAN

TUV

UL1950

CAN22.2-950

EN60950

CE Mark

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662
