BNC-10B-N

Description
RF BNC Connector,
CategoryThe connector    The connector
File Size135KB,2 Pages
ManufacturerCommScope Inc
Environmental Compliance
Download Datasheet Parametric View All

BNC-10B-N Overview

RF BNC Connector,

BNC-10B-N Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCommScope Inc
Reach Compliance Codeunknown
Connector typeRF BNC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Product Feature Selector > Product Details

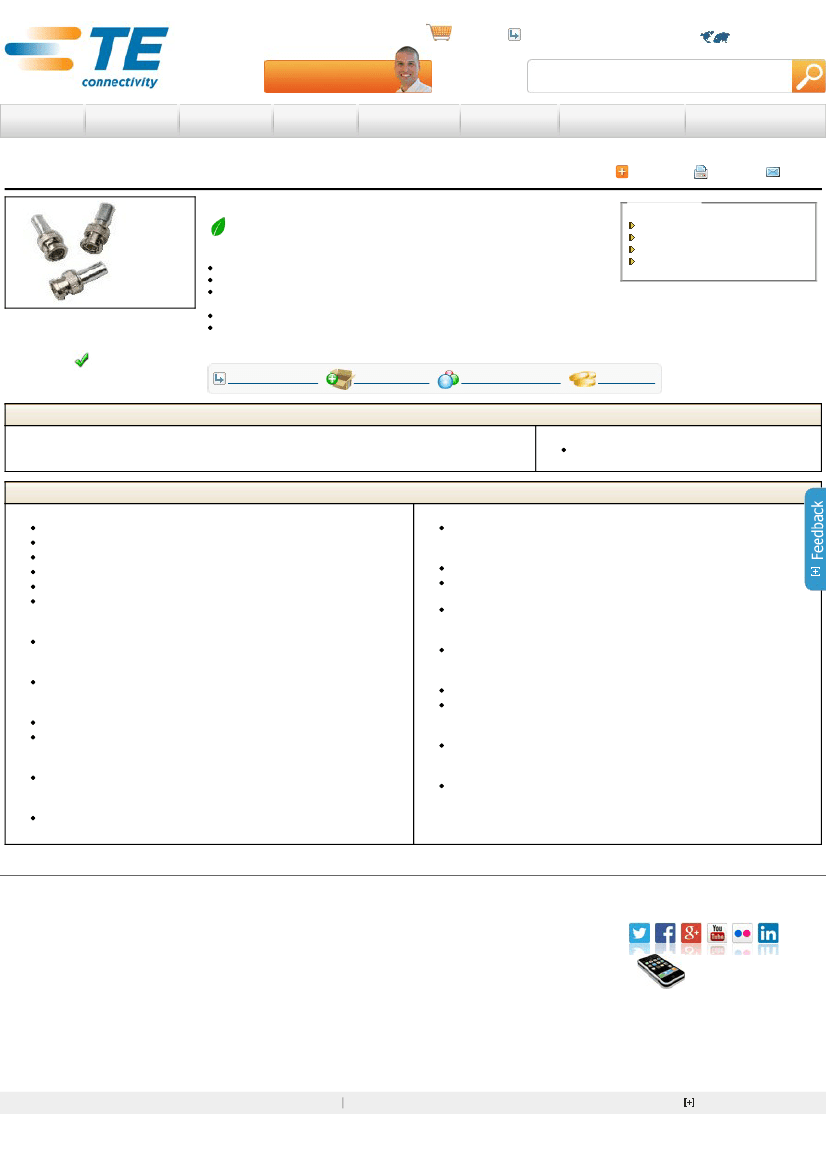

BNC­10B­N Product Details
