5.0SMDJ Series
Rating and Characteristic Curves 5.0SMDJ Series
VOLTAGE-5.0 TO 170 Volts
5000 Watt Peak Pulse Power
Features
For surface mounted applications in order to
optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
Repetition rate (duty cycle):0.01%
Fast response time: typically less than
1.0 ps from 0 volts to BV for unidirectional types
Typical IR less than 1µA above 10V
High temperature soldering:
250°C/10 seconds at terminals
Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O
SMC/DO-214AB
Dimensions in inches and (millimeters)
Mechanical Data
Case: JEDEC DO214AB. Molded plastic over glass
passivated junction
Polarity: Color band denoted positive end (cathode)
except Bidirectional
Weight: 0.021 grams
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
RATING
Peak Pulse Power Dissipation on 10/1000 µs
waveform
(NOTE 1, 2, Fig.1)
Peak Pulse Current of on 10/1000 µs waveform
(Note 1,Fig 3)
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
Superimposed on Rated Load,
(JEDEC Method)(Note2, 3)
Operatings and Storage Temperature Range
SYMBOL
P
PPM
I
PPM
VALUE
Minimum 5000
SEE TABLE 1
400
-55 +150
UNITS
Watts
Amps
Amps
°C
I
FSM
T
J
, T
STG
NOTES:
1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.
2. Mounted on 8.0mm x 8.0mm Copper Pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.
http://www.luguang.cn
mail:lge@luguang.cn
5.0SMDJ Series
Rating and Characteristic Curves 5.0SMDJ Series

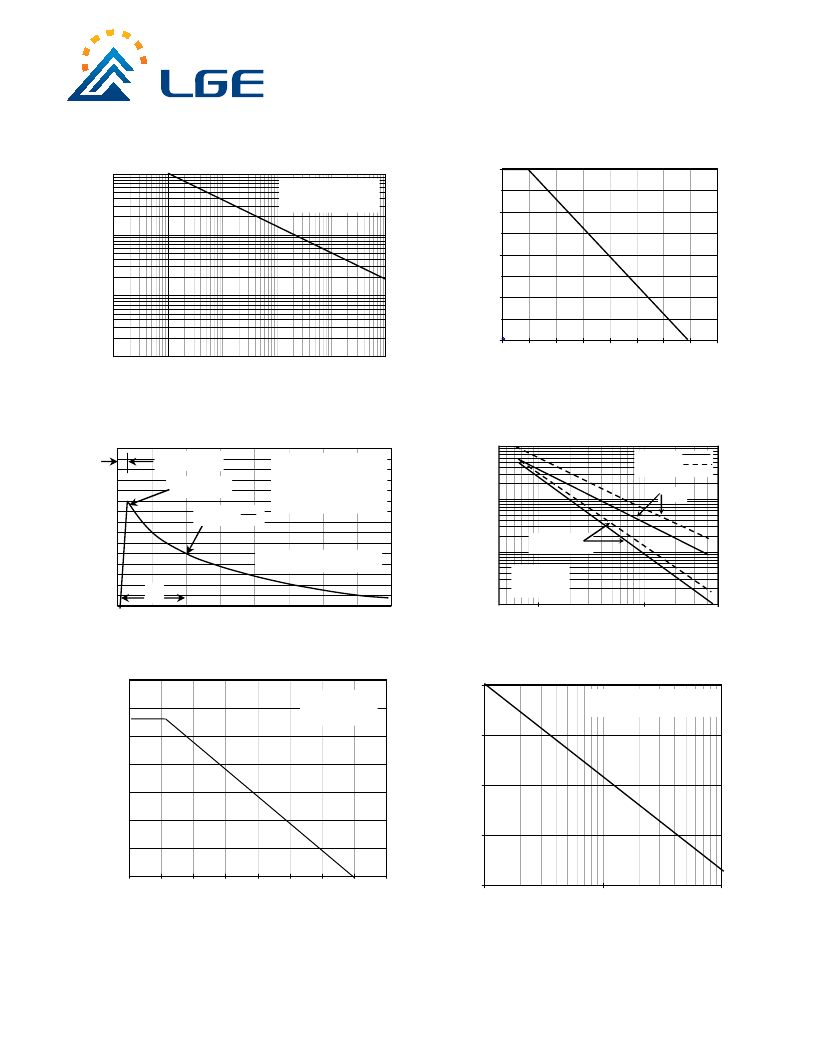

Fig. 1 - Peak Pulse Power Rating Curve
100
Fig.2 - Pulse Derating Curve
100
Peak Pulse Power (P
PP
)
or Current (I
PP
)
Derating in
Percentage,%
P
PPM
-Peak Pulse Power (kW)
Non-repetitive pulse
waveform shown in
Fig.3 T
A
= 25°C
87.5
75
62.5
50
37.5
25
12.5
0
10
1
0.1
0.1μs
0
25
50
75
100
125
150
175
200
1.0μs
10μs
100μs
1.0ms
10ms
T
A
- Ambient Temperature (°C)
t
d
- Pulse Width (sec.)
I
PPM
- Peak Pulse Current,% I
RSM
150
Fig.3 - Pulse Waveform
t
r
= 10μsec.
Peak Value
I
PPM
Half Value- I
PPM
2
T
J
= 25°C
Pulse Width(td)is defined
as the point where the
peak current decays to
50% of I
PPM
10000
10000
Fig. 4 - Typical Junction Capacitance
Unidirectional
Bidirectional
V
R
= 0
100
1000
C
J
- Capacitance (pF)
1000
50
10/1000μsec.Waveform
as defined by R.E.A.
100
100
V
R
= Rated
Stand-off
f = 1MHz
V
sig
= 50mV
p-p
T
J = 25°C
t
d
10
0
0
1.0
2.0
3.0
3.0
4.0
4.0
1
10
5
10
10
100
500
1000
t - Time(ms)
Fig. 5 - Steady State Power
Derating Curve
8.0
7.0
60Hz
Resistive or
Inductive Load
250
300
V
WM
- Reverse Stand-Off Voltage (V)
Fig.6 - Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
8.3ms Single Half Sine-Wave
(JEDEC Method)T
J
=T
J
max.
P
M(AV)
,Steady State Power
Dissipation (W)
6.0
5.0
4.0
3.0
2.0
1.0
0
0
25
50
75
100
125
150
175
200
I
FSM
-Peak Forward Surge
Current (A)
200
150
100
1
10
100
T
L
- Lead Temperature (°C)
Number of Cycles at 60 Hz
http://www.luguang.cn
mail:lge@luguang.cn
5.0SMDJ Series
Rating and Characteristic Curves 5.0SMDJ Series
5000 Watt Surface Mount TVS
UNI-POLAR
BI-POLAR
DEVICE
MARKING
CODE
UNI
BI
REVERSE
REVERSE BREAKDOWN BREAKDOWN
TEST
MAXIMUM
PEAK
VOLTAGE CURRENT CLAMPING
VOLTAGE
STANDOFF
PULSE LEAKAGE
V
BR
(V)
V
BR
(V)
VOLTAGE
(I
T
)
VOLTAGE CURRENT @ V
RWM
V
RWM
(V)
@I
PP
V
C
(V)
I
PP
(A)
MIN. @ I
T
MAX. @ I
T
I
R
(µA)
mA
5.0SMDJ11A
5.0SMDJ12A
5.0SMDJ13A
5.0SMDJ14A
5.0SMDJ15A
5.0SMDJ16A
5.0SMDJ17A
5.0SMDJ18A
5.0SMDJ20A
5.0SMDJ22A
5.0SMDJ24A
5.0SMDJ26A
5.0SMDJ28A
5.0SMDJ30A
5.0SMDJ33A
5.0SMDJ36A
5.0SMDJ40A
5.0SMDJ43A
5.0SMDJ45A
5.0SMDJ48A
5.0SMDJ51A
5.0SMDJ54A
5.0SMDJ58A
5.0SMDJ60A
5.0SMDJ64A
5.0SMDJ70A
5.0SMDJ75A
5.0SMDJ78A
5.0SMDJ85A
5.0SMDJ90A
5.0SMDJ100A
5.0SMDJ110A
5.0SMDJ120A
5.0SMDJ130A
5.0SMDJ150A
5.0SMDJ160A
5.0SMDJ170A
5.0SMDJ11CA
5.0SMDJ12CA
5.0SMDJ13CA
5.0SMDJ14CA
5.0SMDJ20CA
5.0SMDJ20CA
5.0SMDJ20CA
5.0SMDJ20CA
5.0SMDJ20CA
5.0SMDJ22CA
5.0SMDJ24CA
5.0SMDJ26CA
5.0SMDJ28CA
5.0SMDJ30CA
5.0SMDJ33CA
5.0SMDJ36CA
5.0SMDJ40CA
5.0SMDJ43CA
5.0SMDJ45CA
5PEN
5PEP
5PEQ
5PER
5PES
5PET
5PEU
5PEV
5PEW
5PEX
5PEZ
5PFE
5PFG
5PFK
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5PGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHM
5PHP
5PHR
5BEN
5BEP
5BEQ
5BER
5BES
5BET
5BEU
5BEV
5BEW
5BEX
5BEZ
5BFE
5BFG
5BFK
5BFM
5BFP
5BFR
5BFT
5BFV
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167.00
178.00
189.00
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147.00
159.00
185.00
197.00
209.00
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
275.0
252.0
233.0
216.0
205.0
193.0
181.0
172.0
155.0
141.0
129.0
119.0
110.0
103.0
93.9
86.1
77.6
72.1
68.8
64.7
60.7
57.5
53.5
51.7
48.6
44.3
41.4
39.7
36.5
34.3
30.9
28.3
26.0
24.0
20.6
19.3
18.2
800
800
500
200
100
50
20
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
For bidirectional type having Vrwm of 10 volts and less, the IR limit is double.
For parts without A , the VBR is ± 10%
For Bidirectional use C or CA Suffix for types 5.0SMDJ5.0 thru types 5.0SMDJ170 (e.g. 5.0SMDJ5.0C, 5.0SMDJ170CA)
Electrical characteristics apply in both directions.
http://www.luguang.cn
mail:lge@luguang.cn
京公网安备 11010802033920号
EEWORLD
