B39891-B4628-Z610 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> B39891-B4628-Z610

B39891-B4628-Z610: DescriptionSAW Filter, 1 Function(s), 886MHz, CERAMIC, DCC-6; CategoryAnalog mixed-signal IC filter; File Size40KB，3 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

B39891-B4628-Z610 Overview

SAW Filter, 1 Function(s), 886MHz, CERAMIC, DCC-6

B39891-B4628-Z610 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	CERAMIC, DCC-6
Reach Compliance Code	compliant
Center frequency or cutoff frequency (fo/fc)	886 MHz
filter type	SAW FILTER
high	1.5 mm
input resistance	50 OHM
Maximum insertion loss	4 dB
JESD-609 code	e4
length	3.8 mm
Manufacturer's serial number	B4628
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	55 °C
Minimum operating temperature
Output impedance	50 OHM Ω
physical size	L3.8XB3.8XH1.5 (mm)
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
width	3.8 mm

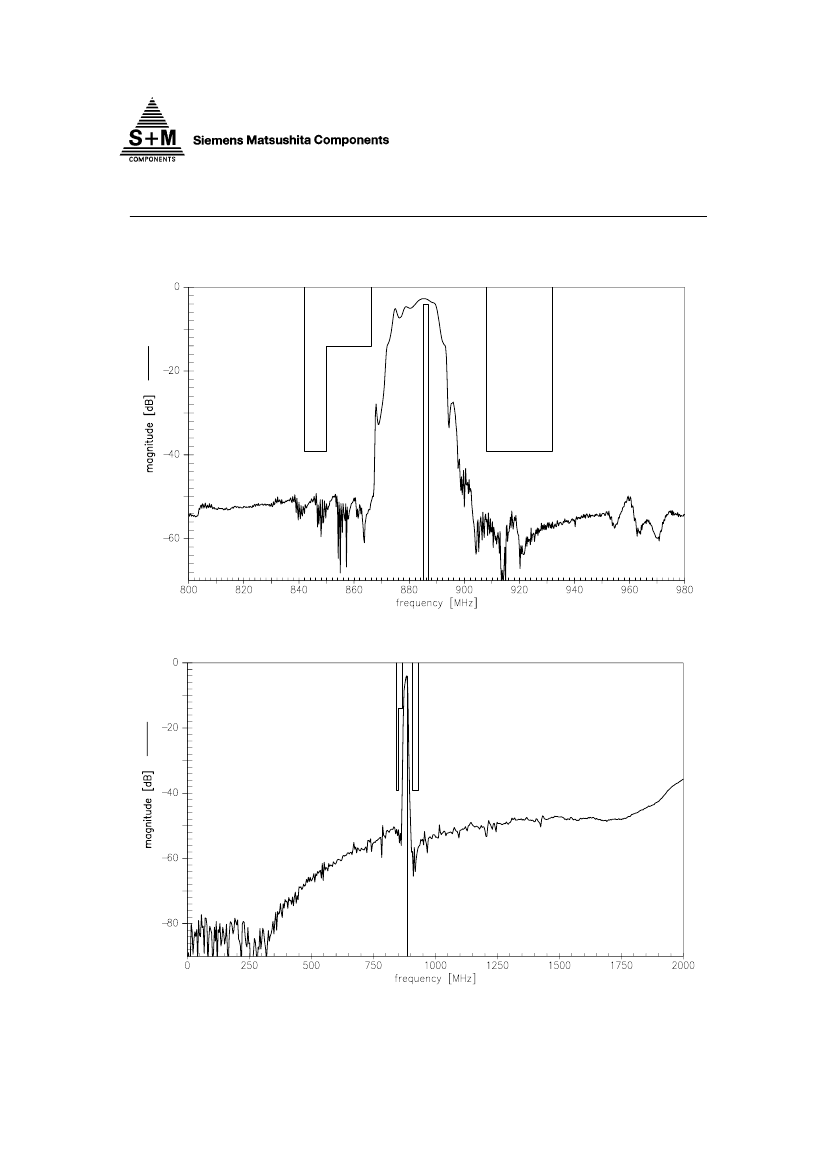

Preview

Download Datasheet

View All

SAW Components

Low Loss Filter for Mobile Communication

Data Sheet

B4628

886,00 MHz

Ceramic package

DCC6

Features

Low loss RF filter for cordless telephone CT1+

High image frequency suppression

No matching network required for operation

Package for

Surface Mounted Technology

at 50

Ω

(SMT)

Terminals

Ni, gold-plated

Dimensions in mm, approx. weight 0,07 g

Pin configuration

1, 3, 4, 6

Input

Output

Ground

Type

B4628

Ordering code

B39891-B4628-Z610

Marking and Package

according to

C61157-A7-A41

Packing

according to

F61074-V8030-Z000

Electrostatic Sensitive Device

(ESD)

Maximum ratings

Operable temperature range

Storage temperature range

DC voltage

Source power

stg

0/+ 55

- 40/+ 85

˚C

dBm

source impedance 50

Ω

Preliminary format of data sheet.

Terms of delivery and rights to change design reserved.

Page 1 of

OFW EM CP

Nov 11, 1997
