BC12071R-330-J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BC12071R-330-J

BC12071R-330-J: DescriptionSingle Phase EMI Filter,; CategoryAnalog mixed-signal IC filter; File Size257KB，1 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BC12071R-330-J Overview

Single Phase EMI Filter,

BC12071R-330-J Parametric

Parameter Name	Attribute value
Maker	YAGEO
Reach Compliance Code	compliant
Other features	INDUCTANCE 33 MICRO HENRY
diameter	12 mm
filter type	SINGLE PHASE EMI FILTER
Manufacturer's serial number	BC
Installation type	THROUGH HOLE MOUNT
physical size	D12XL7 (mm)

Preview

Download Datasheet

View All

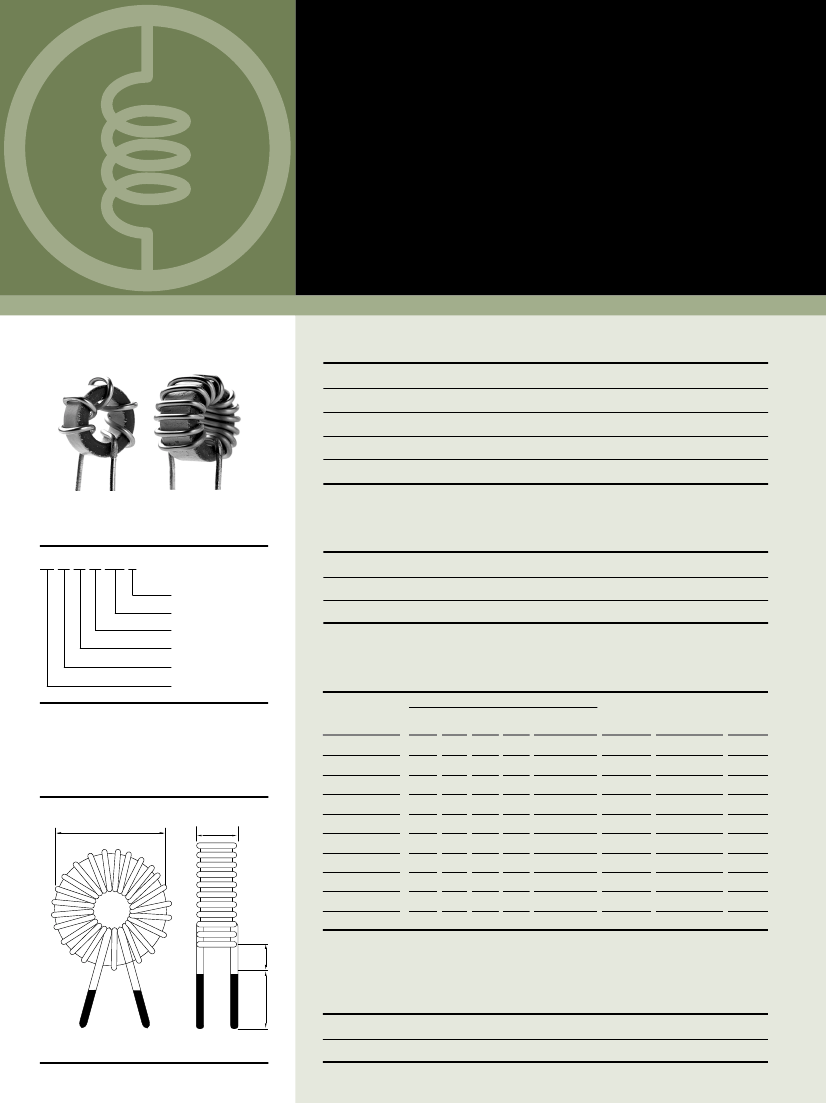

YAGEO CORPORATION

COILS

LINE FILTER

BC12071R TYPE

BC TYPE Series

APPLICATIONS

For Line Filters at the Switching Power Supplies Inlet

For Equipment Using Thyristor Such as SCR

Light Adjustment : for Theaters, Studios, Projector and General Households

Heat Adjustment : for Household Electric Heating Appliances

Speed Adjustment : for OA Equipment, Copying Machines and Home Appliances

PRODUCT IDENTIFICATION

BC 12 07 1R 330 J

Material

Inductance : 33µH

Core Type

B Dim.

A Dim.

Product Symbol

FEATURES

Compact Size, High Performance, Low Cost

With Large Current Loads

Toroidal Shape Core Reduces Coils Roar to an All-Time Low

SPECIFICATIONS

MODEL

DIMENSIONS

Max Max Min

12.0

13.5

15.5

17.0

19.0

21.0

25.0

27.0

32.0

40.0

7.0

7.5

8.5

9.5

10.0

11.0

13.5

17.0

25.0

TURNS

WIRE DIA.

Max (mm)

3.0

0.4Ø

0.6Ø

0.8Ø

1.0Ø

Dimensions : mm

INDUCTANCE

L (µH)

120

140

RDC

(mΩ)

BC12071R-330-J

DIMENSIONS(MM)

BC14081R-300-J

BC16091R-330-J

BC17101R-300-J

BC19101R-330-J

BC21101R-390-J

BC25111R-430-J

BC27141R-960-J

BC32171R-121-J

BC40171R-141-J

*We can supplied any specification as case by case.

TEST INSTRUMENTS

L : HP 4284A Digital LCR Meter

RDC : Milliohm Meter HP4338B

BC12071R-330-J Related Products

	BC12071R-330-J	BC32171R-121-J	7164S35YG8	BC40171R-141-J	BC27141R-960-J	BC25111R-430-J	BC21101R-390-J	BC19101R-330-J	BC14081R-300-J	BC16091R-330-J
Description	Single Phase EMI Filter,	Single Phase EMI Filter,	CMOS Static RAM 64K	Single Phase EMI Filter,	Single Phase EMI Filter,	Single Phase EMI Filter,	Single Phase EMI Filter,	Single Phase EMI Filter,	Single Phase EMI Filter,	Single Phase EMI Filter,
Maker	YAGEO	-	-	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	compliant	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	INDUCTANCE 33 MICRO HENRY	INDUCTANCE 120 MICRO HENRY	-	INDUCTANCE 140 MICRO HENRY	INDUCTANCE 96 MICRO HENRY	INDUCTANCE 43 MICRO HENRY	INDUCTANCE 39 MICRO HENRY	INDUCTANCE 33 MICRO HENRY	INDUCTANCE 30 MICRO HENRY	INDUCTANCE 33 MICRO HENRY
diameter	12 mm	32 mm	-	40 mm	27 mm	25 mm	21 mm	19 mm	13.5 mm	15.5 mm
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	-	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
Manufacturer's serial number	BC	BC	-	BC	BC	BC	BC	BC	BC	BC
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
physical size	D12XL7 (mm)	D32XL17 (mm)	-	D40XL17 (mm)	D27XL13.5 (mm)	D25XL11 (mm)	D21XL10 (mm)	D19XL10 (mm)	D13.5XL7.5 (mm)	D15.5XL8.5 (mm)
