3SD45

Description
Silicon Controlled Rectifier, 45A I(T)RMS, 45000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element
CategoryAnalog mixed-signal IC    Trigger device
File Size218KB,2 Pages
ManufacturerHutson Industries
Download Datasheet Parametric View All

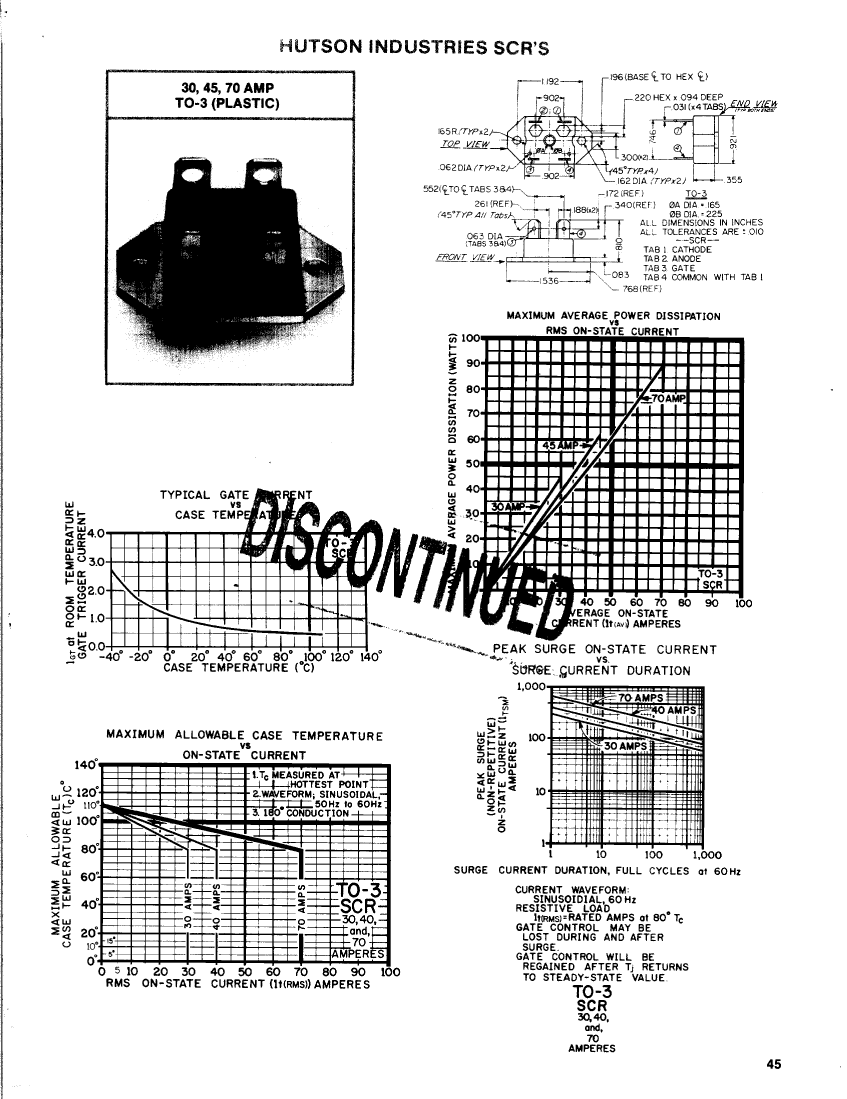

3SD45 Overview

Silicon Controlled Rectifier, 45A I(T)RMS, 45000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element

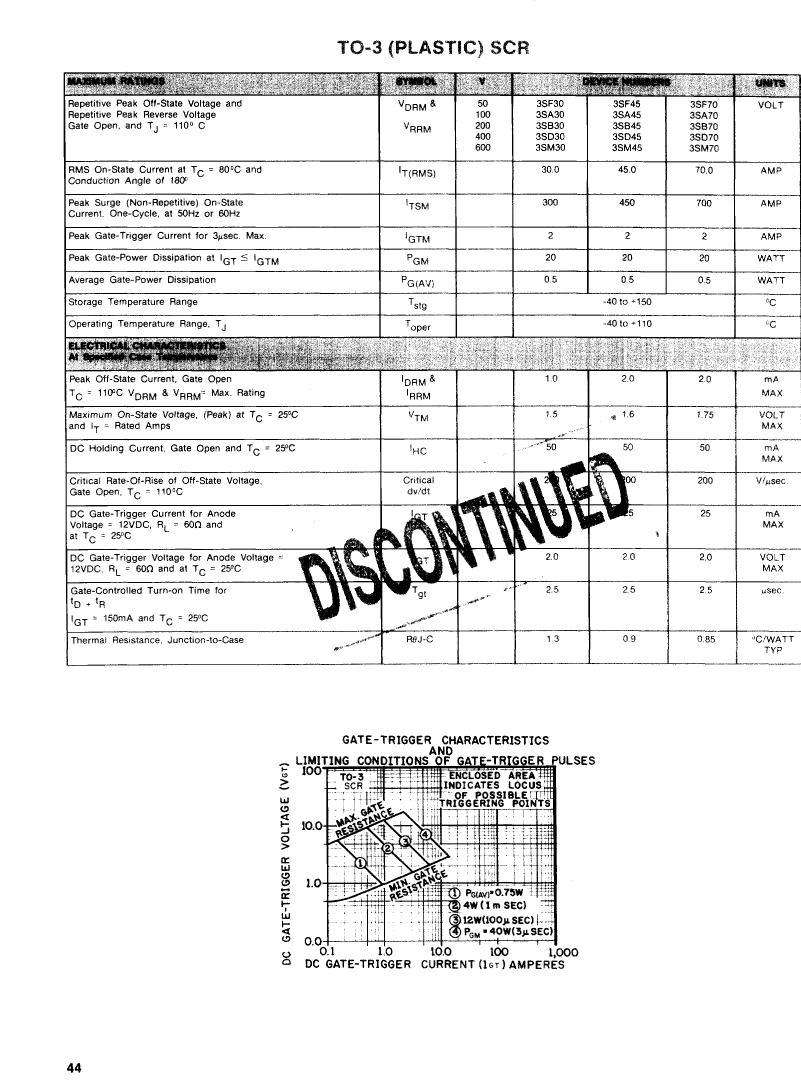

3SD45 Parametric

Parameter NameAttribute value
MakerHutson Industries
package instructionFLANGE MOUNT, R-PUFM-D4
Reach Compliance Codeunknown
ConfigurationSINGLE
Critical rise rate of minimum off-state voltage200 V/us
Maximum DC gate trigger current25 mA
Maximum DC gate trigger voltage2 V
Quick connection descriptionA-G-CK
Description of screw terminals0
Maximum holding current50 mA
JESD-30 codeR-PUFM-D4
Maximum leakage current2 mA
On-state non-repetitive peak current450 A
Number of components1
Number of terminals4
Maximum on-state current45000 A
Maximum operating temperature110 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum rms on-state current45 A
Maximum repetitive peak off-state leakage current2000 µA
Off-state repetitive peak voltage400 V
Repeated peak reverse voltage400 V
surface mountNO
Terminal formSOLDER LUG
Terminal locationUPPER
Trigger device typeSCR
