Filters for Converters and Power Electronics
B84143- A***- R
B84143- A***- S
Power line filters for three- phase systems
Rated voltage 440/250 Vac, 50/60 Hz
Rated current 8 A to 1600 A
Construction
q
Three- line filter
q
Metal case
Features
q
q
q
q
q
Very high insertion loss
Low leakage current
Easy to install
Space- saving construction
Construction complies with
UL 1283, CSA 22.2 No.8 1986
q
Optimized for long motor cables and
operation under full load
Applications
q
Frequency converters for motor drives, e.g.
– lifts
– pumps
– traction systems
– conveyor systems
– air conditioning systems
q
Wind- driven power plants
q
Power supplies
Terminals
q
Safe- to- touch terminal blocks for filters up to 180 A
q
Terminal lugs for filters 250 to 1600 A

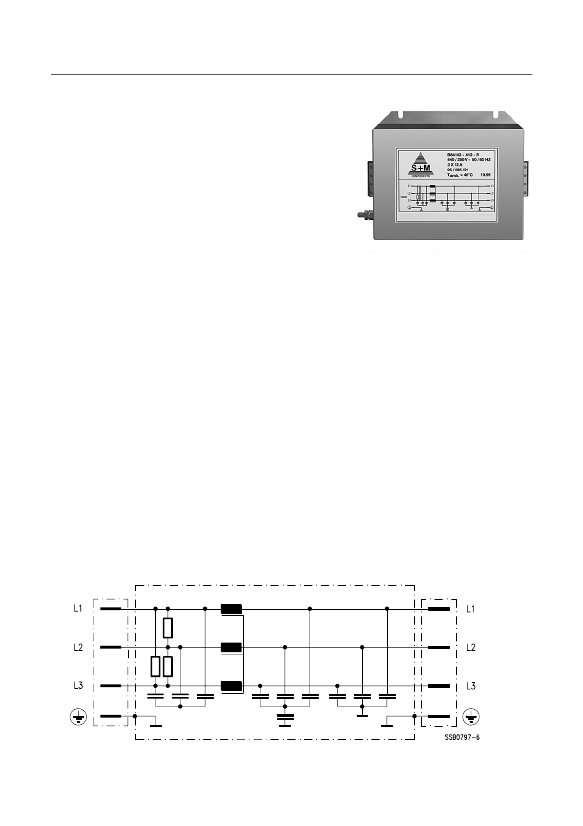

Typical circuit diagram
Line
Siemens Matsushita Components
17
Filters for Converters and Power Electronics
B84143- A***- R
B84143- A***- S
Technical data
Rated voltage
V
R
Rated current
I
R
Test voltage
V
P
440/250 Vac, 50/60 Hz
Referred to 40
°C
ambient temperature
2121 Vdc, 2 s (line/line)
2700 Vdc, 2 s (lines/case), for 8 … 180 A
2121 Vdc, 2 s (lines/case), for 250 … 1600 A
1,5 ·
I
R
for 3 min per hour or
2,5 ·
I
R
for 30 s per hour
at 250 Vac, 50 Hz
In accordance with IEC 68- 1
25/085/21 (– 25
°C/+
85
°C/21
days damp heat test)
Overload capability
Leakage current
I
leak
Climatic category
Characteristics and ordering codes
I
R
A
8
12
16
25
36
50
80
120
150
180
250
500
1000
1600
Terminal
cross section
mm
2
4
4
4
10
10
10
25
50
50
95
I
leak
mA
<
3,5
<
3,5
<
3,5
<
3,5
<
3,5
<
6
<
6
<
6
<
6
<
6
<
6
<
6
<
6
<
6
R
typ
mΩ
40
20
15
8
2,5
2
1
0,75
0,4
0,4
0,095
0,060
0,030
0,020
Approx.
weight
kg
2,2
2,2
2,2
3,7
3,7
4,0
9,5
10
10
13
30
49
90
130
Ordering code
B84143- A8- R
B84143- A12- R
B84143- A16- R
B84143- A25- R
B84143- A36- R
B84143- A50- R
B84143- A80- R
B84143- A120- R
B84143- A150- R
B84143- A180- R
B84143- A250- S
B84143- A500- S
B84143- A1000- S
B84143- A1600- S
Terminal
lugs
18
Siemens Matsushita Components
Filters for Converters and Power Electronics
B84143- A***- R

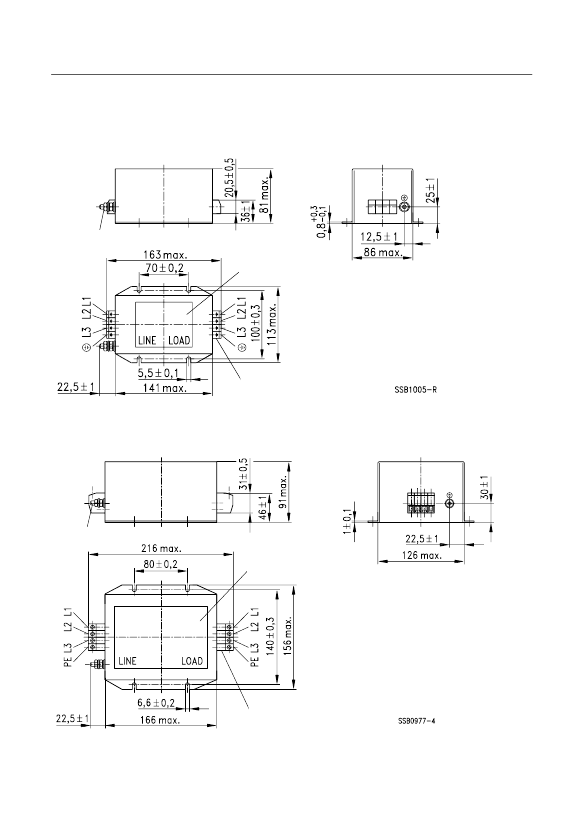

Dimensional drawings
B84143- A8- R … B84143- A16- R
Terminal stud M6
Marking
Terminal blocks
4 mm
2
B84143- A25- R ... A50- R
Terminal stud M6
Marking
Terminal blocks
10 mm
2

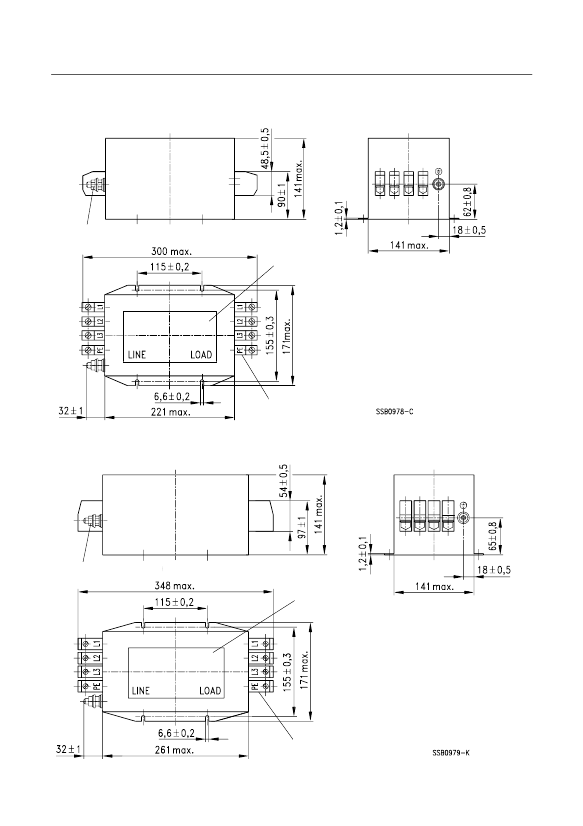

Siemens Matsushita Components
19
Filters for Converters and Power Electronics
B84143- A***- R
B84143- A80- R
Terminal stud M10
Marking
Terminal blocks
25 mm
2
B84143- A120- R, B84143- A150- R
Terminal stud M10
Marking
Terminal blocks
50 mm
2
20
Siemens Matsushita Components
Filters for Converters and Power Electronics
B84143- A***- R
B84143- A180- R
Terminal stud M10
Marking
Terminal blocks
95 mm
2
Siemens Matsushita Components
21
