LH0033G-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LH0033G-T

LH0033G-T: DescriptionBuffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN; CategoryAnalog mixed-signal IC Amplifier circuit; File Size371KB，10 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

LH0033G-T Overview

Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN

LH0033G-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Objectid	2014154006
Parts packaging code	TO-8
package instruction	TO-8,
Contacts	12
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	8878978
Amplifier type	BUFFER
Maximum average bias current (IIB)	0.01 µA
Maximum input offset voltage	15000 µV
JESD-30 code	O-MBCY-W12
JESD-609 code	e0
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	TO-8
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
minimum slew rate	1000 V/us
Nominal slew rate	1500 V/us
Maximum slew rate	22 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED

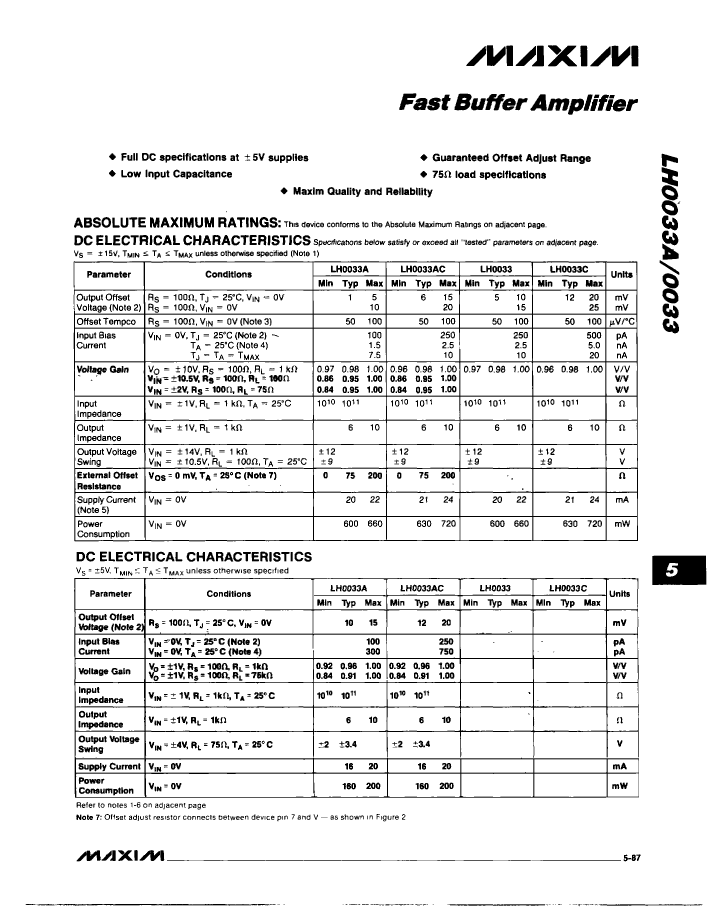

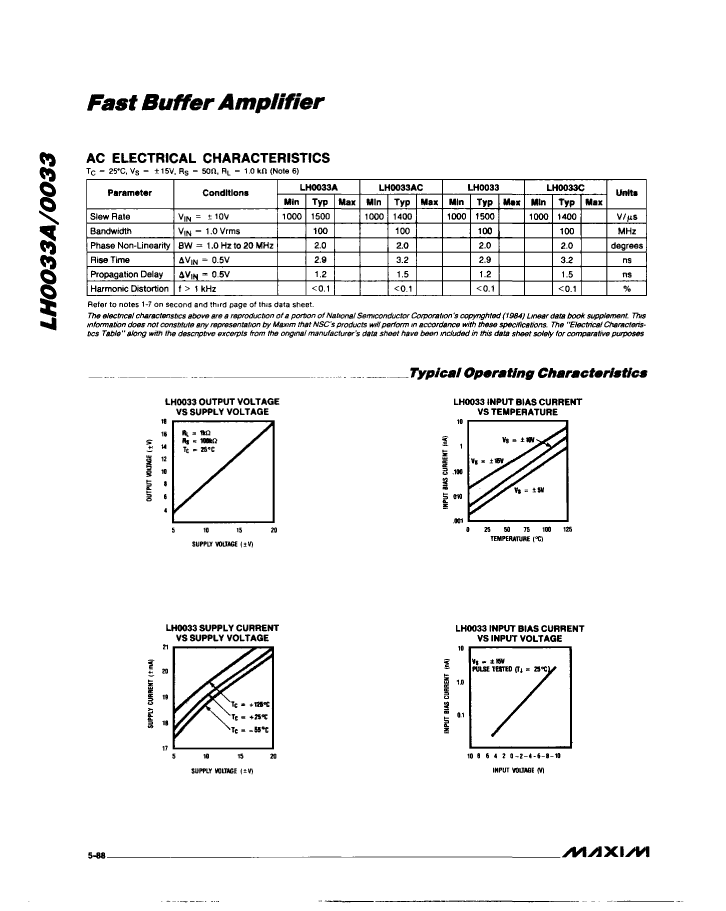

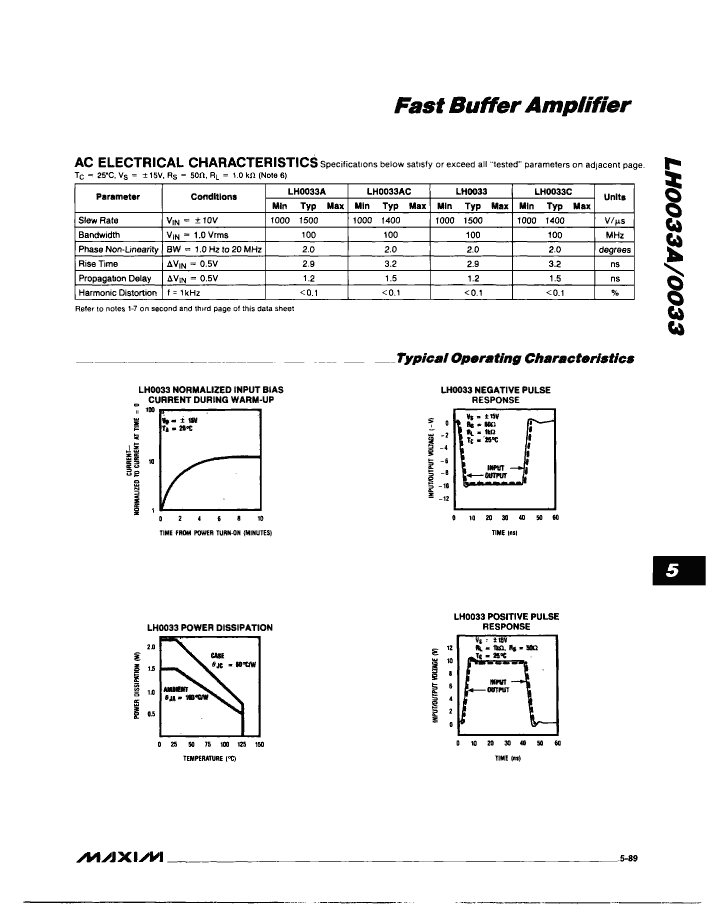

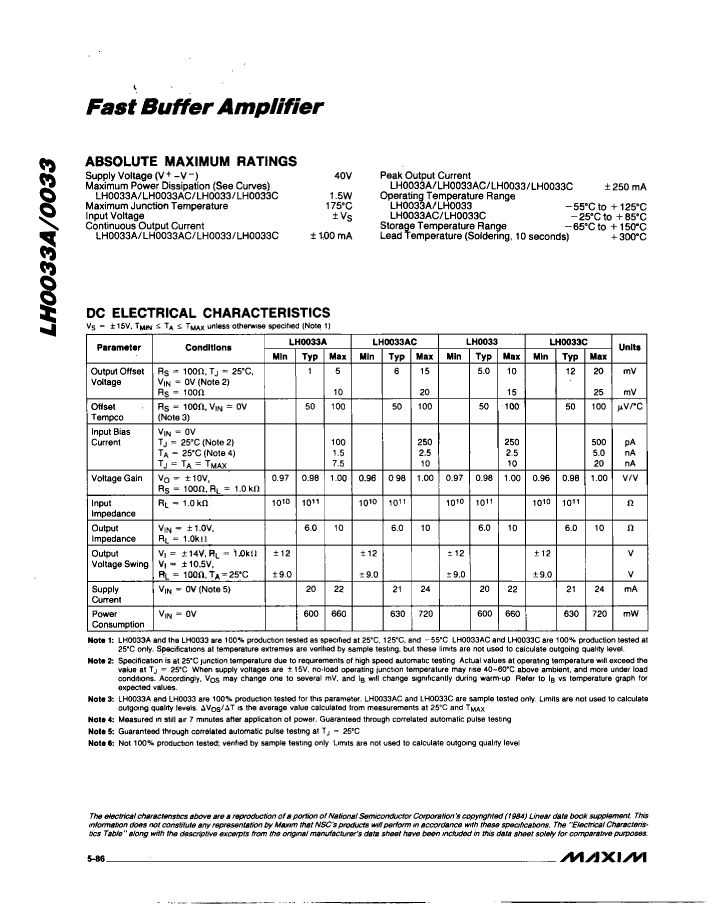

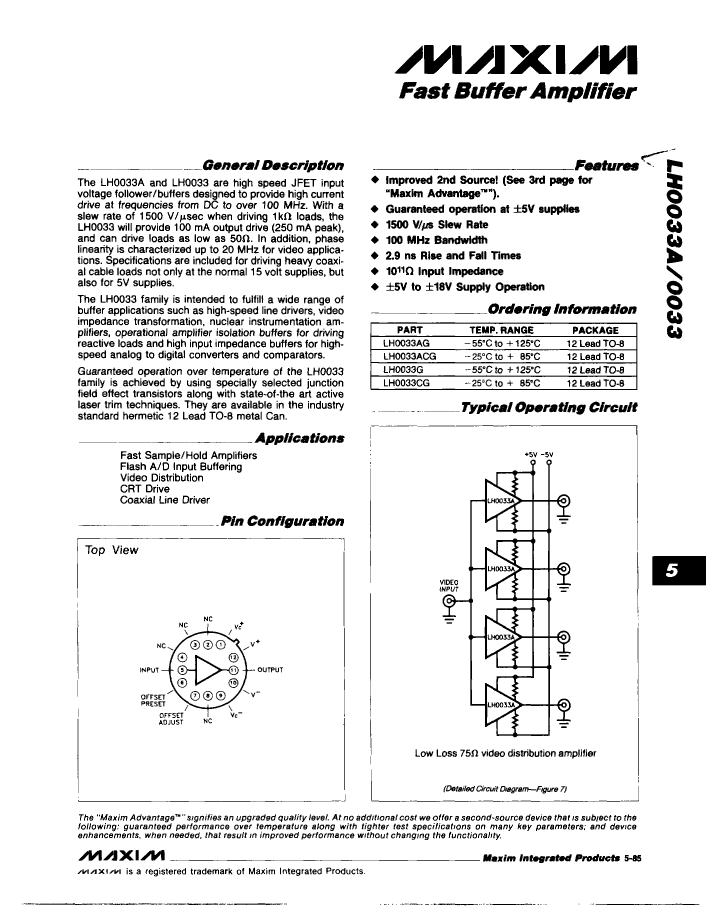

Preview

Download Datasheet

View All

LH0033G-T Related Products

	LH0033G-T	LH0033ACG-T	LH0033AG-T	LH0033AG	LH0033ACG	LH0033CG-T	LH0033G	LH0033CG
Description	Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN	Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN	Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN	Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN	Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN	Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN	Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN	Buffer Amplifier, 1 Func, BIPolar, MBCY12, TO-8, 12 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	TO-8	TO-8	TO-8	TO-8	TO-8	TO-8	TO-8	TO-8
package instruction	TO-8,	TO-8,	TO-8,	TO-8, 12 PIN	TO-8, 12 PIN	TO-8,	TO-8, 12 PIN	TO-8, 12 PIN
Contacts	12	12	12	12	12	12	12	12
Reach Compliance Code	compliant	compliant	compliant	not_compliant	not_compliant	compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	BUFFER	BUFFER	BUFFER	BUFFER	BUFFER	BUFFER	BUFFER	BUFFER
Maximum average bias current (IIB)	0.01 µA	0.01 µA	0.0075 µA	0.0075 µA	0.01 µA	0.02 µA	0.01 µA	0.02 µA
Maximum input offset voltage	15000 µV	20000 µV	10000 µV	10000 µV	20000 µV	25000 µV	15000 µV	25000 µV
JESD-30 code	O-MBCY-W12	O-MBCY-W12	O-MBCY-W12	O-MBCY-W12	O-MBCY-W12	O-MBCY-W12	O-MBCY-W12	O-MBCY-W12
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Negative supply voltage upper limit	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	12	12	12	12	12	12	12	12
Maximum operating temperature	125 °C	85 °C	125 °C	125 °C	85 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-25 °C	-55 °C	-55 °C	-25 °C	-25 °C	-55 °C	-25 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
encapsulated code	TO-8	TO-8	TO-8	TO-8	TO-8	TO-8	TO-8	TO-8
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Nominal slew rate	1500 V/us	1400 V/us	1500 V/us	1500 V/us	1400 V/us	1400 V/us	1500 V/us	1400 V/us
Maximum slew rate	22 mA	24 mA	22 mA	22 mA	24 mA	24 mA	22 mA	24 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	OTHER	MILITARY	MILITARY	OTHER	OTHER	MILITARY	OTHER
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
