ZFDC-10-5-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFDC-10-5-S

ZFDC-10-5-S: DescriptionDirectional Coupler, 1MHz Min, 2000MHz Max, 2.5dB Insertion Loss-Max, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size107KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZFDC-10-5-S Overview

Directional Coupler, 1MHz Min, 2000MHz Max, 2.5dB Insertion Loss-Max, CASE K18

ZFDC-10-5-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	26.99 dBm
Maximum insertion loss	2.5 dB
JESD-609 code	e0
Maximum operating frequency	2000 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

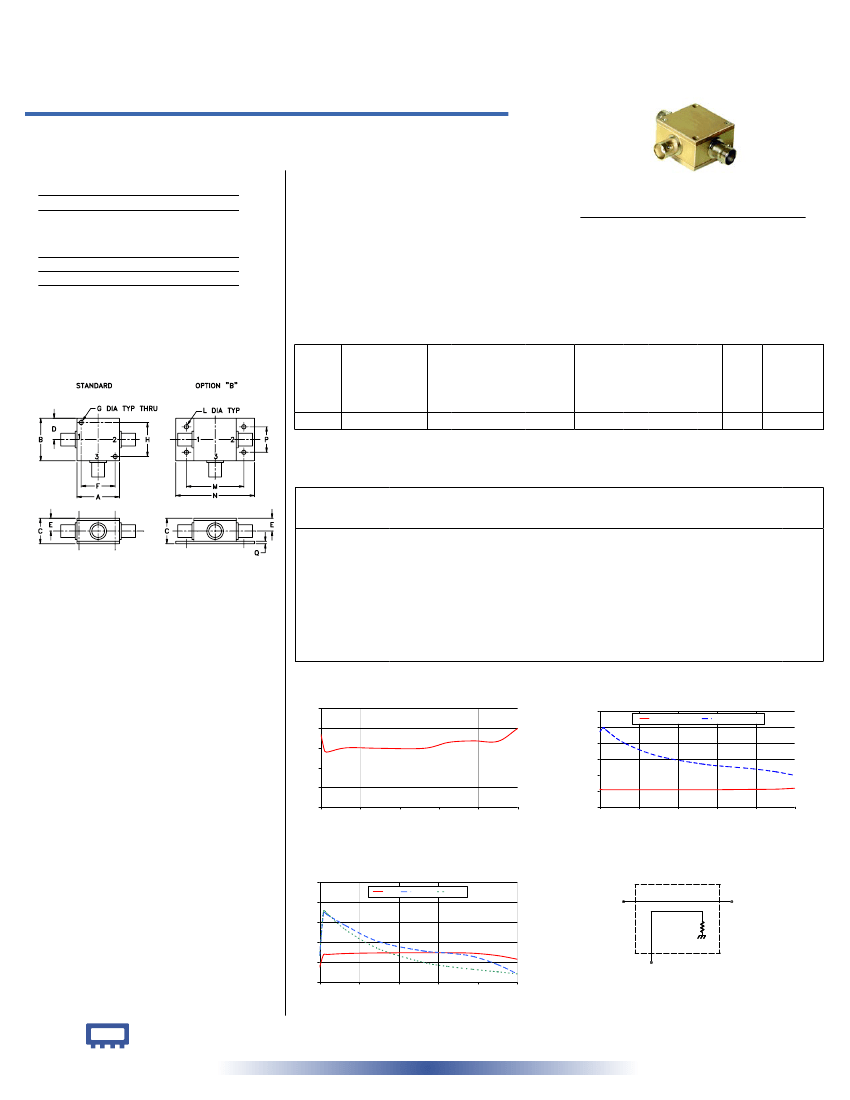

Directional Coupler

50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

Coaxial

ZFDC-10-5

1 to 2000 MHz

-55°C to 100°C

Features

• very wideband, 1 to 2000 MHz

• excellent directivity, 30 dB typ.

• rugged shielded case

BNC version shown

CASE STYLE: K18

Connectors Model

BNC

ZFDC-10-5

SMA

ZFDC-10-5-S

N-TYPE

ZFDC-10-5-N

BRACKET (OPTION"B")

Price

$84.95

$89.95

$2.50

Qty.

(1-9)

(1+)

Coaxial Connections

INPUT

OUTPUT

COUPLED

Applications

• cellular

• instrumentation

• communication receivers & transmitters

• GPS

Directional Coupler Electrical Speciﬁcations

Outline Drawing

FREQ.

RANGE

(MHz)

-f

1-2000

COUPLING

(dB)

Nom.

10.8±0.5

Flatness

±0.5

MAINLINE LOSS

DIRECTIVITY

(dB)

Min.

Typ.

Min.

Typ.

Min.

VSWR

(:1)

POWER

INPUT

(W)

Max.

0.5

Max.

0.5

Typ. Max. Typ. Max. Typ. Max. Typ.

1.2

1.9

1.2

1.8

2.5

Typ.

1.3

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

1. Mainline loss includes theoretical power loss at coupled port.

Typical Performance Data

Frequency

(MHz)

1.00

40.00

80.00

260.00

600.00

1050.00

1300.00

1550.00

1800.00

2000.00

Mainline Loss

(dB)

In-Out

1.47

1.13

1.12

1.20

1.19

1.31

1.34

1.33

1.59

ZFDC-10-5

MAINLINE LOSS

2.0

MAINLINE LOSS (dB)

1.6

1.2

0.8

0.4

0.0

400

800

1200

FREQUENCY (MHz)

1600

2000

at RF level of -10 dBm

Coupling

(dB)

In-Cpl

11.03

10.71

10.70

10.78

10.77

10.73

10.81

10.96

11.08

11.68

Directivity

(dB)

47.08

49.57

47.38

39.74

31.82

26.87

25.29

23.98

22.06

19.78

14.55

18.26

18.32

18.61

18.79

18.84

18.83

18.70

17.99

16.91

Return Loss

(dB)

Out

18.01

30.69

30.20

27.02

22.14

19.38

18.76

17.75

15.32

12.53

Cpl

18.03

31.26

30.46

25.80

19.98

15.98

14.75

13.90

13.15

12.52

Outline Dimensions (

inch

)

1.25

31.75

1.25

31.75

.75

19.05

.63

16.00

.38

9.65

1.00

25.40

.125

3.18

1.000

25.40

.125

3.18

1.688

42.88

2.18

55.37

.75

19.05

.07 grams

70.0

1.78

ZFDC-10-5

COUPLING & DIRECTIVITY

(dB)

400

800

1200

FREQUENCY (MHz)

1600

2000

at RF level of -10 dBm

COUPLING

DIRECTIVITY

ZFDC-10-5

RETURN LOSS

RETURN LOSS (dB)

400

800

1200

FREQUENCY (MHz)

1600

2000

at RF level of -10 dBm

electrical schematic

CPL

OUT

INPUT

OUTPUT

COUPLED

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. OR

M93827

ZFDC-10-5

WZ/TD/CP

060803

Mini-Circuits

ISO 9001 & ISO 14001

Certified

ZFDC-10-5-S Related Products

	ZFDC-10-5-S	ZFDC-10-5-N	ZFDC-10-5B-N	ZFDC-10-5B	ZFDC-10-5B-S
Description	Directional Coupler, 1MHz Min, 2000MHz Max, 2.5dB Insertion Loss-Max, CASE K18	Directional Coupler, 1MHz Min, 2000MHz Max, 2.5dB Insertion Loss-Max, CASE K18	Directional Coupler, 1MHz Min, 2000MHz Max, 2.5dB Insertion Loss-Max, CASE K18	Directional Coupler, 1MHz Min, 2000MHz Max, 2.5dB Insertion Loss-Max, CASE K18	Directional Coupler, 1MHz Min, 2000MHz Max, 2.5dB Insertion Loss-Max, CASE K18
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow
Other features	SMA	N	N	BNC	SMA
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	26.99 dBm	26.99 dBm	26.99 dBm	26.99 dBm	26.99 dBm
Maximum insertion loss	2.5 dB	2.5 dB	2.5 dB	2.5 dB	2.5 dB
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3	1.3	1.3	1.3	1.3
