ZFL-2500VHB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFL-2500VHB

ZFL-2500VHB: DescriptionWide Band Medium Power Amplifier, 10MHz Min, 2500MHz Max, CASE SS98; CategoryWireless rf/communication Radio frequency and microwave; File Size177KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZFL-2500VHB Overview

Wide Band Medium Power Amplifier, 10MHz Min, 2500MHz Max, CASE SS98

ZFL-2500VHB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA, LOW NOISE
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	20 dB
Maximum input power (CW)	10 dBm
JESD-609 code	e0
Maximum operating frequency	2500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	71 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Ampliﬁer

50Ω

Medium Power

10 to 2500 MHz

Features

• wideband, 10 to 2500 MHz

• high IP3, 35 dBm typ.

• low noise, 5.5 dB typ.

• protected by US Patent, 6,943,629

Coaxial

ZFL-2500VH

Applications

• instrumentation

• communication systems

• lab use

CASE STYLE: SS98

Connectors

Model

SMA

ZFL-2500VH

BRACKET (OPTION “B”)

Price

$264.95

$2.50

Qty.

(1-9)

(1+)

Ampliﬁer Electrical Speciﬁcations

MODEL

NO.

FREQUENCY

(MHz)

GAIN

(dB)

Flatness

Max.

±1.5

MAXIMUM

POWER

(dBm)

Output

(1 dB Compr.)

+23

Input

(no damage)

+10

DYNAMIC

RANGE

(dB)

Typ.

5.5

IP3

(dBm)

Typ.

+35

VSWR*

(:1)

Typ.

1.7

Out

2.0

Volt

(V)

Nom.

POWER

Current

(mA)

Max.

300

ZFL-2500VH

2500

Min.

* Max. VSWR IN 2.0:1, OUT 2.5:1

Open load is not recommended, potentially can cause damage.

With no load derate max input power by 20 dB

Maximum Ratings

Operating Temperature

Storage Temperature

DC Voltage

-20°C to 71°C

-55°C to 100°C

+17V Max.

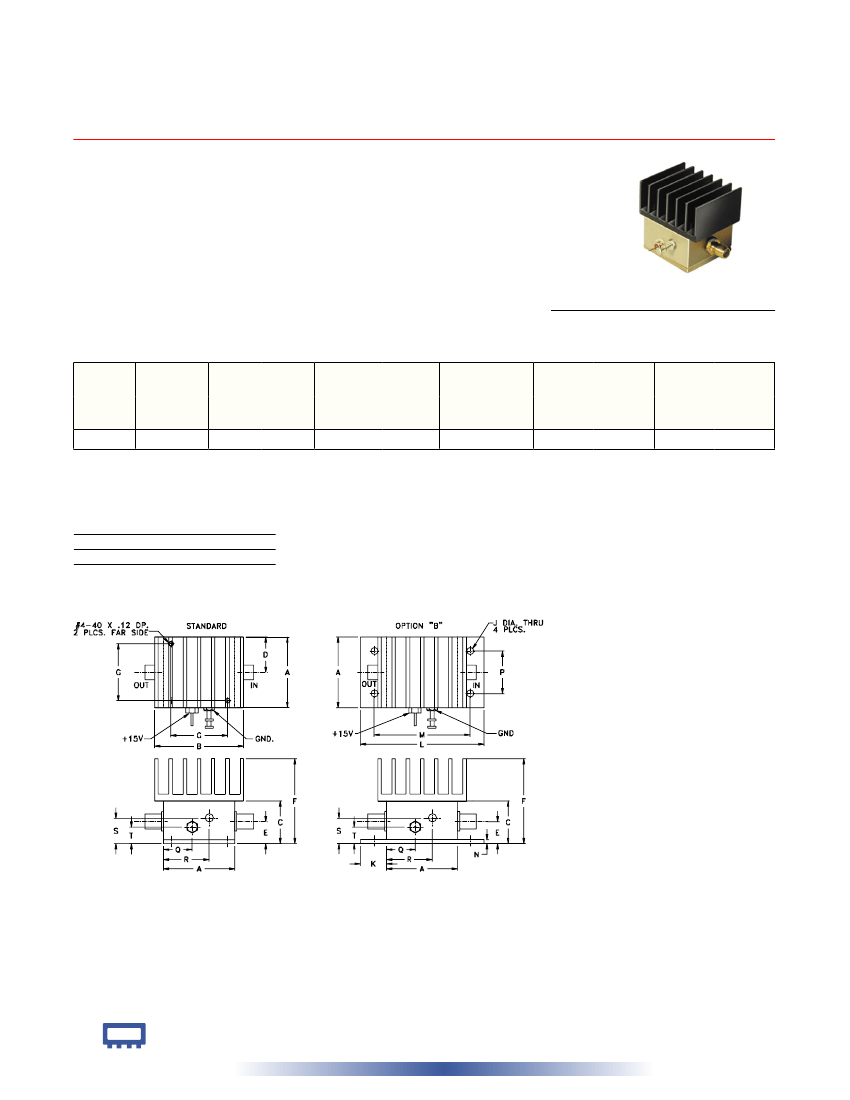

Outline Drawing

Outline Dimensions (

inch

)

1.25

1.56

.75

.63

31.75 39.62 19.05 16.00

.46

2.18 1.688

11.68 55.37 42.88

.39

1.50 1.000

9.91 38.10 25.40

.125

3.18

.29

7.37

grams

85.0

.07

.750

.50

.80

.45

1.78 19.05 12.70 20.32 11.43

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M98088

ZFL-2500VH

051228

Page 1 of 2

ZFL-2500VHB Related Products

	ZFL-2500VHB	ZFL-2500VH
Description	Wide Band Medium Power Amplifier, 10MHz Min, 2500MHz Max, CASE SS98	Wide Band Medium Power Amplifier, 10MHz Min, 2500MHz Max, CASE SS98
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Other features	SMA, LOW NOISE	SMA, LOW NOISE
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Gain	20 dB	20 dB
Maximum input power (CW)	10 dBm	10 dBm
JESD-609 code	e0	e0
Maximum operating frequency	2500 MHz	2500 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	71 °C	71 °C
Minimum operating temperature	-20 °C	-20 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2	2
