ZLW-1-1BR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZLW-1-1BR

ZLW-1-1BR: Description0.1MHz - 500MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.5dB CONVERSION LOSS-MAX, CASE M21; CategoryWireless rf/communication Radio frequency and microwave; File Size136KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZLW-1-1BR Overview

0.1MHz - 500MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.5dB CONVERSION LOSS-MAX, CASE M21

ZLW-1-1BR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA, HIGH ISOLATION
structure	COAXIAL
Maximum frequency conversion loss	8.5 dB
Maximum input power (CW)	17 dBm
JESD-609 code	e0
Maximum operating frequency	500 MHz
Minimum operating frequency	0.1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	TIN LEAD
Maximum voltage standing wave ratio	3

Preview

Download Datasheet

View All

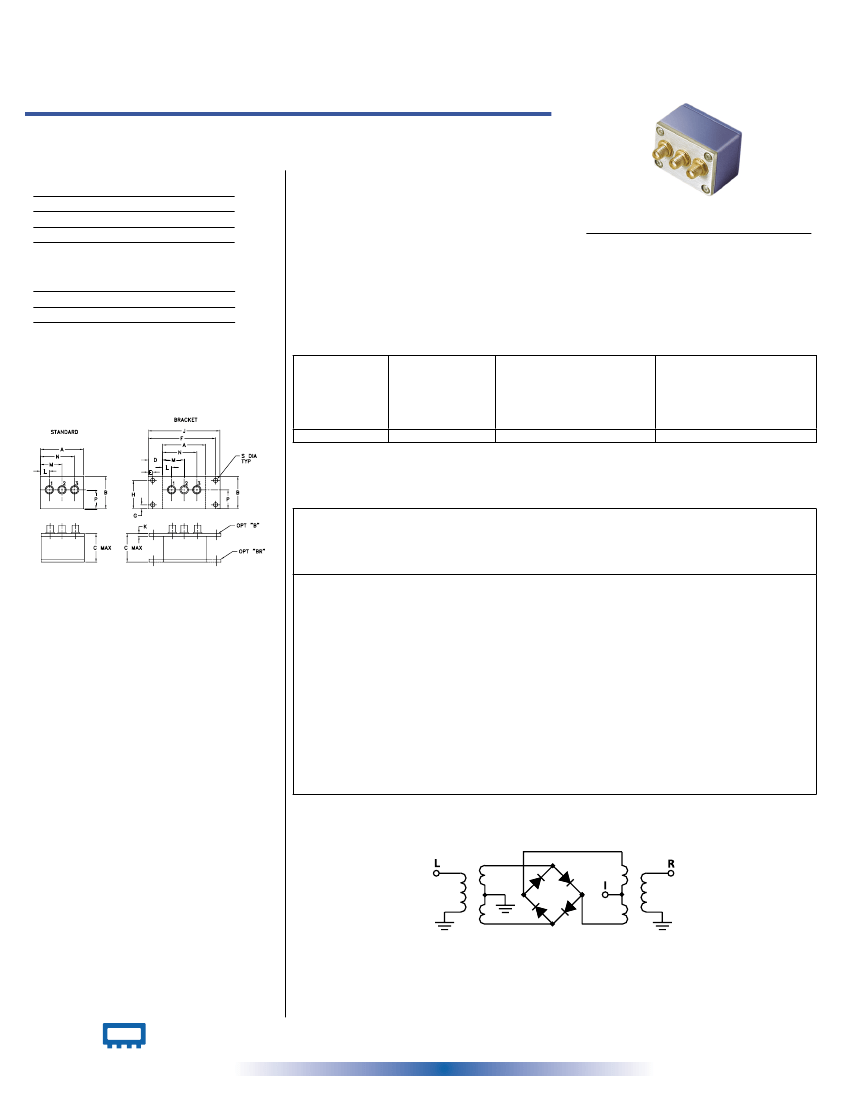

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm) 0.1 to 500 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

ZLW-1-1

Features

• low conversion loss, 4.82 dB typ.

• high L-R isolation, 45 dB typ., L-I, 40 dB typ.

• rugged shielded case

CASE STYLE: M21

Connectors Model

BNC

ZLW-1-1

BRACKET (OPTION “B”)

BRACKET (OPTION “BR”)

Price

$53.95 ea.

$5.00

$2.50

Qty.

(1-9)

(1+)

Applications

Coaxial Connections

• VHF/UHF

• defense & federal communications

• instrumentations

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

-f

0.1-500

DC-500

—

4.82

CONVERSION LOSS

(dB)

Mid-Band

0.07

Typ.

LO-RF ISOLATION

(dB)

Min.

Typ.

Min.

Typ.

Min.

Typ.

LO-IF ISOLATION

(dB)

Min.

Typ.

Min.

Typ.

Min.

Total

Range

Max. Max.

7.5

8.5

1 dB COMP.: +1 dBm typ.

L = low range [f

to 10 f

]

m= mid band [2f

to f

/2]

M = mid range [10 f

to f

/2]

U = upper range [f

/2 to f

]

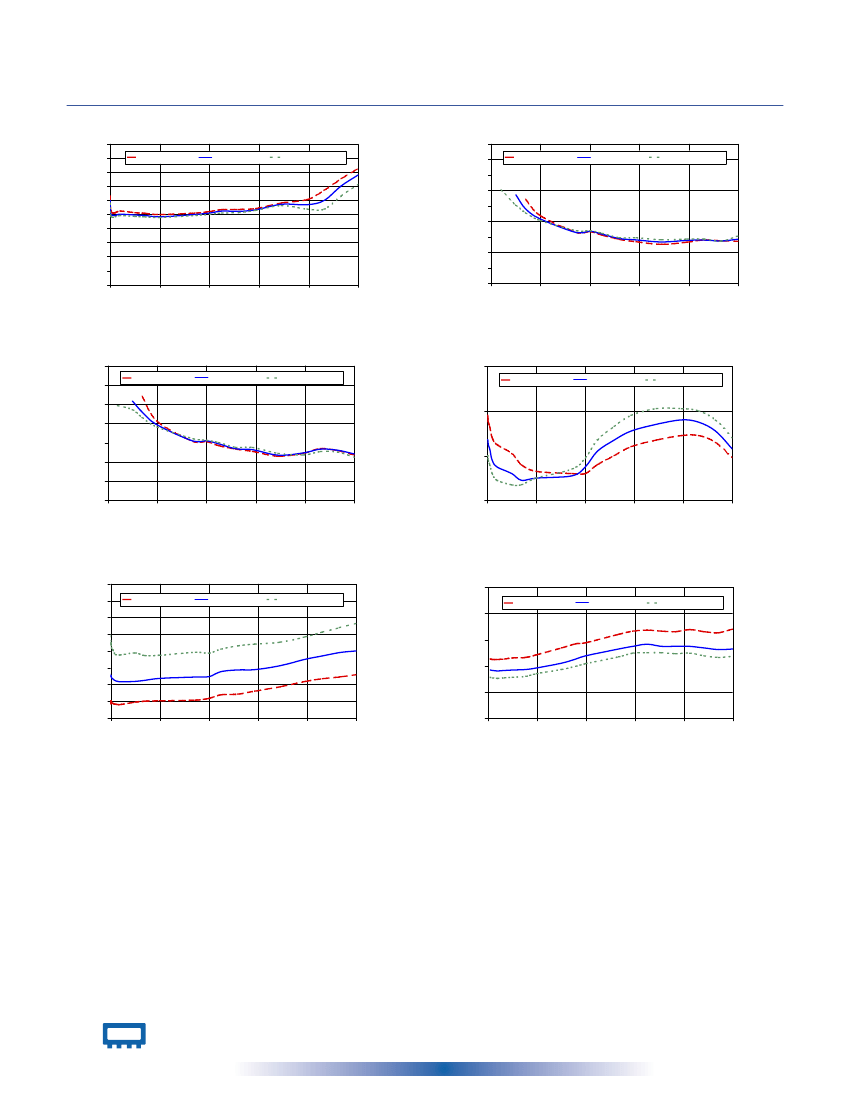

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

30.10

30.50

31.00

32.00

35.00

40.00

50.00

80.00

99.83

70.00

143.07

170.00

194.69

229.11

263.52

315.14

366.76

401.18

435.59

470.00

+7dBm

5.97

5.10

5.03

4.95

4.94

4.92

5.01

4.95

4.92

4.82

4.99

5.08

5.23

5.21

5.32

5.71

5.68

5.98

7.01

7.80

Isolation

L-R

(dB)

+7dBm

>67.00

57.89

51.38

42.54

43.50

41.57

38.74

37.88

36.54

37.59

37.76

37.18

38.33

Isolation

L-I

(dB)

+7dBm

>67.00

60.45

60.33

60.77

61.39

61.65

61.63

55.93

49.30

40.81

41.01

39.41

36.85

36.40

33.55

34.68

36.68

36.08

34.17

VSWR RF

Port

(:1)

+7dBm

1.27

1.25

1.23

1.18

1.15

1.12

1.09

1.10

1.11

1.15

1.22

1.27

1.31

1.34

1.36

1.35

1.31

1.23

VSWR LO

Port

(:1)

+7dBm

2.30

2.24

2.26

2.20

2.16

2.11

2.08

2.09

2.12

2.18

2.22

2.23

2.38

2.43

2.44

2.56

2.75

2.85

2.95

3.00

0.10

0.50

1.00

2.00

5.00

Outline Dimensions (

inch

)

1.50

38.10

2.50

63.50

1.13

28.70

.10

2.54

1.00

25.40

.31

7.87

.50

12.70

.75

19.05

.155

3.94

1.19

30.23

2.345

59.56

.66

16.76

.138

3.51

.987

25.07

10.00

20.00

50.00

69.83

100.00

173.07

200.00

224.69

259.11

293.52

345.14

396.76

431.18

465.59

500.00

.150 grams

3.81

40.0

Electrical Schematic

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M93710

ZLW-1-1

DJ/TD/CP

060714

Page 1 of 2
