ZP-11ALH-S+: DescriptionDouble Balanced Mixer, 1400MHz Min, 1900MHz Max, 8.6dB Conversion Loss-Max, ROHS COMPLIANT, CASE GG60; CategoryWireless rf/communication Radio frequency and microwave; File Size150KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZP-11ALH-S+ Overview

Double Balanced Mixer, 1400MHz Min, 1900MHz Max, 8.6dB Conversion Loss-Max, ROHS COMPLIANT, CASE GG60

ZP-11ALH-S+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA
structure	COAXIAL
Maximum frequency conversion loss	8.6 dB
Maximum input power (CW)	16.98 dBm
Maximum operating frequency	1900 MHz
Minimum operating frequency	1400 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	2.3

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 10 (LO Power +10 dBm)

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

ZP-11ALH+

ZP-11ALH

1400 to 1900 MHz

Features

• low conversion loss, 7.0 dB typ.

• good L-R isolation, 36 dB typ.

• rugged shielded case

BNC version shown

Applications

Coaxial Connections

LO

RF

IF

L

R

X

• UHF

• GPS

• instrumentation

• defense communication

Connectors

BNC

SMA

CASE STYLE: GG60

Model

Price

Qty.

ZP-11ALH-(+)

$45.95 ea. (1-9)

ZP-11ALH-S(+) $50.95 ea. (1-9)

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

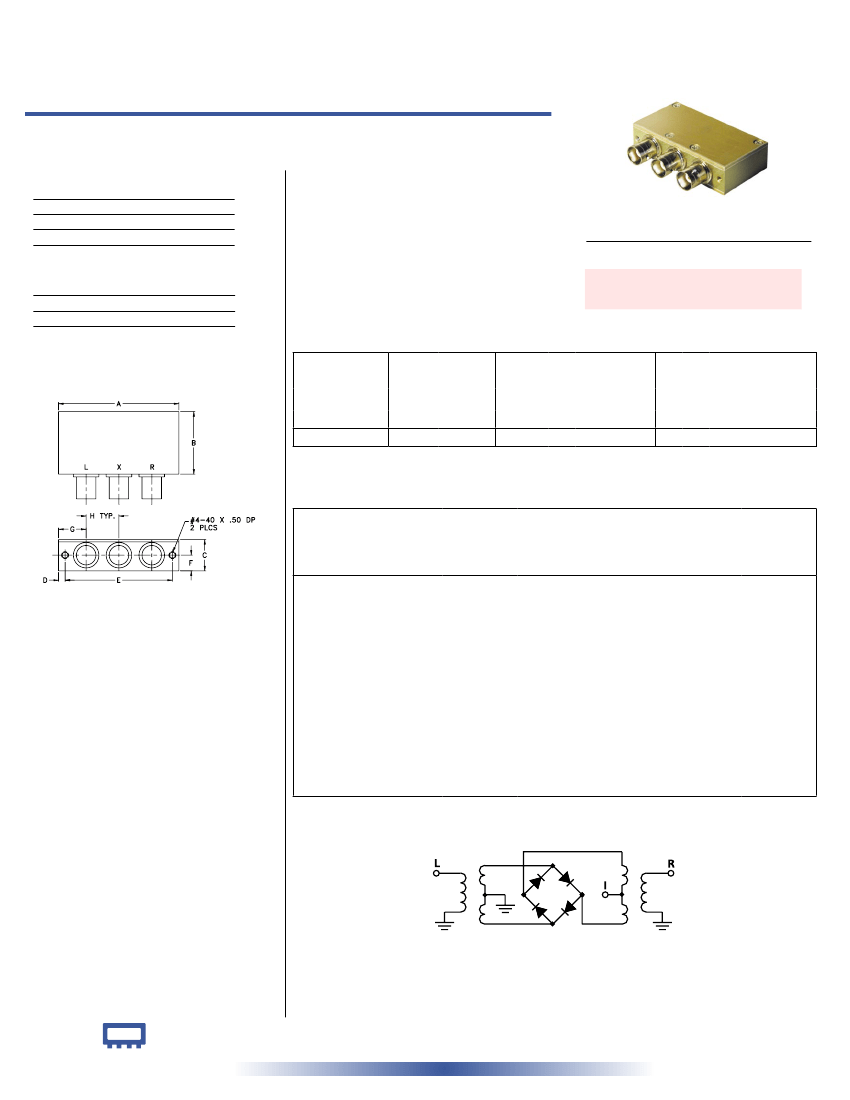

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

1400-1900

40-500

IF

—

X

7.0

σ

0.20

CONVERSION LOSS

(dB)

LO-RF ISOLATION

(dB)

M

Typ.

36

Min.

20

LO-IF ISOLATION

(dB)

M

Typ.

28

Min.

15

Total

Range

Max.

8.6

1 dB COMP.: +5 dBm typ.

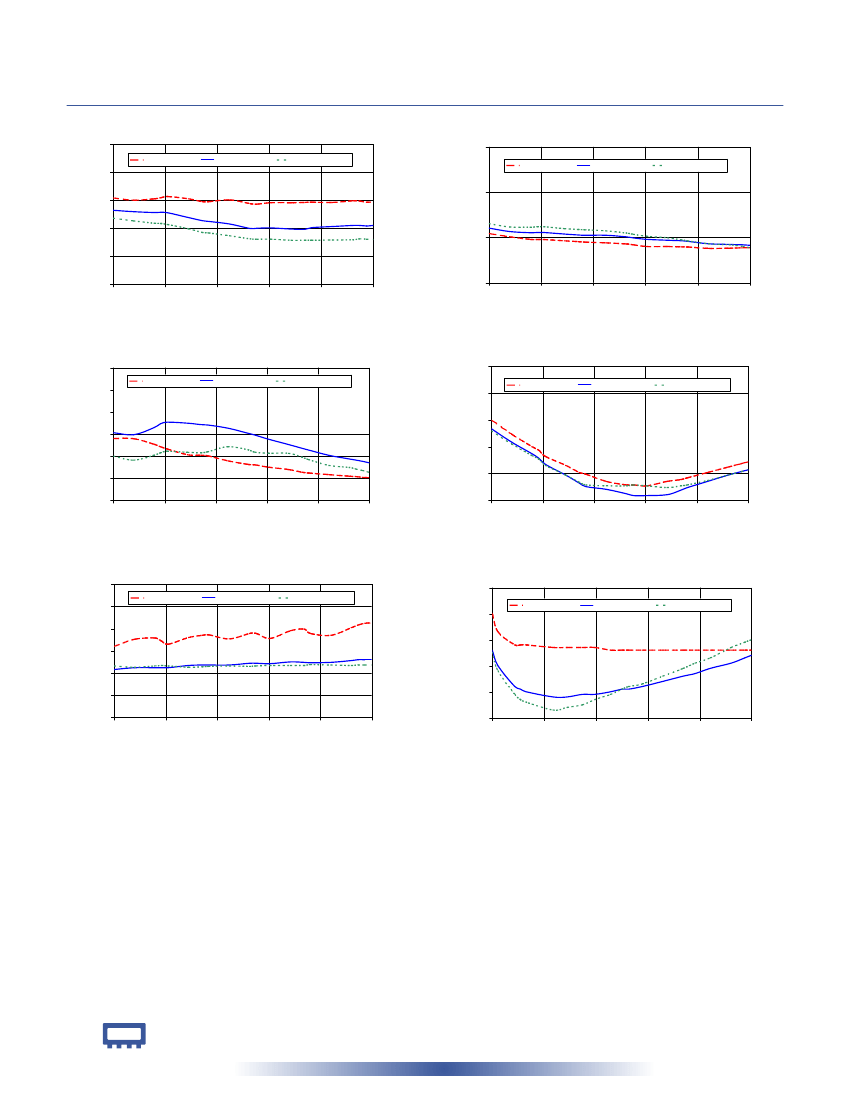

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

1350.00

1389.47

1428.95

1442.11

1455.26

1494.74

1521.05

1534.21

1573.68

1613.16

1626.32

1652.63

1692.11

1718.42

1731.58

1771.05

1810.53

1823.68

1836.84

1850.00

LO

+10dBm

7.64

7.59

7.56

7.57

7.55

7.38

7.27

7.24

7.15

6.99

7.00

7.01

6.97

6.96

7.02

7.06

7.10

7.08

7.10

Isolation

L-R

(dB)

LO

+10dBm

32.04

31.29

31.02

31.07

30.74

30.53

30.45

30.47

30.12

29.89

29.56

29.37

29.26

29.13

28.58

28.45

28.39

28.35

28.25

Isolation

L-I

(dB)

LO

+10dBm

35.28

34.81

36.41

37.32

37.67

37.43

37.11

37.02

36.30

35.15

34.75

33.82

32.60

31.76

31.35

30.17

29.36

29.09

28.81

28.47

VSWR RF

Port

(:1)

LO

+10dBm

1.80

1.65

1.52

1.47

1.40

1.28

1.19

1.15

1.12

1.07

1.05

1.06

1.11

1.14

1.21

1.28

1.30

1.32

1.34

VSWR LO

Port

(:1)

LO

+10dBm

2.08

2.12

2.17

2.18

2.22

2.21

2.25

2.24

2.23

2.24

2.28

2.30

RF

1400.00

1439.47

1478.95

1492.11

1505.26

1544.74

1571.05

1584.21

1623.68

1663.16

1676.32

1702.63

1742.11

1768.42

1781.58

1821.05

1860.53

1873.68

1886.84

1900.00

Outline Dimensions (

inch

)

mm

A

2.31

58.7

B

1.20

30.5

C

.60

15.2

D

E

.125 2.062

3.2 52.4

F

.30

7.6

G

.53

13.5

H

wt

.63 grams

16.0

75.0

Electrical Schematic

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. B

M98898

ZP-11ALH

DJ/TD/CP

060710

Page 1 of 2

ZP-11ALH-S+ Related Products

	ZP-11ALH-S+	ZP-11ALH+
Description	Double Balanced Mixer, 1400MHz Min, 1900MHz Max, 8.6dB Conversion Loss-Max, ROHS COMPLIANT, CASE GG60	Double Balanced Mixer, 1400MHz Min, 1900MHz Max, 8.6dB Conversion Loss-Max, ROHS COMPLIANT, CASE GG60
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	_compli
Other features	SMA	BNC
structure	COAXIAL	COAXIAL
Maximum frequency conversion loss	8.6 dB	8.6 dB
Maximum input power (CW)	16.98 dBm	16.98 dBm
Maximum operating frequency	1900 MHz	1900 MHz
Minimum operating frequency	1400 MHz	1400 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
Maximum voltage standing wave ratio	2.3	2.3
