ZP-860LH-S+: DescriptionDouble Balanced Mixer, 800MHz Min, 1050MHz Max, 7.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE GG60; CategoryWireless rf/communication Radio frequency and microwave; File Size167KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZP-860LH-S+ Overview

Double Balanced Mixer, 800MHz Min, 1050MHz Max, 7.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE GG60

ZP-860LH-S+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA
structure	COAXIAL
Maximum frequency conversion loss	7.9 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	1050 MHz
Minimum operating frequency	800 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	2.59

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 10 (LO Power +10 dBm)

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

ZP-860LH+

ZP-860LH

800 to 1050 MHz

Features

• low conversion loss, 6.3 dB typ.

• good L-R isolation, 35 dB typ.

• rugged shielded case

BNC version shown

Applications

• UHF

• instrumentation

• cellular

Connectors

BNC

SMA

CASE STYLE: GG60

Model

Price

Qty.

ZP-860LH-(+)

$45.95 ea. (1-9)

ZP-860LH-S(+) $50.95 ea. (1-9)

Coaxial Connections

LO

RF

IF

L

R

X

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

800-1050

DC-250

IF

—

X

6.3

σ

0.27

CONVERSION LOSS

(dB)

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

Total

Range

Max.

7.9

Typ.

35

Min.

25

Typ.

27

Min.

18

1 dB COMP.: +5 dBm typ.

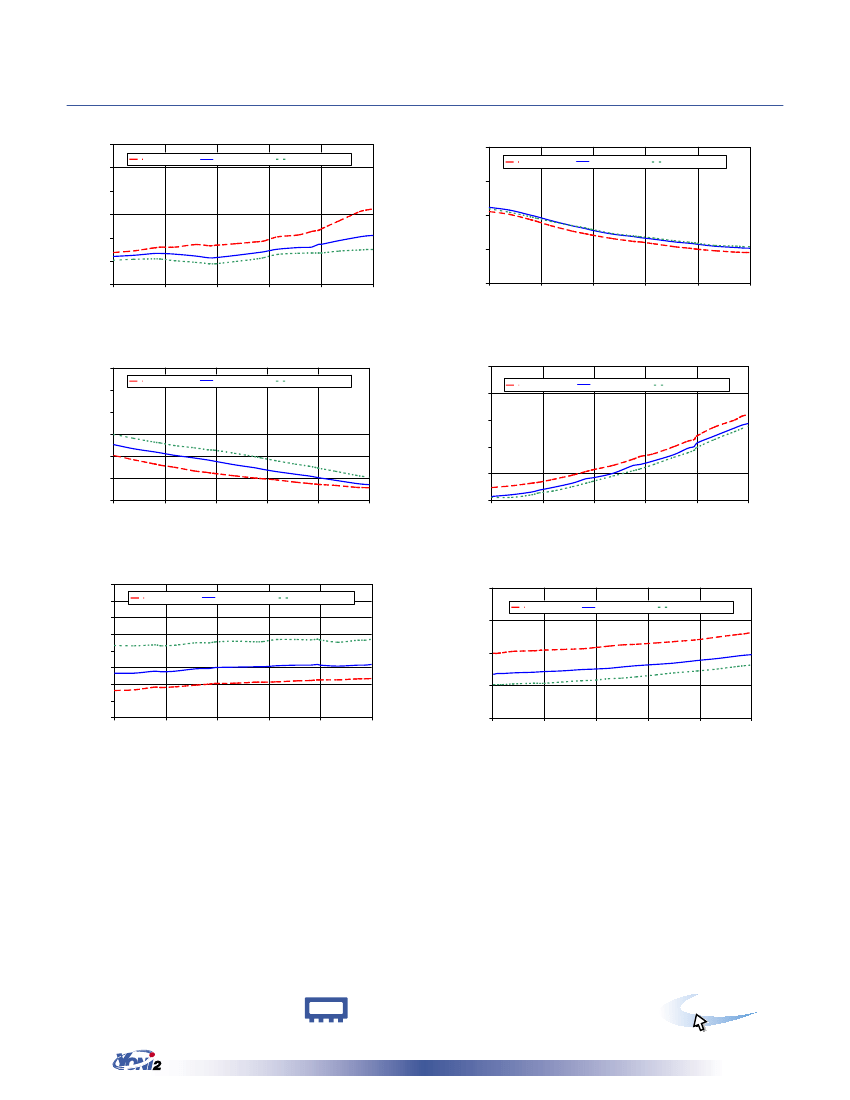

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

770.00

789.74

809.47

816.05

829.21

848.95

862.11

868.68

888.42

908.16

914.74

927.90

947.63

960.79

967.37

970.00

987.11

1006.84

1013.42

1020.00

LO

+10dBm

5.19

5.24

5.32

5.29

5.21

5.13

5.14

5.24

5.35

5.39

5.50

5.57

5.59

5.71

5.87

6.03

6.07

6.09

Isolation

L-R

(dB)

LO

+10dBm

42.18

41.36

39.91

39.41

38.30

36.80

35.94

35.44

34.29

33.59

33.27

32.80

32.01

31.63

31.41

31.30

30.72

30.35

30.20

30.15

Isolation

L-I

(dB)

LO

+10dBm

32.59

31.65

30.97

30.72

30.18

29.56

29.12

28.84

28.03

27.36

27.06

26.54

25.91

25.51

25.25

25.13

24.52

23.82

23.65

23.53

VSWR

RF Port

(:1)

LO

+10dBm

1.04

1.06

1.09

1.11

1.14

1.19

1.24

1.25

1.30

1.39

1.40

1.44

1.51

1.58

1.60

1.64

1.72

1.81

1.84

1.86

VSWR

LO Port

(:1)

LO

+10dBm

2.33

2.39

2.37

2.39

2.46

2.47

2.50

2.51

2.52

2.55

2.57

2.59

2.57

2.54

2.57

2.59

RF

800.00

819.74

839.47

846.05

859.21

Outline Dimensions (

inch

)

mm

A

2.31

58.7

B

1.20

30.5

C

.60

15.2

D

E

.125 2.062

3.2 52.4

F

.30

7.6

G

.53

13.5

H

wt

.63 grams

16.0

75.0

878.95

892.11

898.68

918.42

938.16

944.74

957.89

977.63

990.79

997.37

1000.00

1017.11

1036.84

1043.42

1050.00

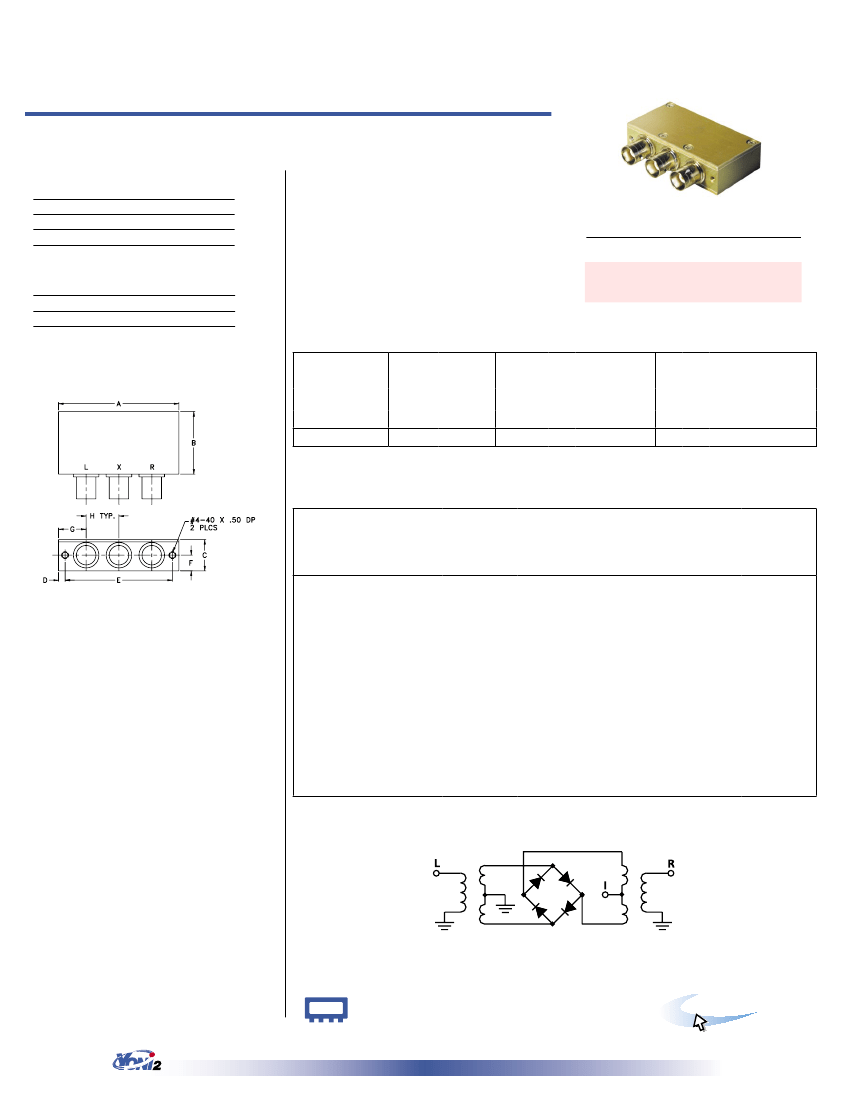

Electrical Schematic

Mini-Circuits

ISO 9001 ISO 14001

CERTIFIED

RF/IF MICROWAVE COMPONENTS

®

minicircuits.com

REV. A

M98898

ZP-860LH

DJ/TD/CP

061211

Page 1 of 2

EW

ALL N

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com
