ZFM-4212+: DescriptionDouble Balanced Mixer, 2000MHz Min, 4200MHz Max, 8.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size107KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFM-4212+ Overview

Double Balanced Mixer, 2000MHz Min, 4200MHz Max, 8.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18

ZFM-4212+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA
structure	COAXIAL
Maximum frequency conversion loss	8.5 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	4200 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	8.72

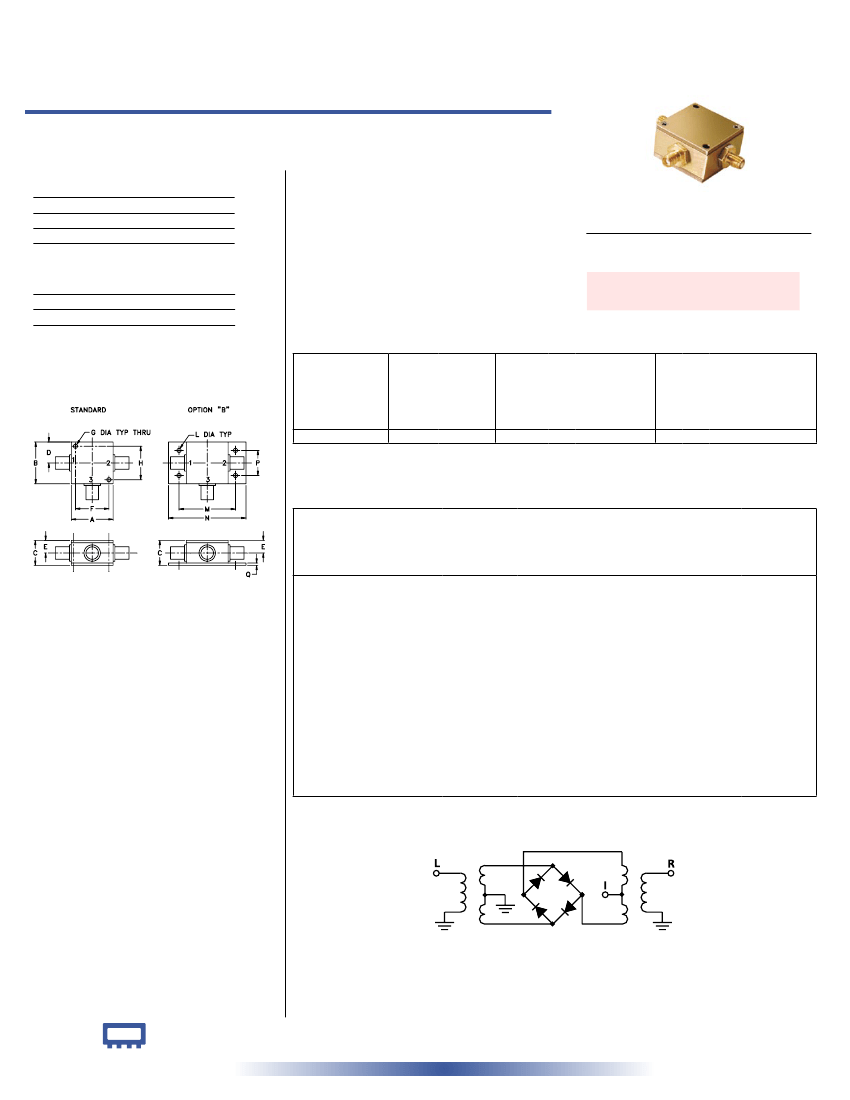

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm) 2000 to 4200 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

ZFM-4212

Features

• low conversion loss, 5.44 dB typ.

• wideband, 100 to 2000 MHz

• rugged shielded case

SMA version shown

CASE STYLE: K18

Connectors Model

SMA

ZFM-4212

BRACKET (OPTION “B”)

Price

Qty.

$54.95 ea. (1-9)

$2.50

(1+)

Applications

• VHF/UHF

• MMDS

• ISM

• instrumentation

Coaxial Connections

LO

RF

IF

1

2

3

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site for

RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

2000-4200

DC-1300

1 dB COMP.: +1 dBm typ.

IF

—

X

CONVERSION LOSS

(dB)

Mid-Band

σ

Total

Range

Max. Max.

—

8.5

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

Typ.

25

Min.

17

Typ.

18

Min.

10

5.44 0.088

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

1940.00

1983.75

2127.50

2271.25

2415.00

2558.75

2702.50

2846.24

2940.00

2990.00

3133.75

3277.50

3421.25

3565.00

3708.75

3852.50

3940.00

3996.25

4006.00

4059.00

Isolation

L-R

(dB)

LO

+7dBm

25.3

23.6

24.4

26.5

27.7

28.3

28.1

28.7

28.1

27.2

26.7

27.4

27.1

28.6

29.9

30.5

30.6

Isolation

L-I

(dB)

LO

+7dBm

13.6

13.5

13.9

14.0

14.6

15.9

16.2

17.2

18.2

18.5

18.7

19.2

17.9

16.5

16.0

15.6

15.5

15.4

15.3

15.2

VSWR RF

Port

(:1)

LO

+7dBm

1.99

1.91

2.01

2.35

2.43

2.37

2.40

2.43

2.27

2.10

2.25

2.12

2.30

2.18

1.96

1.91

1.73

VSWR LO

Port

(:1)

LO

+7dBm

6.73

6.26

5.85

6.05

6.49

6.26

6.73

7.60

8.72

8.31

8.72

5.49

4.32

4.53

4.42

4.32

4.12

RF

2000.00

2043.75

2187.50

2331.25

2475.00

LO

+7dBm

5.05

5.10

5.57

5.78

5.92

5.81

5.64

5.68

5.85

5.82

5.56

5.52

5.73

6.35

6.33

6.09

5.82

5.85

5.84

Outline Dimensions (

inch

)

mm

A

1.25

31.75

J

--

B

1.25

31.75

K

--

C

.75

19.05

L

.125

3.18

D

.63

16.00

M

1.688

42.88

E

.38

9.65

N

2.18

55.37

F

1.00

25.40

P

.75

19.05

G

.125

3.18

H

1.000

25.40

2618.75

2762.50

2906.24

3000.00

3050.00

3193.75

3337.50

3481.25

3625.00

3768.75

3912.50

4000.00

4056.25

4066.00

4119.00

Q

wt

.07 grams

1.78

70.0

Electrical Schematic

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M93678

ZFM-4200

DJ/TD/CP

060628

Page 1 of 2
