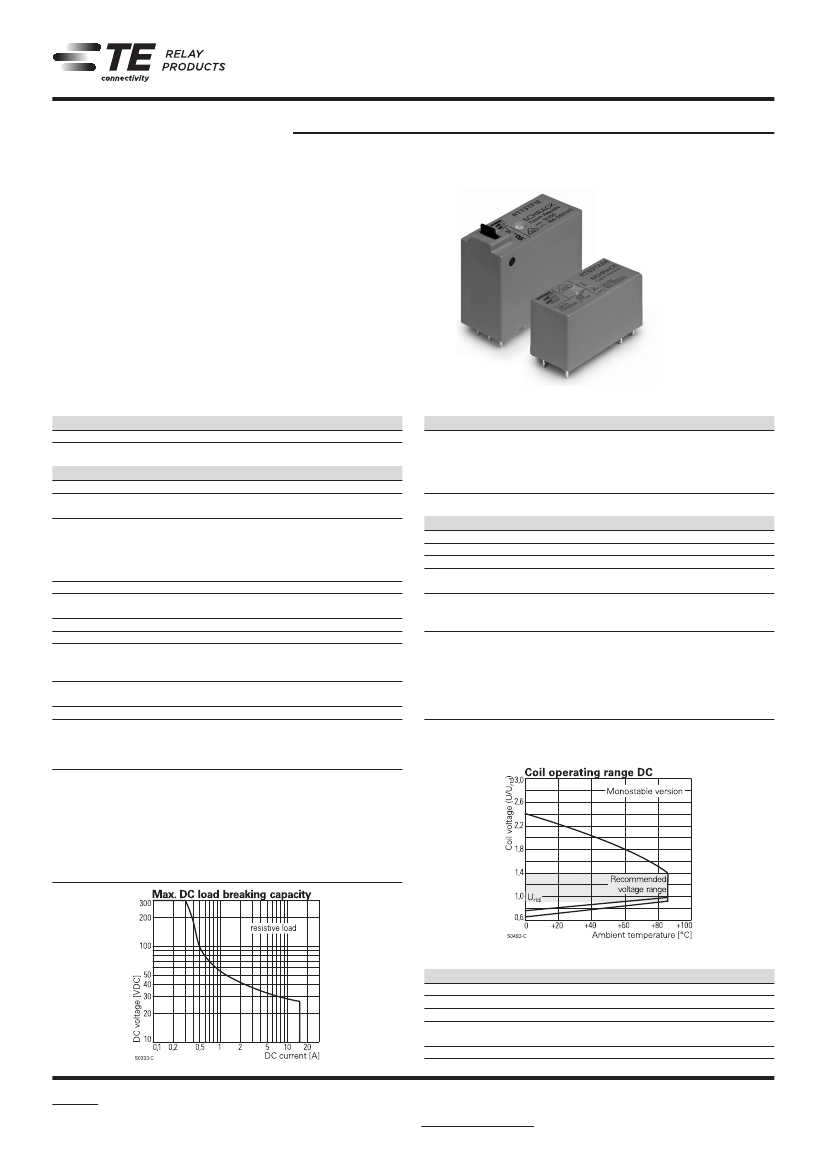

Power PCB Relay RT1 Inrush Power
n
n
n
n
n
n
n
SCHRACK
1 pole 16A, 1 form A (NO) contact (W pre-make contact + AgSnO
2
)
10A/250VAC making and breaking capacity acc. to IEC 60669-1
165A/20ms inrush peak current
Mono- or bistable coil
5kV/10mm coil-contact
Reinforced insulation
Test tab (manual operator) optional
Typical applications
Lighting systems, movement sensors, filament and incandescent lamp
loads, motors
F0272-B
VZb
Approvals
VDE REG.-Nr. 6106,UL E214025, cCSAus 14385
Technical data of approved types on request
Contact Data
(continued)
Mechanical endurance
DC coil
bistable version
tab manually operated
>5x10
6
ops.
>3x10
6
ops.
>1x10
3
ops.
>10x10
6
ops.
>5x10
6
ops.
-
Contact Data
Contact arrangement
1 form A (NO) contact
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
16A
Limiting continuous current
16A, UL: 20A (RTS3L)
Limiting making current,
max. 20ms (incand. lamps)
165A
120A
max. 200µs (flourescent lamps)
800A
-
Breaking capacity max.
4000VA
Contact material
W (pre-make cont.)
AgSnO
2
+AgSnO
2
Contact style
pre-make contact single contact
Frequency of operation, with/without load
360/3600h
-1
Operate/release time max., DC coil
10/5ms
Operate/Reset time max., bistable version
10/10ms
Bounce time max.
4ms
Contact ratings
Type
Contact
Load
IEC 61810
RTS3L
A (NO)
20A, 250VAC resistive, 70°C
RTS3L monostable A (NO) 16A, 250VAC resistive, 85°C
RTS3T
A (NO)
16A, 250VAC resistive, 85°C
UL 508
RTS3L
A (NO)
20A, 250VAC, general purpose, 70°C
RTS3L
A (NO)
16A, 250VAC, resistive, 85°C
RTS3L
A (NO)
TV8, 240VAC, 40°C
RTS3L
A (NO)
1.5hp, 240VAC, 70°C
RTS3T
A (NO)
1200W Tungsten, 120VAC/277VAC,
60Hz, 50°C
RTS3T
A (NO)
620W Discharge lamps (standard ballast),
120VAC/277VAC, 60Hz, 50°C
Cycles
20x10
3
100x10
3
5x10
3
20x10
3
50x10
3
25x10
3
30x10
3
6x10
3
6x10
3
RT.3T
RTS3L
Coil Data, monostable DC coil
Coil voltage range
Operative range, IEC 61810
Coil insulation system according UL1446
Coil versions, monostable DC coil
Coil
Rated
Operate
Release
code
voltage
voltage
voltage
VDC
VDC
VDC
005
5
3.5
0.5
006
6
4.2
0.6
012
12
8.4
1.2
024
24
16.8
2.4
048
48
33.6
4.8
060
60
42.0
6.0
110
110
77.0
11.0
5 to 110VDC
2
class F
Coil
resistance
Ω±10%
1)
62
90
360
1440
5520
8570
1)
28800
1)
Rated coil
power
mW
403
400
400
400
417
420
420
1) Coil resistance ±12%.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.

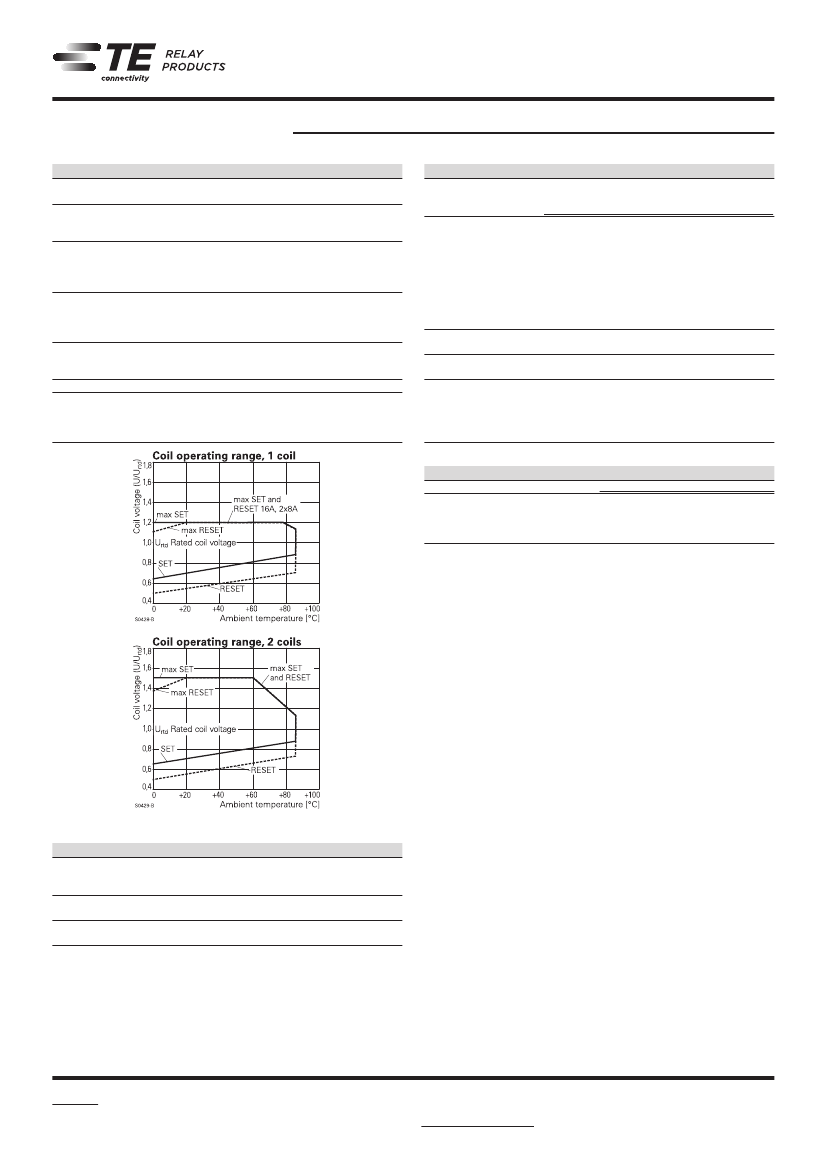

Coil Data, bistable coils
Magnetic system
polarized, bistable
Coil voltage range
3 to 24VDC
Operative range, IEC 61810
2
Limiting voltage, % of rated coil voltage 120%
150%
Min./Max. energization duration
30ms/1min at <10% duty factor
Coil insulation system according UL1446
class F
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1 coil
2 coils
1
General Purpose Relays
PCB Relays
Power PCB Relay RT1 Inrush Power
(Continued)
Coil Data
(continued)
Coil versions, bistable
Coil
Rated
Set
code
voltage voltage
VDC
VDC
Coil versions, bistable 1 coil
A03
3
2.1
A12
12
8.4
A24
24
16.8
Coil versions, bistable 2 coils
F03
3
2.1
F12
12
8.4
F24
24
16.8
Reset
voltage
VDC
1.7
6.6
13.2
1.7
6.6
13.2
Coil
resistance
Ω±10%
21
360
1440
15
240
886
Rated coil
power
mW
429
400
400
600
600
650
SCHRACK
Other Data
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Bistable coils - operation
Version
1 coil
Coil terminals
A1 A2
Operate
+
-
Reset
-
+
Contact position not defined at delivery
2 coils
A1 A3 A2
+
-
-
+
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
monostable DC coil
-40 to 85°C
bistable 1 coil
-10 to 85°C
bistable 2 coils
-40 to 85°C
Category of environmental protection
IEC 61810
RTII - flux proof
Vibration resistance (functional),
monostable version
10g
20g
Shock resistance (destructive)
100g
Terminal type
PCB-THT, plug-in
2)
Weight, without / with test tab
14/16g
14g/-
Resistance to soldering heat THT
IEC 60068-2-20
270°C/10s
Packaging/unit
without test tab
tube/20 pcs.,
tube/20 pcs.,
box/500 pcs.
box/500 pcs.
with test tab
tray/25 pcs.,
-
box/100 pcs.
-
2) RTT3T or bistable 2 coil version: pcb mounting only. See Accessories
RT.3T
RTS3L
Accessories RTS3.
For details see datasheet
Accessories Industrial Power Relay RT
Socket available for 1 coil version only.
NOTE: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
Clearance/creepage
between contact and coil
Material group of insulation parts
Tracking index of relay base
1250V
rms
5000V
rms
≥10/10mm
IIIa
PTI 250V
2
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
PCB Relays
Power PCB Relay RT1 Inrush Power
(Continued)

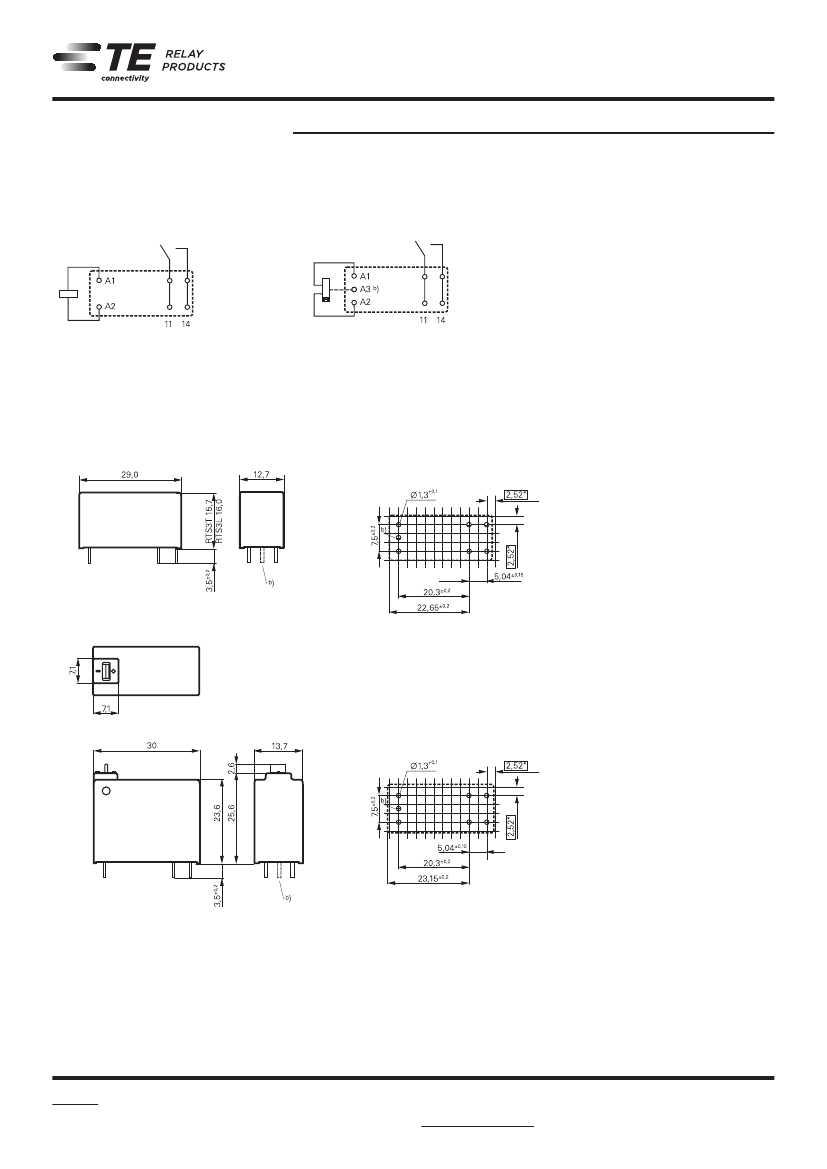

Terminal assignment
