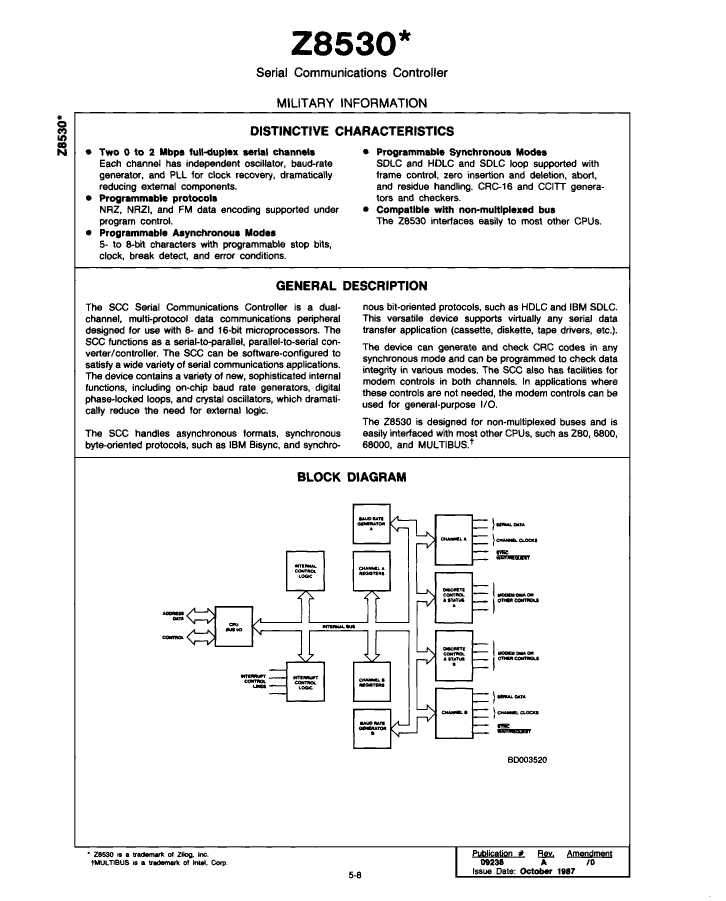

Z8530/BQA datasheet, PDF - EEWORLD Datasheet

Z8530/BQA: DescriptionSerial I/O Controller, 2 Channel(s), 0.25MBps, MOS, CDIP40, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size186KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

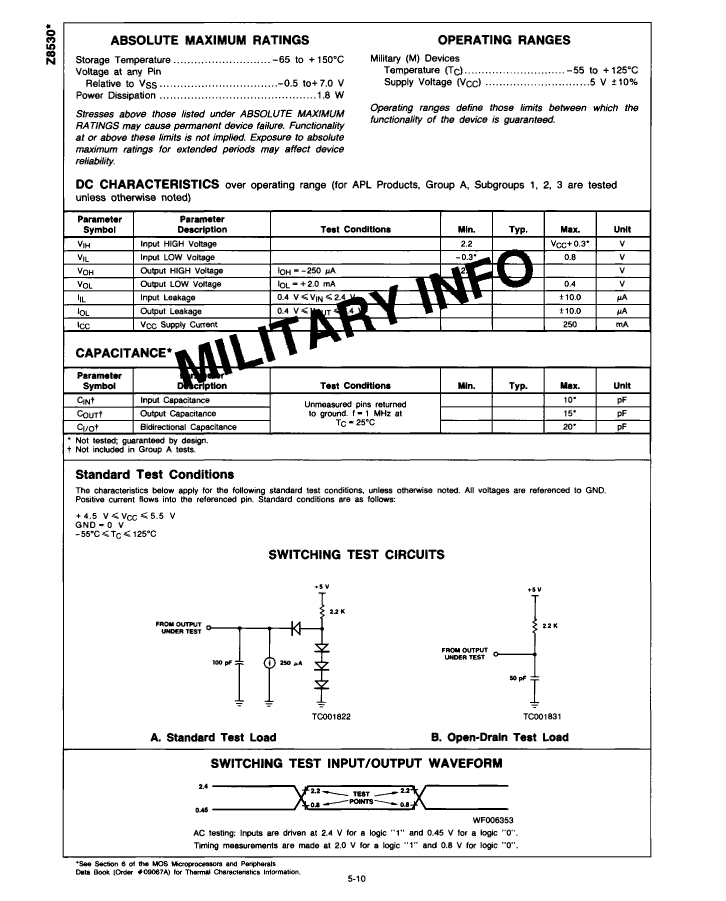

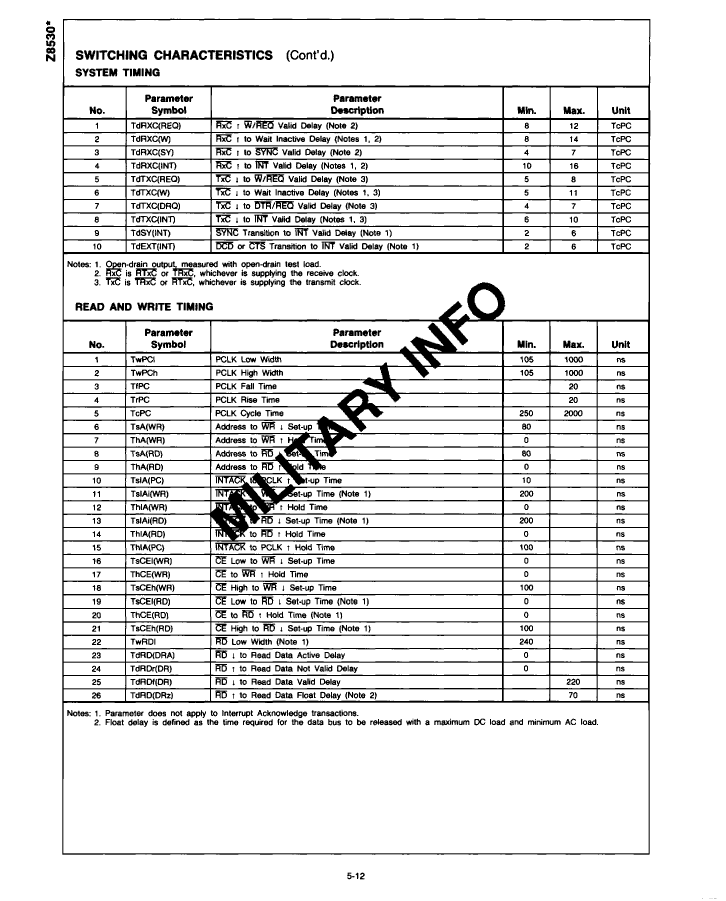

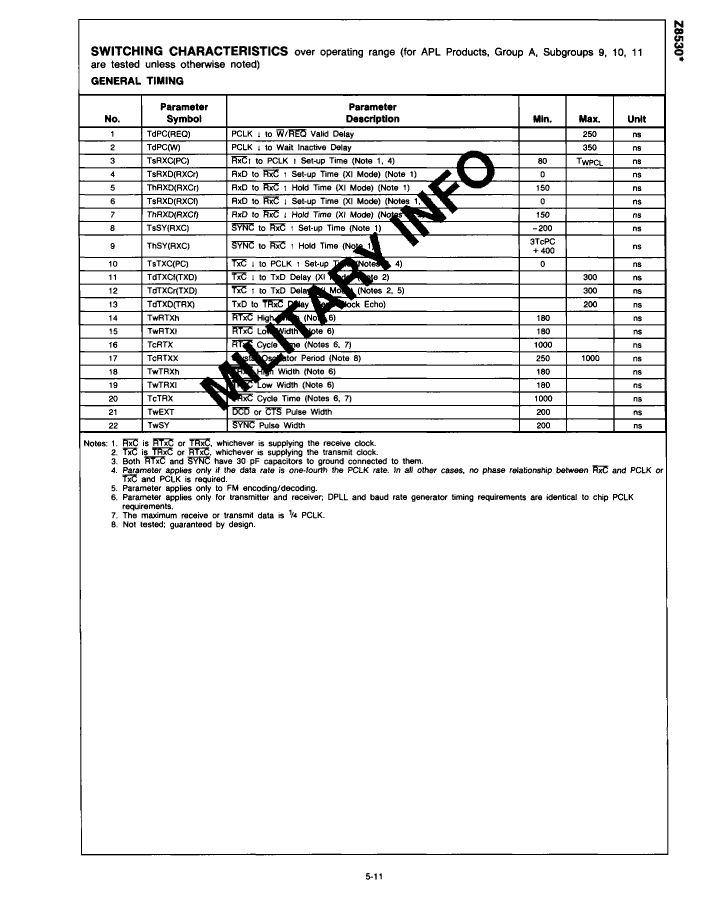

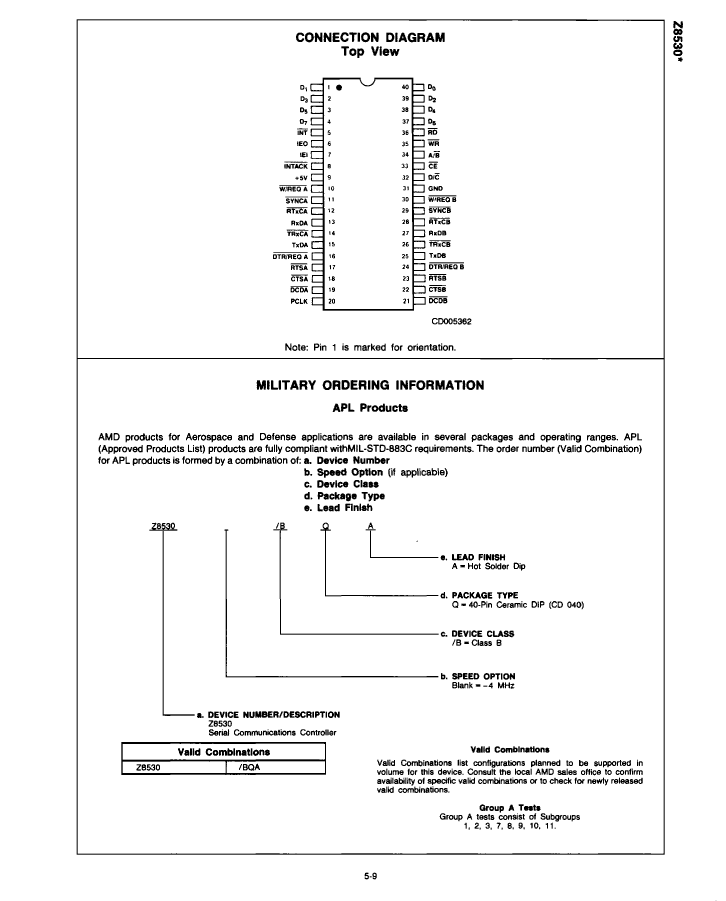

Z8530/BQA Overview

Serial I/O Controller, 2 Channel(s), 0.25MBps, MOS, CDIP40, CERAMIC, DIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
Address bus width
boundary scan	NO
Bus compatibility	MULTIBUS; 68000; 6800; Z80
maximum clock frequency	4 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC
Data encoding/decoding methods	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)
Maximum data transfer rate	0.25 MBps
External data bus width	8
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.3875 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.588 mm
Maximum slew rate	250 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
