Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z0844004PSC

Preview

Z0844004PSC: Description2 CHANNEL(S), SERIAL COMM CONTROLLER, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，25 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

Z0844004PSC Overview

2 CHANNEL(S), SERIAL COMM CONTROLLER, PDIP40, PLASTIC, DIP-40

Z0844004PSC Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknown
Address bus width	1
boundary scan	NO
Bus compatibility	Z80
maximum clock frequency	4 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ
External data bus width	8
JESD-30 code	R-PDIP-T40
length	52.325 mm
low power mode	NO
Number of serial I/Os	2
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	COMMERCIAL
Maximum seat height	4.75 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

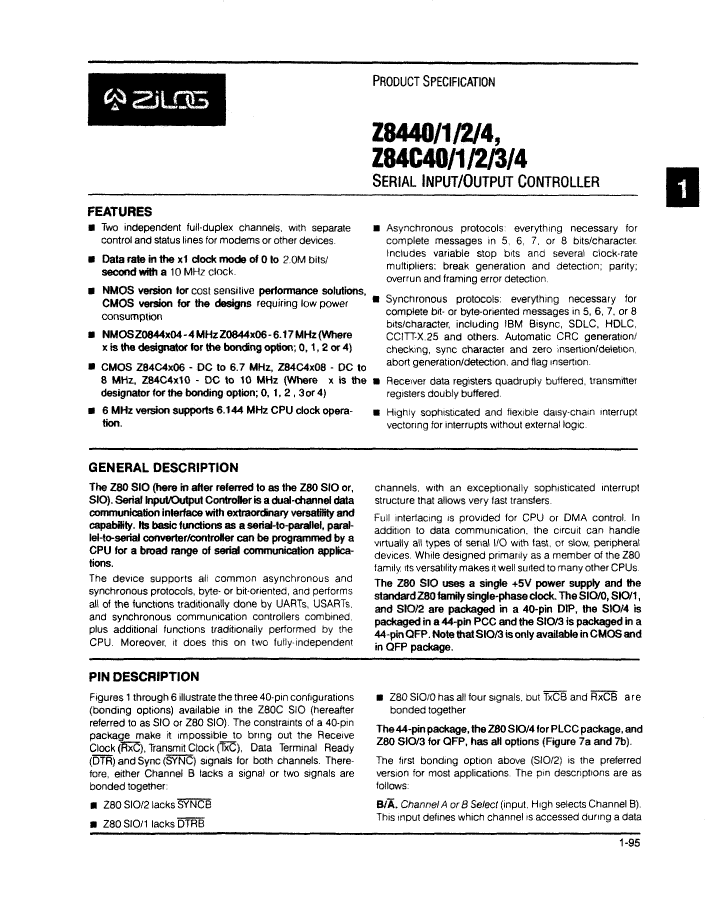

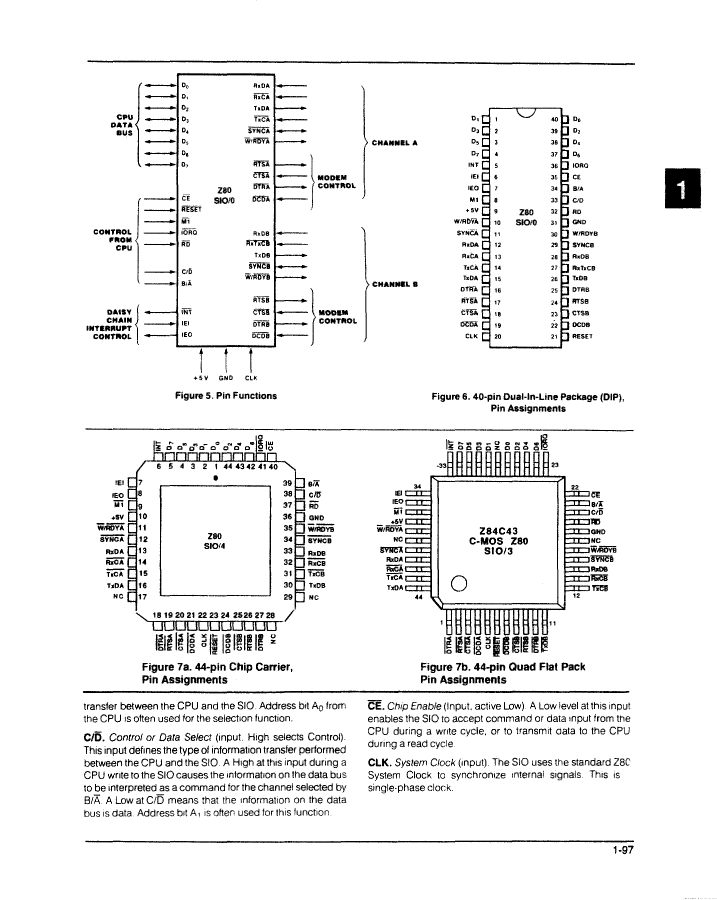

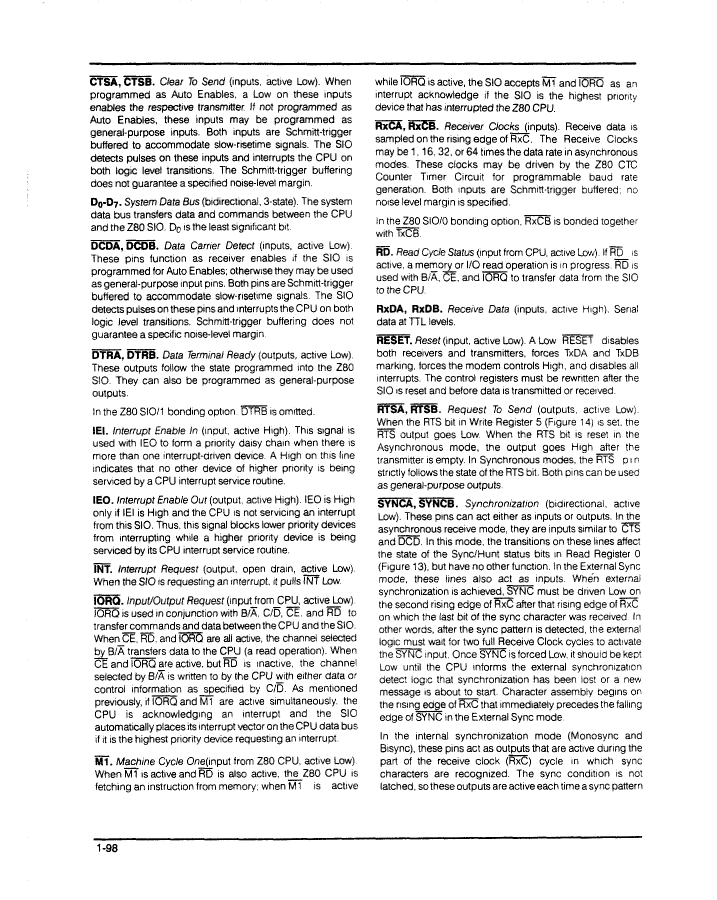

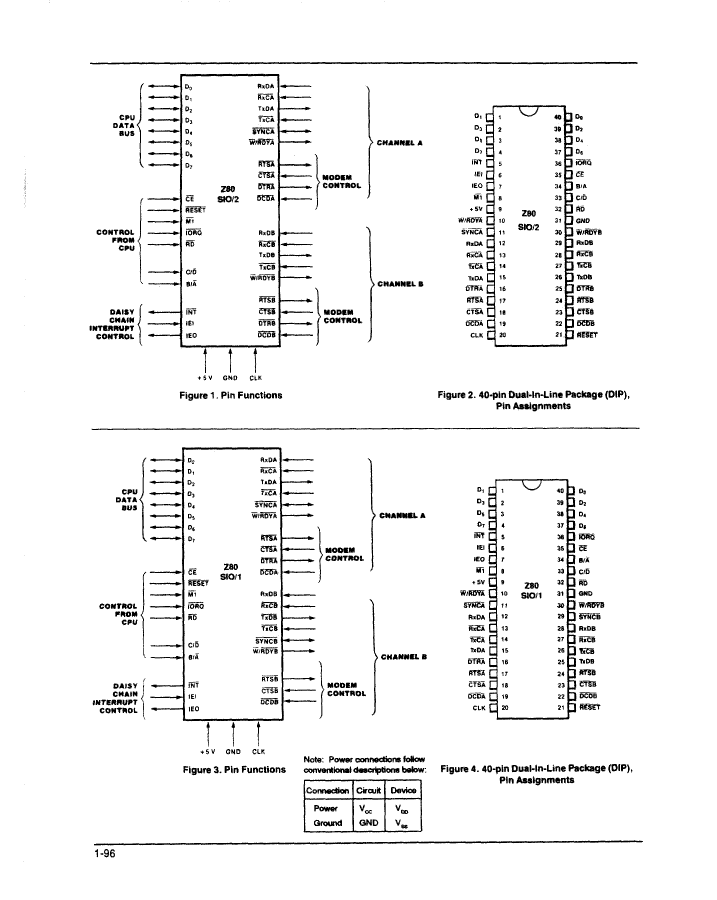

Z0844004PSC Preview
