Z0844006PSC: DescriptionSerial I/O Controller, 2 Channel(s), NMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size843KB，24 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z0844006PSC Overview

Serial I/O Controller, 2 Channel(s), NMOS, PDIP40, PLASTIC, DIP-40

Z0844006PSC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
Address bus width	1
boundary scan	NO
Bus compatibility	Z80
maximum clock frequency	6.17 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.325 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.75 mm
Maximum slew rate	100 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

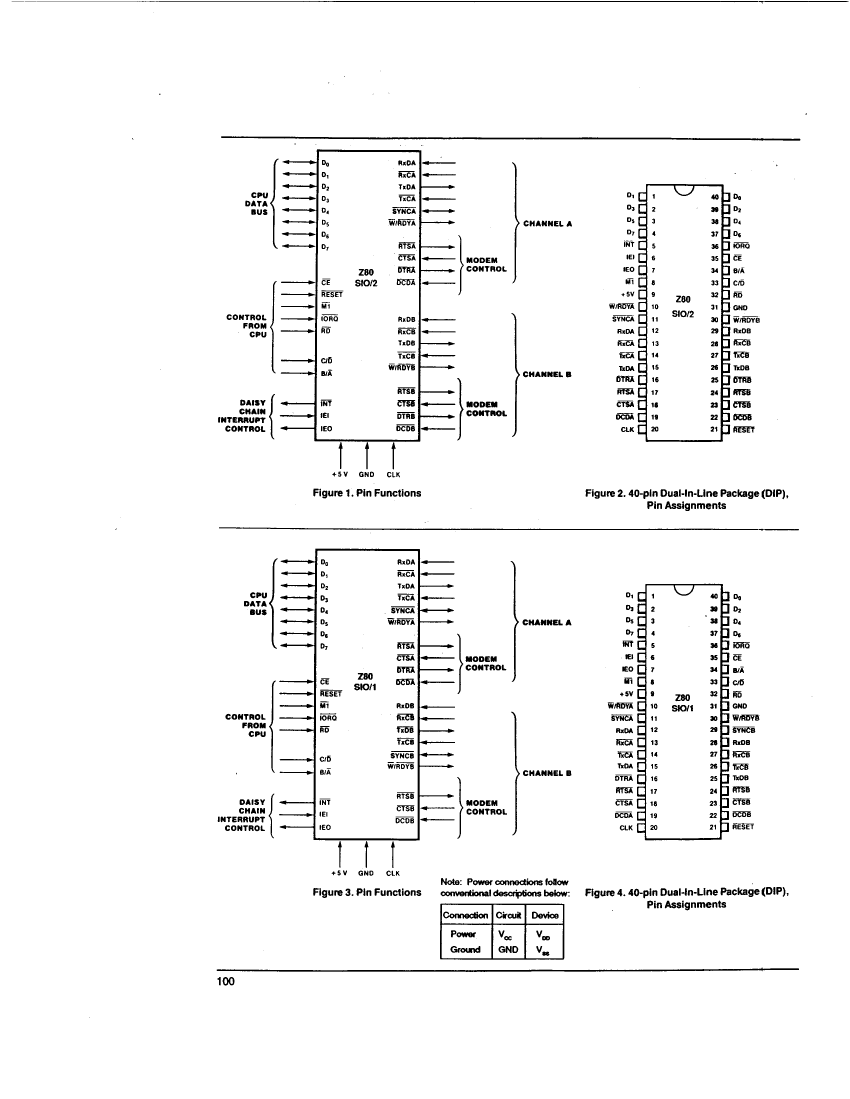

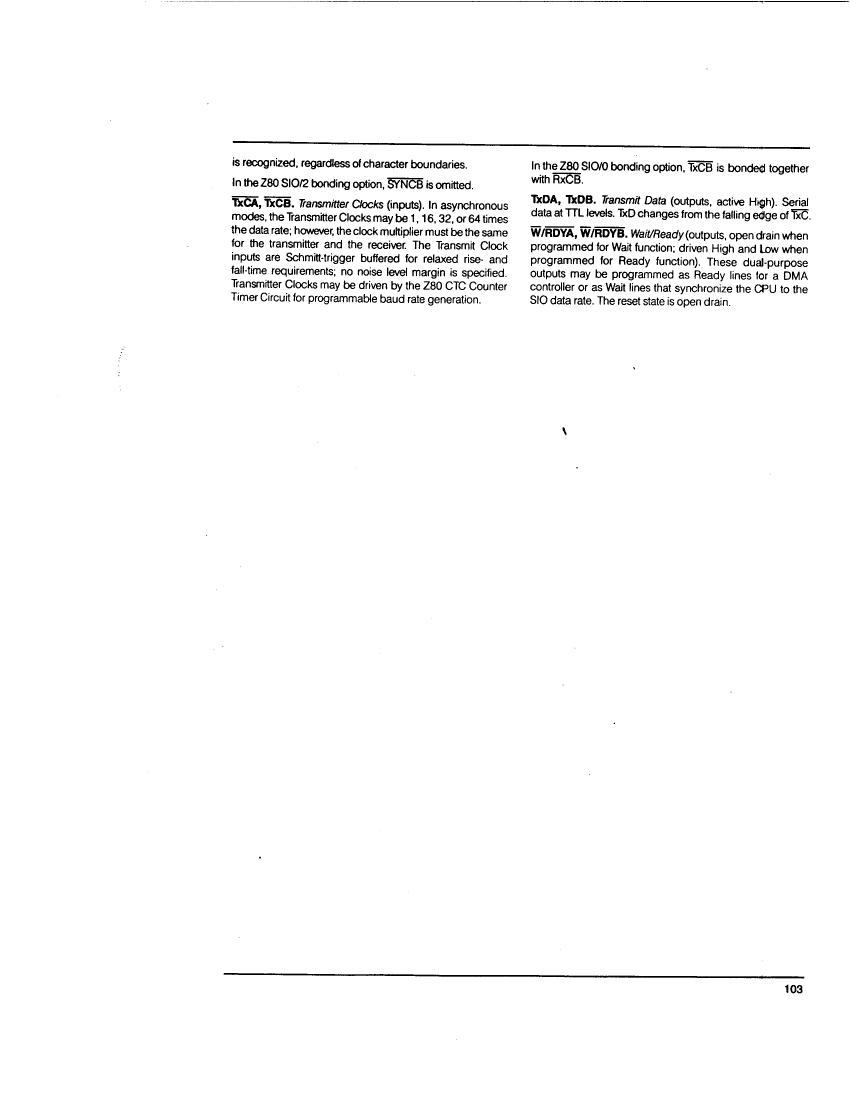

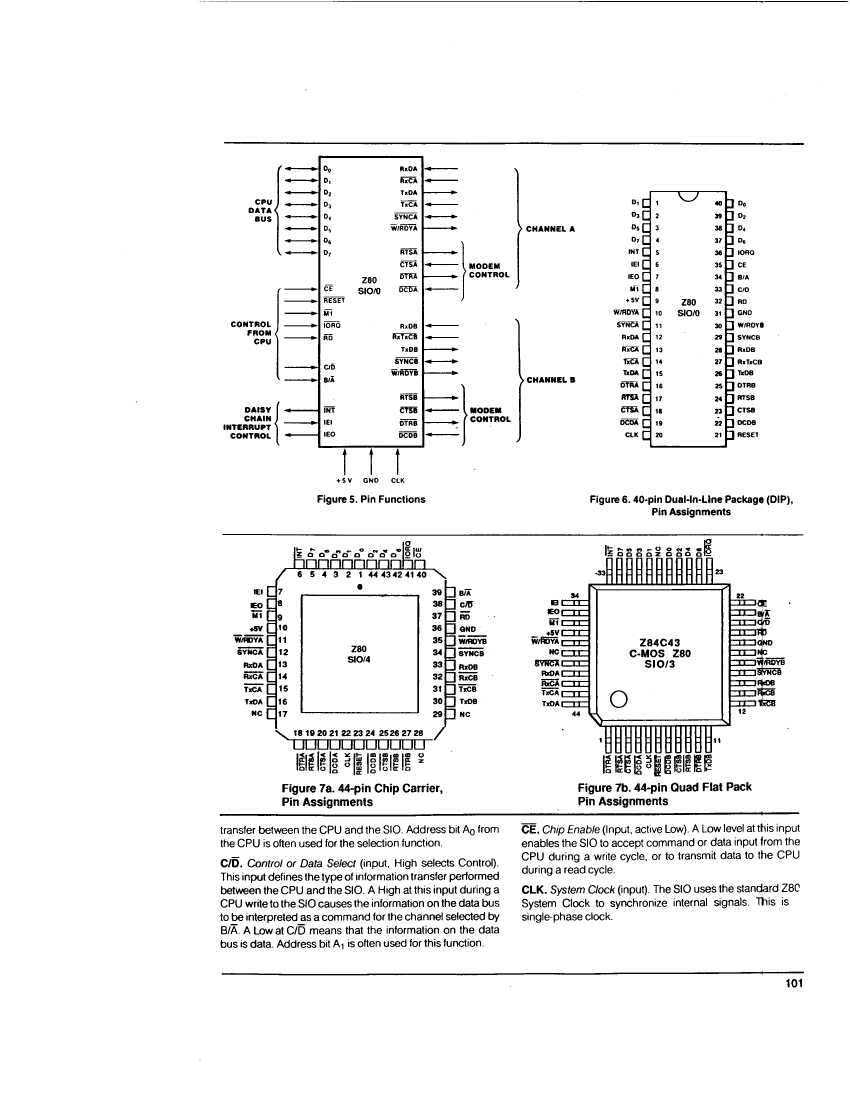

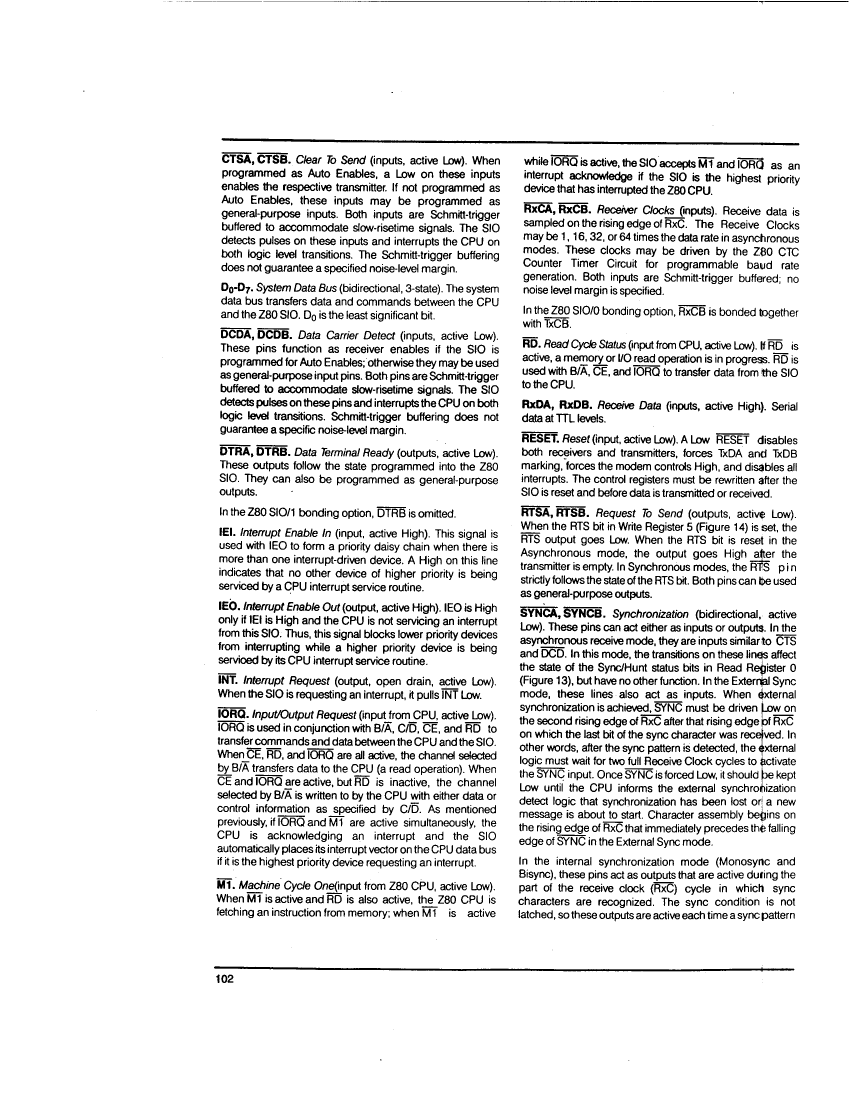

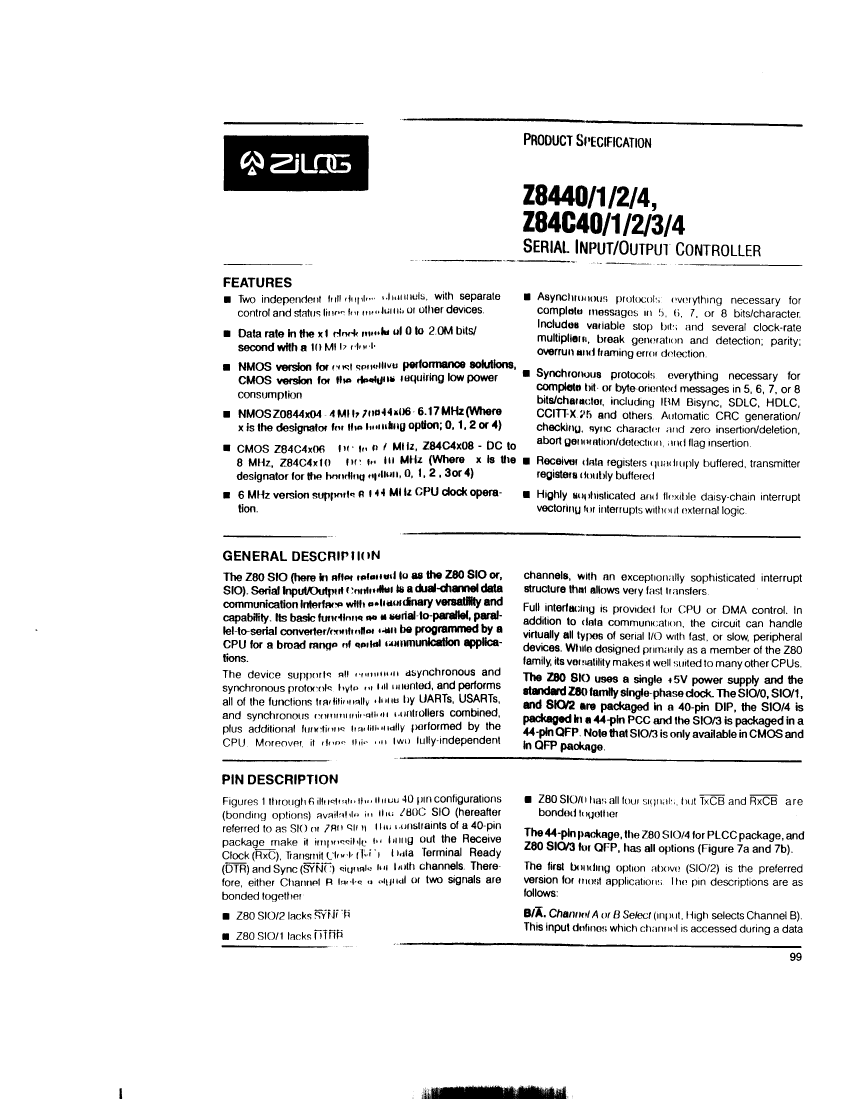

Preview

Download Datasheet

View All

PS018301-0602

Z0844006PSC Related Products

	Z0844006PSC	Z0844106PEC	Z0844204PEC	Z0844206PEC	Z0844006PEC	Z0844104PEC	Z0844004PEC	Z0844206PSC
Description	Serial I/O Controller, 2 Channel(s), NMOS, PDIP40, PLASTIC, DIP-40	Serial I/O Controller, 2 Channel(s), 0.25MBps, NMOS, PDIP40, DIP-40	Serial I/O Controller, 2 Channel(s), 0.25MBps, NMOS, PDIP40, DIP-40	Serial I/O Controller, 2 Channel(s), 0.25MBps, NMOS, PDIP40, DIP-40	Serial I/O Controller, 2 Channel(s), 0.25MBps, NMOS, PDIP40, DIP-40	Serial I/O Controller, 2 Channel(s), 0.25MBps, NMOS, PDIP40, DIP-40	Serial I/O Controller, 2 Channel(s), 0.25MBps, NMOS, PDIP40, DIP-40	Serial I/O Controller, 2 Channel(s), NMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP40,.6	DIP,	DIP, DIP40,.6	DIP,	DIP,	DIP,	DIP, DIP40,.6	DIP, DIP40,.6
Contacts	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
Bus compatibility	Z80	Z80	Z80	Z80	Z80	Z80	Z80	Z80
maximum clock frequency	6.17 MHz	6.7 MHz	4 MHz	6.7 MHz	6.7 MHz	4 MHz	4 MHz	6.17 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40
length	52.325 mm	52.325 mm	52.325 mm	52.325 mm	52.325 mm	52.325 mm	52.325 mm	52.325 mm
low power mode	NO	YES	YES	YES	YES	YES	YES	NO
Number of serial I/Os	2	2	2	2	2	2	2	2
Number of terminals	40	40	40	40	40	40	40	40
Maximum operating temperature	70 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	70 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.75 mm	4.96 mm	4.96 mm	4.96 mm	4.96 mm	4.96 mm	4.96 mm	4.75 mm
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	-	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Maximum data transfer rate	-	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	-
