107-68879
Packaging
Specification
RITS CONN & MEMORY BOARD
1. PURPOSE
目的
Define the packaging specifiction and packaging method of RITS CONN & MEMORY BOARD.
订定
RITS CONN & MEMORY BOARD
产品之包装规格及包装方式。
06Nov2012
Rev E
2. APPLICABLE PRODUCT
适用范围
Product
Part No.
1473567-4
1473567-3
1827930-1
1827929-1
RITS CONN.HDR ASSY 4ROW 4P
RITS CONN.HDR ASSY 4ROW 3P
P&S MEMORY BOARD MAIN HDR ASSY
P&S MEMORY BOARD MEMORY HDR ASSY
Description
3. PACKAGING MATERIAL
包装材料
Usage
Package
Part No.
1-912022-1
1-912022-7
Description
Tray
Tray
Hard Tray
Hard Tray
Lead Free label
INNER BOX
TAPE
INNER LABEL
SHIPPING BOX
PAPER PAD
SHIPPING BOX
AIR CAP
AIR CAP
OUTER LABEL
Size(LxWxH)
315LX270WX26.6H
315LX270WX26.6H
280LX198WX13H
280LX198WX13H
-
283x203x125
25W
102X51
349x298x146
-
463x330x200
349x304x12
1250x385x8
102X102
1473567-4
5/240
-
-
-
5/240
-
8.0 MR/240
-
1/240
2/240
-
-
2/240
1/240
1473567-3
-
5/260
-
-
5/260
-
8.0 MR/260
-
1/260
2/260
-
-
2/260
1/260
1827930-1
1827929-1
-
-
11/320
-
11/320
1/320
8.0 MR/320
-
-
-
11/260
11/260
1/260
8.0 MR/260
1/260
-
-
1/520
6/520
4/520
1/520
INNER
3-912135-3
3-912135-4
1502410-3
3-912135-8
MIDDLE
623853-1
623865-4
12120-1
2-623224-1
1/320
-
-
1/640
6/640
4/640
1/640
OUTER
292906-9
110455-2
8-912066-8
623865-5
DR
Sam Wu
Tyco Electronics AMP Guangdong Ltd.
East Rongqi Road,
Ronggui Town, Shunde, Foshan,
Guangdong, P.R. China
QR-ME-030C Confidential
CHK
Prince Lee
* Trademark
| Indicates change
APVD
Ansin Yang
1 of 4
LOC FR
107-68879
3. PACKAGING MATERIAL
包装材料
Inner
LABEL
SEALING
-
-
Middle
623865-4
Tape
Outer
623865-1
Tape
4.PACKAGING QUANTITY
包装数量
P/N
1473567-4
1473567-3
1827930-1
1827929-1
Inner
60 pcs/tray
65 pcs/tray
32 pcs/tray
26 pcs/tray
Middle
60 x 4 + 1 empty tray = 240 pcs/inner box
65 x 4 + 1 empty tray = 260 pcs/inner box
32 x 10 + 1 empty tray = 320 pcs/inner box
26 x 10 + 1 empty tray = 260 pcs/inner box
Outer
240 pcs/carton
260 pcs/carton
640 pcs/carton
520 pcs/carton
5. PACKING METHOD
包装方法
For 1473567-3/4:
5.1. Load specify qty as 4 into tray.
按4中规定数量将产品放入TRAY中。
5.2. Place another tray of onto previous tray with products.and ensure the two trays are justification completely.
盖上另一个装满产品的TRAY，保证上下两个TRAY完全对½。
5.3. Stack 4 trays with product one by one, then put an empty tray on the top
将装½产品的4个
TRAY
堆成一叠，最后在上面放一个空
TRAY。

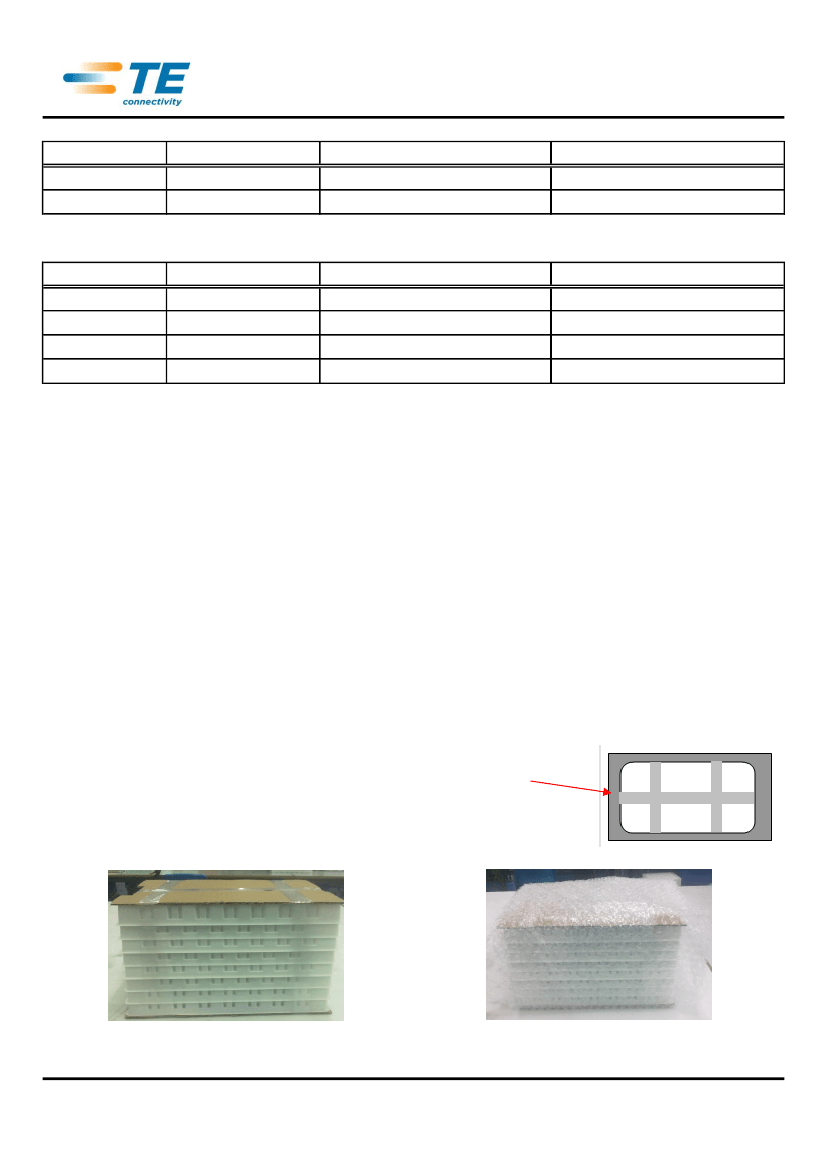

5.4. Place stack trays on the paper pad , Then place another paper pad upon the cushion
& wrap 5 stacked trays with tape.(Figure 1)
如图1所示，将一叠TRAY放在一纸板(2-623224-1)上，然后在装½产品的tray上再放一纸板(2-623224-1)。
将堆成一叠的5个TRAY用胶带固定。
方法：如右图所示，在横方向缠2条，纵方向缠1条，每条缠
3
圈。
图
1(示意图仅½参考)
图
2(示意图仅½参考)
Rev E
QR-ME-030C Confidential
2 of 4
107-68879
5. PACKING METHOD
包装方法
5.5. Set up a carton.and secure bottom flaps with tape.
折叠½一个外箱，并用胶带封½箱底。
5.6. Wrap the stack trays with two pieces of air cap(figure 2) and place into shipping box .
用两块气泡垫将包装½的一叠tray十字型地裹包½（如上图2示)并放入箱中。
5.7. Seal the box with tape. And place product identification label in "product id" marked on box.
用胶带封箱，在箱外印有“PRODUCT
ID”标识处贴上外标签。
For 1827929/930-1:
5.1. Load specify qty as 4 into tray.
按4中规定数量将产品放入TRAY中(如产品是RoHS/EVL产品，需在tray上加贴Lead
Free
标签1502410-x)。
注：端子的一面朝下放½。
5.2. Place another tray of onto previous tray with products.and ensure the two trays are justification completely.
盖上另一个装满产品的TRAY，保证上下两个TRAY完全对½。
5.3. Stack 10 trays with product one by one, then put an empty tray on the top & wrap 11 stacked trays with tape.
将装½产品的10 个
TRAY
堆成一叠，最后在上面放1个空
TRAY。将堆成一叠的½11个TRAY用胶带固定。
方法：在长方向缠两道，在横方向上缠一道，每道各缠三圈，如下图3所示。

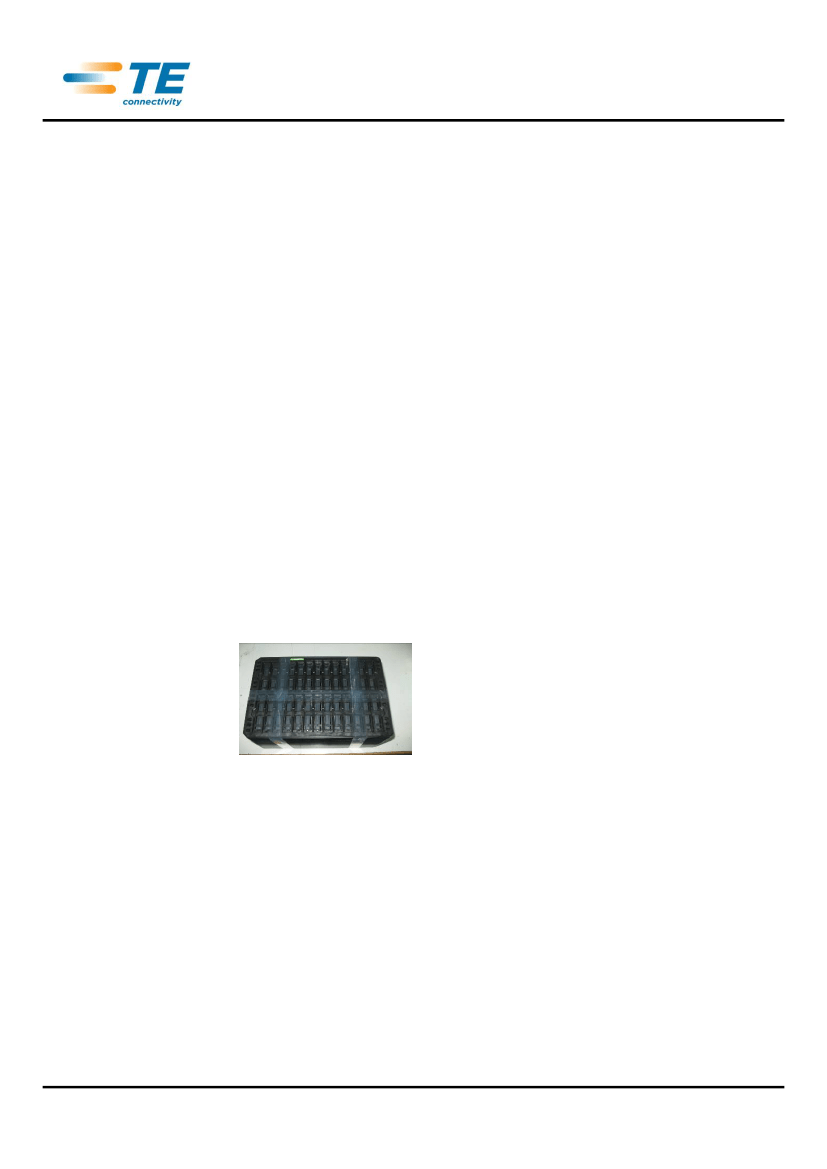

图
3
5.4. Set up an inner box.
折叠½一个内盒。
5.5. Place stack trays into the inner box.
将一叠TRAY放入内盒中。
5.6. Close cover of the inner box, place tape on the middle of three sides.
合上盖子，并在内箱三边的中间(除连接边外)各贴上一条大胶带。
5.7. Place an inner label on the middle of cover of box.
在箱盖的中间贴上内标签。
Rev E
QR-ME-030C Confidential
3 of 4
107-68879
5. PACKING METHOD
包装方法
5.8. Set up a carton.and secure bottom flaps with tape.
折叠½一个外箱，并用胶带封½箱底。
5.9. Wrap one inner box with two pieces of air cap & place into carton.
用二块气泡垫将一个内盒十字交叉地裹½后并放入外箱中。

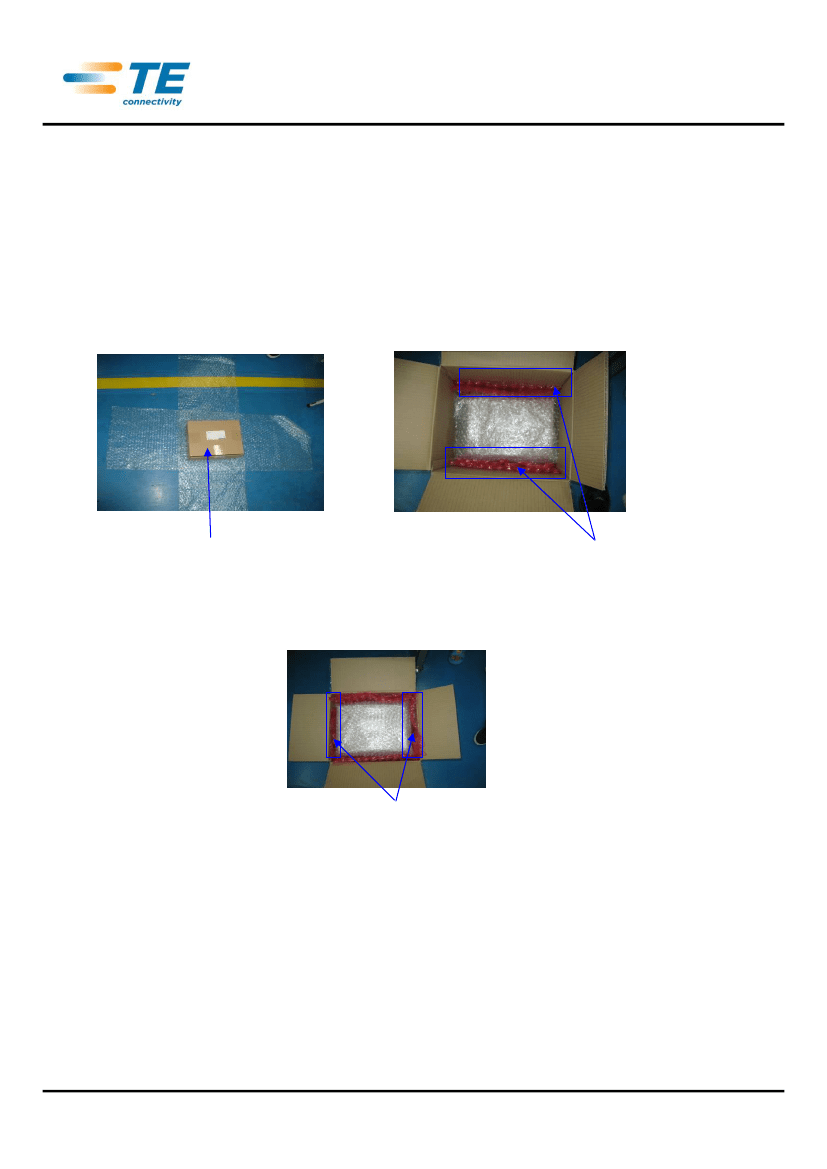

方法：如图4、图5所示，先用一块气泡垫(8-912066-8)在长方向将内盒包裹一圈，再用一块气泡垫(8-912066-8)在
½方向包裹一圈，然后放入外箱中，并在长方向的侧边各放一块对折½的气泡垫(110455-2)以填充箱中空隙。
图
4
(用二块气泡垫将一个内盒十字交叉地裹½)
图
5
(在长方向的侧边各放一块对折½的气泡垫以填充箱中空隙)
5.10. Repeat 5.9. once and place two pieces of bubble pack to fill the void of box.
如图6所示，重复步骤5.9.一次，然后在½方向各放一块气泡垫(110455-2)以填充箱中空隙。
图
6(
在½方向各放一块气泡垫以填充箱中空隙)
5.11. Seal the box with tape. And place product identification label in "product id" marked on box.
用胶带封箱，在箱外印有“PRODUCT
ID”标识处贴上外标签。
Rev E
QR-ME-030C Confidential
4 of 4
