MR064-101-3-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MR064-101-3-3

MR064-101-3-3: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit/Wire Wrap Terminal, Hole .099-.111, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

MR064-101-3-3 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit/Wire Wrap Terminal, Hole .099-.111, Gray Insulator, Receptacle

MR064-101-3-3 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FLEX-FIT, STANDARD: DIN 41612
body width	0.434 inch
subject depth	0.453 inch
body length	3.736 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	500VDC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	NON-THREADED
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.669 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT/WIRE WRAP
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

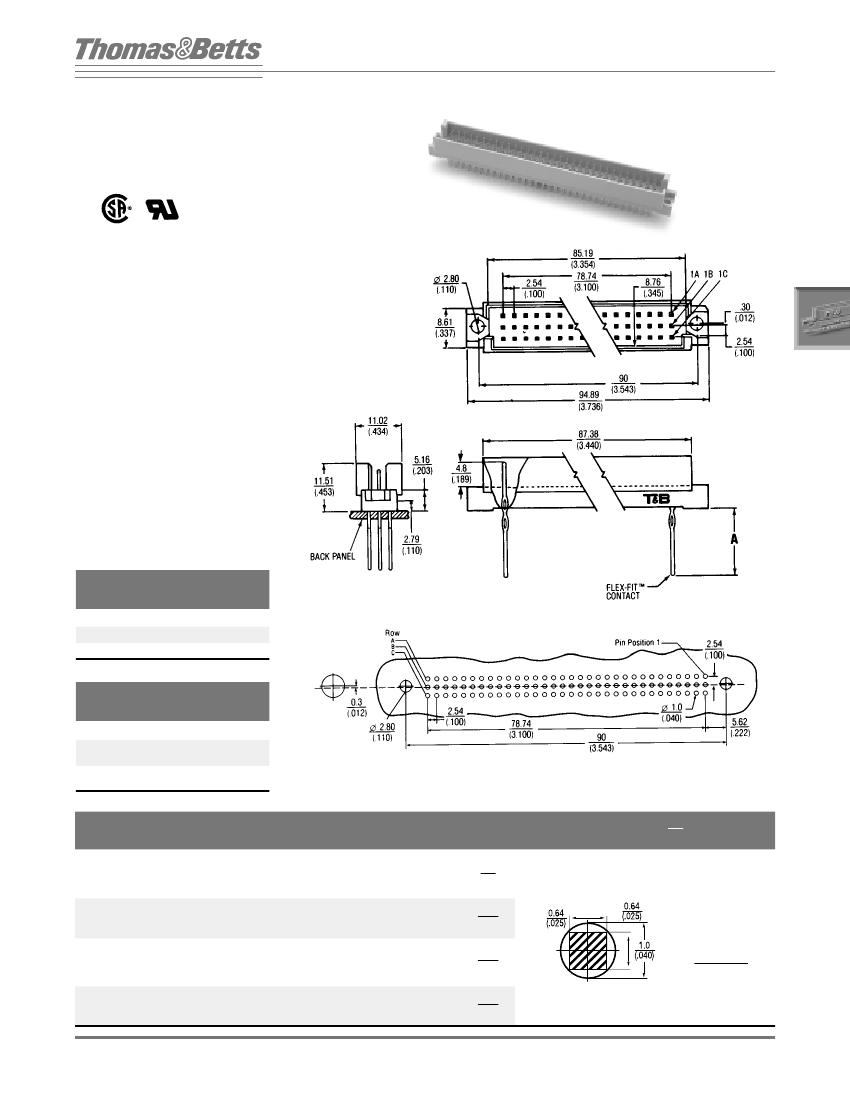

Two–Piece Connectors

Inverse DIN Flex-Fit™

TYPE R

FLEX-FIT™ MALE

PCB CONNECTOR

LR92984

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Gray

ONTACTS

Copper alloy, nickel plate overall,

gold finish in contact zone. Tin/lead on solder

tails, tin/lead or gold on posts.

LECTRICAL

ROPERTIES

URRENT

ATING

2 Amps per pin

NSULATION

ESISTANCE

>1 x 10

0hms

IELECTRIC

TRENGTH

> 500 VDC at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

NITIAL

NSERTION

ORCE

40 lbs. maximum when staked into glass

epoxy PCB substrate 0.037" diameter

finished through-hole

ETENTION

ORCE

10 lbs. minimum when staked into glass

epoxy PCB substrate 0.043" diameter

finished through-hole

PERFORMANCE LEVEL

level 1 - 500 mating cycles

level 2 - 400 mating cycles

level 3 - 50 mating cycles

Recommended Printed Circuit Board Layout

TAIL PLATING

Tin/Lead

Gold Flash

(.200" From Pin TIp)

Gold Plate 30 Microinches

thick min. (200" From Pin Tip)

PPLICATION

OOLING

Installation Platen: 889-DR048

Pin Replacement Tool: 889-100

Ordering Information

NO. OF CONTACTS

CONTACT LOADING

CATALOG NO.

SPECIFY X AND Y

MR064-081-X

MR096-081-X

MR064-091-X-Y

MR096-091-X-Y

MR064-101-X-Y

MR096-101-X-Y

MR064-111-X-Y

MR096-111-X-Y

A = 4.7

(.184)

A = 13.0

(.512)

A = 17.0

(.669)

A = 20.9

(.823)

TERMINATION STYLE

(INCHES)

a, c

a, b, c

a, c

a, b, c

a, c

a, b, c

a, c

a, b, c

1, 2, 3 –32

Press-Fit

Wire Wrap Post

0.64 x 0.64

(.025 x .025)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
