ZTK6.8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ZTK6.8

Preview

ZTK6.8: DescriptionZener Diode, 6.8V V(Z), 5.18%, Silicon, DO-35,; CategoryDiscrete semiconductor diode; File Size115KB，3 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

ZTK6.8 Overview

Zener Diode, 6.8V V(Z), 5.18%, Silicon, DO-35,

ZTK6.8 Parametric

Parameter Name	Attribute value
Maker	General Instrument Corp
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Nominal reference voltage	6.8 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5.18%

Preview

Download Datasheet

View All

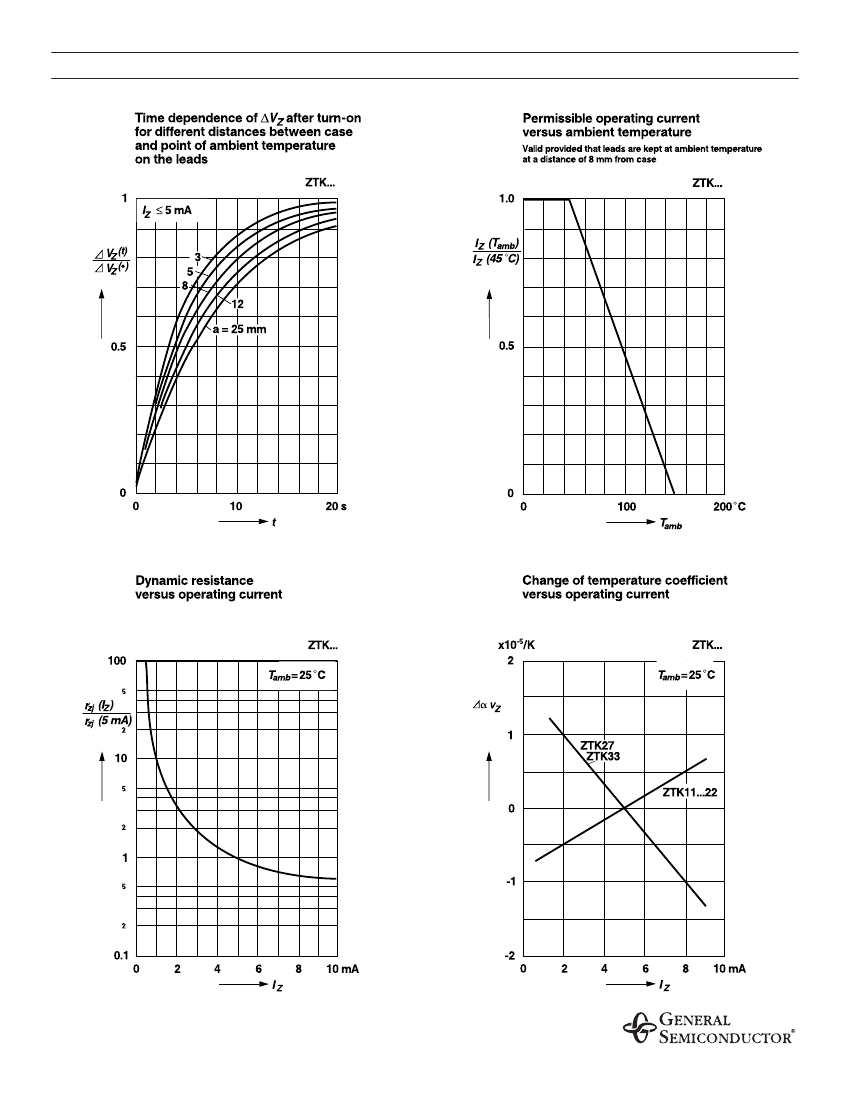

ZTK6.8 THRU ZTK33

VOLTAGE STABILIZERS

DO-35

FEATURES

♦

Temperature-Compensated Stabilizing Circuits

♦

Monolithic linear integrated circuits with

extremely short thermal run-in time producing a

constant temperature-compensated voltage. They

are particularly suitable for stabilizing the tuning

voltage in radio and TV tuners employing voltage-

variable capacitance diodes.

min. 1.083 (27.5)

max. .150 (3.8)

max.

∅

.079 (2.0)

Cathode

Mark

min. 1.083 (27.5)

max.

∅

.020 (0.52)

MECHANICAL DATA

Dimensions are in inches and (millimeters)

Case:

DO-35 Glass Case

Weight:

approx. 0.13 g

MAXIMUM RATINGS

Ratings at 25°C ambient temperature unless otherwise specified.

SYMBOL

VALUE

UNIT

Operating Current (see Table “Characteristics”)

Junction Temperature

Storage Temperature Range

T

j

T

S

150

– 20 to +150

°C

12/17/98

ZTK6.8 Related Products

	ZTK6.8	ZTK9	ZTK22	ZTK33A	ZTK33C
Description	Zener Diode, 6.8V V(Z), 5.18%, Silicon, DO-35,	Zener Diode, 9V V(Z), 11.1%, Silicon, DO-35,	Zener Diode, 22V V(Z), 9.1%, Silicon, DO-35,	Zener Diode, 33V V(Z), 3.2%, Silicon, DO-35,	Zener Diode, 33V V(Z), 2.85%, Silicon, DO-35,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-35	DO-35	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	6.8 V	9 V	22 V	33 V	33 V
surface mount	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum voltage tolerance	5.18%	11.1%	9.1%	3.2%	2.85%
Maker	General Instrument Corp	-	General Instrument Corp	General Instrument Corp	General Instrument Corp
