ZPY100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ZPY100

ZPY100: DescriptionZener Diode, 100V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41,; CategoryDiscrete semiconductor diode; File Size152KB，2 Pages; ManufacturerBkc Semiconductors Inc.

Download Datasheet Parametric Compare View All

ZPY100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZPY100	-	-	View	Buy Now

ZPY100 Overview

Zener Diode, 100V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41,

ZPY100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bkc Semiconductors Inc.
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	250 Ω
JEDEC-95 code	DO-41
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.3 W
Certification status	Not Qualified
Nominal reference voltage	100 V
surface mount	NO
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5%
Working test current	5 mA

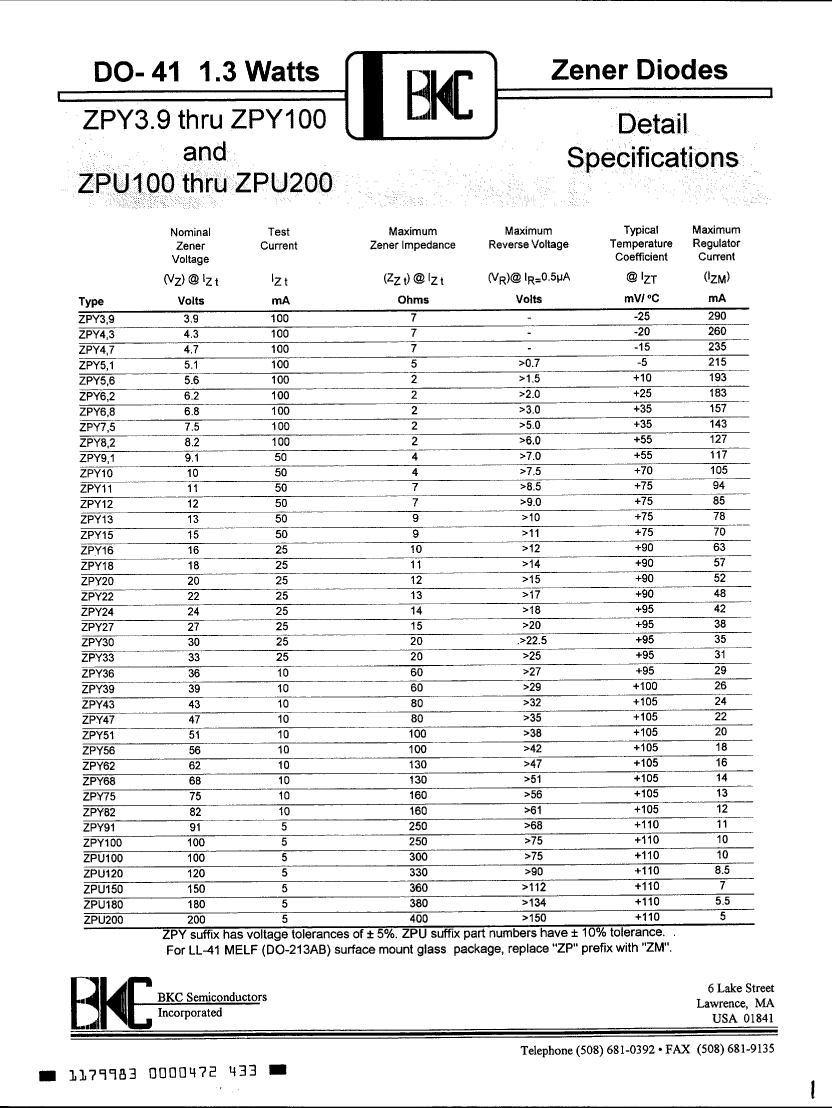

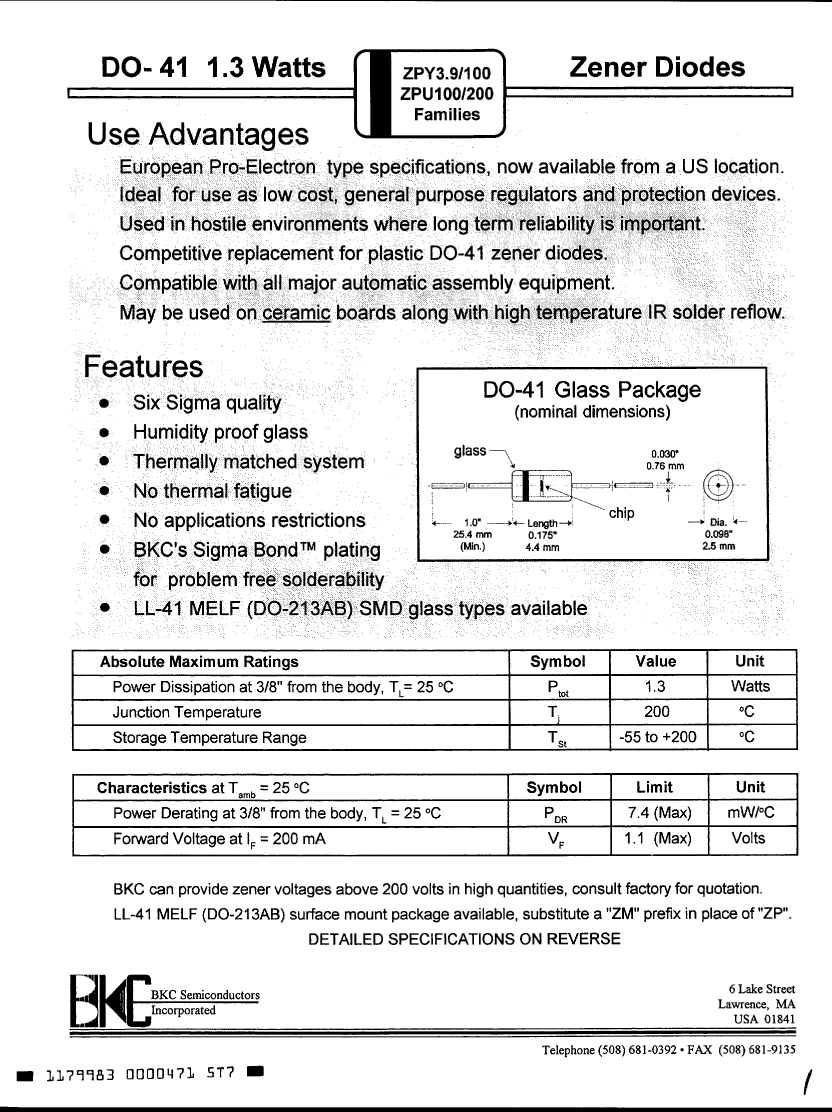

Preview

Download Datasheet

View All

ZPY100 Related Products

	ZPY100	ZPU100	ZPU180	ZPU150	ZPU120
Description	Zener Diode, 100V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41,	Zener Diode, 100V V(Z), 10%, 1.3W, Silicon, Unidirectional, DO-41,	Zener Diode, 180V V(Z), 10%, 1.3W, Silicon, Unidirectional, DO-41,	Zener Diode, 150V V(Z), 10%, 1.3W, Silicon, Unidirectional, DO-41,	Zener Diode, 120V V(Z), 10%, 1.3W, Silicon, Unidirectional, DO-41,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	250 Ω	300 Ω	380 Ω	360 Ω	330 Ω
JEDEC-95 code	DO-41	DO-41	DO-41	DO-41	DO-41
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
JESD-609 code	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1.3 W	1.3 W	1.3 W	1.3 W	1.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	100 V	100 V	180 V	150 V	120 V
surface mount	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum voltage tolerance	5%	10%	10%	10%	10%
Working test current	5 mA	5 mA	5 mA	5 mA	5 mA
Maker	Bkc Semiconductors Inc.	Bkc Semiconductors Inc.	Bkc Semiconductors Inc.	-	Bkc Semiconductors Inc.
Base Number Matches	-	1	1	1	-
