HSEC8-1070-01-S-DV datasheet, PDF

Datasheet> All Categories > The connector> The connector> HSEC8-1070-01-S-DV

HSEC8-1070-01-S-DV: DescriptionCard Edge Connector, 140 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size693KB，7 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

HSEC8-1070-01-S-DV Overview

Card Edge Connector, 140 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

HSEC8-1070-01-S-DV Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.28 inch
subject depth	0.314 inch
body length	2.512 inch
Body/casing type	PLUG
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.031 inch
Match contact row spacing	0.069 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.4036 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	140
Evacuation force-minimum value	.139 N

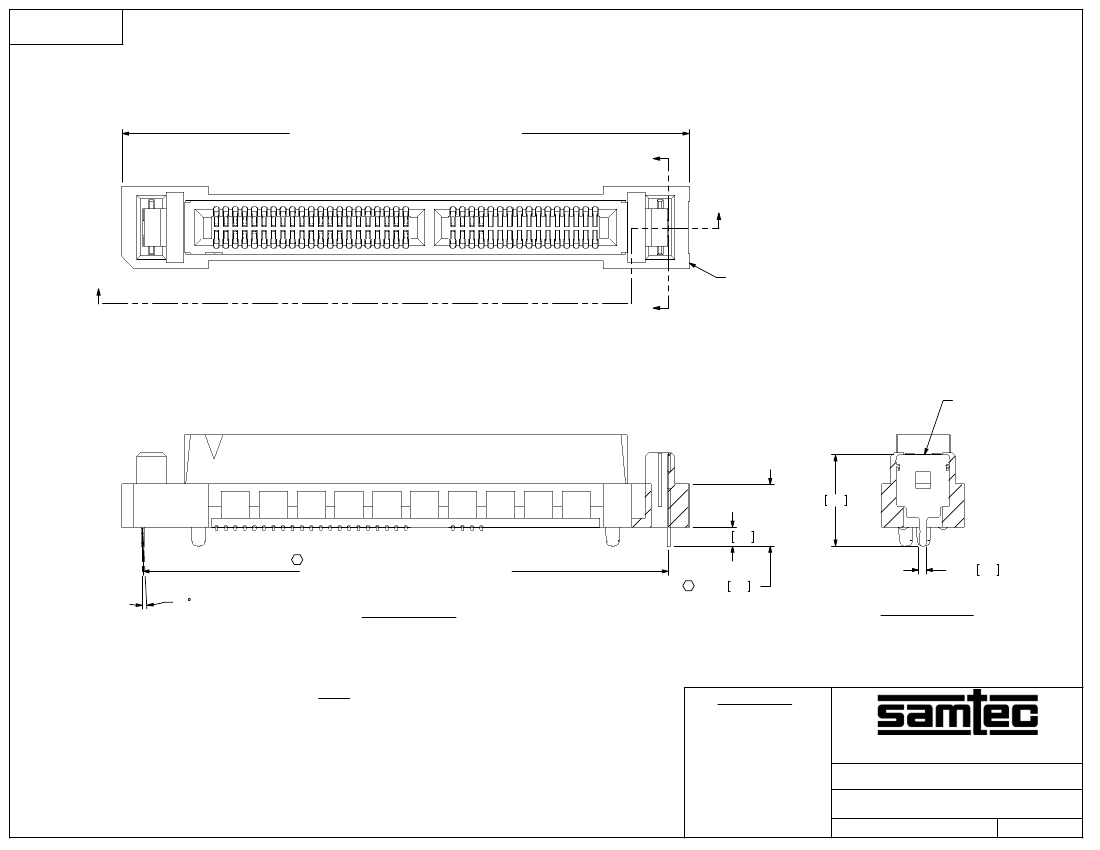

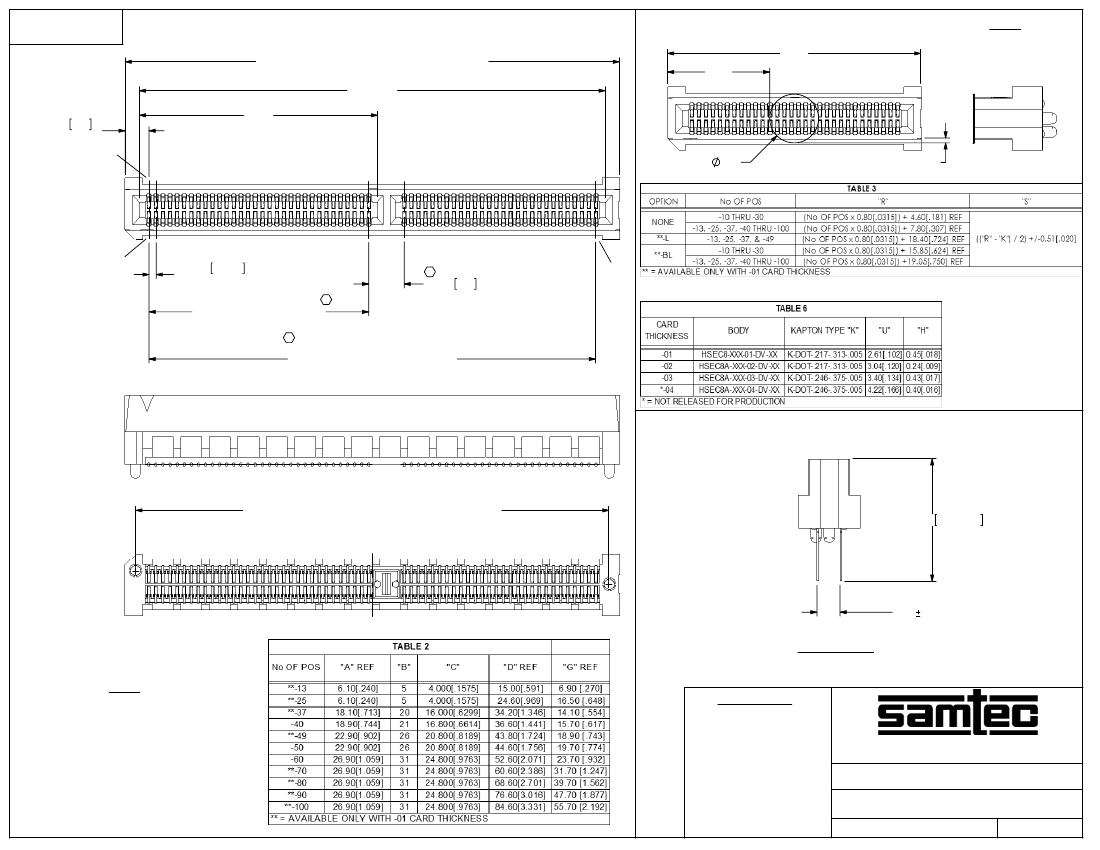

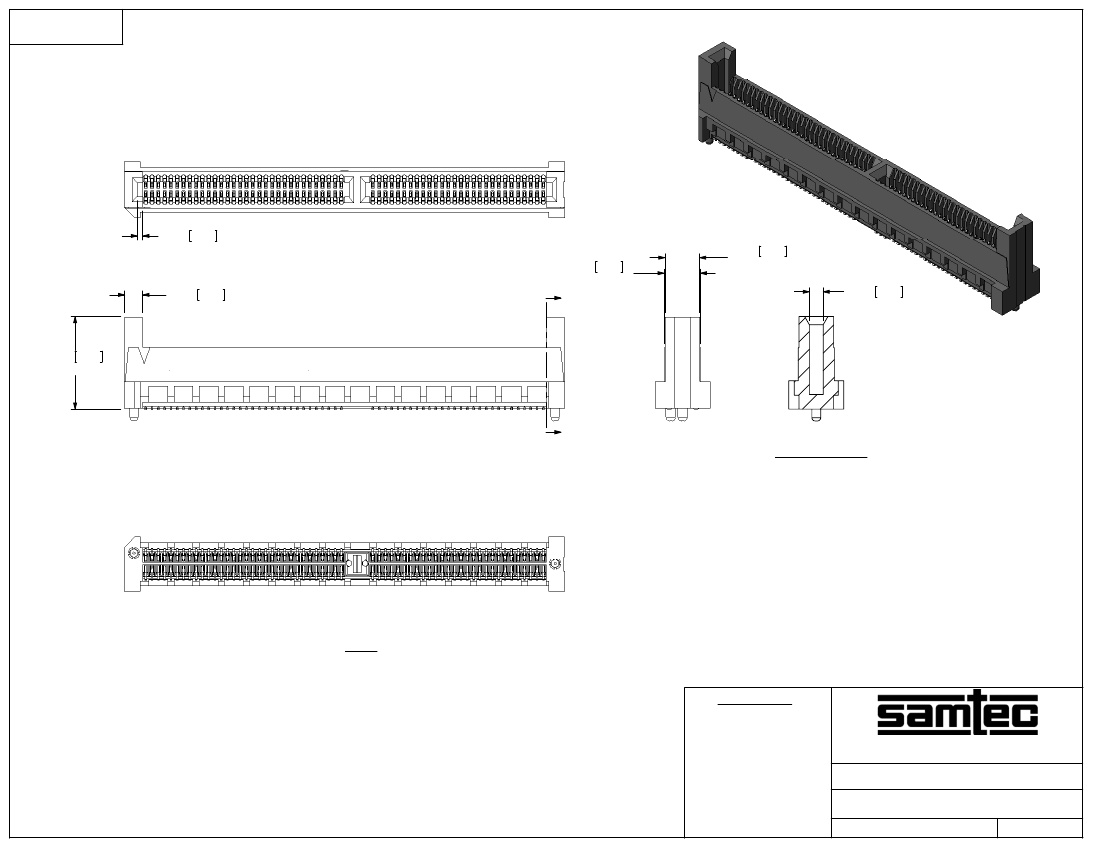

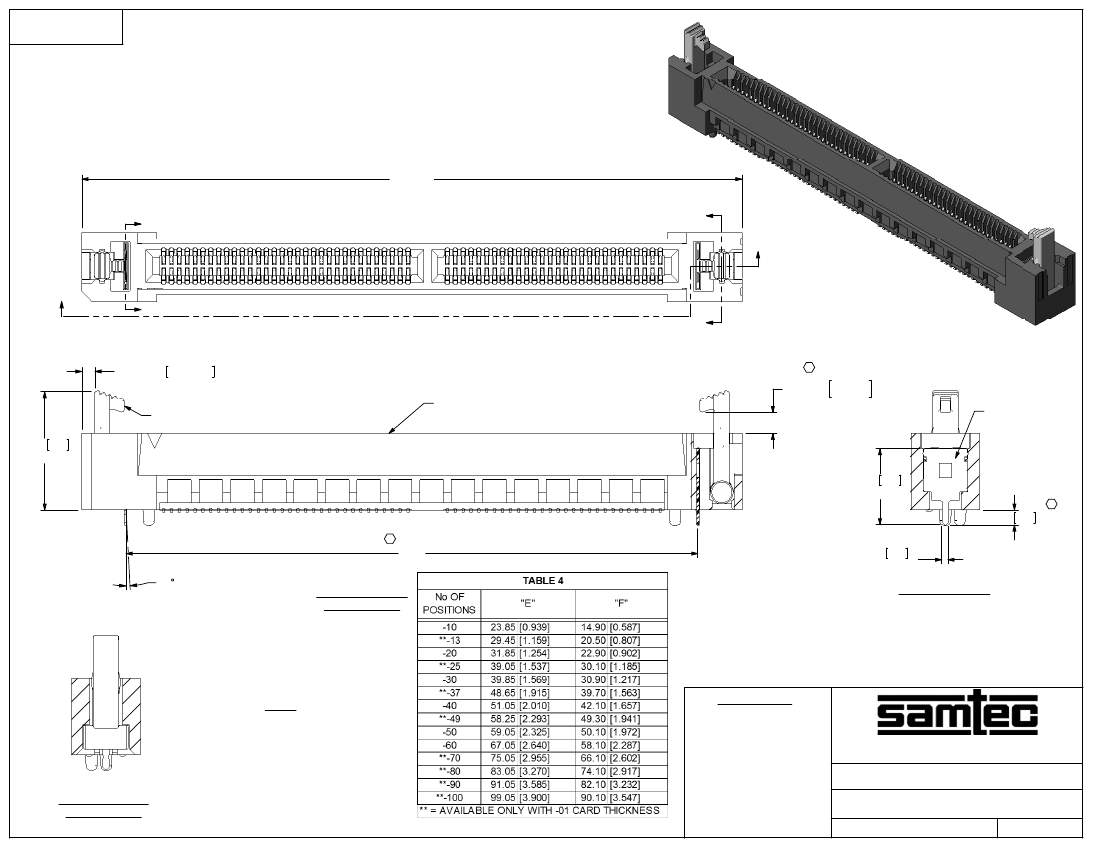

Preview

Download Datasheet

View All

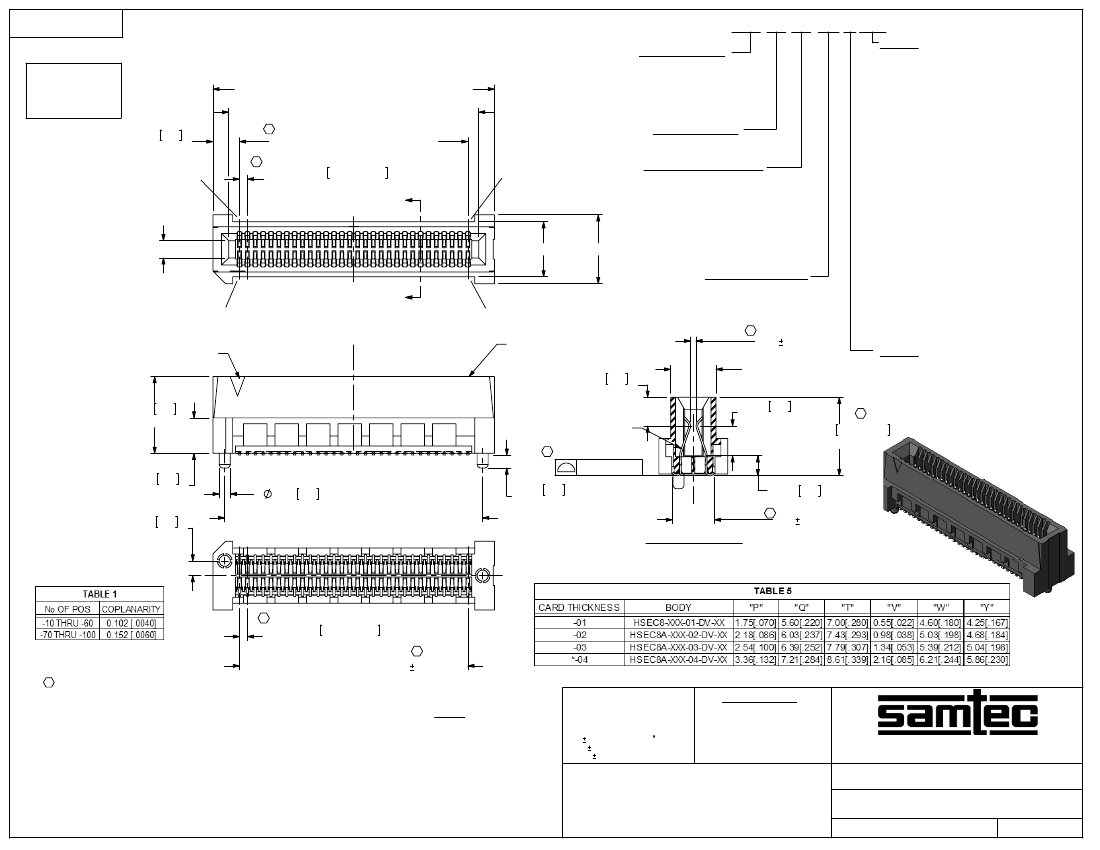

REVISION AC

DO NOT

SCALE FROM

THIS PRINT

2.70 .11

REF

DESIGNED & DIMENSIONED

IN MILLIMETERS

(INCHES FOR REFERENCE ONLY)

(No OF POS x 0.800 [.0315]) + 4.60 [.181] REF

(No OF POS x 0.800 [.0315]) + 1.40[.055] REF

HSEC8-1XXX-XX-XX-DV-X-XX

-K: POLYIMIDE FILM PAD(SEE FIG 3)

(SEE TABLE 6)

-TR: TAPE & REEL

(-10 THRU -70 POS ONLY)

(LEAVE BLANK FOR TRAY)

**-L: LATCHING OPTION.

NOT AVAILABLE FOR -GR TYPE USE

(USE HSEC8-XX-01-DV-A-L)

(AVAILABLE IN **-13, **-25, **-37 & **-49

POS ONLY) (SEE SHEET 3, FIG 4)

**-L2: ECDP LATCHING OPTION.

NOT AVAILABLE FOR -GR

USE (USE HSEC8-XX-01-DV-A-L)

(AVAILABLE IN **-26, **-50, **-74 & **-98

POS ONLY) (SEE SHEET 7, FIG 9)

**-BL: BOARD LOCK OPTION.

NOT AVAILABLE FOR -GR TYPE USE

(USE HSEC8-XXX-01-DV-XX-BL)

(SEE SHEET 4, FIG 5)

**-GR: GUIDE RAILS

NOT AVAILABLE FOR

-L; -BL TYPE USE (SEE SHEET 5, FIG 6)

(USE HSEC8-XXX-01-DV-XX-GR)

(PACKAGING -TR ONLY)

**-PE: PASS THROUGH

(AVAILABLE IN -10, -13 & -20 POS ONLY)

(ONLY AVAILABLE WITH -A OPTION)

(SEE SHEET 6, FIG 7)

-WT: WELD TABS (-A OPTION REQUIRED)

(SEE SHEET 6, FIG 8)

-A: ALIGNMENT PINS

(USE HSEC8X-XXX-XX-DV-A)

(LEAVE BLANK FOR NO -A &

USE HSEC8X-XXX-XX-DV-LC)

No OF POSITIONS

-10, -20, & -30 (SEE FIG 1)

**-13, ** -25, ** -37, -40, **-49,

-50, & -60 (SEE FIG 2)

**-70, **-80, **-90 & **-100 (PER ROW)

CARD THICKNESS

(SEE NOTE 6 & 7)

OPTION

(No OF POS -1 ) x 0.800 [.0315]

0.800±0.05 .0315±.002

(TOL NON ACCUM)

"A"

"P" REF

"Q" REF

PLATING SPECIFICATION

-SM: SELECTIVE GOLD/MATTE TIN TAIL

(USE C-188-01-S)

-H: HEAVY GOLD/FLASH GOLD TAIL

(USE C-188-01-H)

-S: SELECTIVE GOLD/MATTE TIN TAIL

(USE C-188-01-S)

-L: LIGHT SELECTIVE GOLD/MATTE TIN TAIL

"T" REF

(USE C-188-01-L)

ROW SPECIFICATION

POSITION #1

INDICATOR

"A"

SEE TABLE 5

2.92 .11

REF

"V" 0.10

OPTION

"W" REF

7.80 .31

REF

C-188-01-XX

SEE TABLE 1

1.12 .04 REF (TYP)

(No OF POS x 0.800[.0315]) + 2.200[.0866] REF

1.32 .05 REF

(2 PLCS)

3.03 .12

REF

7.98±0.15 .314±.006

(TYP)

** =

AVAILABLE ONLY WITH

-01 CARD THICKNESS

3.60 .14

REF

1.50 .06

REF

2.03 .08 REF

SECTION "A"-"A"

"Y" 0.20

0.80±0.05 .0315±.002

(TOL NON ACCUM)

NOTES:

* = NOT RELEASED FOR PRODUCTION

F:\dwg\misc\mktg\HSEC8-1XXX-XX-XX-DV-X-XX-MKT.SLDDRW

REPRESENTS A CRITICAL DIMENSION.

UNLESS OTHERWISE SPECIFIED,

2. BURR ALLOWANCE: 0.04[.0015] MAX.

PROPRIETARY NOTE

DIMENSIONS ARE IN MILLIMETERS.

THIS DOCUMENT CONTAINS INFORMATION

3. MINIMUM PUSHOUT FORCE: 2.2 NEWTONS.

FIG 1

CONFIDENTIAL AND PROPRIETARY TO

4. ALL TAIL TO TAIL DIMENSIONS MEASURED TIP TO TIP.

TOLERANCES ARE:

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

FOR POSITIONS -10, -20 & -30

5. ASSEMBLIES TO BE PACKAGED IN TRAYS.

DECIMALS

ANGLES

OR TRANSFERRED TO OTHER DOCUMENTS OR

(SHOWN: HSEC8-130-01-XX-D-DV-A)

DISCLOSED TO OTHERS OR USED FOR ANY

6. CARD THICKNESS OPTION

.X: .3 [.01]

PURPOSE OTHER THAN THAT WHICH IT WAS

-01:1.57mm[.062] THICK CARD USE HSEC8-XXX-01-DV-XX

.XX: .13 [.005]

OBTAINED WITHOUT THE EXPRESSED WRITTEN

.XXX: .051 [.0020]

-02: 2.00mm[.079] THICK CARD USE HSEC8A-XXX-02-DV-XX

CONSENT OF SAMTEC, INC.

FOR POSITIONS 10, 20, 30, 40, 50 AND 60 ONLY.

SHEET SCALE: 2.5:1

MATERIAL:

DO NOT SCALE DRAWING

-03: 2.36mm[.093] THICK CARD USE HSEC8A-XXX-03-DV-XX

INSULATOR: LCP,

FOR POSITIONS 10, 20, 30, 40, 50 AND 60 ONLY.

COLOR: -01

CARD THICKNESS

BLACK,

*-04: 3.18mm[.125] THICK CARD USE HSEC8A-XXX-04-DV-XX

-02 THU -04

CARD THICKNESS

NATURAL

CONTACT: BeCu

FOR POSITIONS 10, 20, 30, 40, 50 AND 60 ONLY.

MATING EDGE CARD THICKNESS TOLERANCE TO BE ±10% OF NOMINAL.

((No OF POS -1 ) x 0.800 [.0315]) 0.08[.003]

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

0.8mm HIGH SPEED ASSEMBLY

DWG. NO.

HSEC8-1XXX-XX-XX-DV-X-XX

SHEET

BY:

BRATCHER 01/24/03
