SGSP364 datasheet, PDF - EEWORLD Datasheet

SGSP364: Description5A, 450V, 1.5ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size112KB，2 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

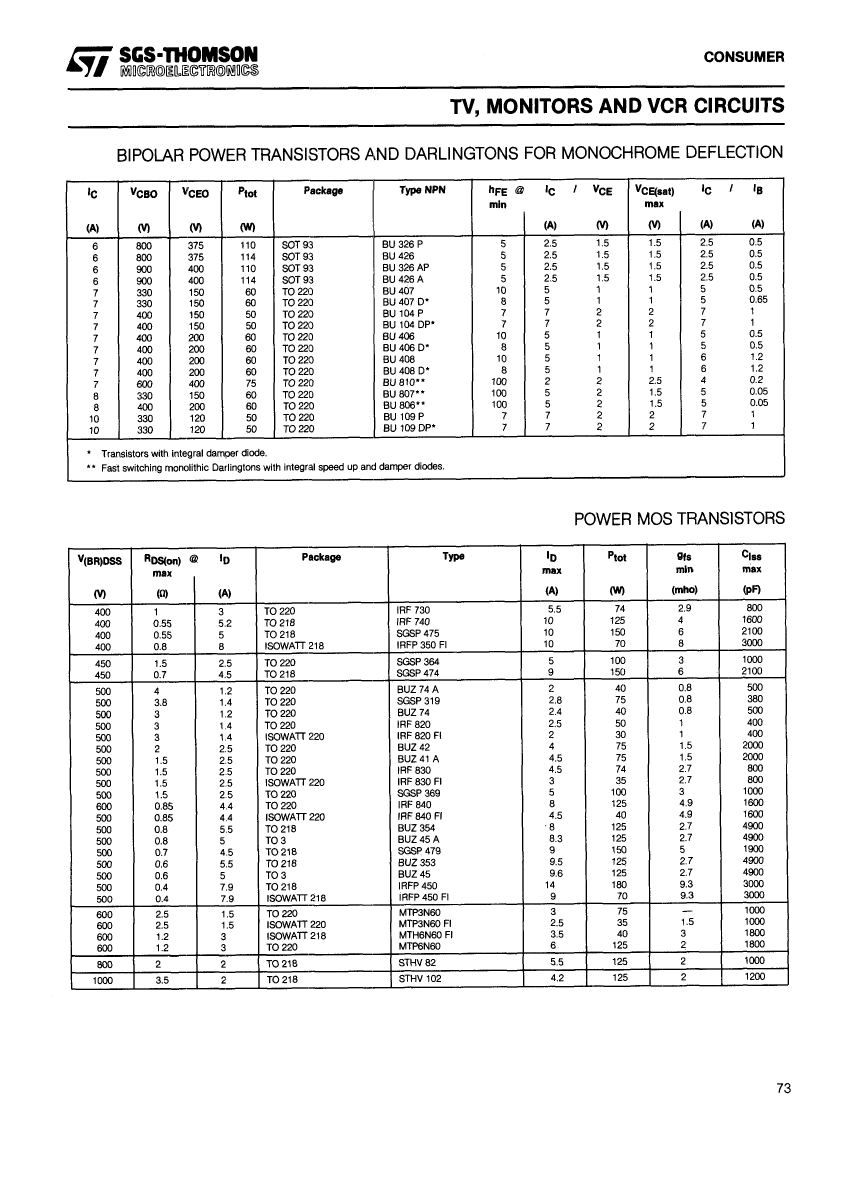

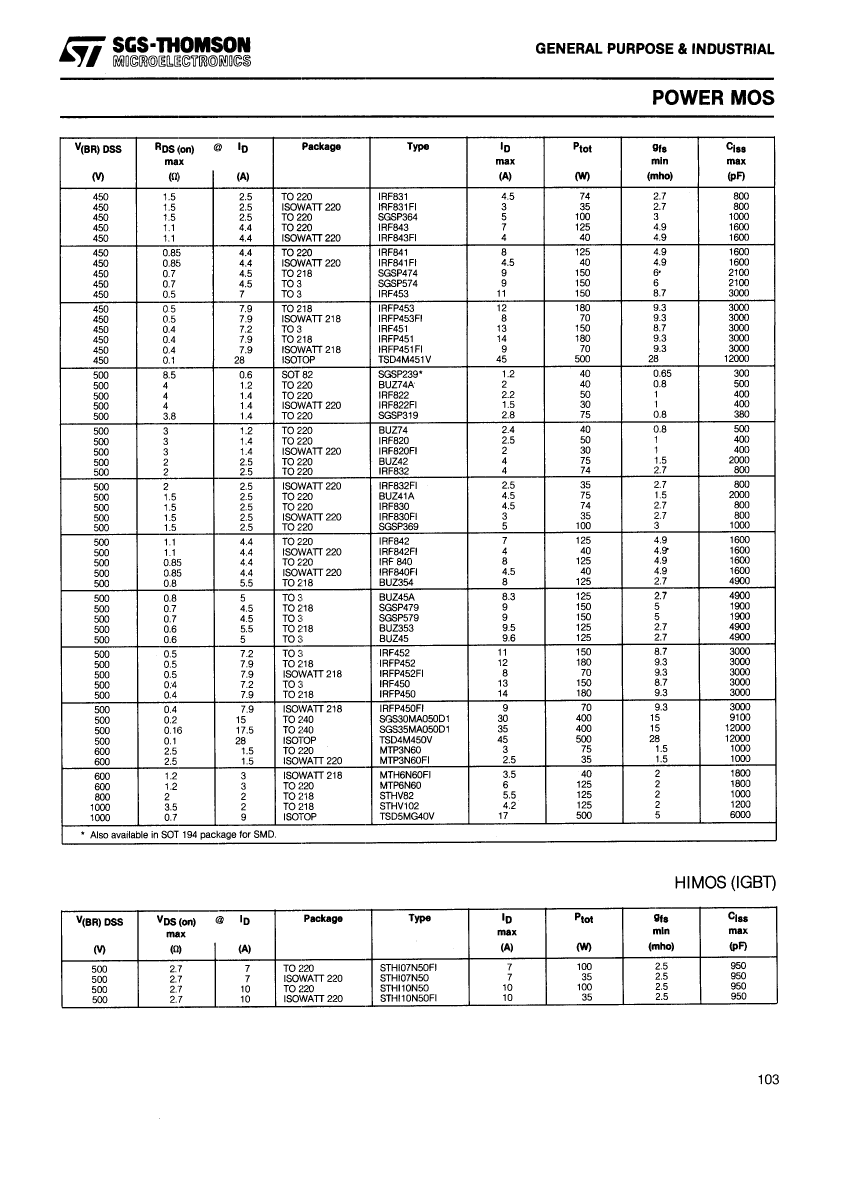

SGSP364 Overview

5A, 450V, 1.5ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220, TO-220, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SFM
package instruction	TO-220, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
Other features	HIGH VOLTAGE, FAST SWITCHING
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	450 V
Maximum drain current (Abs) (ID)	5 A
Maximum drain current (ID)	5 A
Maximum drain-source on-resistance	1.5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	100 W
Maximum pulsed drain current (IDM)	20 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
