TT41NG-RA7T1/4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TT41NG-RA7T1/4

TT41NG-RA7T1/4: DescriptionTOGGLE SWITCH, 4PDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE; CategoryMechanical and electronic products switch; File Size137KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

TT41NG-RA7T1/4 Overview

TOGGLE SWITCH, 4PDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE

TT41NG-RA7T1/4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.49 inch
Actuator type	FLAT PADDLE
body width	11.94 mm
body height	9.14 mm
Body length or diameter	15.75 mm
Casing diameter	0.2 inch
Nozzle length	0.31 inch
Casing type	1/4-40
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated power R load	0.4VA@20VDC
Contact (DC) maximum rated R load	.02A@20VDC
Contact function	ON-ON
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Dielectric withstand voltage	1000VRMS V
Electrical life	80000 Cycle(s)
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e0
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	14
Solderability	WAVE
surface mount	NO
Switch action	LATCHED
switch function	4PDT
Switch type	TOGGLE SWITCH
Terminal surface	Tin/Lead (Sn/Pb)
Terminal length	0.13 inch
Termination type	SOLDER
Washability	SOLVENT

Preview

Download Datasheet

View All

This browser does not have Java enabled.

TE Connectivity

My Cart |

My Part Lists | Sign In/Register

English

(Change)

Have a Question?

Chat with a Product

Information Specialist

What can we help you find?

Products

Industries

Resources

About TE

My Account

Innovation

Support Center

Home > Products > Switches & Knobs > Product Feature Selector > Product Details

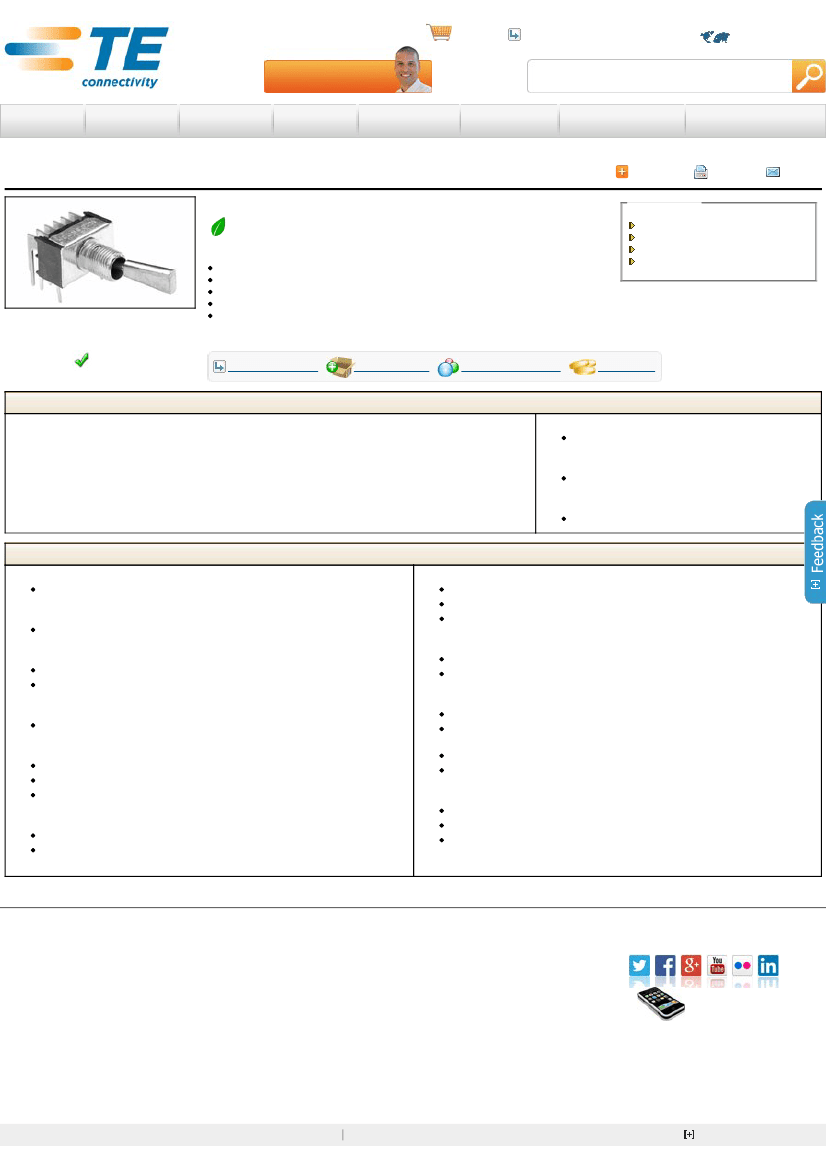

TT41NGRA7T1/4 Product Details

Toggle Switches

Always EU RoHS/ELV Compliant

(

Statement of Compliance

)

Product Highlights:

TT (Tiny) Series

Four Pole Double Throw Configuration (PoleThrow)

Current Rating = 0.4 VA A

Mount Style = ThroughHole

Termination Type = Printed Circuit, Right Angle

View all Features

Quick Links

Pricing & Availability

Search for Tooling

Product Feature Selector

TT41NGRA7T1/4

(714375622)

TE Internal Number: 714375622

Active

Add to My Part List

Request Sample

Find Similar Products

Buy Product

Documentation & Additional Information

Documents are temporarily unavailable. We are working hard to correct the problem. Please try

again later.

Additional Information:

Product Line Information

Additional Product Images:

Dimensional Drawing
