ASET-20MHZ: DescriptionCMOS Output Clock Oscillator, 0.5MHz Min, 45MHz Max, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size272KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASET-20MHZ Overview

CMOS Output Clock Oscillator, 0.5MHz Min, 45MHz Max, ROHS COMPLIANT PACKAGE-6

ASET-20MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRI-STATE; BULK
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	15%
Manufacturer's serial number	ASET
Installation features	SURFACE MOUNT
Maximum operating frequency	45 MHz
Minimum operating frequency	0.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	5 ns
Maximum supply voltage	3.3 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

TIGHT STABILITY INDUSTRIAL GRADE CRYSTAL OSCILLATOR

ASET SERIES

FEATURES:

• Highly reliable seam-sealed package

• Low current consumption

• Low phase noise and jitter

• Industrial grade tight temperature stability available (±10ppm / -40 to +85˚C)

• Fast start-up time

• CMOS output with Tri-state function

Pb

RoHS

Compliant

APPLICATIONS:

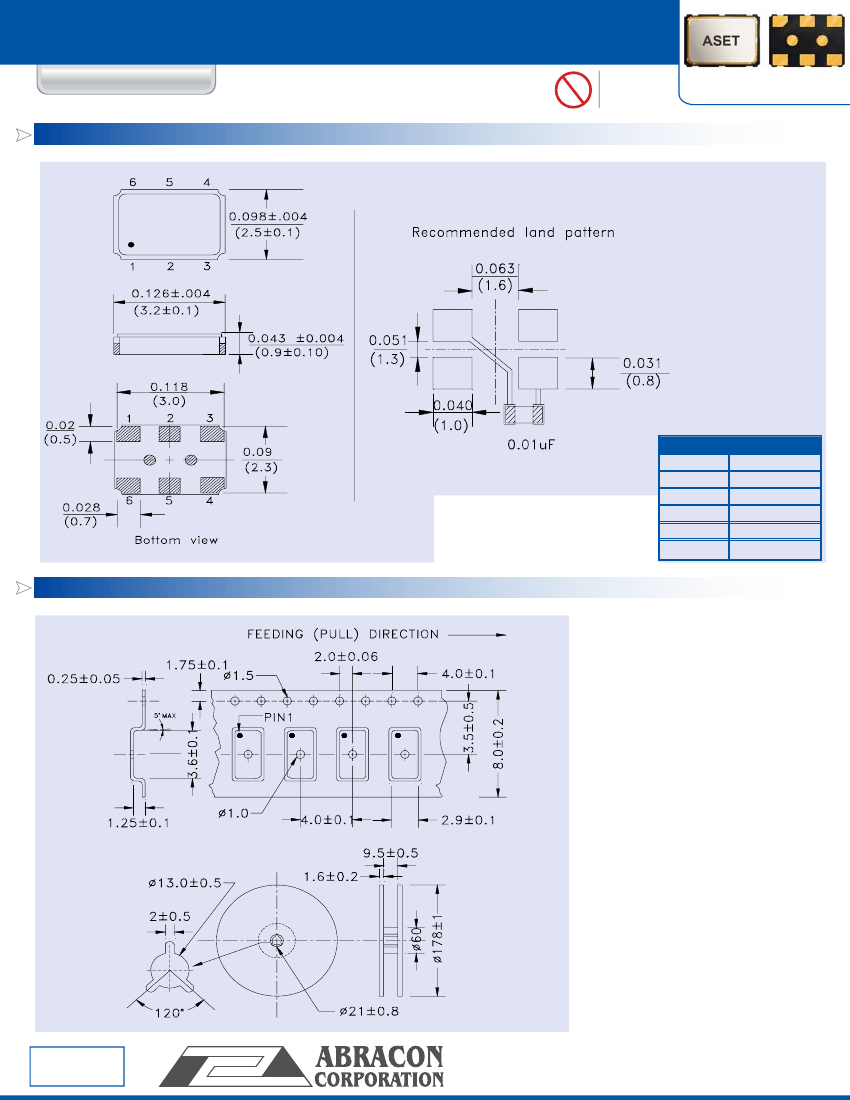

3.2 x 2.5 x 0.9mm

| | | | | | | | | | | | | | |

• Home networking by AC socket

• Wireless LAN

• Mobile communications

• PLC modem

• WiMax

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency:

Standard Frequencies:

Output level:

Operating temperature:

Storage temperature:

Overall Frequency Stability:

Supply voltage (Vdd):

Supply Current (Idd):

Stand-by Current

Symmetry:

Rise and Fall Times(Tr/Tf):

Output load:

Output Voltage:

Aging per year:

Phase Noise (@ 10kHz offset):

Jitter:

ASET Series

0.500MHz to 45.000MHz

10, 13, 20, 26, 25, 31, 40, 44MHz

CMOS

- 40°C to +85°C

±15ppm (see options)

3.0Vdc ± 10% (see options)

10mA max.

10μA max.

45/55 % @ 50% Vdd

5ns max. / 10%Vdd-90%Vdd

15pF max.

VOH = 0.9*Vdd min.

VOL = 0.1*Vdd max.

±2 ppm @25°C

-145dBc/Hz Typ. (1kHz offset)

1σ 3ps typ.

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ASET - Frequency -

-

P/N and Vdd (V)

Blank

3.0±10%

A

2.7±10%

B

3.3±10%

C

2.8±10%

Freq. Stability

Blank

±15 ppm

Y

±10 ppm

Packaging

Blank

Bulk

Tape and

T

Reel

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 03.26.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
