AS7805ATF-E1

Description
Fixed Positive Standard Regulator, 5VBIPolar,
CategoryPower/power management    The power supply circuit
File Size565KB，23 Pages
ManufacturerDiodes Incorporated
Environmental Compliance
Download Datasheet Parametric Compare View All

AS7805ATF-E1 Online Shopping

Suppliers Part Number Price MOQ In stock
AS7805ATF-E1 - - View Buy Now

AS7805ATF-E1 Overview

Fixed Positive Standard Regulator, 5VBIPolar,

AS7805ATF-E1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerDiodes Incorporated
package instructionTO-220F, 3 PIN
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time25 weeks
AdjustabilityFIXED
Nominal dropback voltage 12 V
Maximum absolute input voltage36 V
Maximum input voltage25 V
Minimum input voltage7.5 V
JESD-30 codeR-XSFM-T3
JESD-609 codee3
Maximum grid adjustment rate0.05%
Maximum load regulation0.05%
Number of functions1
Output times1
Number of terminals3
Working temperatureTJ-Max125 °C
Working temperature TJ-Min-40 °C
Maximum output current 11 A
Maximum output voltage 15.2 V
Minimum output voltage 14.8 V
Nominal output voltage 15 V
Package body materialUNSPECIFIED
Encapsulate equivalent codeSIP3,.1ISO-TB
Package shapeRECTANGULAR
Package formFLANGE MOUNT
method of packingTUBE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mountNO
technologyBIPOLAR
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance4%

AS7805ATF-E1 Preview

A Product Line of
Diodes Incorporated
AS78XXA
1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR
Description
The AS78XXA series are three terminal positive voltage regulators
designed for a wide variety of applications including local, on-card
regulation.
The AS78XXA are complete with internal current limiting, thermal
shutdown protection, and safe-area compensation which make them
virtually immune from output overload. If adequate heat sinking is
provided, these regulators can deliver output currents up to 1A.
The AS78XXA are available in TO-252-2 (3), TO-252-2 (4), TO-252-2
(5), TO-220-3 and TO-220F-3 packages.
Features
Output Current up to 1A
Fixed Output Voltages of 5V, 6V, 8V, 9V, 12V, 15V and 18V
Output Voltage Accuracy of ±4% over the Full Temperature
Range
Internal Short Circuit Current Limiting
Internal Thermal Overload Protection
Output Transistor Safe-area Protection
Low Load Regulation
Stable Performance in High Temperature
TO-220-3 and TO-220F-3
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Totally Lead-Free; RoHS Compliant (Notes 4 & 2)
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Lead-Free Packages: TO-252-2 (3), TO-252-2 (4), TO-252-2 (5)
Available in “Green” Packages: TO-220-3 and TO-220F-3
Applications
High Efficiency Linear Regulator
Post Regulation for Switching Supply
Microprocessor Power Supply
Mother Board
Lead-Free Packages, Available in “Green” Molding Compound:
TO-252-2 (3), TO-252-2 (4), TO-252-2 (5)
Totally Lead-Free & Fully RoHS Compliant (Notes 4 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
Pin Assignments
T Package
(TO-220-3) (Option 1)
T Package
(TO-220-3) (Option 2)
3
2
1
OUTPUT
GND
INPUT
3
2
1
OUTPUT
GND
INPUT
T Package
(TO-220-3) (Option 3)
TF Package
(TO-220F-3)
3
2
1
OUTPUT
GND
INPUT
3
2
1
OUTPUT
GND
INPUT
AS78XXA
Document number: DS36562 Rev. 3 - 2
1 of 23
www.diodes.com
September 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
AS78XXA
Pin Assignments
(Cont.)
D Package
(TO-252-2 (3)) (Option 1)
(TO-252-2 (3)) (Option 2)
3
2
1
OUTPUT
GND
INPUT
3
2
1
OUTPUT
GND
INPUT
(TO-252-2 (4))
(TO-252-2 (5))
3
2
1
OUTPUT
GND
INPUT
3
2
1
OUTPUT
GND
INPUT
Typical Applications Circuit
V
IN
1
AS78XXA
INPUT
OUTPUT
GND
2
3
V
OUT
0.1F
0.33F
Pin Descriptions
Pin Number
1
2
3
Pin Name
INPUT
GND
OUTPUT
Voltage Input
Ground
Voltage Output
Function
AS78XXA
Document number: DS36562 Rev. 3 - 2
2 of 23
www.diodes.com
September 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
AS78XXA

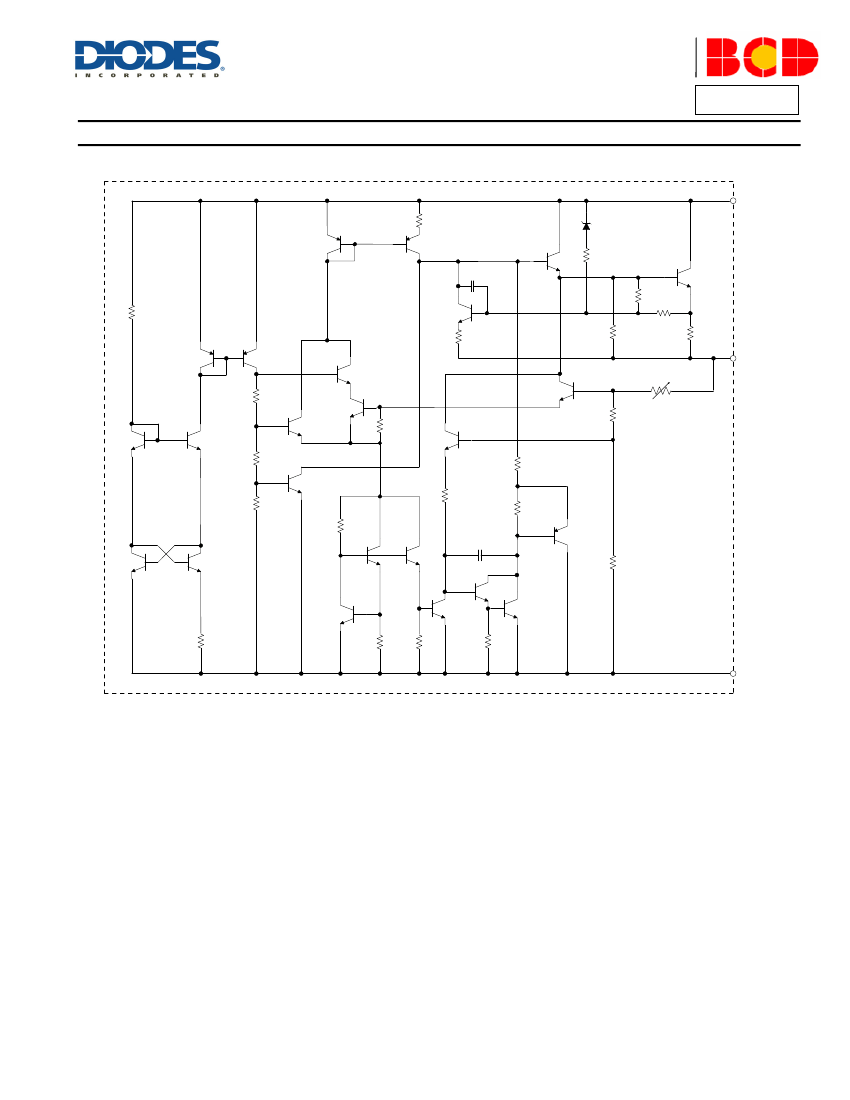

Functional Block Diagram
1
R9
Q9
Q14
R16
Q21
Q24
C1
R1
Q18
R12
Q3
Q6
Q10
R3
Q11
Q7
Q1
Q4
R4
Q8
R5
R6
Q23
Q13
Q2
Q5
Q15
C2
Q19
Q12
R2
R8
R10
Q17
Q20
R19
R11
R15
R7
Q16
R14
Q22
R18
R2
2
R17
R23
3
R20
R21
D1
Zener
INPUT
OUTPUT
R13
2
GND
AS78XXA
Document number: DS36562 Rev. 3 - 2
3 of 23
www.diodes.com
September 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
AS78XXA
Absolute Maximum Ratings
(Note 5)
Symbol
V
IN
T
LEAD
P
D
T
J
T
STG
Input Voltage
Lead Temperature (Soldering, 10sec)
Power Dissipation
Operating Junction Temperature
Storage Temperature Range
Parameter
Rating
36
+260
Internally Limited
+150
-65 to +150
TO-220-3
JA
Thermal Resistance
TO-252-2 (3)/TO-252-2
(4)/TO-252-2 (5)
TO-220F-3
ESD
ESD
ESD (Human Body Model)
ESD (Machine Model)
6000
500
60
100
60
V
V
°C/W
Unit
V
°C
W
°C
°C
Note 5: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to
“Absolute Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions
Symbol
Parameter
AS7805A
AS7806A
AS7808A
V
IN
Input Voltage
AS7809A
AS7812A
AS7815A
AS7818A
T
J
Operating Junction Temperature Range
Min
–
–
–
–
–
–
–
-40
Max
25
26
28
29
32
32
32
+125
°C
V
Unit
AS78XXA
Document number: DS36562 Rev. 3 - 2
4 of 23
www.diodes.com
September 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
AS78XXA
Electrical Characteristics
AS7805A
(@ V
IN
= 10V, I
OUT
= 1A, T
J
= -40 to +125°C, unless otherwise specified.)
Symbol
Parameter
T
J
= +25°C
V
OUT
Output Voltage
I
OUT
= 5mA to 1A, V
IN
= 7.5V to
20V, P
D
≤15W
V
IN
= 7.5V to 20V,
I
OUT
= 500mA, T
J
= +25°C
V
IN
= 10V, I
OUT
= 5mA to 1A, T
J
=
+25°C
V
IN
= 10V, I
OUT
= 0
V
IN
= 8V to 25V, I
OUT
= 500mA, T
J
= +25°C
I
OUT
= 5mA to 1A, T
J
= +25°C
PSRR
V
DROP
N
O
R
O
I
SC
I
PK
△V
OUT
/△T
(△V
OUT
/V
OUT
)/
△T
Ripple Rejection
Dropout Voltage
Output Noise Voltage
Output Resistance
Short Circuit Current
Peak Output Current
Output
Voltage
Temperature
V
IN
= 8V to 18V, f = 120Hz, I
OUT
=
500mA
△
V
OUT
= 1%, I
OUT
= 1A, T
J
=
+25°C
f = 10Hz to 100kHz, T
A
= +25°C
f = 1kHz
V
IN
= 35V, T
A
= +25°C
V
IN
= 10V, T
J
= +25°C
–
–
TO-220-3
TO-252-2 (3)/
θ
JC
Thermal Resistance
TO-252-2 (4)/
TO-252-2 (5)
TO-220F-3
–
9
–
–
16
–
°C/W
Conditions
Min
4.9
4.8
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Typ
5
–
25
20
3.2
0.3
0.08
70
2
10
10
0.05
2.2
0.4
80
9
Max
5.1
V
5.2
50
50
6
0.8
mA
0.5
–
–
–
–
–
–
–
–
–
dB
V
µV/V
O
mΩ
A
A
mV/°C
ppm/°C
mV
mV
mA
Unit
V
RLINE
V
RLOAD
I
Q
Line Regulation
Load Regulation
Quiescent Current
△I
Q
Quiescent Current Change
Coefficient
AS78XXA
Document number: DS36562 Rev. 3 - 2
5 of 23
www.diodes.com
September 2013
© Diodes Incorporated
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AS7805ATF-E1 Related Products

AS7805ATF-E1 AS7806ADTR-E1 AS7808AT-E1 AS7809ATF-E1 AS7805ADTR-E1 AS7815ADTR-G1 AS7805AT-E1 AS7805AT-G1
Description Fixed Positive Standard Regulator, 5VBIPolar, Fixed Positive Standard Regulator, 6VBIPolar, Fixed Positive Standard Regulator, 8VBIPolar, Fixed Positive Standard Regulator, 9VBIPolar, Fixed Positive Standard Regulator, 5VBIPolar, Fixed Positive Standard Regulator, 15VBIPolar, Fixed Positive Standard Regulator, 5VBIPolar, Fixed Positive Standard Regulator, 5VBIPolar,
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
Maker Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
package instruction TO-220F, 3 PIN TO-252, SMSIP3H,.38,90TB , SIP3,.1TB TO-220F, 3 PIN TO-252, SMSIP3H,.38,90TB TO-252, 3/2 PIN , SIP3,.1TB , SIP3,.1TB
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Factory Lead Time 25 weeks 23 weeks 25 weeks 27 weeks 17 weeks 23 weeks 23 weeks 25 weeks
Adjustability FIXED FIXED FIXED FIXED FIXED FIXED FIXED FIXED
Nominal dropback voltage 1 2 V 2 V 2 V 2 V 2 V 2 V 2 V 2 V
Maximum absolute input voltage 36 V 36 V 36 V 36 V 36 V 36 V 36 V 36 V
Maximum input voltage 25 V 26 V 28 V 29 V 25 V 32 V 25 V 25 V
Minimum input voltage 7.5 V 8.6 V 10.6 V 11.5 V 7.5 V 17.9 V 7.5 V 7.5 V
JESD-30 code R-XSFM-T3 R-PSSO-G2 R-XSFM-T3 R-XSFM-T3 R-PSSO-G2 R-PSSO-G2 R-XSFM-T3 R-XSFM-T3
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3
Maximum grid adjustment rate 0.05% 0.06% 0.075% 0.09% 0.05% 0.15% 0.05% 0.05%
Maximum load regulation 0.05% 0.06% 0.075% 0.1% 0.05% 0.15% 0.05% 0.05%
Number of functions 1 1 1 1 1 1 1 1
Output times 1 1 1 1 1 1 1 1
Number of terminals 3 2 3 3 2 2 3 3
Working temperatureTJ-Max 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Working temperature TJ-Min -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Maximum output current 1 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Maximum output voltage 1 5.2 V 6.24 V 8.3 V 9.35 V 5.2 V 15.6 V 5.2 V 5.2 V
Minimum output voltage 1 4.8 V 5.76 V 7.7 V 8.65 V 4.8 V 14.4 V 4.8 V 4.8 V
Nominal output voltage 1 5 V 6 V 8 V 9 V 5 V 15 V 5 V 5 V
Package body material UNSPECIFIED PLASTIC/EPOXY UNSPECIFIED UNSPECIFIED PLASTIC/EPOXY PLASTIC/EPOXY UNSPECIFIED UNSPECIFIED
Encapsulate equivalent code SIP3,.1ISO-TB SMSIP3H,.38,90TB SIP3,.1TB SIP3,.1ISO-TB SMSIP3H,.38,90TB SMSIP3H,.38,90TB SIP3,.1TB SIP3,.1TB
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT SMALL OUTLINE FLANGE MOUNT FLANGE MOUNT SMALL OUTLINE SMALL OUTLINE FLANGE MOUNT FLANGE MOUNT
method of packing TUBE TAPE AND REEL TUBE TUBE TAPE AND REEL TAPE AND REEL TUBE TUBE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Regulator type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount NO YES NO NO YES YES NO NO
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form THROUGH-HOLE GULL WING THROUGH-HOLE THROUGH-HOLE GULL WING GULL WING THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.286 mm 2.54 mm 2.54 mm 2.286 mm 2.286 mm 2.54 mm 2.54 mm
Terminal location SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum voltage tolerance 4% 4% 3.75% 3.89% 4% 4% 4% 4%
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED

Recommended Resources

Relay power saving circuit 6c

Lights out method and merging line b

5-digit LED real-time display circuit

Double closed-loop speed control circuit composed of L292

555 automatic reset electric shock safety device circuit

555 rice cooker automatic power regulator circuit

★★★★★Recruiting [MSP430] MCU design engineer ★★★★★
Recruiting MCU design engineers: 1. Know msp430 and have design experience 2. Have experience in msp430 C language development 3. Understand signal processing and use matlab 4. Preferably have more th...
xuchenglong Embedded System
How to use a computer to send a 24V pulse to the machine?
No follow-up, more detailed information would be best. Thanks!...
system110 Embedded System
How should I deal with English orders that have restrictions on swear words when placing an order on a foreign electronic website?
My school teacher asked me to purchase an integrated circuit of model [color=rgb(34, 34, 34)][backcolor=rgb(255, 255, 255)]XC7VX415T-1FFG1157C. He asked me to go to Digi-Key to buy it. I could place a...
永远的唯一 Talking
World Book Day - Book Auction [Ended]
[font=微软雅黑][size=3]As an engineer, besides your busy daily work and overtime, do you still take time to read? What book are you reading? What book do you want to read? Share it with us in the comments...
eric_wang Talking
How to set CC2530 BANK1?
[i=s] This post was last edited by Madai on 2017-11-17 09:11 [/i] Set the code range of CC2530 to bank1. I selected banked in option/Target, and then in lnk51ew_CC2530F256_banked.xcl, I only saw the d...
麻袋 Wireless Connectivity
What is the difference between TMS320F28335 and TMS320F28334?
RT~I am using a mini28335 development board and accidentally burned the board. I currently have a TMS320F28334 chip. I wonder if I can replace the chip on the board with 28334 and use it temporarily?...
netflu Microcontroller MCU
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. PCF0805R-40K2DI
  2. CSN104D-471K
  3. EQDP-042-25.00-TBL-SBR-2-F
  4. MW-41-03-G-D-235-100
  5. VTC1-C04A-13M000
  6. C0805X181J8RALAUTO
  7. DIP1987022491BG
  8. PNM2010K4813BBTF
  9. BZX84B2V4W-AU_A0_10001
  10. SP431BT92AG
  11. C4201HF-2x6P-GWT
  12. A3961WVA-16P-V0-G20-C1697

Popular Articles

  1. Diodes Incorporated's New Signal Repeater (ReDriver) Portfolio
  2. Microsoft leaves a special channel to install Windows 11 using an image on unsupported hardware
  3. Why are prospective car companies eyeing the robot business?
  4. Share tiny4412, emmc burning u-boot, support fastboot mode burning emmc
  5. The stock price rose by 30.77% after listing, and Xidiwei successfully landed on the Science and Technology Innovation Board
  6. Xiaomi's patent for a foldable flip phone revealed, with a rear secondary screen and dual cameras
  7. Geely intends to acquire Meizu Mobile Phones and both parties respond
  8. Liexin Semiconductor Launches the World's Smallest 4G/5G MMMB PA at 2.5mmX3.5mm
  9. How to measure instantaneous voltage with an oscilloscope
  10. Design of elevator (four-story) control system based on single chip microcomputer

Technical ResourceMore

  1. Full-bridge cascade multi-level inverter technology and its topology extension
  2. STM8L051 serial port IDLE interrupt receives data
  3. A new type of BOOST circuit
  4. Linux Command Detailed Dictionary
  5. Simulation Study on Parallel Interleaved Boost PFC Driving Technology
  6. Research on Power Factor Compensation of Low Power Switching Power Supply
  7. 04-OLED mold taking tutorial
  8. Cotton instrument testing standards
  9. MATLAB Case 13 Parameter Optimization in SVM Neural Network---Improving Classifier Performance.rar
  10. Altium Designer schematic library interface device.SchLib

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1370  2164  1757  618  2781  28  44  36  13  56
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
