50547-A102A

Description
Board Connector, 408 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size163KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

50547-A102A Overview

Board Connector, 408 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle

50547-A102A Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPANEL MOUNTABLE
Board mount optionsHOLE .112-.124
body width0.673 inch
subject depth0.585 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS8P8
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number50547
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.177 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts408
UL Flammability Code94V-0

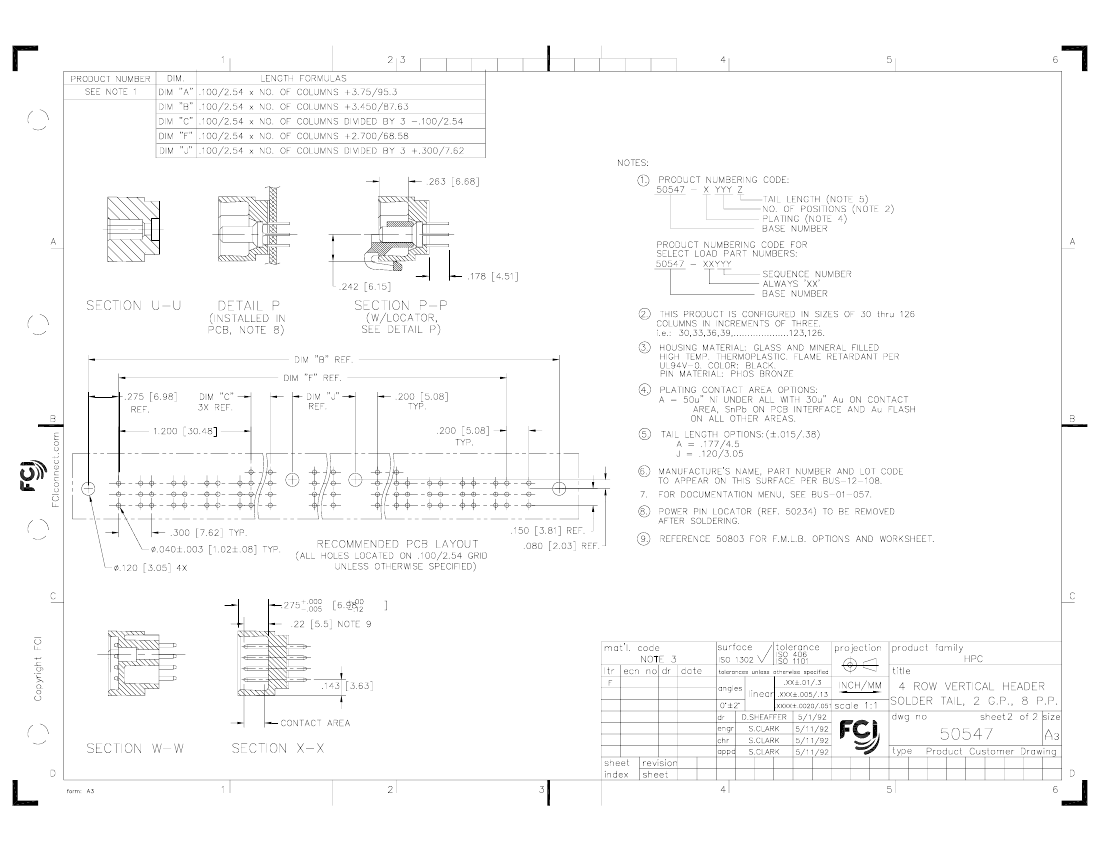

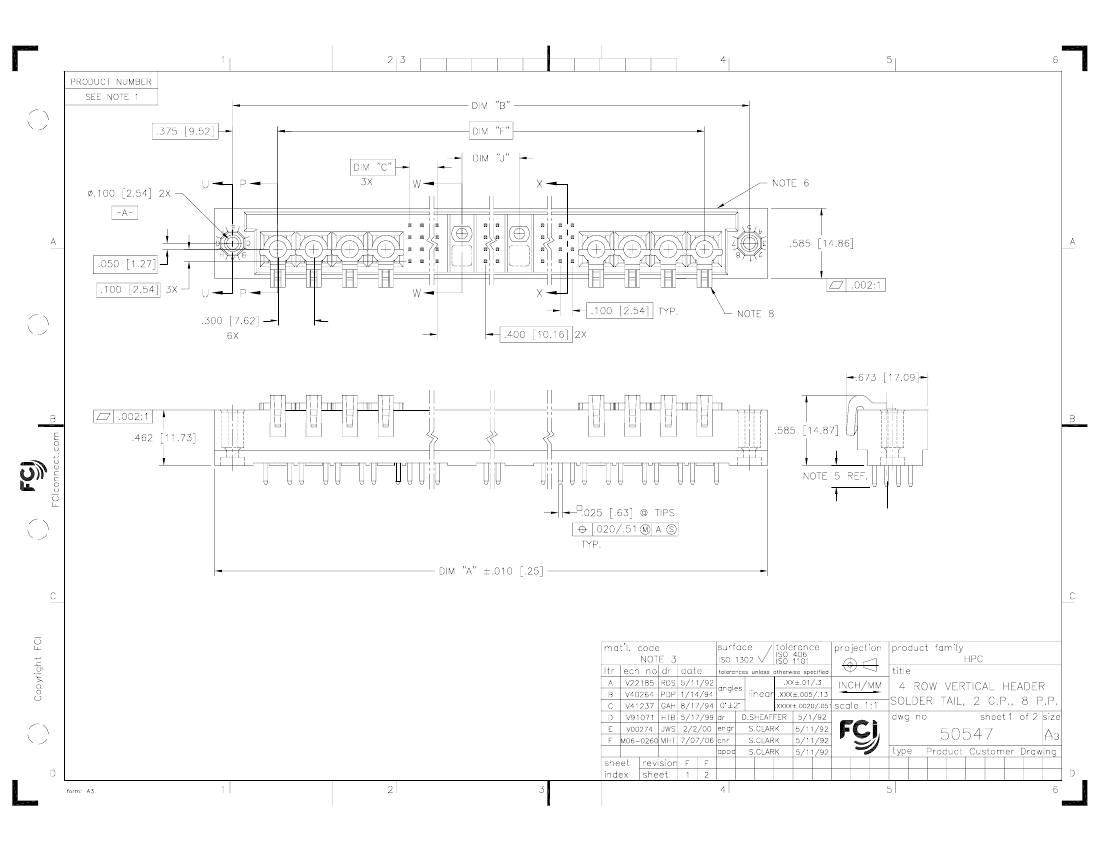

PDM: Rev:F
STATUS:
Released
Printed: May 13, 2011
.
