ZSM561N8TC datasheet, PDF - EEWORLD Datasheet

ZSM561N8TC: DescriptionPower Supply Support Circuit, Fixed, 1 Channel, PDSO8, SO-8; CategoryPower/power management The power supply circuit; File Size229KB，6 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

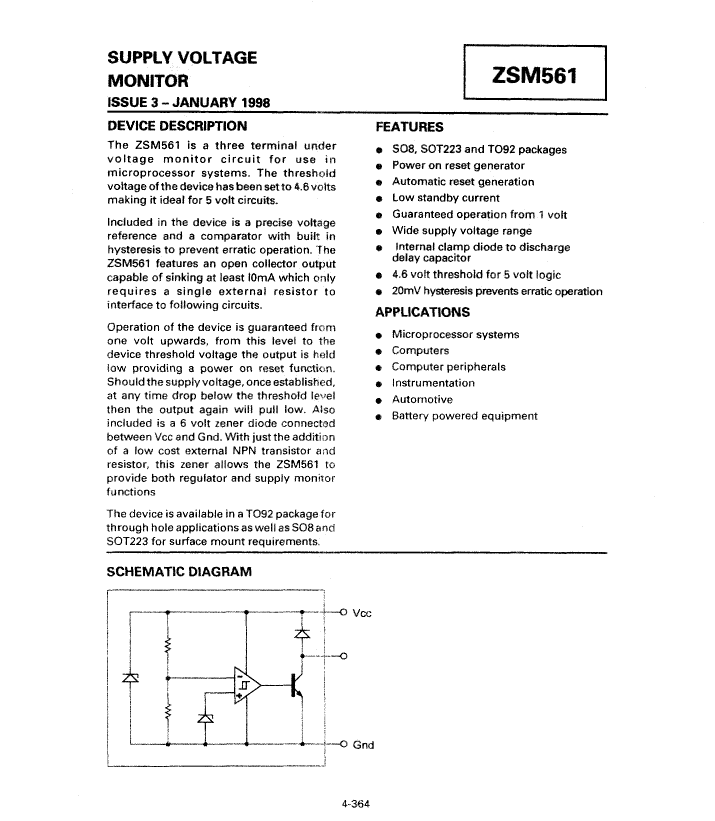

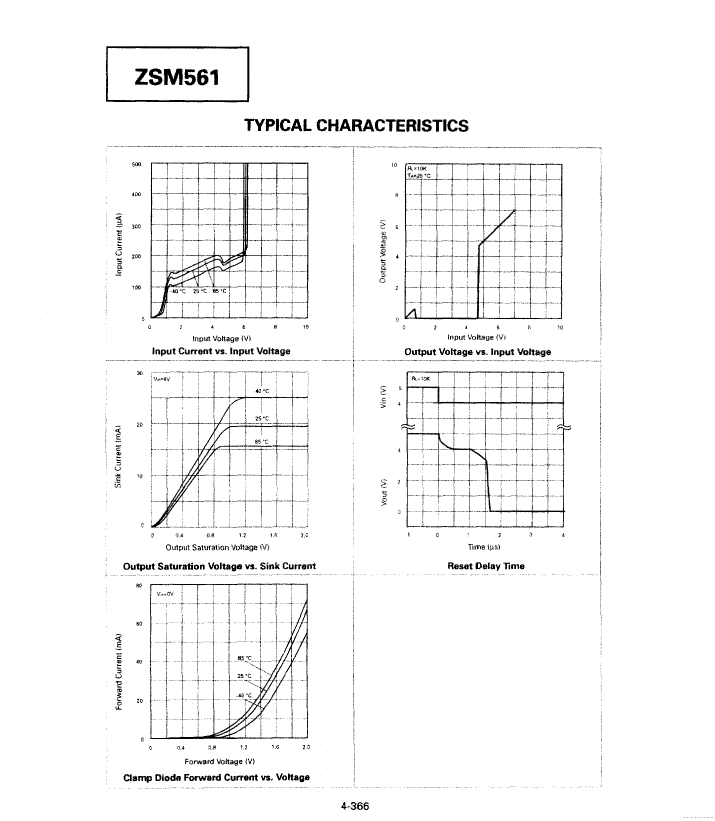

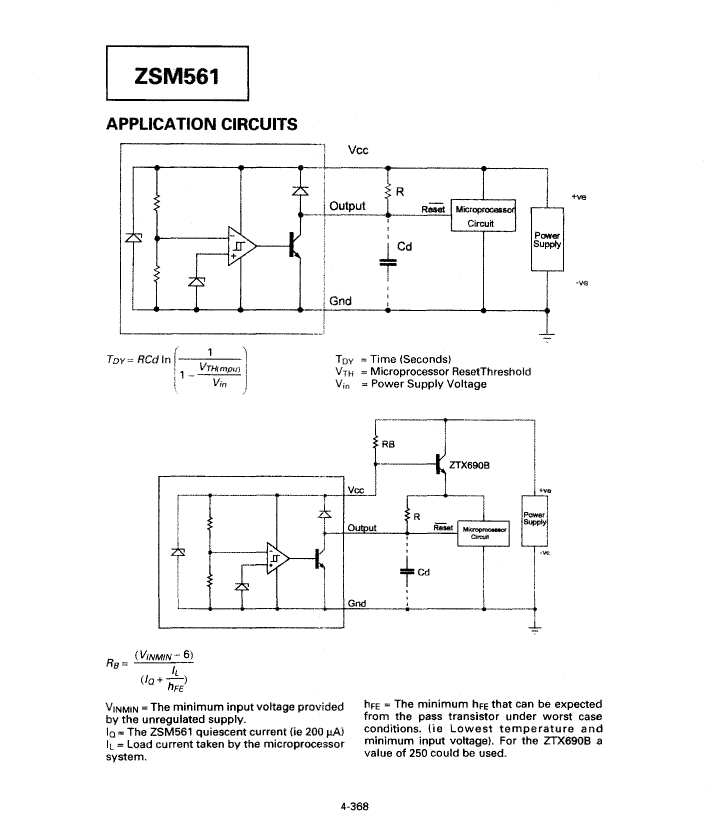

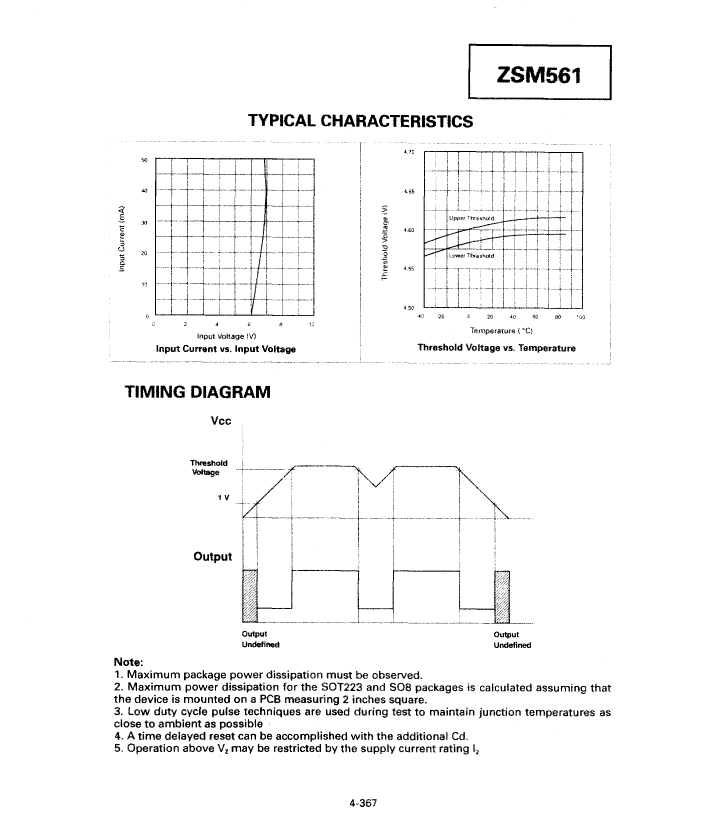

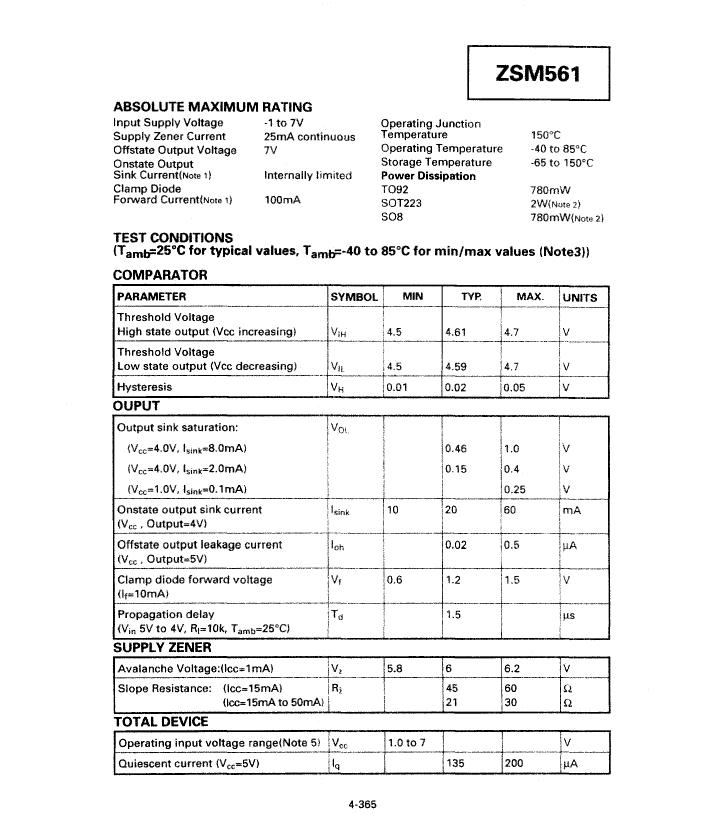

ZSM561N8TC Overview

Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SO-8

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of channels	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	7 V
Minimum supply voltage (Vsup)	1 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

	ZSM561N8TC	ZSM561GTC	ZSM561N8TA
Description	Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SO-8	Power Supply Support Circuit, Fixed, 1 Channel, PDSO4, SOT-223, 4 PIN	Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SO-8
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Parts packaging code	SOIC	SOT-223	SOIC
package instruction	SOP,	SOP,	SOP,
Contacts	8	4	8
Reach Compliance Code	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Adjustable threshold	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8	R-PDSO-G4	R-PDSO-G8
length	4.9 mm	6.5 mm	4.9 mm
Number of channels	1	1	1
Number of functions	1	1	1
Number of terminals	8	4	8
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.8 mm	1.75 mm
Maximum supply voltage (Vsup)	7 V	7 V	7 V
Minimum supply voltage (Vsup)	1 V	1 V	1 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.3 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	3.5 mm	3.9 mm
