ZRT100N8C2TA datasheet, PDF - EEWORLD Datasheet

ZRT100N8C2TA: DescriptionThree Terminal Voltage Reference, 1 Output, 9.8V, Trim/Adjustable, BIPolar, PDSO8, SO-8; CategoryPower/power management The power supply circuit; File Size148KB，4 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric View All

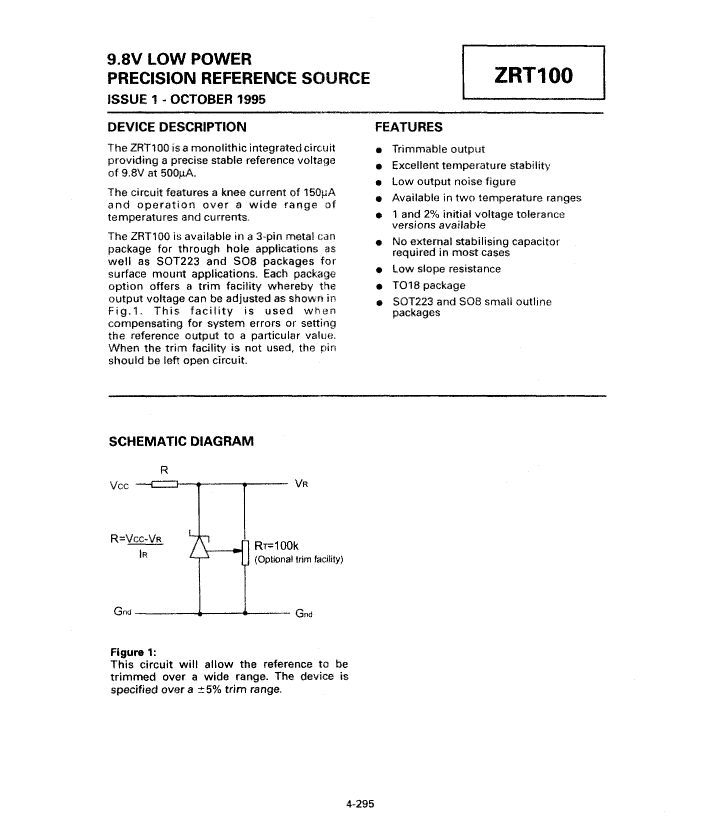

ZRT100N8C2TA Overview

Three Terminal Voltage Reference, 1 Output, 9.8V, Trim/Adjustable, BIPolar, PDSO8, SO-8

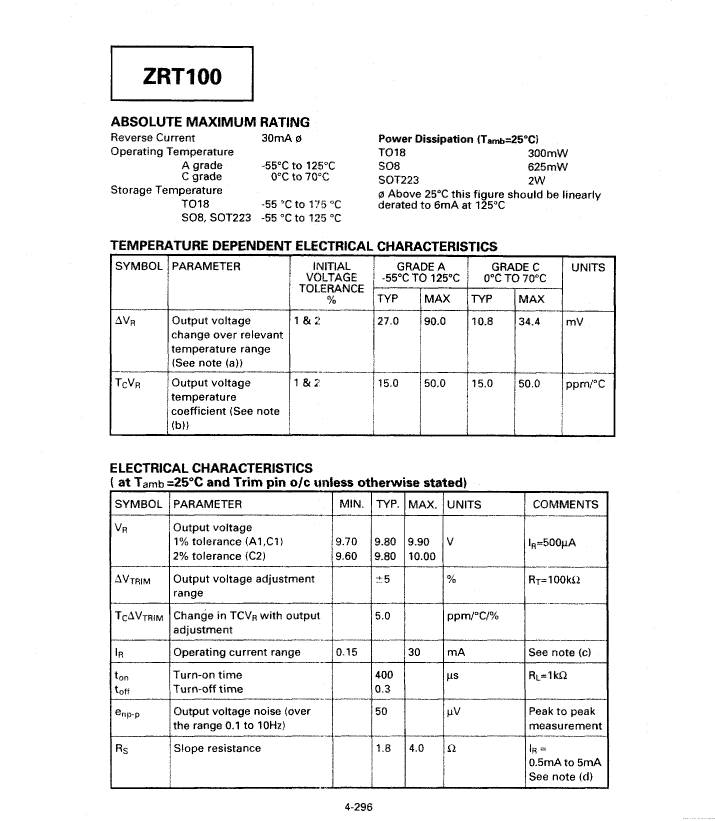

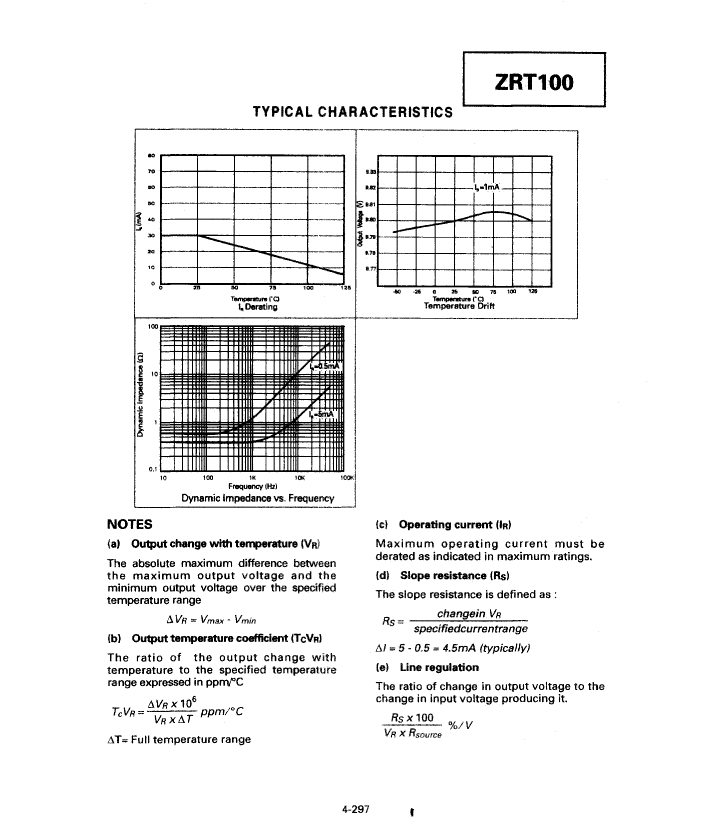

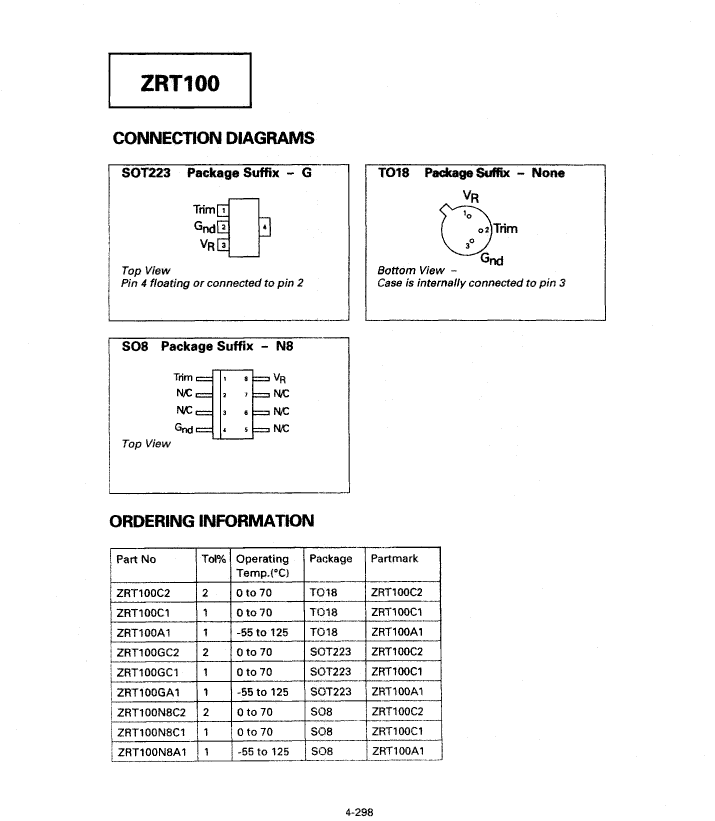

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	10 V
Minimum output voltage	9.8 V
Nominal output voltage	9.8 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	50 ppm/°C
Temperature level	COMMERCIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Fine-tuning/adjustable output	YES
width	3.9 mm
