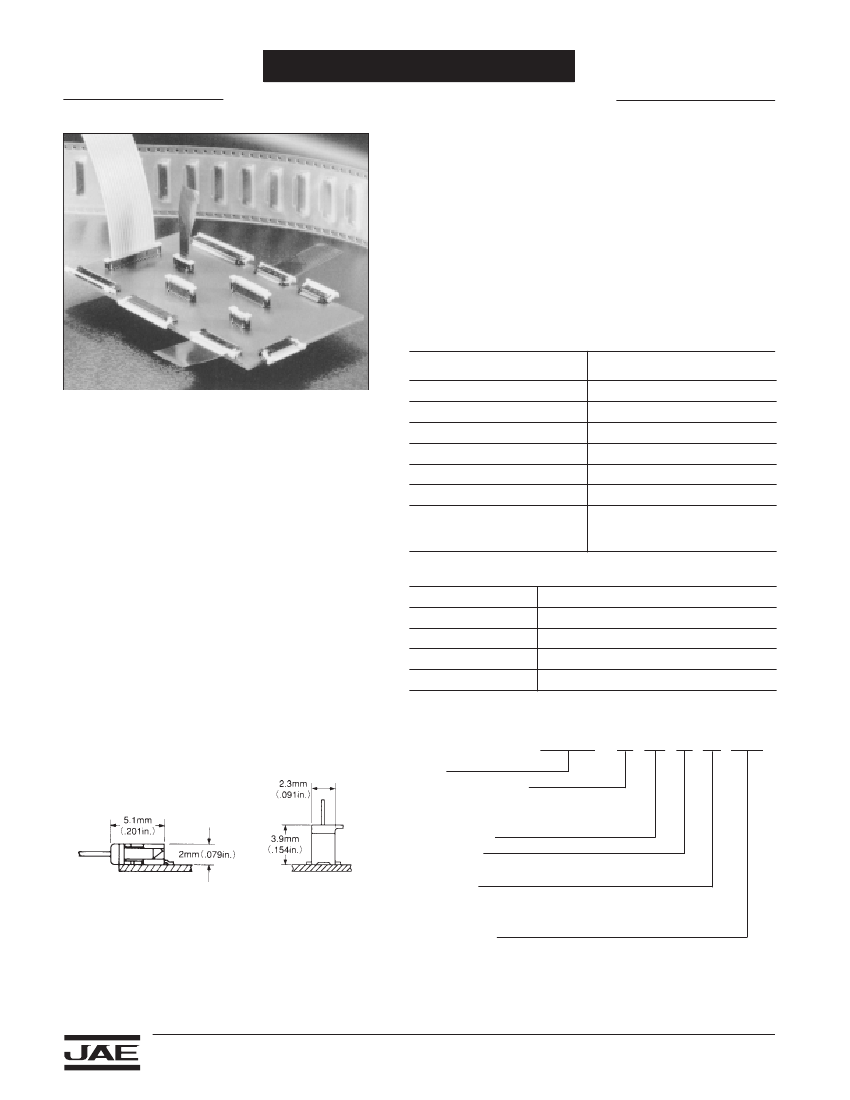

IL-FPR SERIES CONNECTORS
0.5mm (.020") Pitch, ZIF Type Connectors for FPC/FFC
• • • • • • • • • • • • • •
IL-FPR Series SMT connectors meet today's requirements for
smaller size and lighter weight. These connectors have ex-
tremely high contact density and low profiles: 0.5mm (.020")
centers and a 2.0mm (.079") mounted height (right-angle type).
Both straight and right-angle types are available. The ZIF (zero
insertion force) configuration permits easy insertion and extrac-
tion of the FPC (flexible printed circuit), even in a minimal amount
of space. A wide variety of mounting styles are available.
GENERAL SPECIFICATIONS
Number of Contacts
Contact Spacing
Right Angle type: 5 to 50
Straight type
: 8 to 33 and 40
0.5mm (.020"), single row
0.5 Amps
250 VAC r.m.s. (one minute)
100 megohms min.
20 milliohms max.
-40°C +85°C
0.5mm (.020") Center
0.3mm
+ 0.05
(.012"
+ .002
) Thick
- 0.02
- .001
with reinforcement
FEATURES
Current Rating
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
Applicable FPC
• Extremely small, 0.5mm (.020") spacing
• SMT type for FPC
• Available in right-angle and straight versions
• A slider enables insertion/extraction of FPC
without applying force (Zero Insertion Force)
• One-side contact configuration avoids
mismating of FPC
• Lower-side or upper-side FPC contact
surfaces on right-angle version
• Hold down mechanism prevents floating up of the
connector during soldering and retains the
connector on the board
• Designed to avoid defective mating
• Supplied in embossed tape for automatic
SMT mounting
MATERIALS AND FINISHES
Description
Contact
Base Insulator
Slide Insulator
Hold-down Tab
Materials/Finishes
Copper Alloy/Tin Plated
Glass-filled PPS (Black)
Glass-filled PPS (White)
Phosphor Bronze/Tin Plated
ORDERING INFORMATION
IL – FPR
– *
**
S – ** – *****
Connector Profile (Ref.)
Series
Contact Configuration
Blank – Lower-Side Contact
U – Upper-Side Contact
No. of Contacts
Contact Type
S – Socket
Termination
HF – Right Angle
VF – Straight
Embossed Tape
E 1500 – 1,500 Straight Pieces/Reel
E 3000 – 3,000 Right Angle Pieces/Reel
Dimensions in without notice.
Dimensions and specifications subject to change mm (inches).
52
