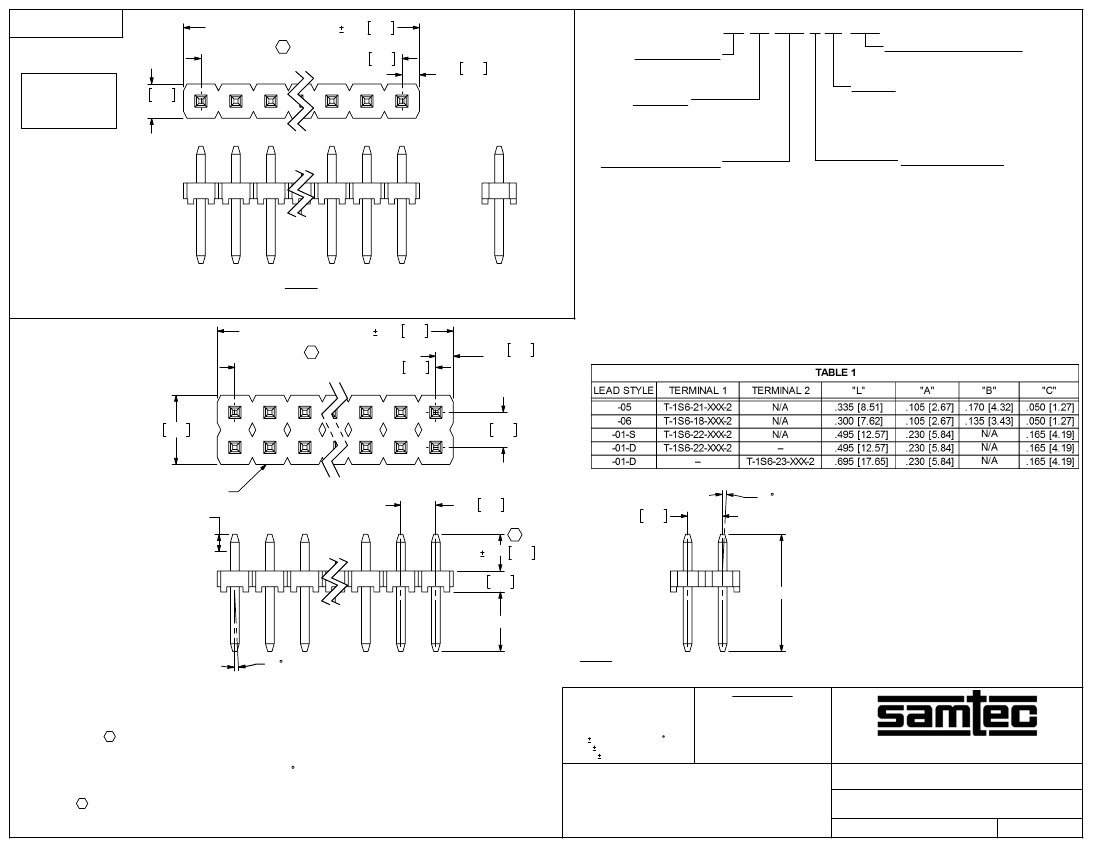

REVISION Y
(NO OF POS X .100[2.54]) .010 0.25
C
(NO OF POS X .100[2.54]) - .100 2.54
.029 0.74 MIN
(TYP)
TLW-1XX-XX-XXX-X-XX-XXX
No OF POSITIONS
-01 THRU -40 (SINGLE)
-01 THRU -36 (DOUBLE)
LEAD STYLE
-01: RA (SEE FIG 3, SHT 2)
-05: TH (SEE TABLE 1)
-06: TH (SEE TABLE 1)
POLARIZING SPECIFICATION
XXX INDICATES POS TO BE OMITTED
(IDENTIFY POSITION WITH FEET DOWN)
OPTIONS
(LEAVE BLANK FOR THROUGH, SEE FIG 1 & 2)
-RA: RIGHT ANGLE (LEAD STYLE -01 ONLY)
(SEE FIG 3, SHT 2)
-LL: TH WITH LOCKING LEADS (SEE FIG 6, SHT 2)
-LA: RA WITH LOCKING LEADS (SEE FIG 4, SHT 2)
DO NOT
SCALE FROM
THIS PRINT
.098 2.49
REF
36
01
TLW-136-05-XXX-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(NO OF POS X .100[2.54]) .010 0.25
C
(NO OF POS X .100[2.54]) - .100 2.54
72
.029 0.74 MIN
(TYP)
FIG 2
ROW SPECIFICATION
PLATING SPECIFICATION
-S: SINGLE ROW (USE TLW-XX-S)
-G: GOLD (SPECIFY -G IN TERMINAL SUFFIX -XXX)
-D: DOUBLE ROW (USE TLW-XX-D)
-T: TIN (SPECIFY -T IN TERMINAL SUFFIX -XXX)
-H: HEAVY GOLD (SPECIFY -H IN TERMINAL SUFFIX -XXX)
-S: SELECTIVE (SPECIFY -S IN TERMINAL SUFFIX -XXX)
-F: FLASH SELECTIVE (SPECIFY -F IN TERMINAL SUFFIX -XXX)
-L: LIGHT SELECTIVE (SPECIFY -L IN TERMINAL SUFFIX -XXX)
-TM: MATTE TIN (SPECIFY -T IN TERMINAL SUFFIX -XXX)
-SM: SELECTIVE HEAVY GOLD, MATTE TIN TAIL (SPECIFY -S IN TERMINAL SUFFIX -XXX)
-FM: FLASH SELECTIVE GOLD, MATTE TIN TAIL (SPECIFY -F IN TERMINAL SUFFIX -XXX)
-LM: LIGHT SELECTIVE GOLD, MATTE TIN TAIL (SPECIFY -L IN TERMINAL SUFFIX -XXX)
-STL: SELECTIVE GOLD, TIN/LEAD TAIL (SPECIFY -STL IN TERMINAL SUFFIX -XXX)
(AVAILABLE IN STRAIGHT THROUGH HOLE VERSION ONLY)
02
.198 5.03 REF
.100 2.54 REF
01
TLW-XX-D
"C" REF
(SEE NOTE 6, TABLE 1)
71
.100 2.54
C
"A" .005 0.13
.060 1.52 REF
"B" REF
"L" REF
.100 2.54
2 MAX SWAY
(EITHER DIRECTION)
2 MAX SWAY
(EITHER DIRECTION)
TLW-136-05-XXX-D SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
FIG 1
*
PROPRIETARY NOTE
*
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM ALLOWABLE BOW: .005[0.13] INCH/INCH AFTER ASSEMBLY.
3. MINIMUM TERMINAL PUSHOUT FORCE: 2 LBS.
4. MAXIMUM PIN ROTATION IN BODY: 2 .
5. MAXIMUM CUT FLASH: .010[0.25].
6. GOLD CONTACT AREA LOCATION FOR G, H, S, L, F, SM, LM, FM & STL PLATING.
C
7. ORIENTATE PINS TO PREVENT BANDOLIER MARKS FROM SHOWING
IN THE POST AREA. (SEE TABLE 2, SHT 3)
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
INSULATOR: LCP, COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE
LOW PROFILE TERMINAL ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\TLW-1XX-XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
M PUFFER
TLW-1XX-XX-XXX-X-XX-XXX
08/18/97
SHEET
1
OF
3
REVISION Y
2 MAX SWAY
(EITHER DIRECTION)
T-1S6-22-XXX-2
T-1S6-23-XXX-2
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
2 MAX SWAY
(EITHER DIRECTION)
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
C
"A" .008 0.20
(SEE TABLE 1, SHT 1)
C
90°
.060 1.52
C 90°
.060 1.52
C
.04 1.0
.120 3.05 REF
.100 2.54
C
90°
C
"A" .008 0.20
(SEE TABLE 1, SHT 1)
C
90°
.060 1.52
C
.100 2.54
.060 1.52
.120 3.05 REF

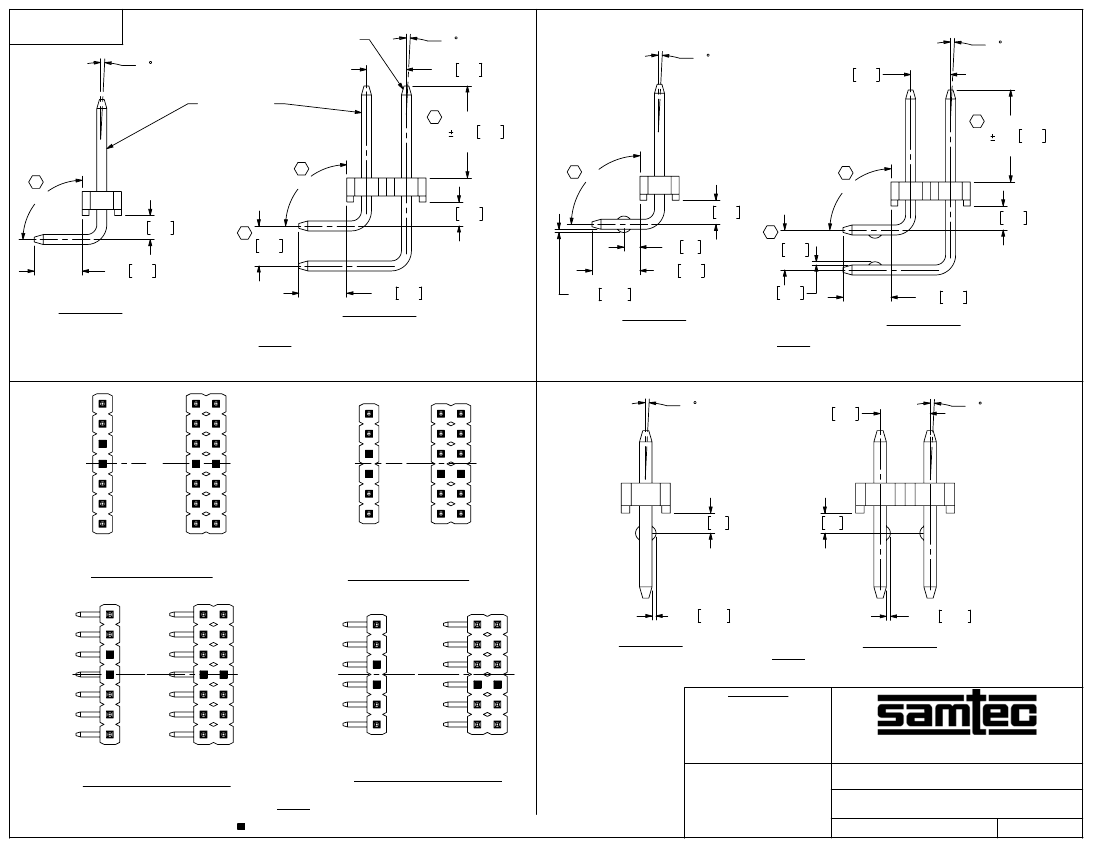

-S: SINGLE
FIG 3
-D: DOUBLE
.120 3.05 REF
.0080 0.203
.008 0.20
-S: SINGLE
FIG 4
.120 3.05 REF
-D: DOUBLE
-RA OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1 & FIG 2)
-LA OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1 & FIG 2)
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
2 MAX SWAY
(EITHER DIRECTION)
C
L
C
L
.04 1.0
.04 1.0
SINGLES
DOUBLES
SINGLES
DOUBLES
STRAIGHT VERSION
ODD POSTIONS
01
STRAIGHT VERSION
EVEN POSTIONS
01
.0080 0.203 (TYP)
.0080 0.203
(TYP)
-S: SINGLE
C
L
C
L
-LL OPTION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1 & FIG 2)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
FIG 6
-D: DOUBLE
*
PROPRIETARY NOTE
*
01
01
SINGLES
DOUBLES
SINGLES
DOUBLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
RIGHT ANGLE VERSION
ODD POSTIONS
LOCKING LEAD
= CRIPM LOCATION
RIGHT ANGLE VERSION
FIG 5
EVEN POSTIONS
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
LOW PROFILE TERMINAL ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\TLW-1XX-XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
M PUFFER
TLW-1XX-XX-XXX-X-XX-XXX
08/18/97
SHEET
2
OF
3
REVISION Y

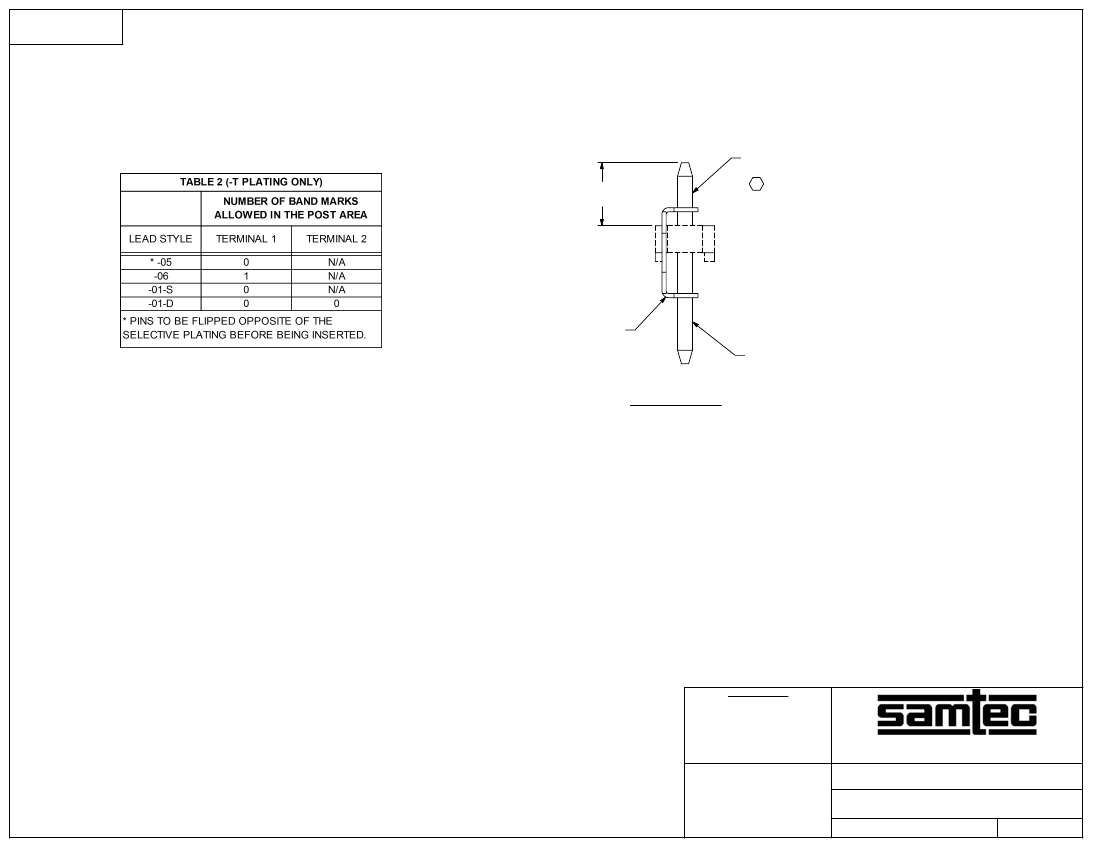

"A" REF
(SEE TABLE 1, SHT 1)
POST AREA
(SEE NOTE 7 AND TABLE 2)
C
BANDOLIER (REF)
TAIL AREA
(-T PLATING ONLY)
IN PROCESS 1
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
LOW PROFILE TERMINAL ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\TLW-1XX-XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
M PUFFER
TLW-1XX-XX-XXX-X-XX-XXX
08/18/97
SHEET
3
OF
3
