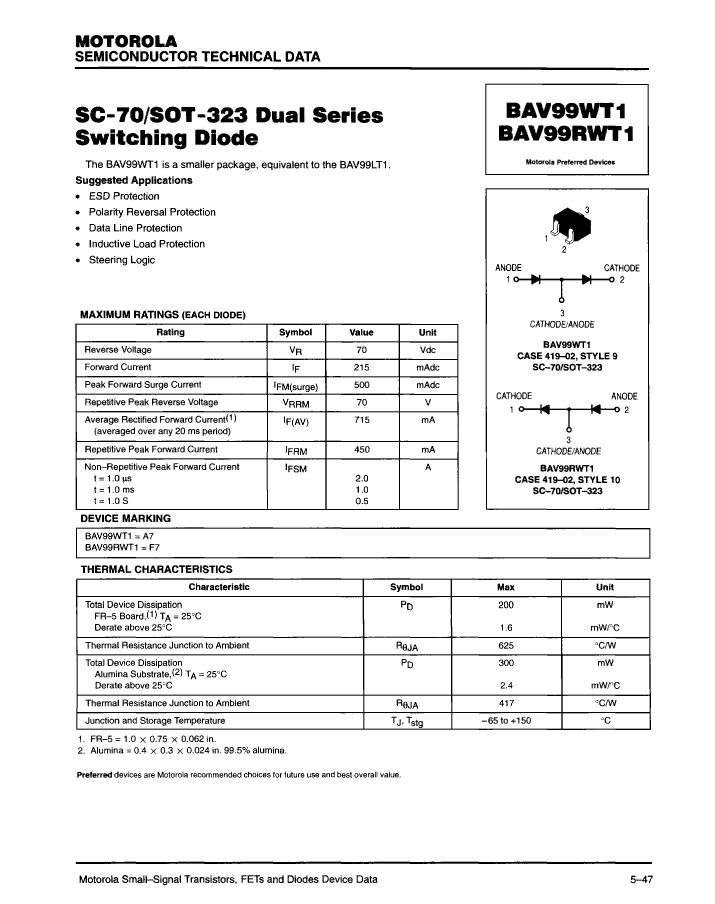

BAV99RWT3 datasheet, PDF - EEWORLD Datasheet

BAV99RWT3: Description0.715A, 70V, 2 ELEMENT, SILICON, SIGNAL DIODE, CASE 419-02, SC-70, 3 PIN; CategoryDiscrete semiconductor diode; File Size67KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

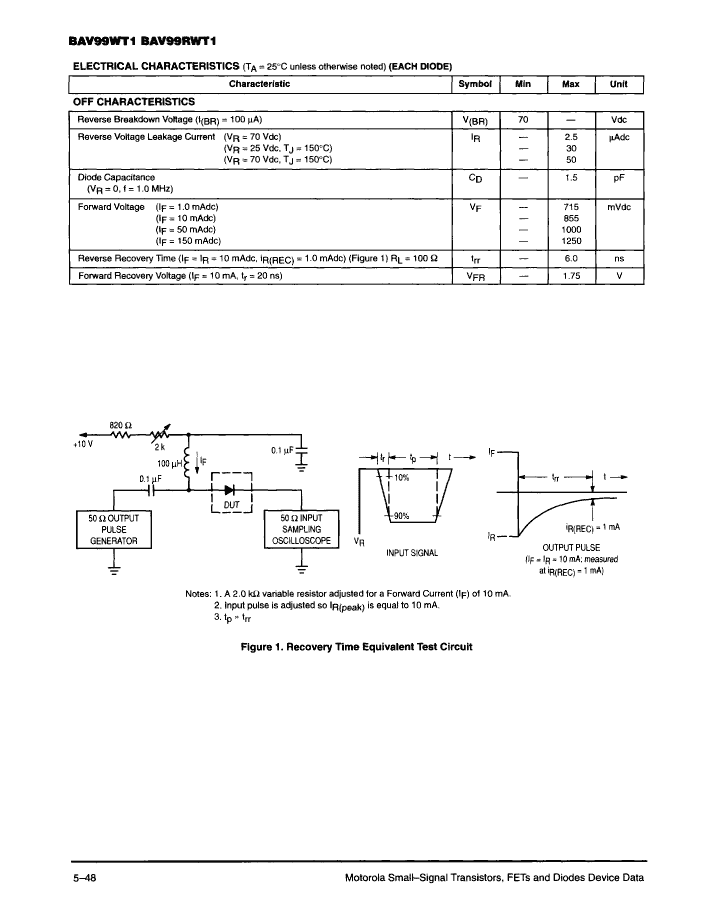

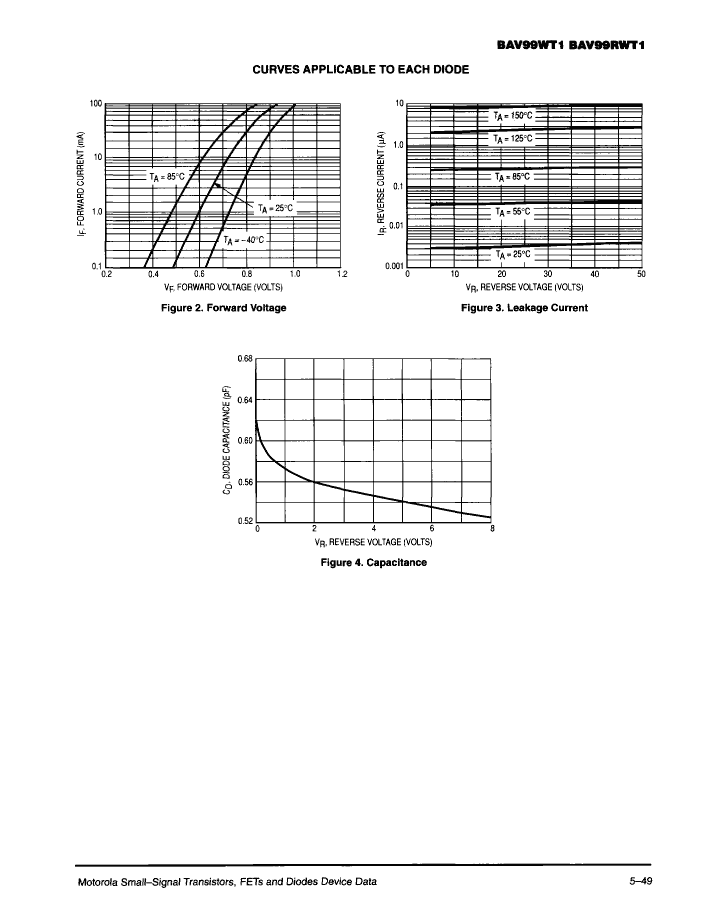

BAV99RWT3 Overview

0.715A, 70V, 2 ELEMENT, SILICON, SIGNAL DIODE, CASE 419-02, SC-70, 3 PIN

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SC-70
package instruction	R-PDSO-G3
Contacts	3
Manufacturer packaging code	CASE 419-02
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	2
Number of terminals	3
Maximum output current	0.715 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.006 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

	BAV99RWT3	BAV99WT3
Description	0.715A, 70V, 2 ELEMENT, SILICON, SIGNAL DIODE, CASE 419-02, SC-70, 3 PIN	0.715A, 70V, 2 ELEMENT, SILICON, SIGNAL DIODE, CASE 419-02, SC-70, 3 PIN
Maker	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	SC-70	SC-70
package instruction	R-PDSO-G3	R-PDSO-G3
Contacts	3	3
Manufacturer packaging code	CASE 419-02	CASE 419-02
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	2	2
Number of terminals	3	3
Maximum output current	0.715 A	0.715 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	70 V	70 V
Maximum reverse recovery time	0.006 µs	0.006 µs
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
