REC2.2-2412DR/H1/SMD/M datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> REC2.2-2412DR/H1/SMD/M

REC2.2-2412DR/H1/SMD/M: DescriptionAnalog Circuit, MDSO18; CategoryAnalog mixed-signal IC The signal circuit; File Size74KB，2 Pages; ManufacturerRECOM

Download Datasheet Parametric View All

REC2.2-2412DR/H1/SMD/M Overview

Analog Circuit, MDSO18

REC2.2-2412DR/H1/SMD/M Parametric

Parameter Name	Attribute value
Maker	RECOM
package instruction	SOP, GWDIP18/24,1.0
Reach Compliance Code	compliant
JESD-30 code	R-MDSO-G18
Number of terminals	18
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Maximum output current	0.092 A
Nominal output voltage	12 V
Package body material	METAL
encapsulated code	SOP
Encapsulate equivalent code	GWDIP18/24,1.0
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

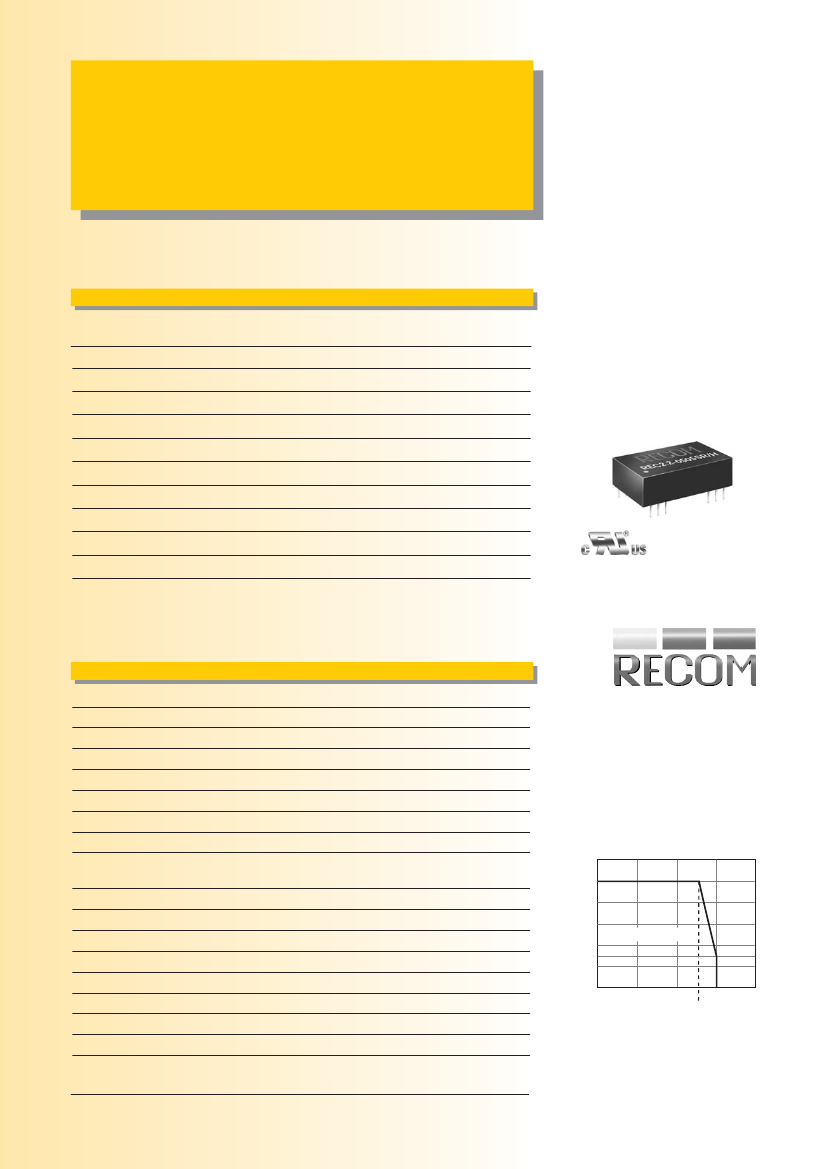

Features

Regulated

Converters

●

2.2W DIP Package

1kVDC Isolation

Regulated Output

UL94V-0 Package Material

Continuous Short Circuit Protection

Internal SMD design

100% Burned In

Efficiency to 75%

ECONOLINE

DC/DC-Converter

REC2.2-

S_DR/H1

Series

Output

Current

(mA)

600

440

244

183

146

±220

±122

±92

±73

Selection Guide

Part

Number

DIP24 (SMD)

REC2.2-xx3.3SR/H1

REC2.2-xx05SR/H1

REC2.2-xx09SR/H1

REC2.2-xx12SR/H1

REC2.2-xx15SR/H1

REC2.2-xx05DR/H1

REC2.2-xx09DR/H1

REC2.2-xx12DR/H1

REC2.2-xx15DR/H1

xx = Input Voltage

* add suffix "/SMD" for SMD package, e.g. REC2.2-0505SR/H1/SMD

* add suffix "/M" for Metal Case, e.g. REC2.2-0505SR/H1/M

Input

Voltage

(VDC)

5, 12, 24, 48

Output

Voltage

(VDC)

3.3

±5

±9

±12

±15

Max Cap.

Load

(µF)

1000

470

220

120

100

±220

±100

±68

±47

2.2 Watt

DIP24

SMD

Single

Dual

Output

UL-60950-1 Certified

Specifications

(Core Operating Area)

Input Voltage Range

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation (10% to 100% full load )

Output Ripple and Noise (at 20MHz BW)

Operating Frequency

Efficiency at Full Load

No Load Power Consumption

Isolation Voltage

Rated Working Voltage

Isolation Capacitance

Isolation Resistance

Short Circuit Protection

Operating Temperature Range (free air convection)

Storage Temperature Range

Relative Humidity

Thermal Impedance

Package Weight

MTBF (+25°C)

(+80°C)

Natural convection

using MIL-HDBK 217F

January-2007

(tested for 1 second)

(long term isolation)

±15%

±3% typ.

±0.5% max

±1% max.

100mVp-p max.

75kHz min.

65% min.

200mW max.

1000VDC min.

see Application Notes

30pF typ.

Output Power (%)

100

Derating-Graph

(Ambient Temperature)

1 GΩ min.

Continuous

-40°C to +80°C (see Graph)

-50°C to +125°C

95% RH

20°C/W for metal case

12g

1000 x 10

hours

150 x 10

hours

Safe Operating Area

Operating Temperature °C

-40

100

150

}

Detailed Information see

Application Notes chapter "MTBF"

www.recom-international.com
