1. Interrupting ratings: 800 mA to 10 A measured at 50 A, 95%-100% of PF on AC
2. Typical cold resistance measured at <10% of rated current
3. I
2
t value measured at 10I
n
4. Typical voltage drop measured at 20 °C ambient temperature at rated current
5. Part number definition: SS-5F-xxxA
SS-5F= Product code
xxxA= Ampere rating
xxxmA= Milliampere rating

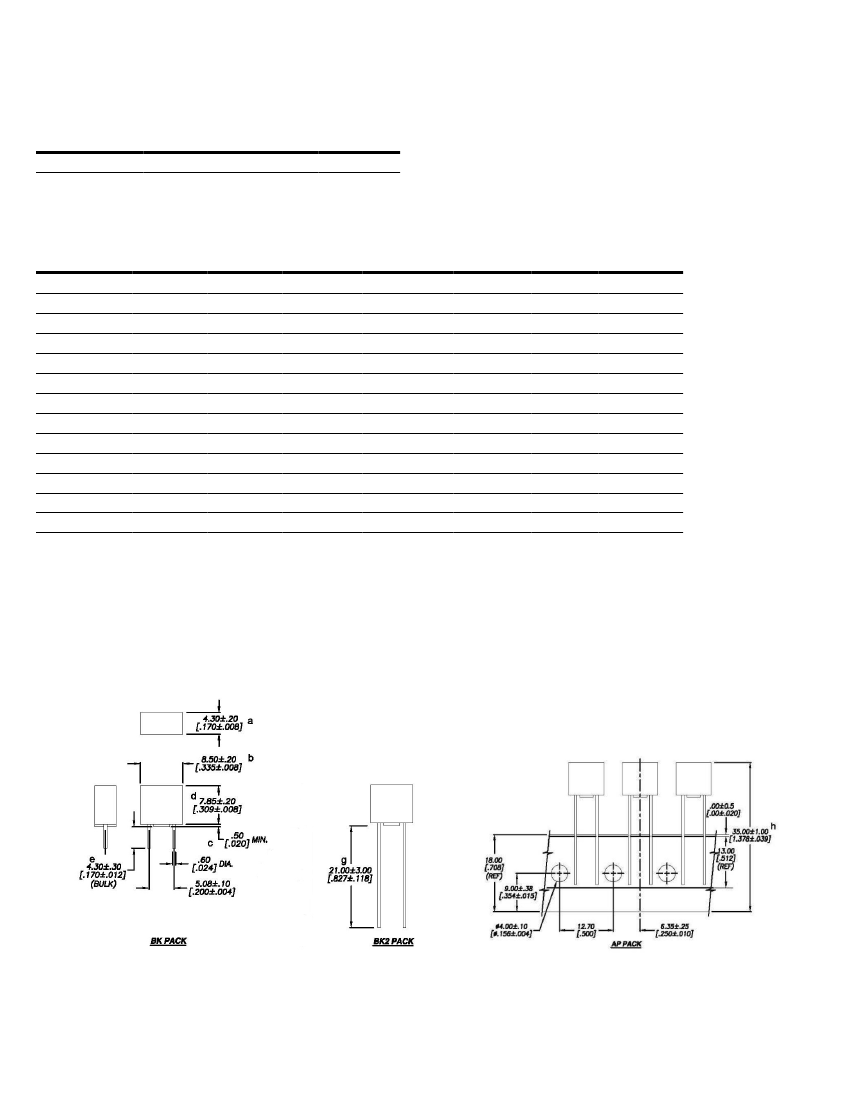

Dimensions and packaging- mm [in]
2
www.eaton.com/electronics
SS-5F
250 V Fast-acting subminiature fuse

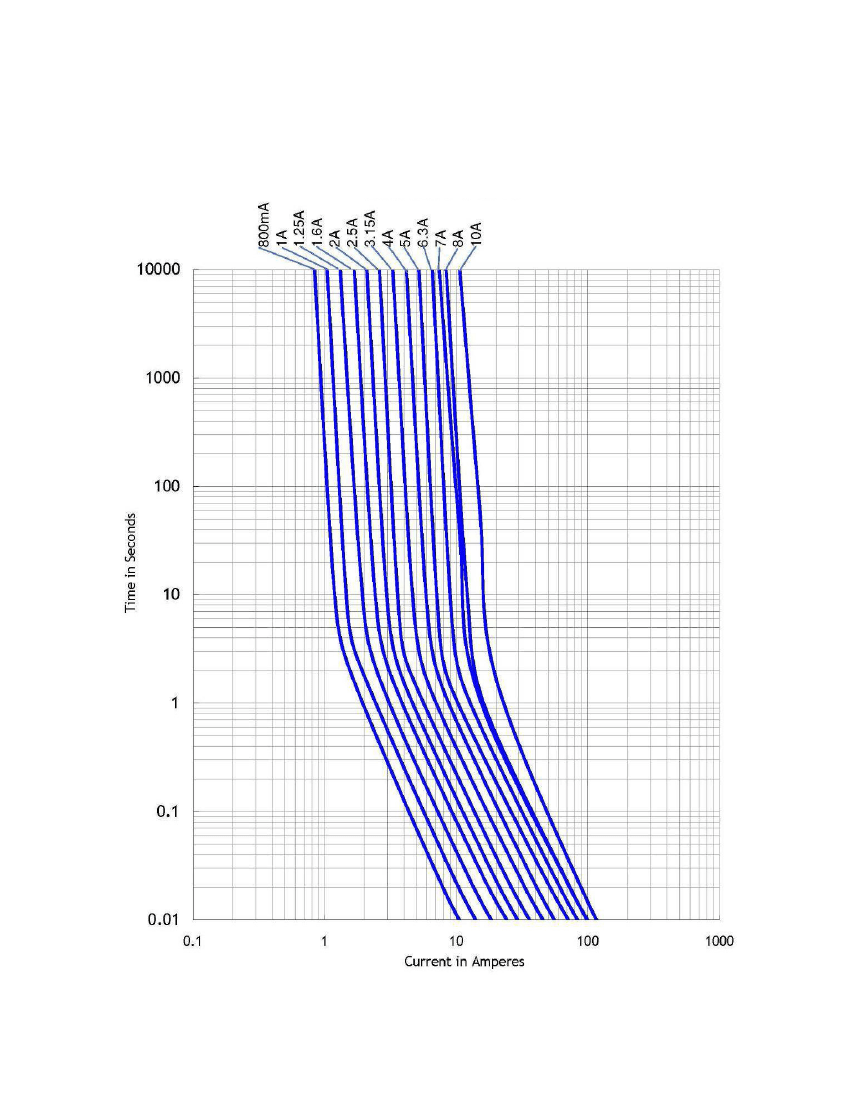

Time vs. current curve
Technical Data
2622
Effective July 2016
www.eaton.com/electronics
3
Technical Data
2622
Effective July 2016
SS-5F
250 V Fast-acting subminiature fuse

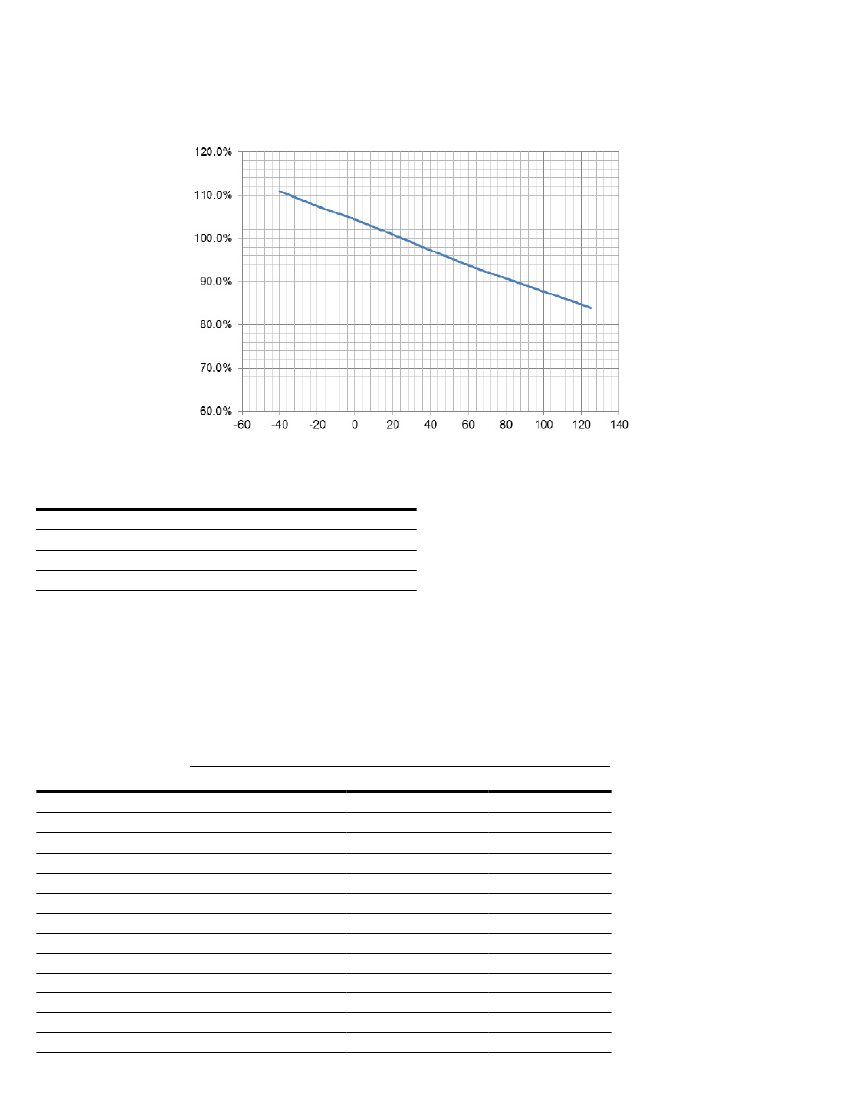

Temperature derating curve
Normal Operating Temperature: 25 °C ± 2 °C
Percentage of rating
Temperature in Degrees C
Environmental data
Operating temperature: -40 °C to +125 °C (with derating)
Storage temperature: -10 °C to +40 °C
Solderability: EIA-186-9E Method 9
High Frequency Vibration: Withstands 10 Hz to 55 Hz per MIL-STD-202F, Method 201A
Ordering codes
The ordering code is the part number replacing the “ with a “-” plus adding the packaging suffix.
.
”
Packaging suffix
•
•
•
-BK (200 parts in polybag, Lead L= 4.3 ±0.3 mm)
-BK2 (200 parts in polybag, Lead L= 21 ±3.0 mm)
-AP (1000 parts Ammo pack, Pitch =12.7 mm)
Ordering Code
Part number
-BK option
-BK2 option
-AP option
SS-5F-800mA
SS-5F-1A
SS-5F-1.25A
SS-5F-1.6A
SS-5F-2A
SS-5F-2.5A
SS-5F-3.15A
SS-5F-4A
SS-5F-5A
SS-5F-6.3A
SS-5F-7A
SS-5F-8A
SS-5F-10A
4
SS-5F-800mA-BK
SS-5F-1A-BK
SS-5F-1-25A-BK
SS-5F-1-6A-BK
SS-5F-2A-BK
SS-5F-2-5A-BK
SS-5F-3-15A-BK
SS-5F-4A-BK
SS-5F-5A-BK
SS-5F-6-3A-BK
SS-5F-7A-BK
SS-5F-8A-BK
SS-5F-10A-BK
SS-5F-800mA-BK2
SS-5F-1A-BK2
SS-5F-1-25A-BK2
SS-5F-1-6A-BK2
SS-5F-2A-BK2
SS-5F-2-5A-BK2
SS-5F-3-15A-BK2
SS-5F-4A-BK2
SS-5F-5A-BK2
SS-5F-6-3A-BK2
SS-5F-7A-BK2
SS-5F-8A-BK2
SS-5F-10A-BK2
SS-5F-800mA-AP
SS-5F-1A-AP
SS-5F-1-25A-AP
SS-5F-1-6A-AP
SS-5F-2A-AP
SS-5F-2-5A-AP
SS-5F-3-15A-AP
SS-5F-4A-AP
SS-5F-5A-AP
SS-5F-6-3A-AP
SS-5F-7A-AP
SS-5F-8A-AP
SS-5F-10A-AP
www.eaton.com/electronics
SS-5F
250 V Fast-acting subminiature fuse
Wave solder profile
Technical Data
2622
Effective July 2016
t
p
T
p
First Wave
Second Wave
Temperature
T
smax
T
styp
T
smin
Preheat area
Cool down area
Time
Reference EN 61760-1:2006
Profile Feature
Standard SnPb Solder
Lead (Pb) Free Solder
Preheat
• Temperature min. (Tsmin)
• Temperature typ. (Tstyp)
• Temperature max. (Tsmax)
• Time (Tsmin to Tsmax) (ts)
100 °C
120 °C
130 °C
70 seconds
150 °C max.
235 °C to 260 °C
10 seconds max
5 seconds max each wave
~ 2 K/s min
~3.5 K/s typ
~5 K/s max
4 minutes
100 °C
120 °C
130 °C
70 seconds
150 °C max.
250 °C to 260 °C
10 seconds max
5 seconds max each wave
~ 2 K/s min
~3.5 K/s typ
~5 K/s max
4 minutes
D
preheat to max Temperature
Peak temperature (TP)*
Time at peak temperature (tp)
Ramp-down rate
Time 25 °C to 25 °C
Manual solder
350 °C, 4-5 seconds (by soldering iron), generally manual hand soldering is not recommended.
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used
in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
