PCV1252-200-GLP: DescriptionSingle Color LED Array, Green, T-1, 3.05mm,; CategoryLED optoelectronic/LED photoelectric; File Size135KB，2 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric View All

PCV1252-200-GLP Overview

Single Color LED Array, Green, T-1, 3.05mm,

PCV1252-200-GLP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Visual Communications Company, LLC
Reach Compliance Code	compliant
color	GREEN
Configuration	SEPARATE, 2 ELEMENTS
Nominal luminous intensity	2.1 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	8.65 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	3.05 mm
surface mount	NO
T code	T-1
perspective	50 deg

Preview

Download Datasheet

View All

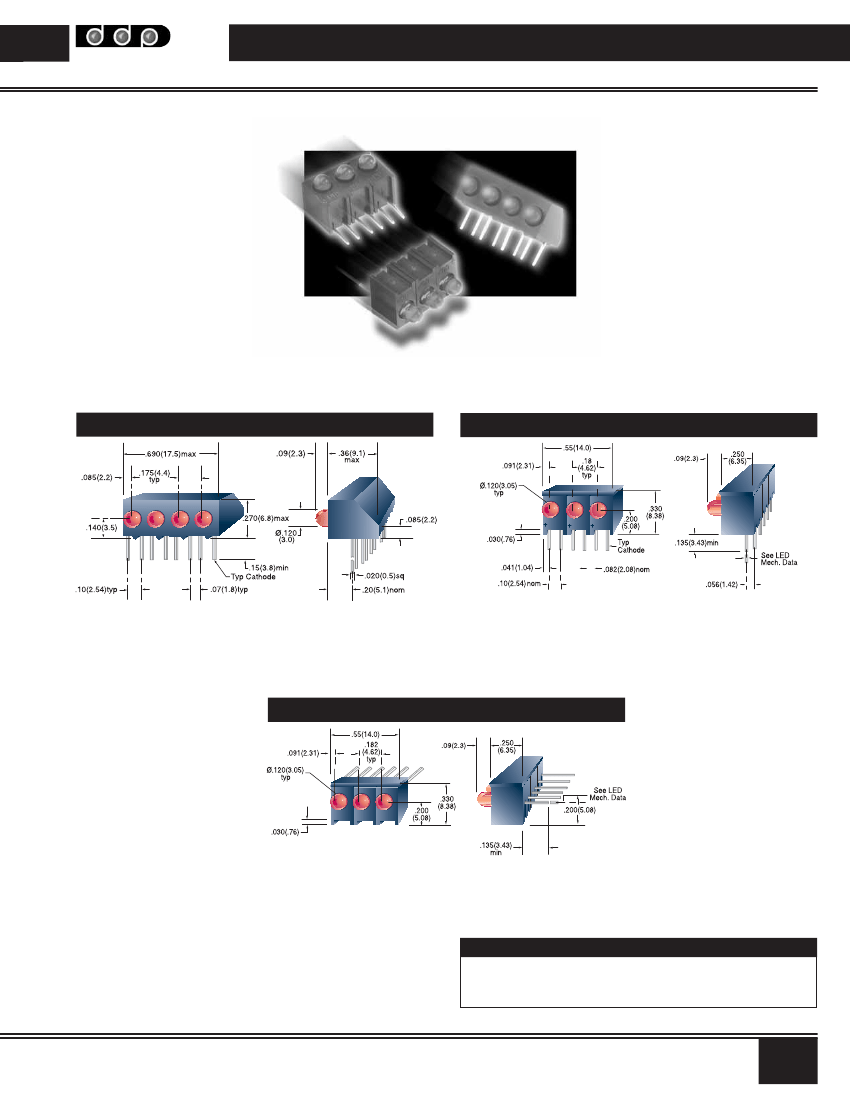

T-1 PCB MOUNT LEDs

Arrays

- For Detailed LED Data, See Discrete Section, MODEL 125

Data Display Products

®

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each SHADED column in the tables below.

Model

LED

1

PCL1254

2

-BCA

➜

Part Number

PCL1254-BCA

1

Model

PCL1254

PCH125N-200

[1]

PCV125N-200

[1]

Right Angle Four LED Array

Right Angle Variable Array

Vertical Mount Variable Array

2

LED

-BR

-BA

-BG

STANDARD INTENSITY -

DIFFUSED ENCAPSULATION

λpk

Color

RED

AMB

GRN

(nm)

Iv

[2]

(mcd)

Viewing

Angle

60

635

583

565

14

LED

-BCR

-BCA

-BCG

MEDIUM INTENSITY -

TINTED ENCAPSULATION

λpk

Iv

[2]

Color

(nm)

(mcd)

RED

AMB

GRN

635

583

565

60

30

44

Viewing

Angle

45

SPECIALTY LEDs

LED

-RLP

-ALP

-GLP

-DRG

-BR5V

-BA5V

-BG5V

-BR12V

-BA12V

-BG12V

λpk

Color

RED

AMB

GRN

RED/GRN

RED

AMB

GRN

RED

AMB

GRN

(nm)

Iv

[2]

(mcd)

Viewing

Angle

50

118

60

Description

Low Power

Bi-Color, Red Cathode

Integrated Resistor for 5VDC

Integrated Resistor for 12VDC

635

583

565

635/567

635

583

565

635

583

565

2.1

1.6

2.1

4.3/3.7

8

[1] Replace "N" with the number of LEDs in the array, 2 - 8 (e.g. PCH1253-200).

[2] Iv = typical luminous intensity @ If = 20mA (Ta=25°C), Low Power LEDs @ If = 2mA, Integrated

Resistor LEDs @ Vf = 5VDC or @ Vf = 12VDC. Bi-color LEDs @ lf=10mA.

16

445 S. Douglas Street, El Segundo, CA 90245-4630 • (800) 421-6815 • (310) 640-0442 • FAX (310) 640-7639

ww w.datadisplay.com
