Electric Fuse, Fast Blow, 7A, 125VAC, 50A (IR), Through Hole, HALOGEN FREE AND ROHS COMPLIANT
SS-5F-7A-BK1 Parametric
Parameter Name
Attribute value
Is it Rohs certified?
conform to
Maker
Eaton
package instruction
HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code
compliant
ECCN code
EAR99
Fusing characteristics
FAST
body width
4.3 mm
body height
8.35 mm
Body length or diameter
8.5 mm
Circuit protection type
ELECTRIC FUSE
JESD-609 code
e3
Joule integral nominal
107 J
Installation features
THROUGH HOLE
Maximum operating temperature
85 °C
Minimum operating temperature
-40 °C
method of packing
BAG
physical size
8.5mm x 4.3mm x 8.35mm
Rated breaking capacity
50 A
Rated current
7 A
Rated voltage
125 V
Rated voltage (AC)
125 V
Guideline
PSE; UL
surface mount
NO
Terminal surface
Tin (Sn)
Terminal shape
PIN WIRE
SS-5F-7A-BK1 Preview
Subminiature Fuses

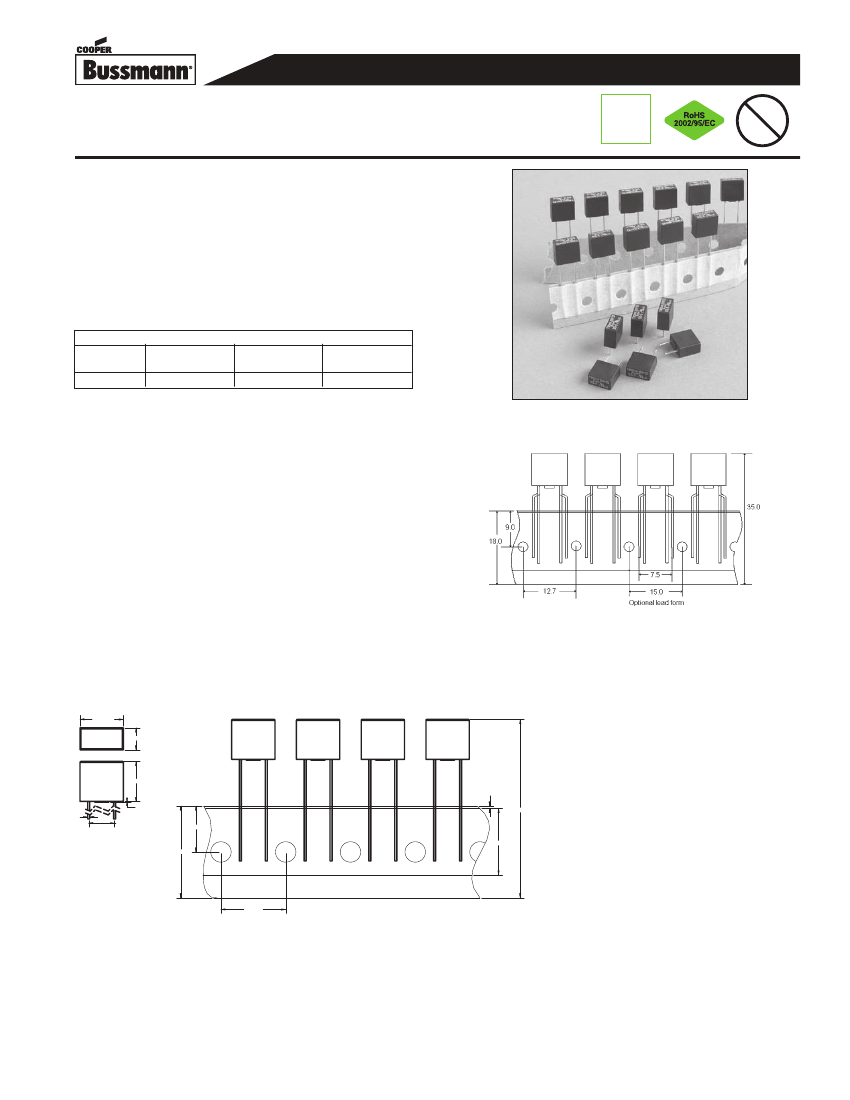

SS-5F Series, Fast-Acting
Description
• Fast-acting subminiature fuse
• Plastic cap and base, flammability UL 94V0
HF
FREE
HALOGEN
Pb
• Lead wire with tin-plated copper, diameter 0.6mm
• Protects against harmful overcurrents in primary and
secondary applications
• Small radial-leaded design minmizes board space and
eliminates need for additional mounting components
• Designed to UL 248-14
Rated
Current
800mA-10A
Electrical Characteristics
1 xIn
1.5 xIn
min
max
4hr
10 min
2 xIn
max
2 min091
Agency Information
• cULus: File E19180, Guide JDYX/JDYX7
• PSE: JET1641-31007-1001, JET1641-31007-1002
Specifications
• Solderability: EIA-186-9E Method 9
• High frequency vibration: MIL-STD-202F,
Method 201A
• Operating temperature: -40°C to +125°C
• Soldering heat resistance: 260°C, 10 Sec. max.
(IEC 60068-2-20)
Ordering
• Specify product and packaging code
(i.e., SS-5F-1A-AP)
Dimensions -
mm / [inches]
0914 BU-SB07219
1 of 3
Data Sheet 2622
Specifications
Catalog
Number
SS-5F-800mA
SS-5F-1A
SS-5F-1.25A
SS-5F-1.6A
SS-5F-2A
SS-5F-2.5A
SS-5F-3.15A
SS-5F-4A
*SS-5F-5A
*SS-5F-6.3A
*SS-5F-7A
*SS-5F-8A
*SS-5F-10A
Voltage
Rating
(Vac)
250
250
250
250
250
250
250
250
250
125
125
125
125
Interrupting Rating
(amps) @ Rated
Voltage (50Hz)
**
50
50
50
50
50
50
50
50
50
50
50
50
50
Typical DC Cold
Resistance (mW)
***
225
165.5
116.5
76
55.5
46
31.5
22.25
16
14.5
11.4
9.9
6.5
Typical
Melting I
2
t
†
1.2437
2.2166
3.8236
6.4223
9.3532
14.0038
22.5299
33.6329
53.6831
74.2705
107.0518
107.05176
145.9163
Typical Voltage
Drop@1In (mV)‡
300
279
243.5
210
193.5
201
168
153.5
154.125
156.5
133
132.5
108.5
Agency Approvals
cULus
PSE
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
*Conducting path min. 0.2mm
2.
**Interrupting ratings: 800mA to 10A were measured at 50A, 95%-100% of PF on AC.
***Typical cold resistance measured at <10% of rated current.
†I
2
t value is measured at 10In DC.
‡ Typical voltage drop was measured at 20°C ambient temperature at rated current.
0914
BU-SB07219
Page 2 of 3
Data Sheet 2622

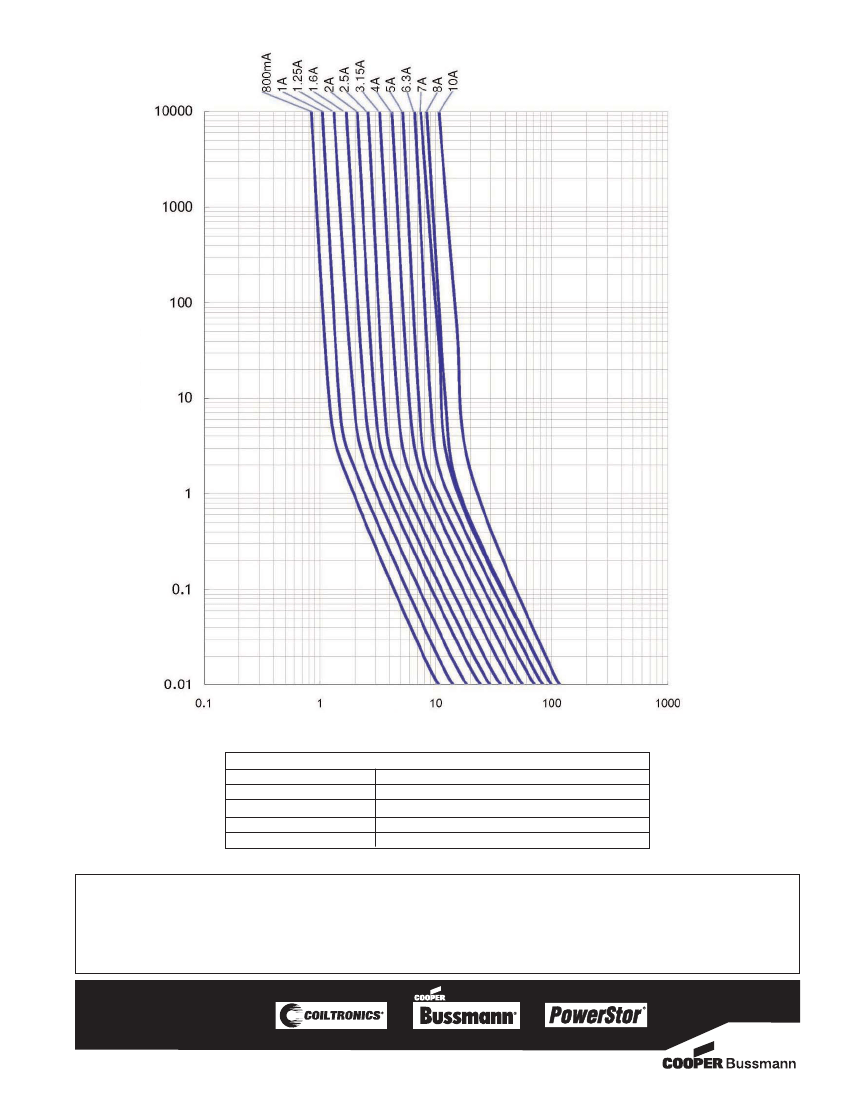

Time-Current Curve
Time in Seconds
Current in Amps
Packaging Suffix
-BK
-BK2
-AP
Packaging Code
Description
200 fuses in polybag, Lead L = 4.3 ± 0.3
200 fuses in polybag, Lead L = 21 ± 3.0
1000 fuses Ammo Pack, Pitch = 12.7
