P74FCT3521C(QSOP) datasheet, PDF

Datasheet> All Categories > logic> logic> P74FCT3521C(QSOP)

P74FCT3521C(QSOP): DescriptionIdentity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20; Categorylogic logic; File Size52KB，2 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P74FCT3521C(QSOP) Overview

Identity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20

P74FCT3521C(QSOP) Parametric

Parameter Name	Attribute value
Maker	Pyramid Semiconductor Corporation
package instruction	SSOP,
Reach Compliance Code	unknown
Other features	CASCADABLE
series	FCT
JESD-30 code	R-PDSO-G20
length	8.65 mm
Logic integrated circuit type	IDENTITY COMPARATOR
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.9116 mm

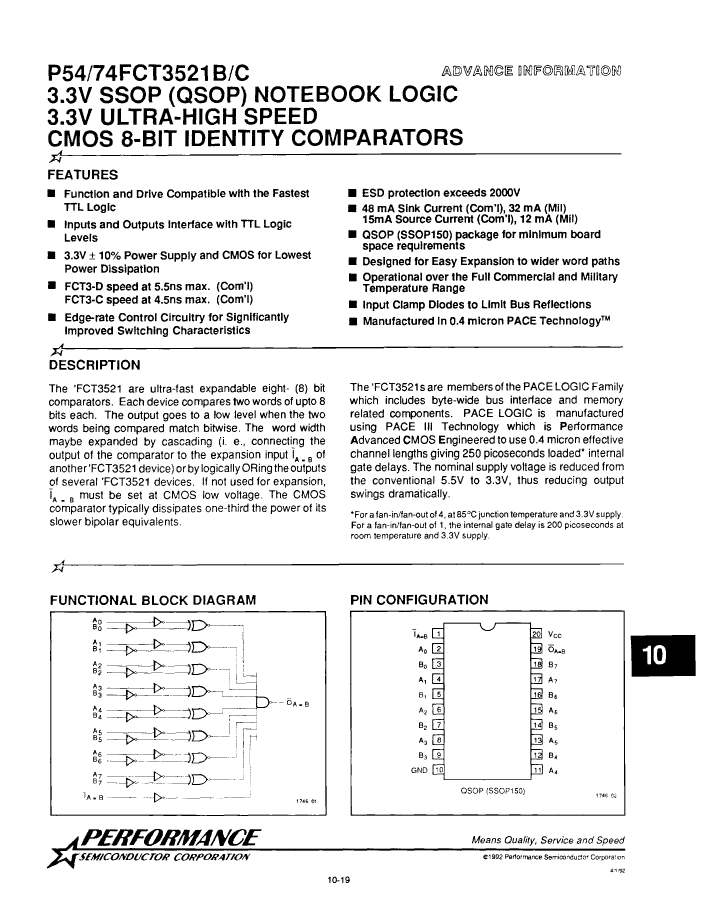

Preview

Download Datasheet

View All

P74FCT3521C(QSOP) Related Products

	P74FCT3521C(QSOP)	P74FCT3521A{QSOP}	P74FCT3521A(QSOP)	P54FCT3521C{QSOP}	P74FCT3521C{QSOP}	P54FCT3521A{QSOP}	P54FCT3521A(QSOP)
Description	Identity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Identity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Identity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Identity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Identity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Identity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Identity Comparator, FCT Series, 8-Bit, Inverted Output, CMOS, PDSO20, 0.150 INCH, QSOP-20
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
package instruction	SSOP,	SSOP,	SSOP,	SSOP,	SSOP,	SSOP,	SSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	CASCADABLE	-	-	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE
series	FCT	-	-	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G20	-	-	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	8.65 mm	-	-	8.65 mm	8.65 mm	8.65 mm	8.65 mm
Logic integrated circuit type	IDENTITY COMPARATOR	-	-	IDENTITY COMPARATOR	IDENTITY COMPARATOR	IDENTITY COMPARATOR	IDENTITY COMPARATOR
Number of digits	8	-	-	8	8	8	8
Number of functions	1	-	-	1	1	1	1
Number of terminals	20	-	-	20	20	20	20
Maximum operating temperature	70 °C	-	-	125 °C	70 °C	125 °C	125 °C
Output polarity	INVERTED	-	-	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	-	-	SSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	-	-	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	-	-	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	3.6 V	-	-	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	-	-	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	-	-	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	-	-	YES	YES	YES	YES
technology	CMOS	-	-	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	-	-	MILITARY	COMMERCIAL	MILITARY	MILITARY
Terminal form	GULL WING	-	-	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	-	-	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	-	-	DUAL	DUAL	DUAL	DUAL
width	3.9116 mm	-	-	3.9116 mm	3.9116 mm	3.9116 mm	3.9116 mm
Parts packaging code	-	QSOP	-	QSOP	QSOP	QSOP	-
Contacts	-	20	-	20	20	20	-
