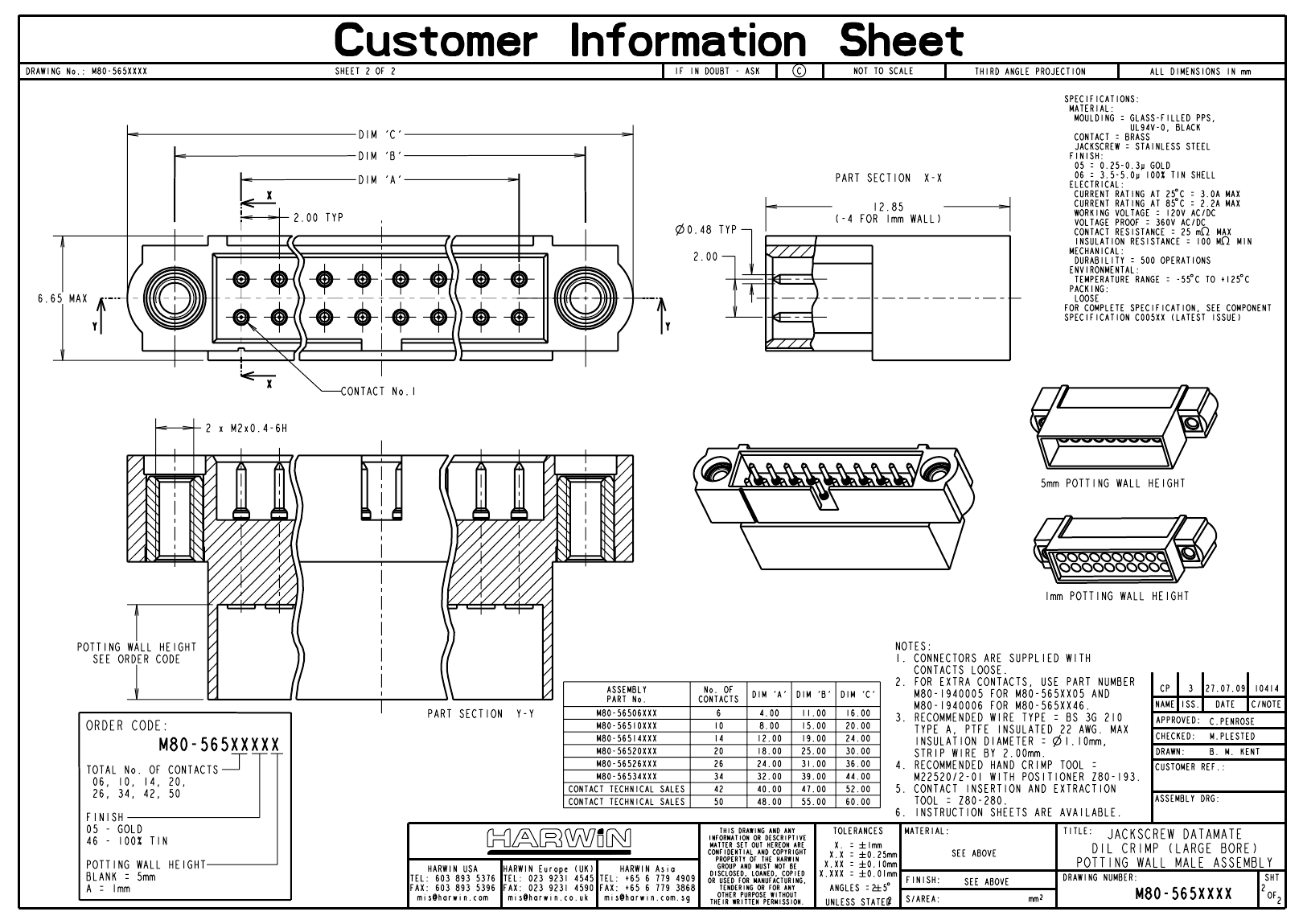

M80-5652646: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle; CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-5652646 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle

M80-5652646 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.262 inch
subject depth	0.506 inch
body length	1.417 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN (197)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M80-565
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	26
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

M80-5652646 Related Products

	M80-5652646	M80-5651046	M80-5654246	M80-5652046	M80-5650646	M80-5651446	M80-5653446	M80-5655046
Description	Board Connector, 26 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 42 Contact(s), 2 Row(s), Male, Crimp Terminal	Board Connector, 20 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 6 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Crimp Terminal
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown	unknown	unknown	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN (197)	TIN (197)	TIN (197)	TIN (197)	TIN (197)	TIN (197)	TIN (197)	TIN (197)
Contact completed and terminated	Matte Tin (Sn)	Matte Tin (Sn)	TIN (197)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	TIN (197)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	M80-565	M80-565	M80-565	M80-565	M80-565	M80-565	M80-565	M80-565
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	26	10	42	20	6	14	34	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	-
Other features	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
body width	0.262 inch	0.262 inch	-	0.262 inch	0.262 inch	0.262 inch	0.262 inch	-
subject depth	0.506 inch	0.506 inch	-	0.506 inch	0.506 inch	0.506 inch	0.506 inch	-
body length	1.417 inch	0.787 inch	-	1.181 inch	0.63 inch	0.945 inch	1.732 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Contactor design	PREASSEM CONN	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact resistance	25 mΩ	25 mΩ	-	25 mΩ	25 mΩ	25 mΩ	25 mΩ	-
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-
Durability	500 Cycles	500 Cycles	-	500 Cycles	500 Cycles	500 Cycles	500 Cycles	-
maximum insertion force	2.78 N	2.78 N	-	2.78 N	2.78 N	2.78 N	2.78 N	-
Insulation resistance	100000000 Ω	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	-
Insulator color	BLACK	BLACK	-	BLACK	BLACK	BLACK	BLACK	-
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	-	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	-
Plug contact pitch	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-
Match contact row spacing	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-
Installation option 1	M2	M2	-	M2	M2	M2	M2	-
Installation option 2	JACKSCREW	JACKSCREW	-	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	-
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-
Plating thickness	12u inch	12u inch	-	12u inch	12u inch	12u inch	12u inch	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-
Rated current (signal)	3 A	3 A	-	3 A	3 A	3 A	3 A	-
Guideline	UL	UL	-	UL	UL	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Evacuation force-minimum value	.1946 N	.1946 N	-	.1946 N	.1946 N	.1946 N	.1946 N	-
