L-34PCT170TY4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-34PCT170TY4

L-34PCT170TY4: DescriptionSingle Color LED Array, Yellow, Diffused,; CategoryLED optoelectronic/LED photoelectric; File Size141KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

L-34PCT170TY4 Overview

Single Color LED Array, Yellow, Diffused,

L-34PCT170TY4 Parametric

Parameter Name	Attribute value
Maker	LEDtronics
Objectid	1966041106
Reach Compliance Code	unknown
compound_id	8002635
color	YELLOW
Configuration	SEPARATE, 12 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	35.0 mcd
Installation features	RADIAL MOUNT
Number of functions	12
Number of terminals	24
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	14.6 mm
method of packing	BULK
peak wavelength	588 nm
shape	ROUND
surface mount	NO
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

Actual Size

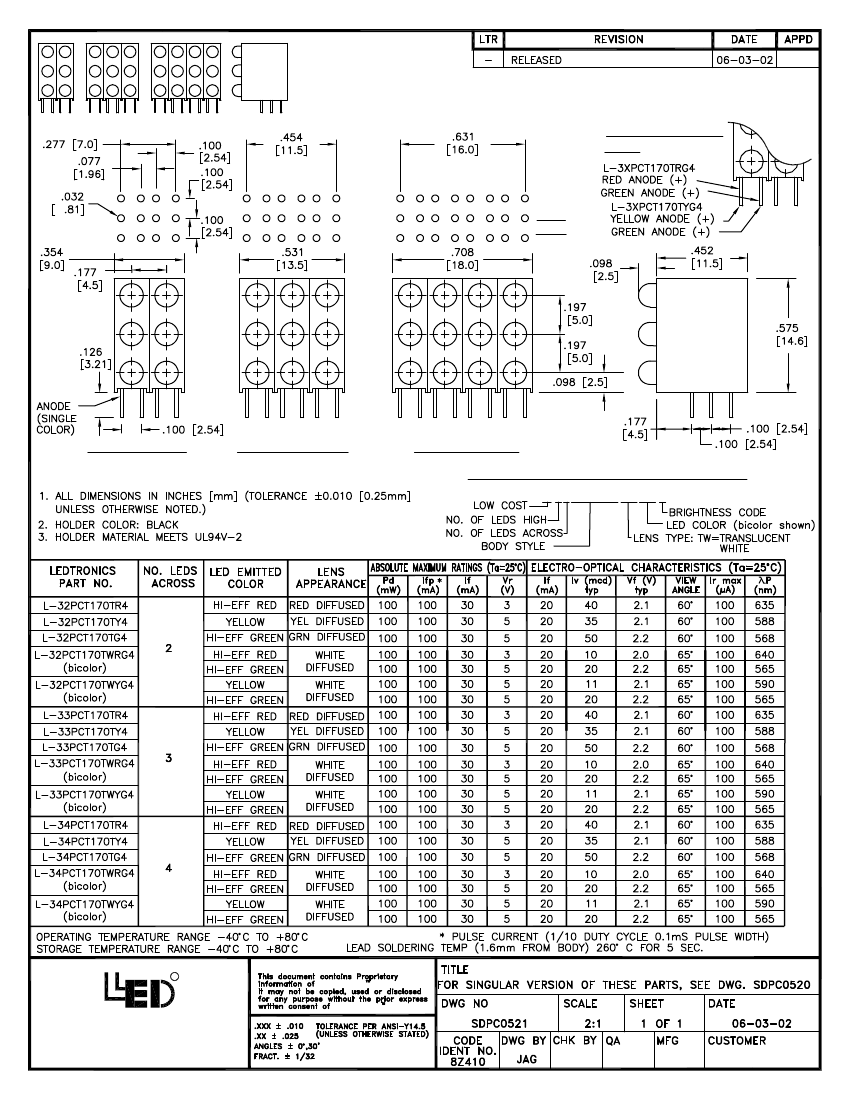

BICOLOR POLARITY

(TYP.)

∅

FOOT

TWO LED ARRAY

THREE LED ARRAY

FOUR LED ARRAY

ALL LEDS ON THE PART ARE THE SAME COLOR

L-32PCT170TWYG4

-PROPRIETARY-

LEDTRONICS, INC.

L-3XPCT170TXX -- MULTIPLE ARRAYS

LEDTRONICS, INC.

23105 KASHIWA COURT

TORRANCE, CA 90505

L-34PCT170TY4 Related Products

	L-34PCT170TY4	L-32PCT170TWYG4	L-32PCT170TWRG4	L-33PCT170TR4	L-34PCT170TR4	L-32PCT170TG4	L-34PCT170TWYG4	L-32PCT170TY4
Description	Single Color LED Array, Yellow, Diffused,	Dual Color LED Array, Yellow/high Efficiency Green, Diffused White,	Dual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White,	Single Color LED Array, High Efficiency Red, Diffused Red,	Single Color LED Array, High Efficiency Red, Diffused Red,	Single Color LED Array, High Efficiency Green, Diffused Green,	Dual Color LED Array, Yellow/high Efficiency Green, Diffused White,	Single Color LED Array, Yellow, Diffused,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	YELLOW	YELLOW/HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY GREEN	YELLOW/HIGH EFFICIENCY GREEN	YELLOW
Configuration	SEPARATE, 12 ELEMENTS	6 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS	6 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS	SEPARATE, 9 ELEMENTS	SEPARATE, 12 ELEMENTS	SEPARATE, 6 ELEMENTS	12 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS	SEPARATE, 6 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED RED	DIFFUSED RED	DIFFUSED GREEN	DIFFUSED WHITE	DIFFUSED
Nominal luminous intensity	35.0 mcd	11.0/20.0 mcd	10.0/20.0 mcd	40.0 mcd	40.0 mcd	50.0 mcd	11.0/20.0 mcd	35.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	12	6	6	9	12	6	12	6
Number of terminals	24	12	12	18	24	12	24	12
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	14.6 mm	14.6 mm	14.6 mm	14.6 mm	14.6 mm	14.6 mm	14.6 mm	14.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	588 nm	590/565 nm	640/565 nm	635 nm	635 nm	568 nm	590/565 nm	588 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	65 deg	65 deg	60 deg	60 deg	60 deg	65 deg	60 deg
Base Number Matches	-	1	1	1	1	1	-	-
