501568-1449 datasheet, PDF - EEWORLD Datasheet

501568-1449: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size377KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

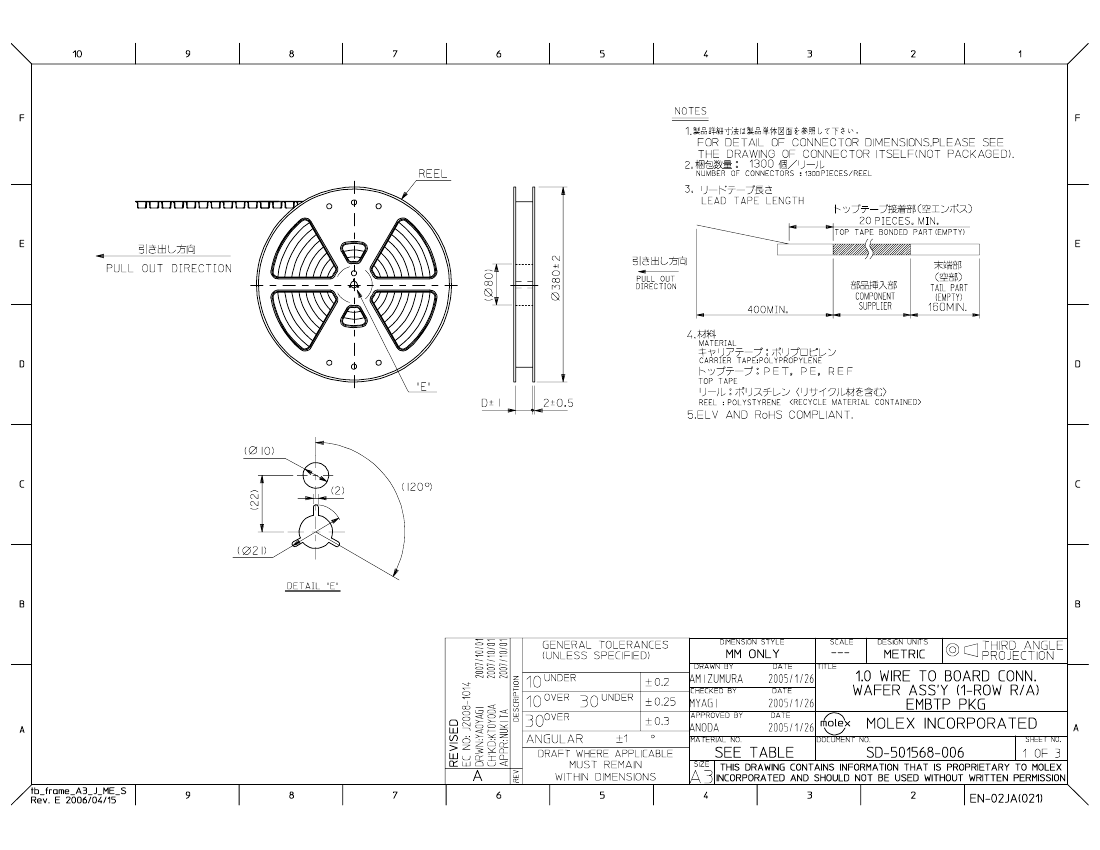

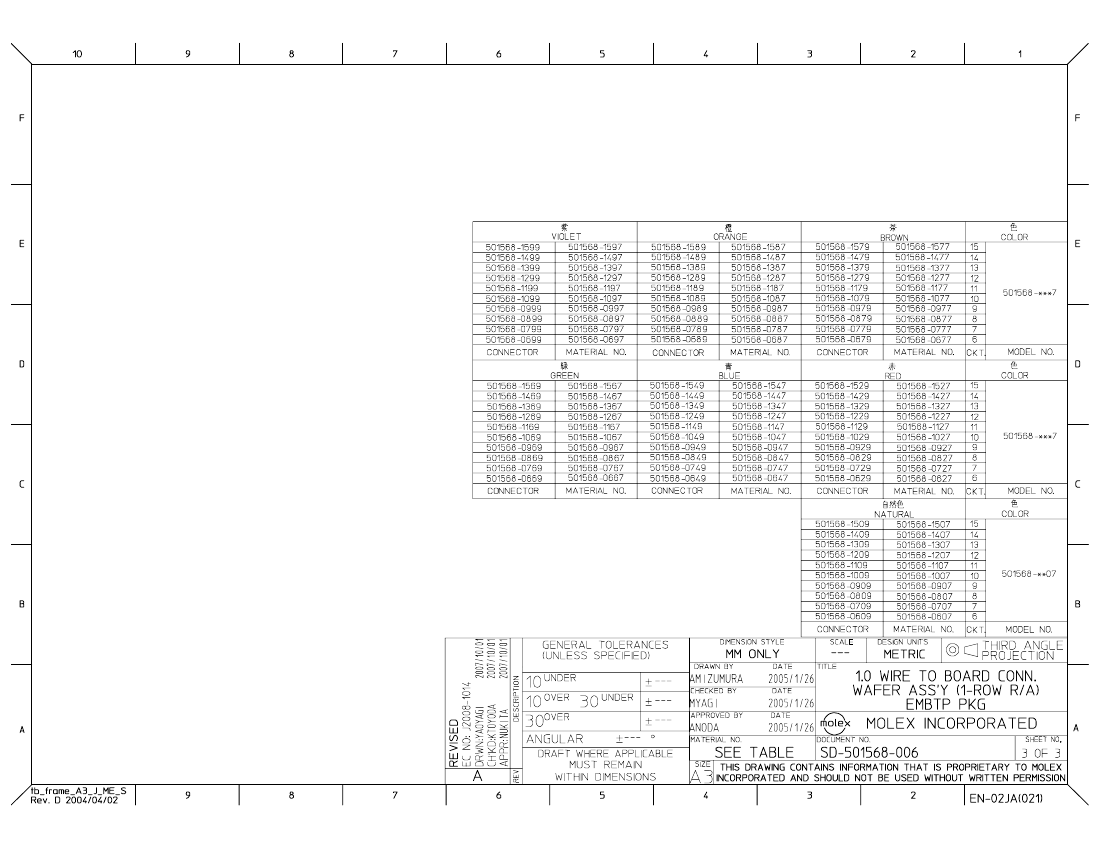

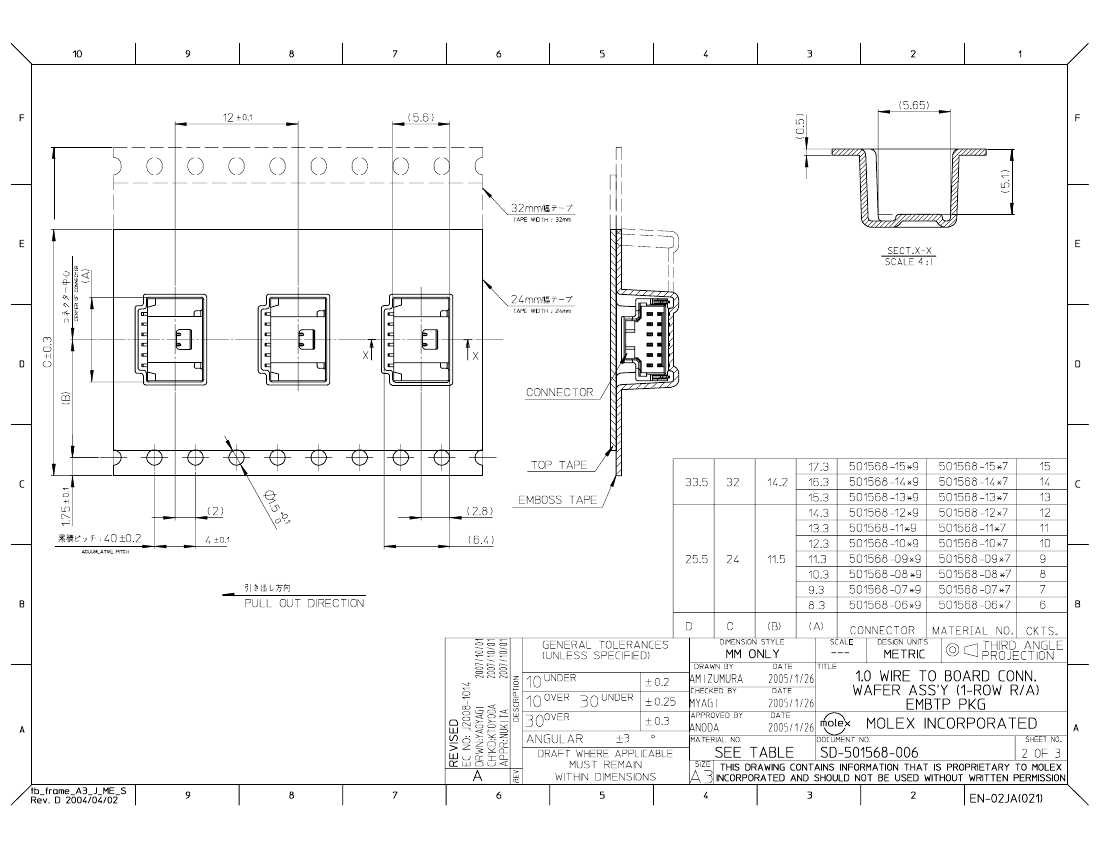

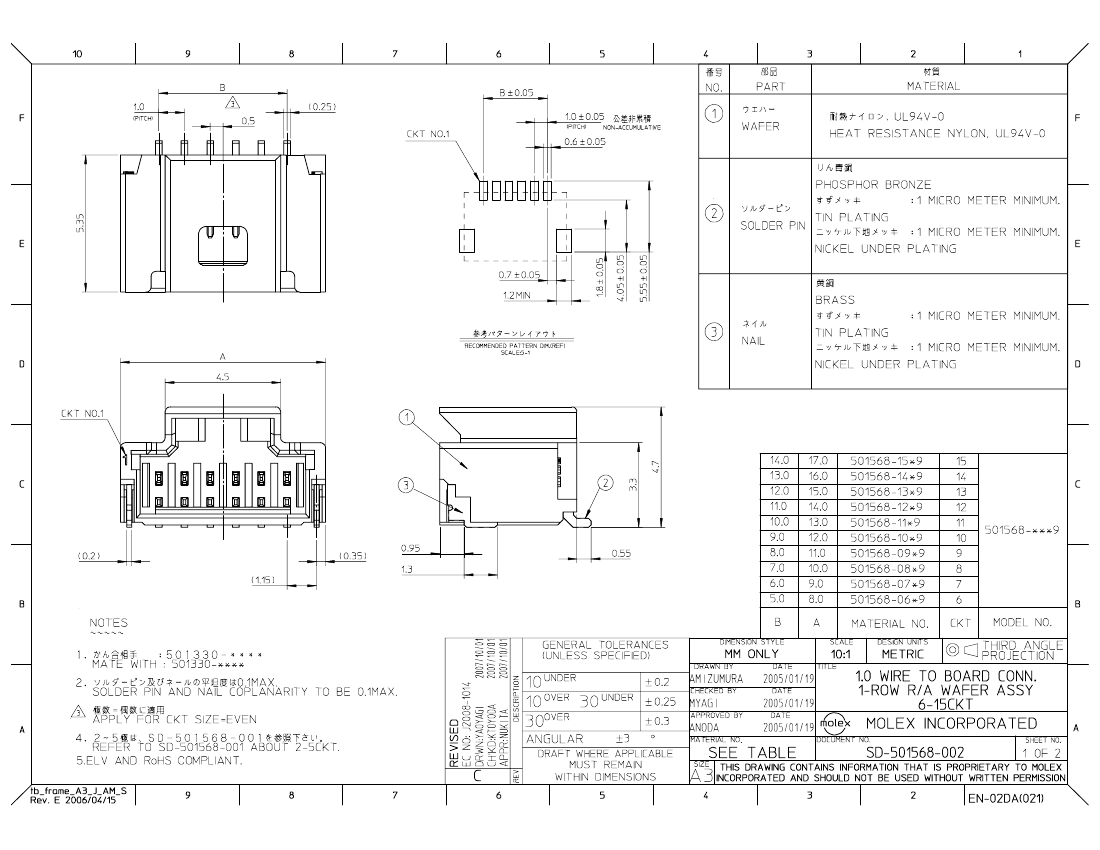

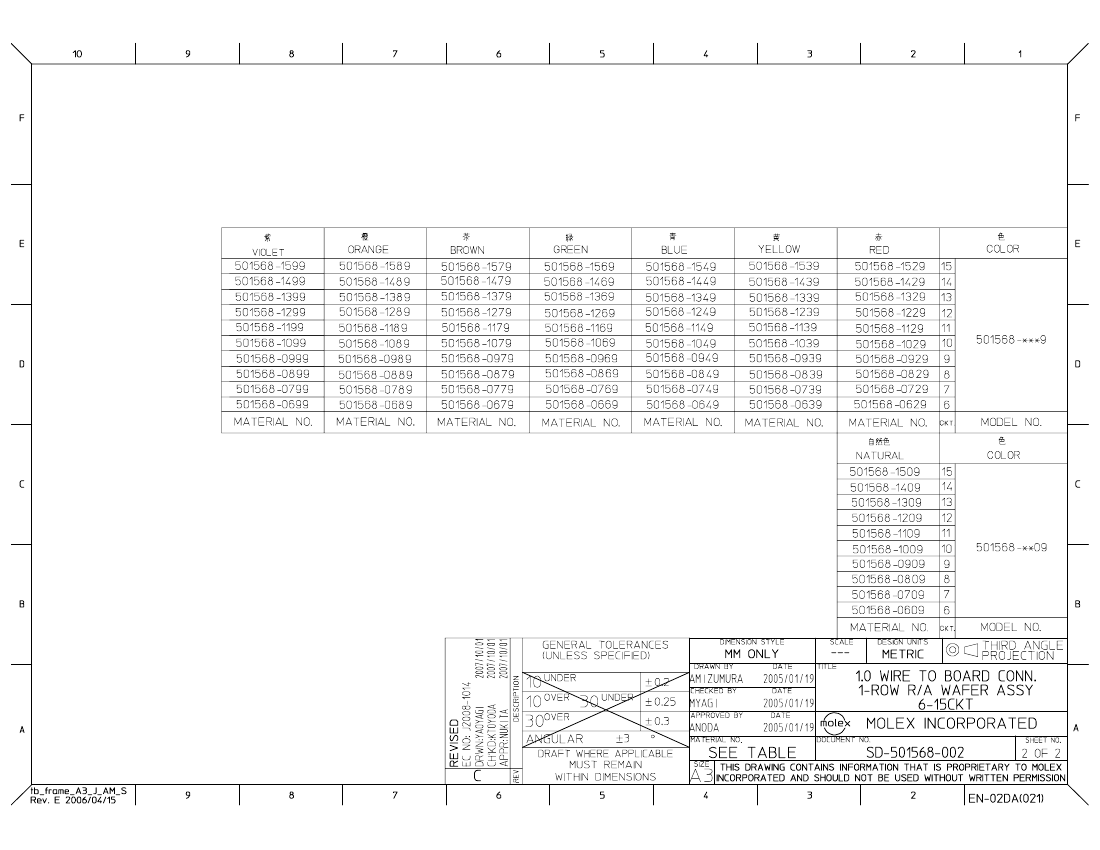

501568-1449 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

Parameter Name	Attribute value
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (39) OVER NICKEL
Contact completed and terminated	TIN (39) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	501568
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0
