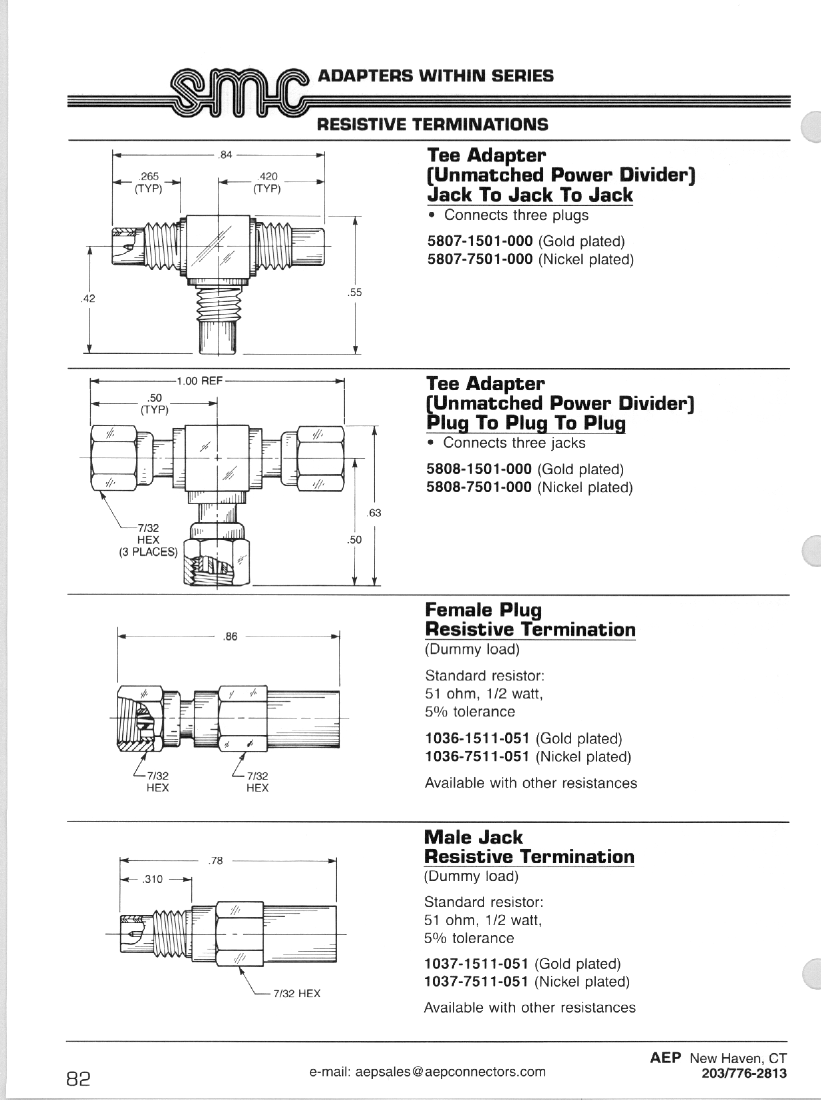

5807-7501-000

Description
RF Connector Adapter, SMC-SMC-SMC, Male-Male-Male, Jack
CategoryThe connector    The connector
File Size532KB，2 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric Compare View All

5807-7501-000 Overview

RF Connector Adapter, SMC-SMC-SMC, Male-Male-Male, Jack

5807-7501-000 Parametric

Parameter NameAttribute value
MakerRadiall
Reach Compliance Codeunknown
Adapter typeSMC-SMC-SMC
Other featuresSTANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact completed and terminatedNICKEL
Contact point genderMALE-MALE-MALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceYES
Manufacturer's serial number5807
Maximum operating frequency10 GHz
OptionsGENERAL PURPOSE
Panel mountingNO

Preview

Download Datasheet

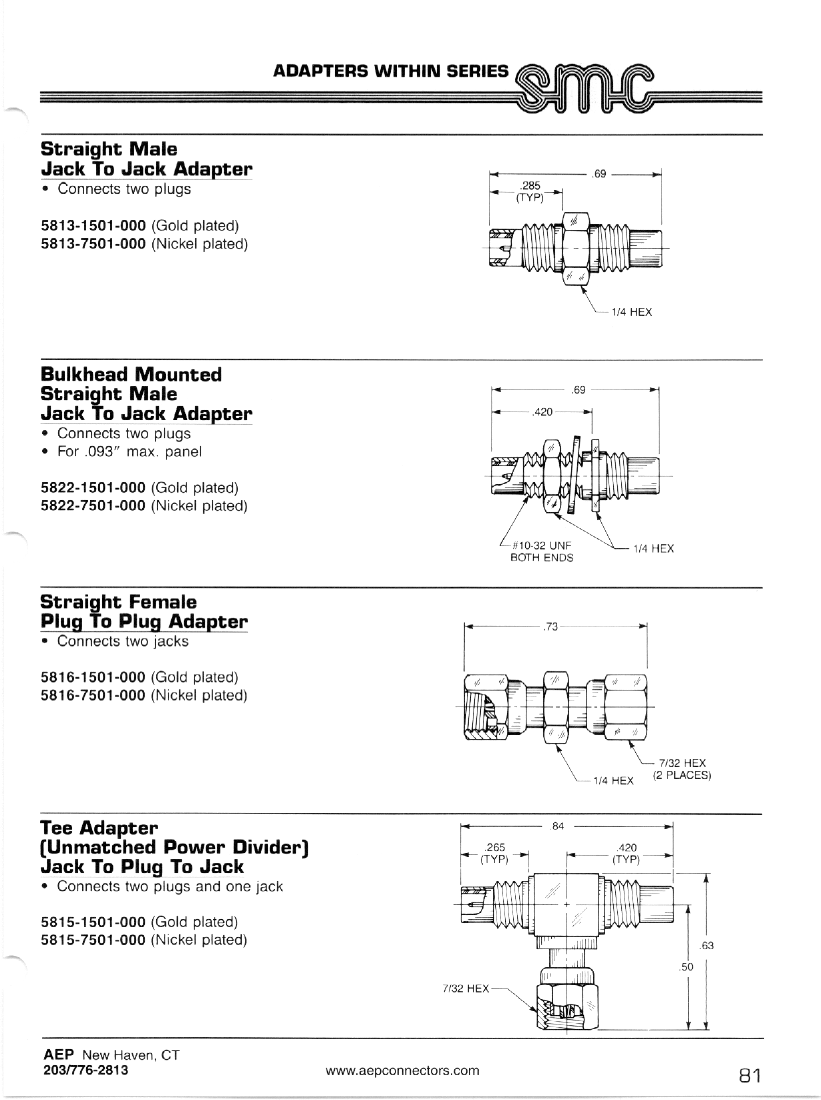

5807-7501-000 Related Products

5807-7501-000 5813-1501-000 5813-7501-000 5816-7501-000 5807-1501-000 5808-1501-000 5816-1501-000 5815-1501-000 5815-7501-000 5808-7501-000
Description RF Connector Adapter, SMC-SMC-SMC, Male-Male-Male, Jack RF Connector Adapter, SMC-SMC, Male-Male, Jack RF Connector Adapter, SMC-SMC, Male-Male, Jack RF Connector Adapter, SMC-SMC, Male-Male, Plug RF Connector Adapter, SMC-SMC-SMC, Male-Male-Male, Jack RF Connector Adapter, SMC-SMC-SMC, Female-Female-Female, Plug RF Connector Adapter, SMC-SMC, Male-Male, Plug RF Connector Adapter, SMC-SMC-SMC, Male-Female-Male, Jack-plug-jack RF Connector Adapter, SMC-SMC-SMC, Male-Female-Male, Jack-plug-jack RF Connector Adapter, SMC-SMC-SMC, Female-Female-Female, Plug
Maker Radiall Radiall Radiall Radiall Radiall Radiall Radiall Radiall Radiall Radiall
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknow
Adapter type SMC-SMC-SMC SMC-SMC SMC-SMC SMC-SMC SMC-SMC-SMC SMC-SMC-SMC SMC-SMC SMC-SMC-SMC SMC-SMC-SMC SMC-SMC-SMC
Other features STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 4 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ
Body/casing type JACK JACK JACK PLUG JACK PLUG PLUG JACK-PLUG-JACK JACK-PLUG-JACK PLUG
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
Connector type RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER
Contact completed and terminated NICKEL GOLD NICKEL NICKEL GOLD GOLD GOLD GOLD NICKEL NICKEL
Contact point gender MALE-MALE-MALE MALE-MALE MALE-MALE MALE-MALE MALE-MALE-MALE FEMALE-FEMALE-FEMALE MALE-MALE MALE-FEMALE-MALE MALE-FEMALE-MALE FEMALE-FEMALE-FEMALE
Coupling type THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
insulator material POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE
MIL compliance YES YES YES YES YES YES YES YES YES YES
Manufacturer's serial number 5807 5813 5813 5816 5807 5808 5816 5815 5815 5808
Maximum operating frequency 10 GHz 10 GHz 10 GHz 10 GHz 10 GHz 10 GHz 10 GHz 10 GHz 10 GHz 10 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO NO NO NO NO NO NO NO NO
